2 in 1 Full Automatic Galvanized Steel Door Frame Roll Forming Machine Steel Door Frame Making Machine ZTRFM+0-20m/min(Or as customers' request)+As the profile drawing

Name: 2 in 1 Full Automatic Galvanized Steel Door Frame Roll Forming Machine Steel Door Frame Making Machine ZTRFM+0-20m/min(Or as customers' request)+As the profile drawing
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT83458858

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZTRFM

Production Capacity:

0-20m/min(Or as customers' request)

Max. Working Width:

As the profile drawing

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Voltage
380V,50HZ,3PH(Or as customers' request)
Power(W)
27.5kw
Applicable Material
Stainless Steel, Carbon Steel, Aluminum, Galvanized steel

Product Description

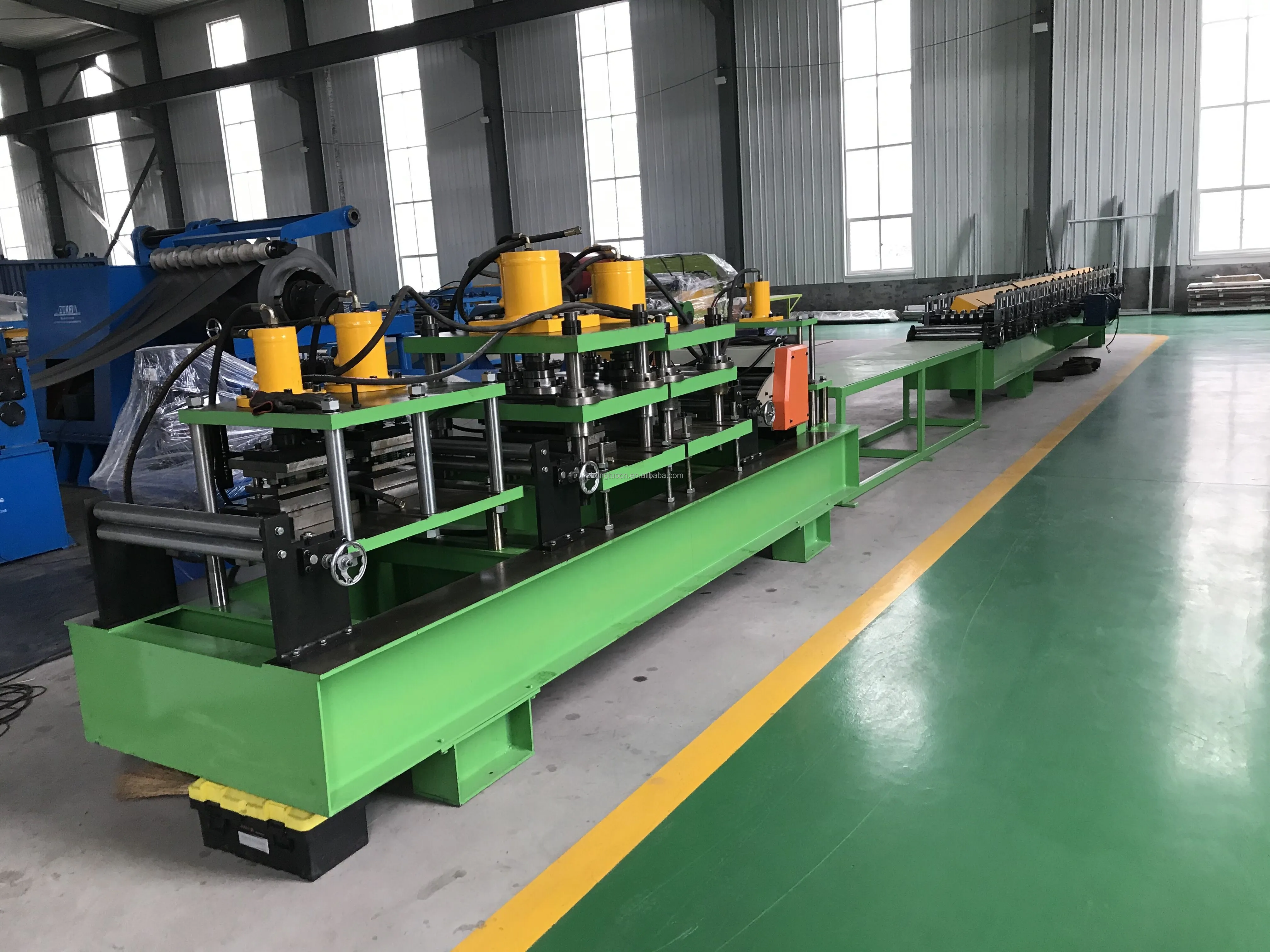

2 in 1 Full automatic galvanized steel door frame roll forming machine steel door frame making machine

2 in 1 Full automatic galvanized steel door frame roll forming machine steel door frame making machine is to produce the door frames,one machine can produce 2 sizes.
Advantages of 2 in 1 Full automatic galvanized steel door frame roll forming machine steel door frame making machine

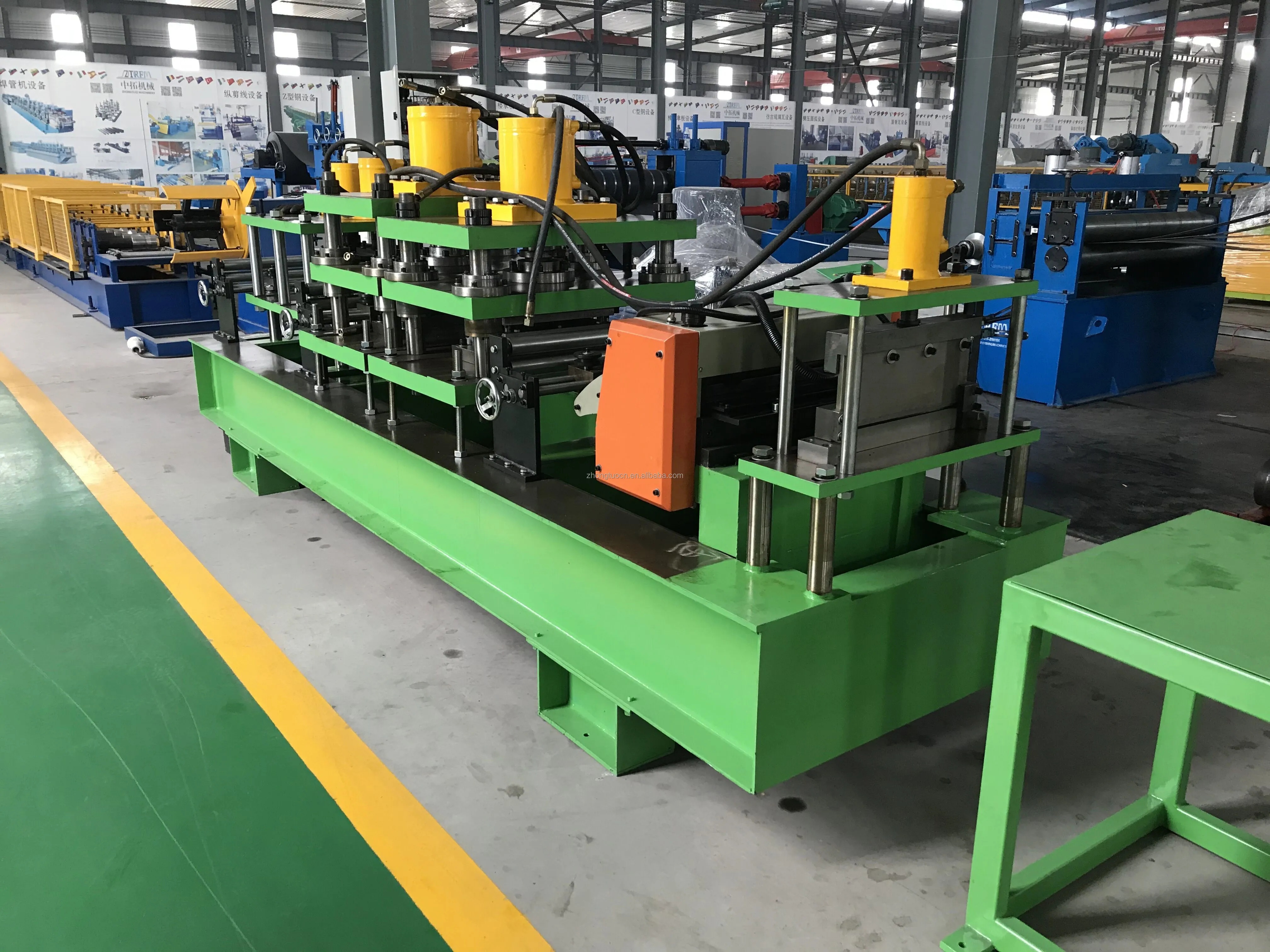

1. Full automatic: Punch holes and corners in the machine,no need to weld the corner after produced.

2. One machine can produce two sizes by changing the spacer bush

3. Easy operation.

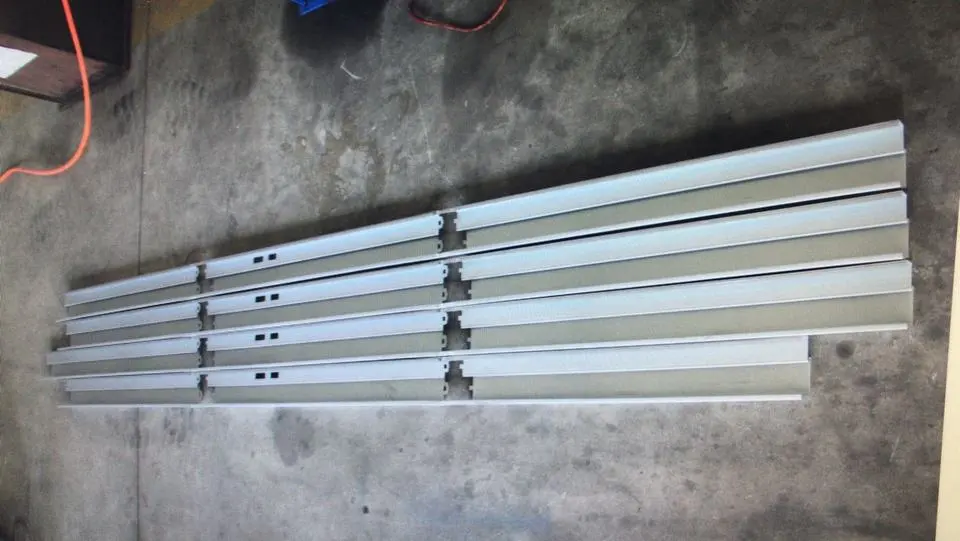

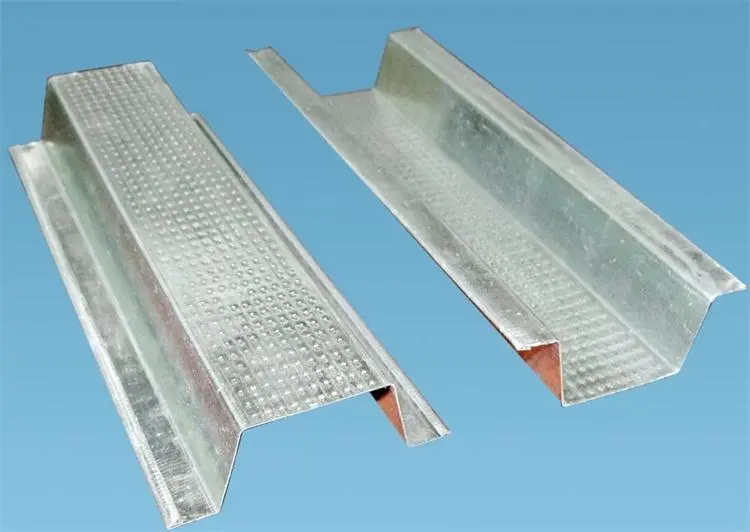

Finished product drawing and picture:

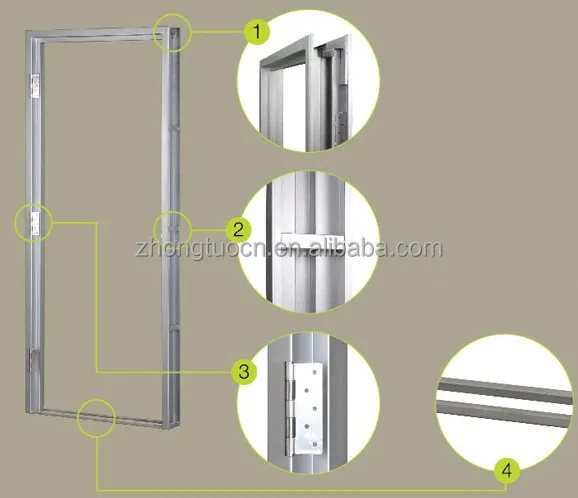

Installation of the door frame:

2 in 1 Full automatic galvanized steel door frame roll forming machine steel door frame making machine
1.Formed Material	GI		Thickness:1-1.5mm
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）

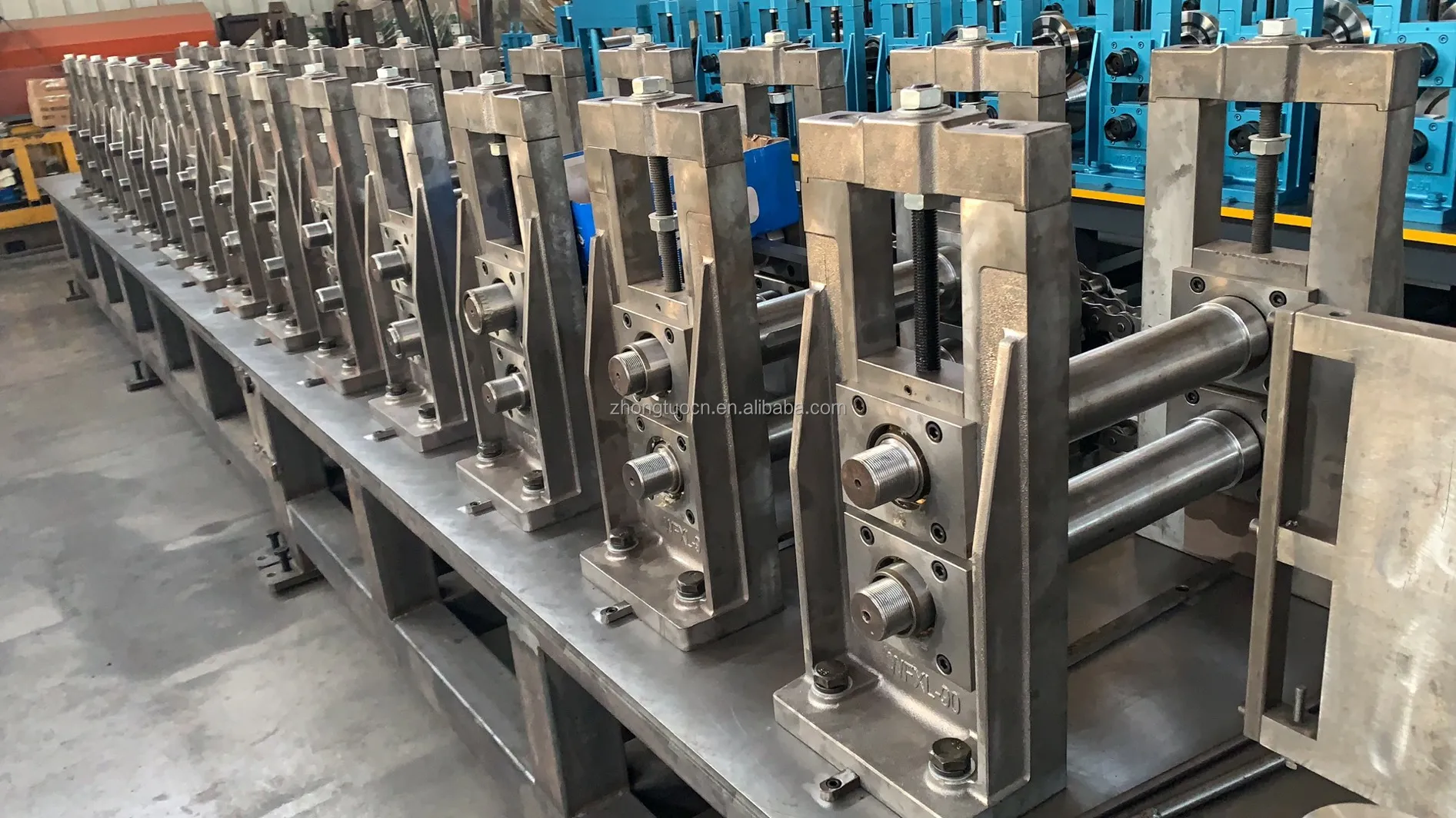

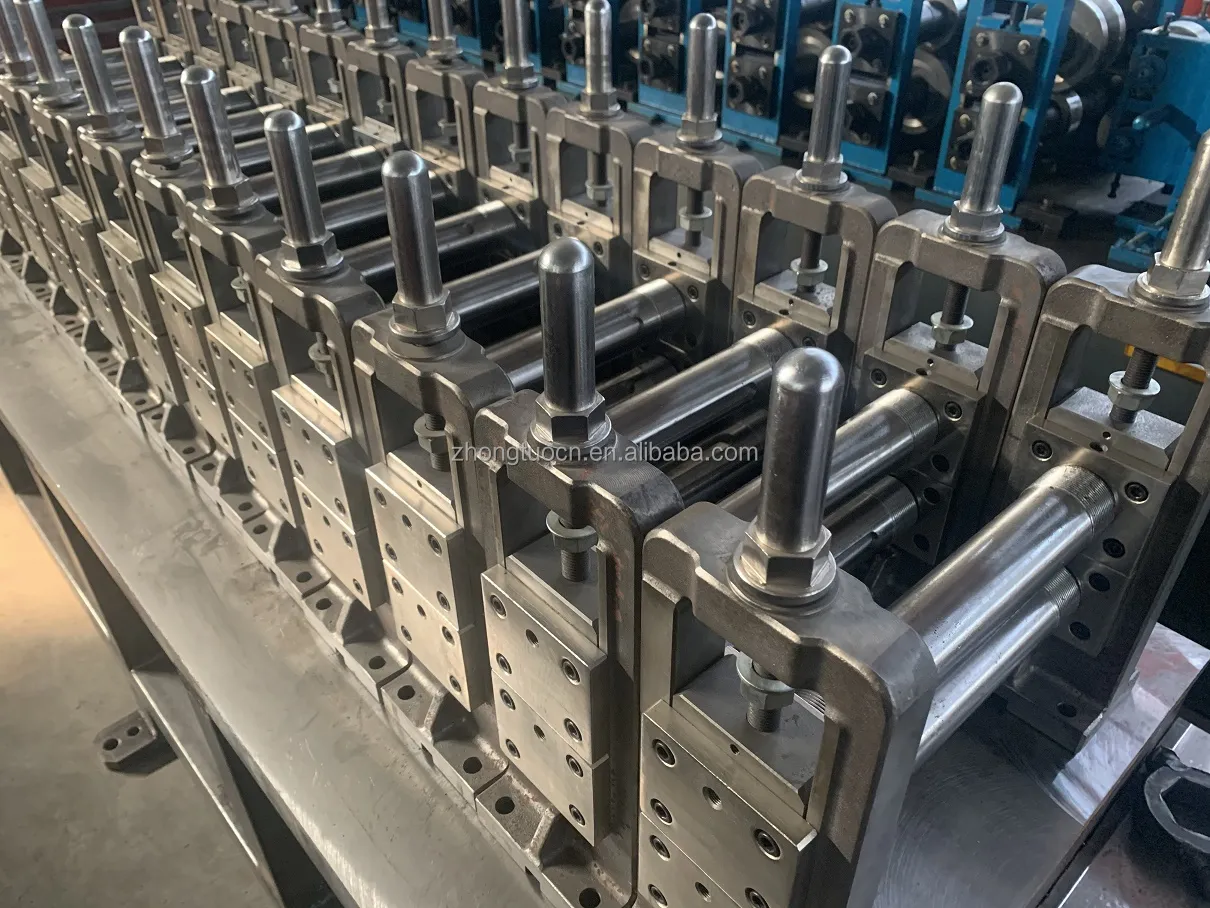

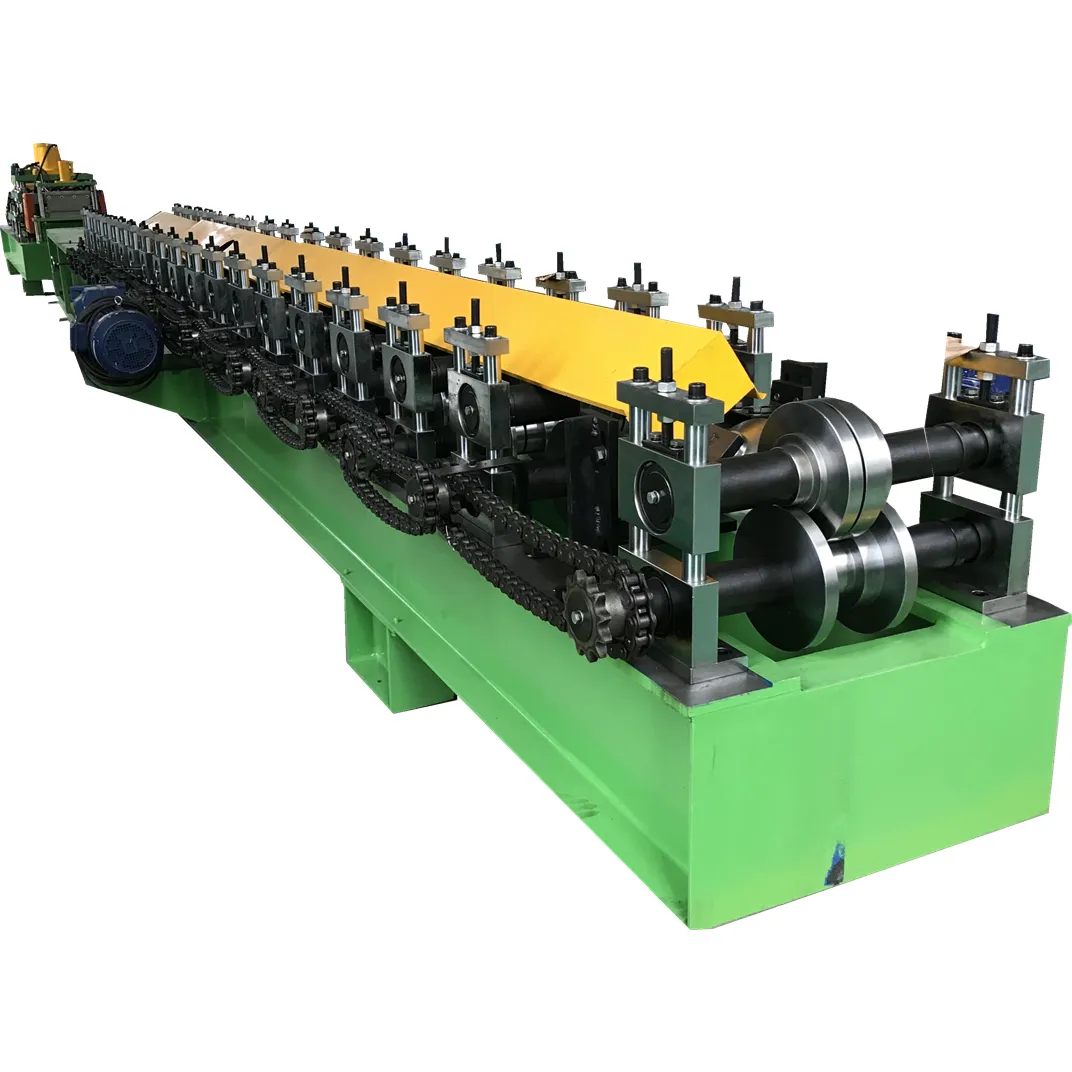

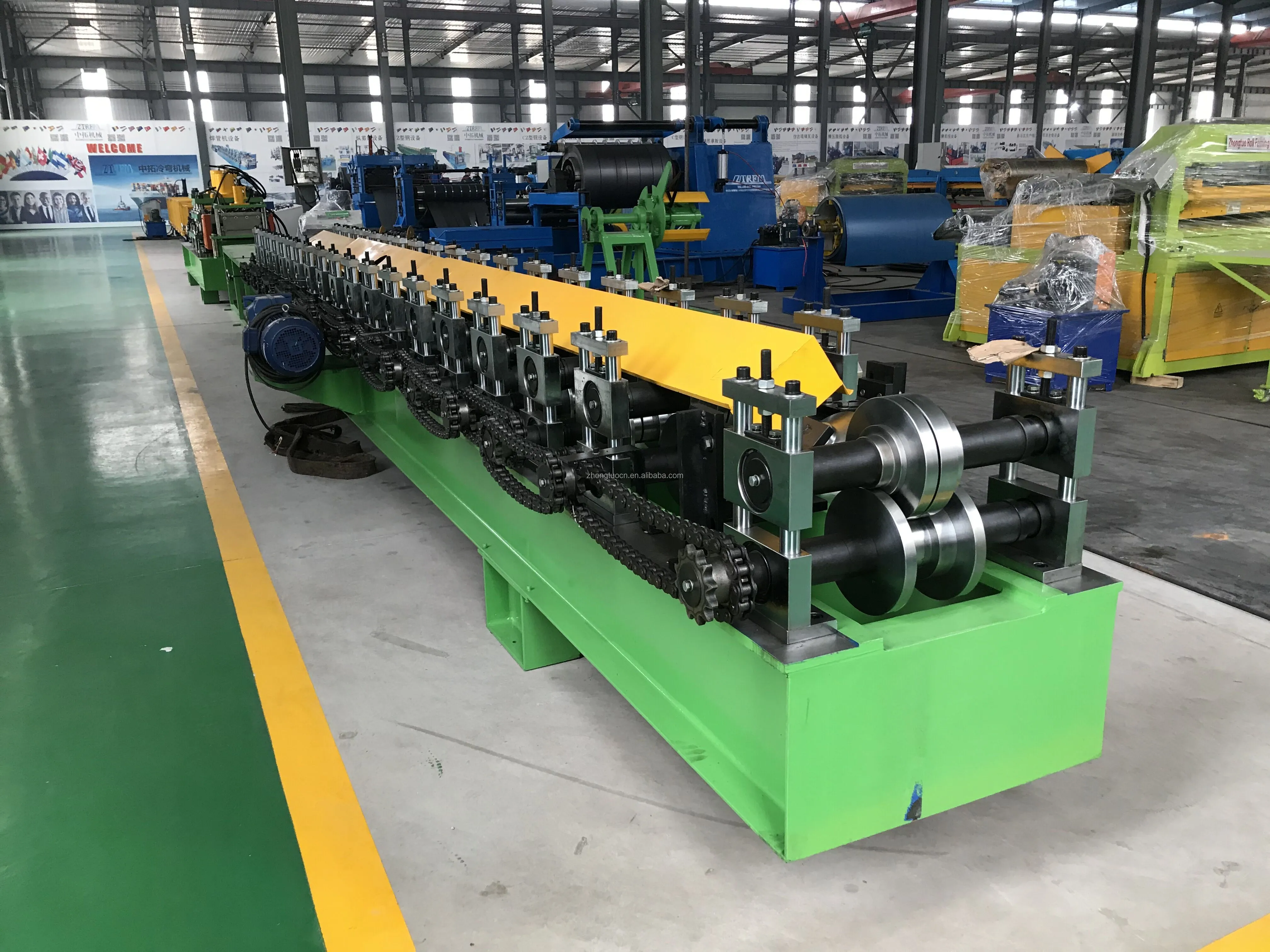

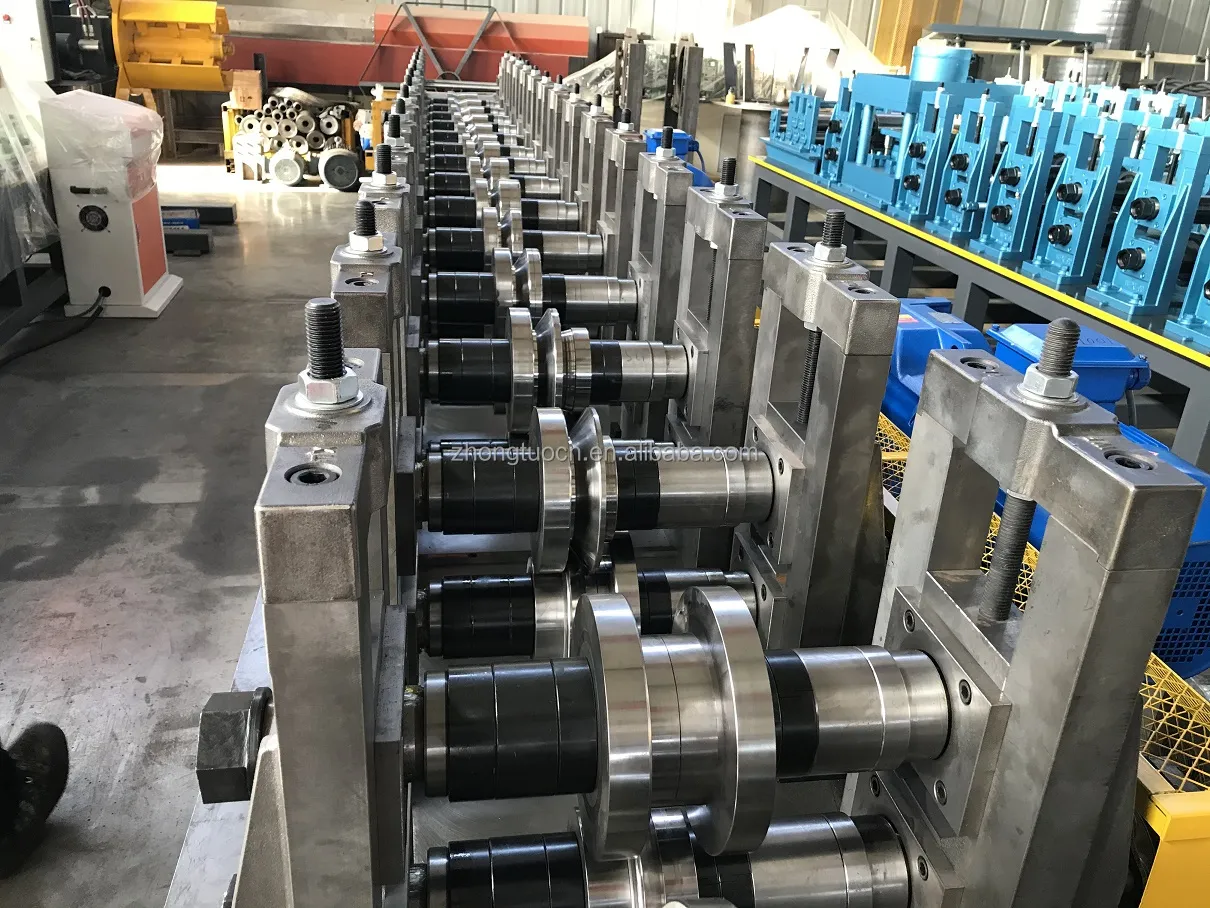

3.Main body	Roller station		19 rows(As your requirement)
		Diameter of shaft		70mm solid shaft

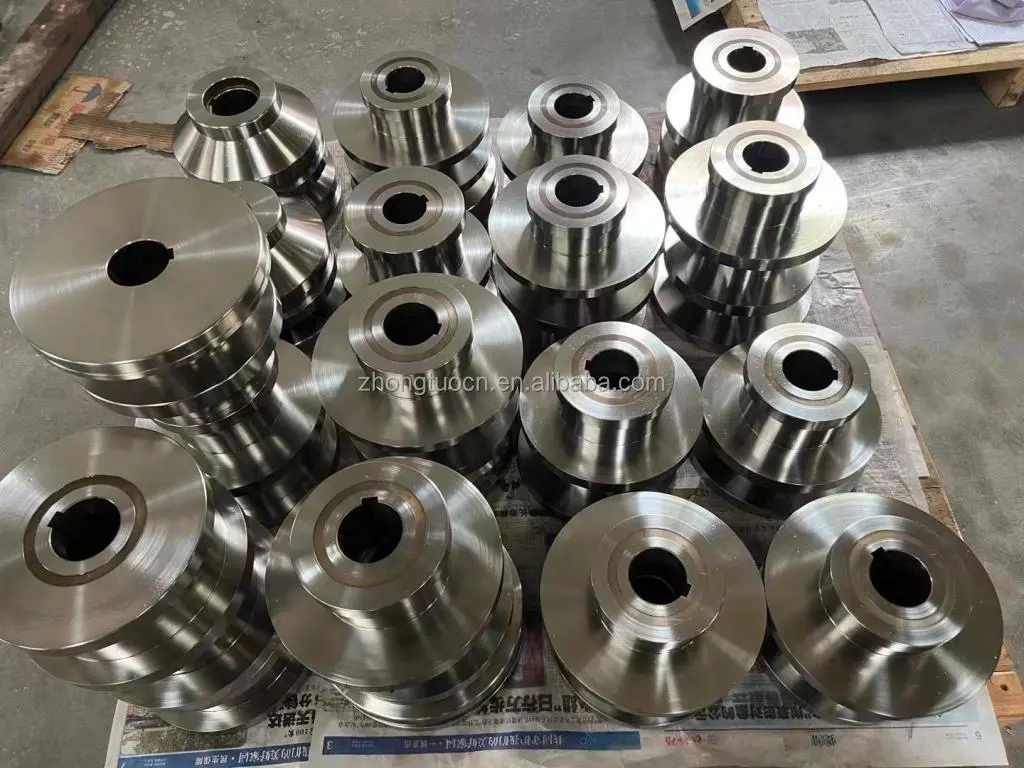

		Material of rollers		45# steel, hard chrome plated on the surface

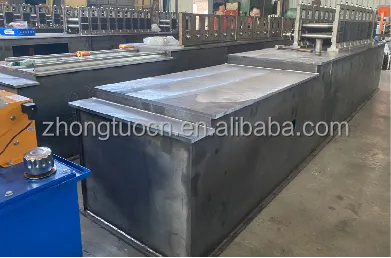

		Machine body frame		Metal steel welded

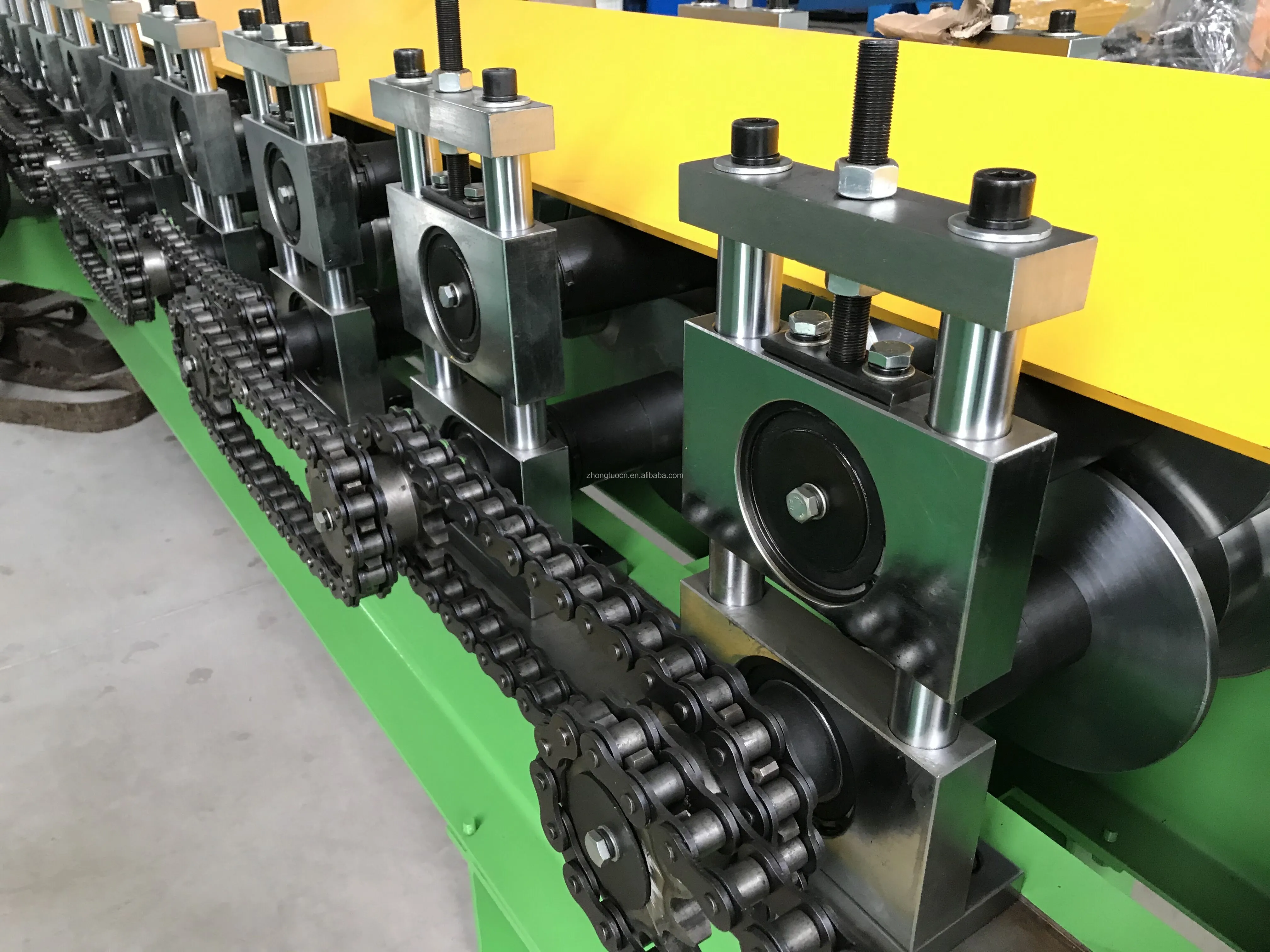

		Drive		Chain transmission
		Dimension(LWH)		125008001200(customize)
		Weight		About 8.5T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5KW

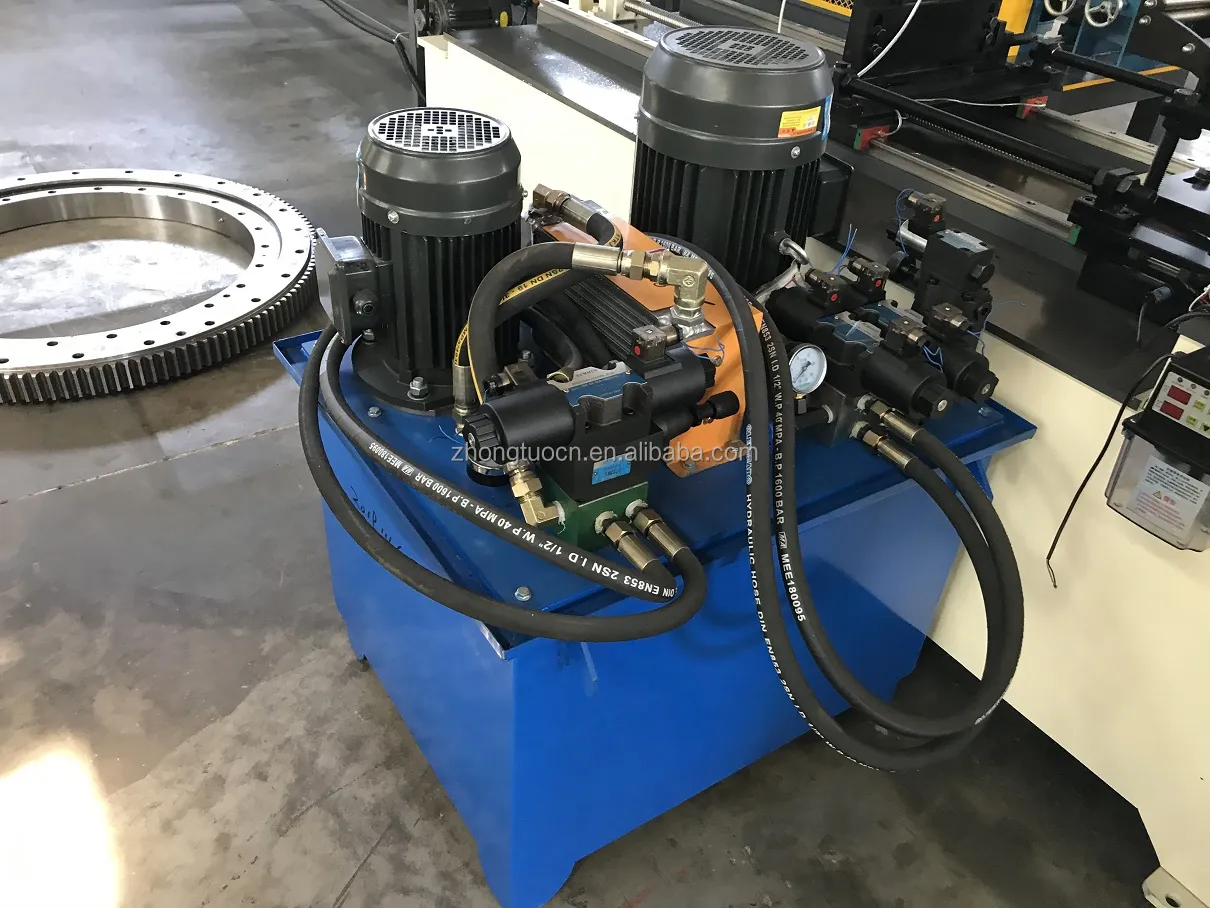

		Hydraulic system power		11KW
6.Voltage	380V 50Hz 3Phase		As your requirement

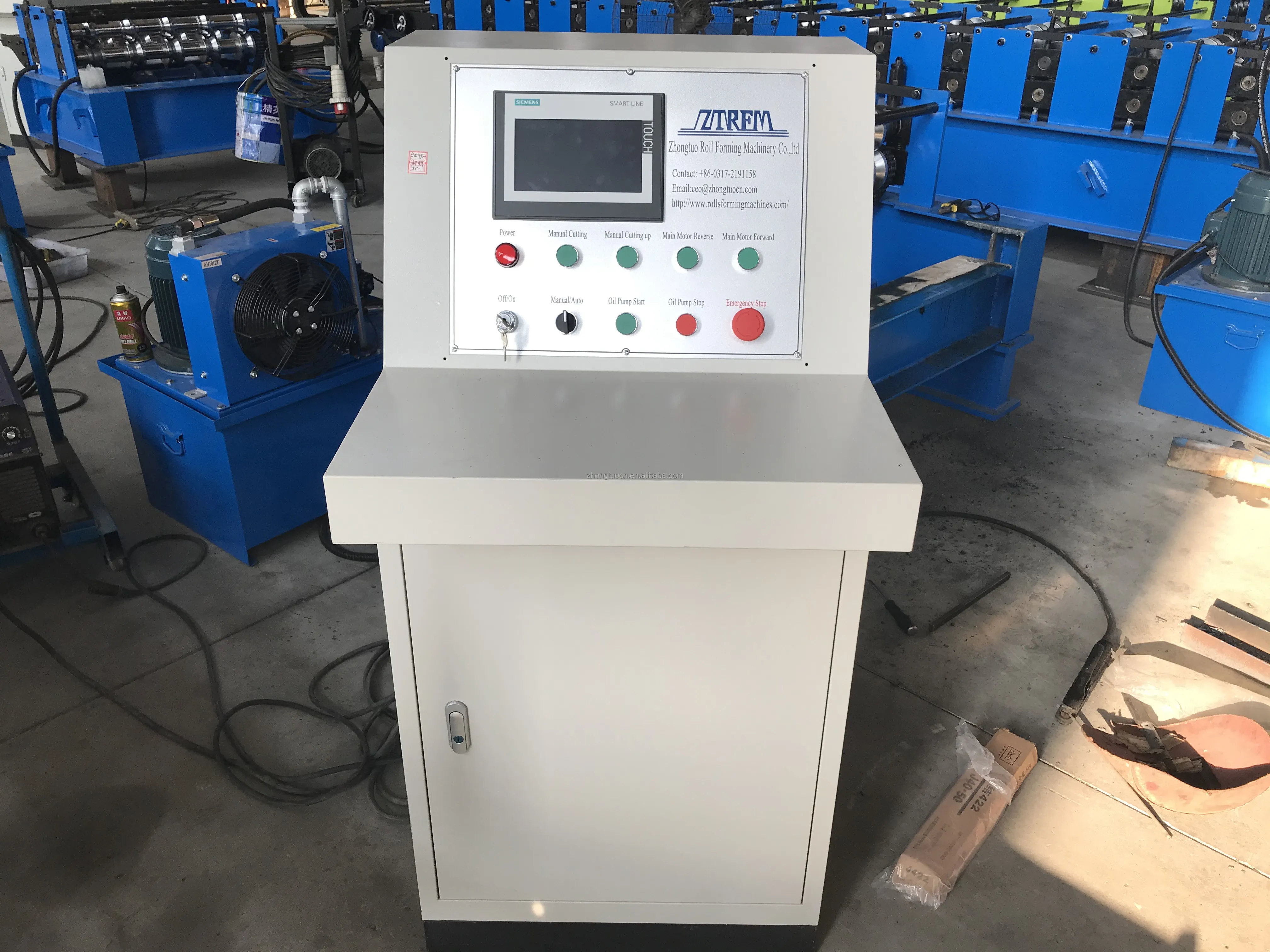

7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	0-20m/min(customized)		Speed is different as per the hole's size.

Cooperated brand

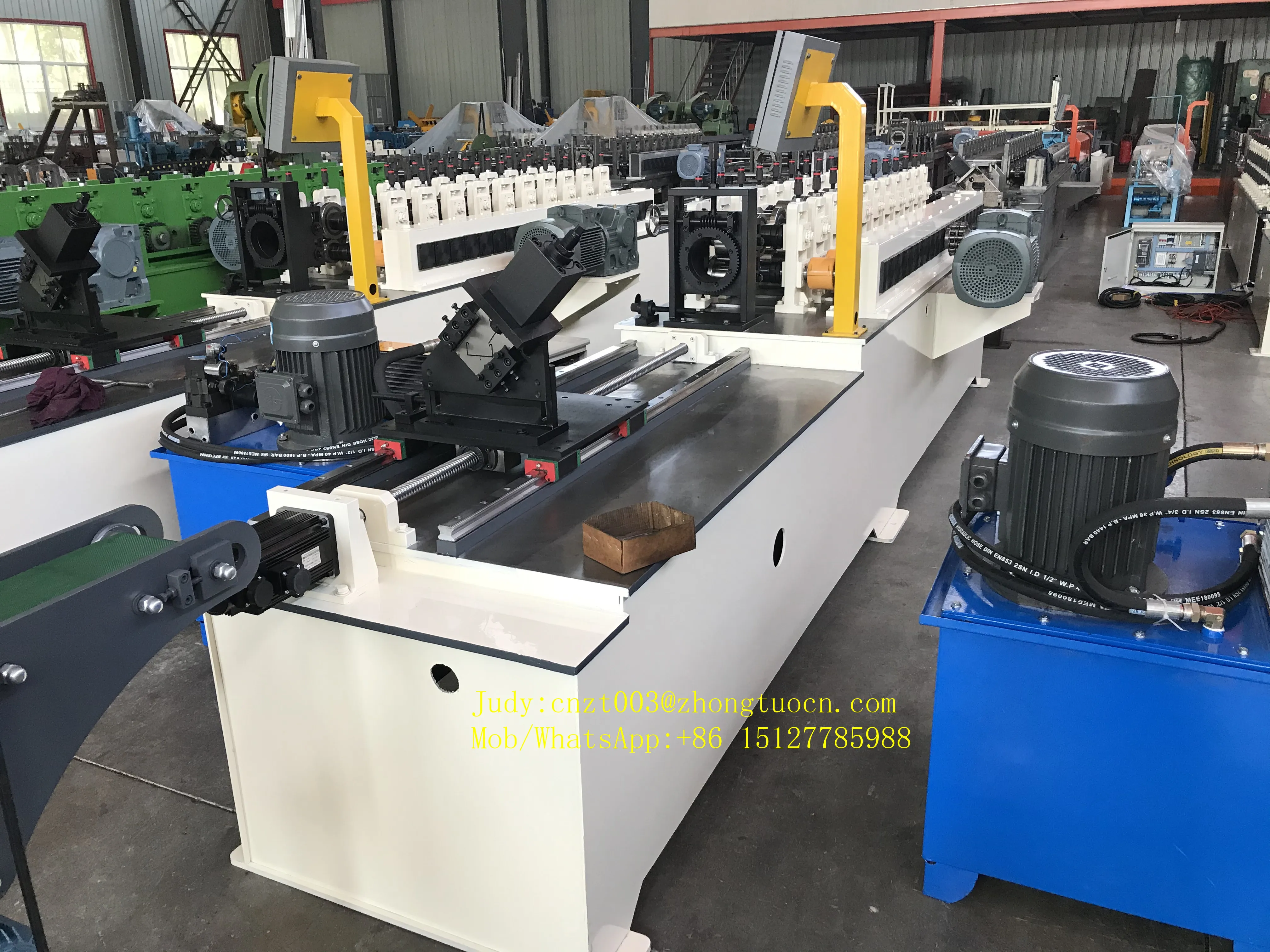

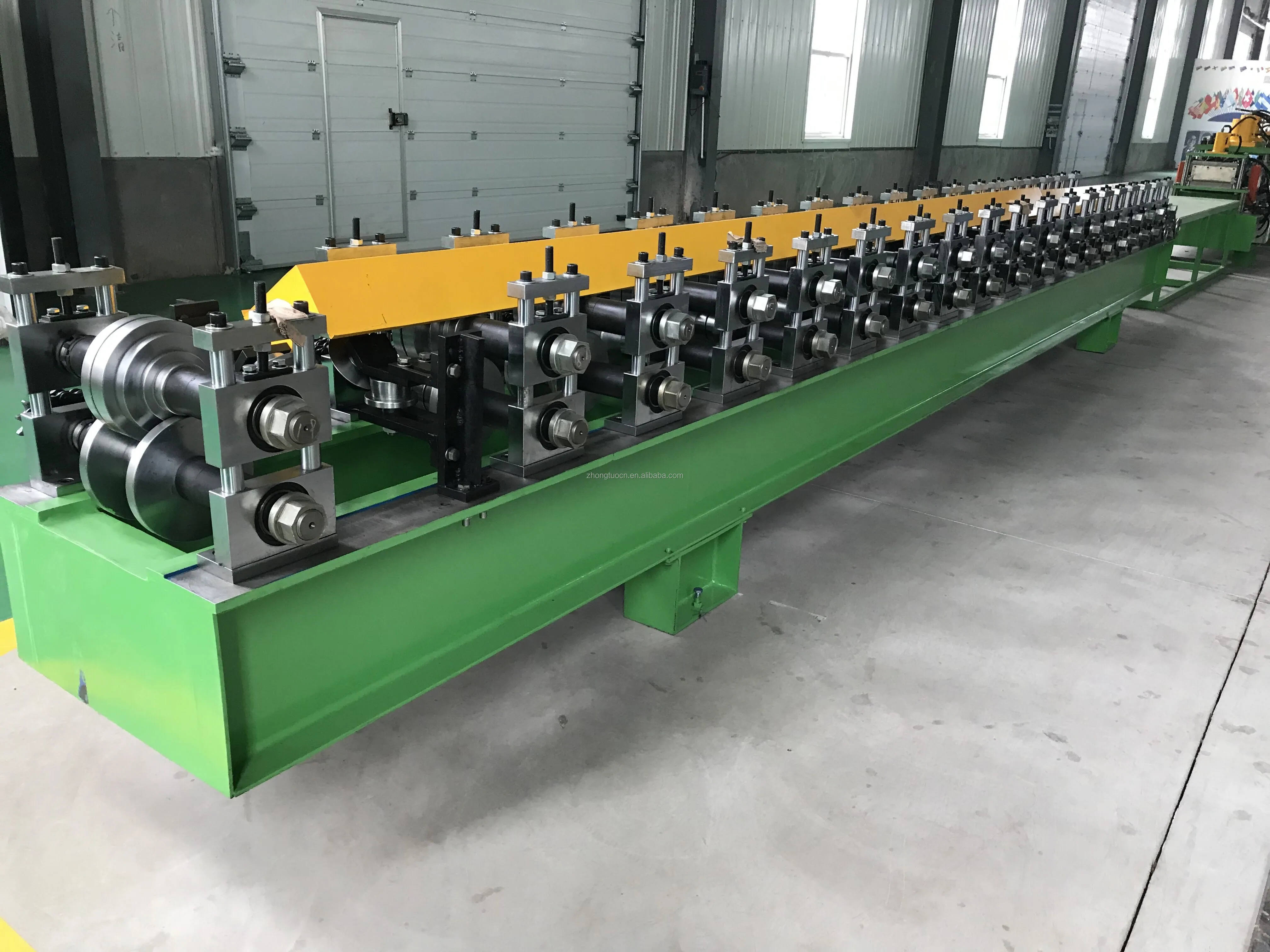

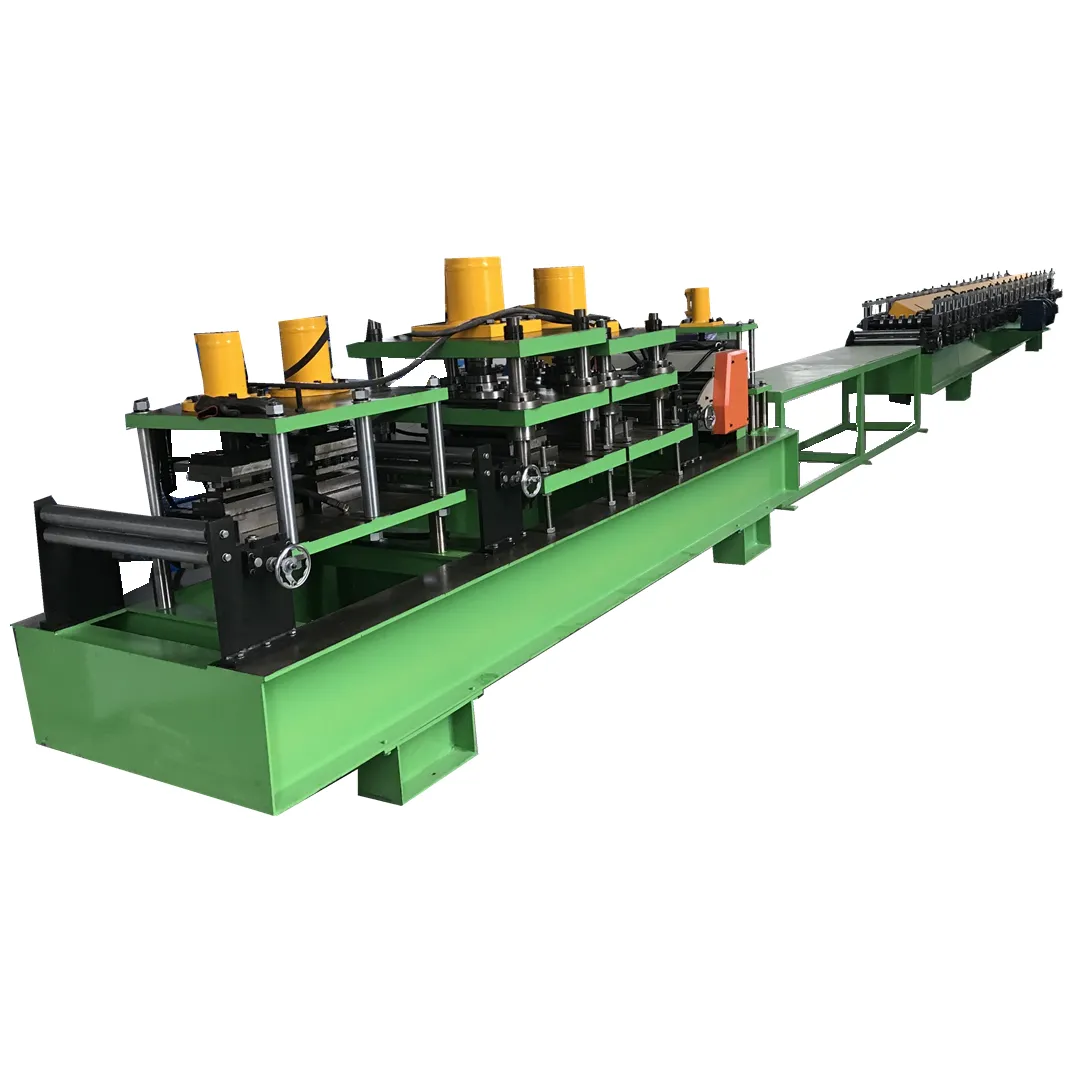

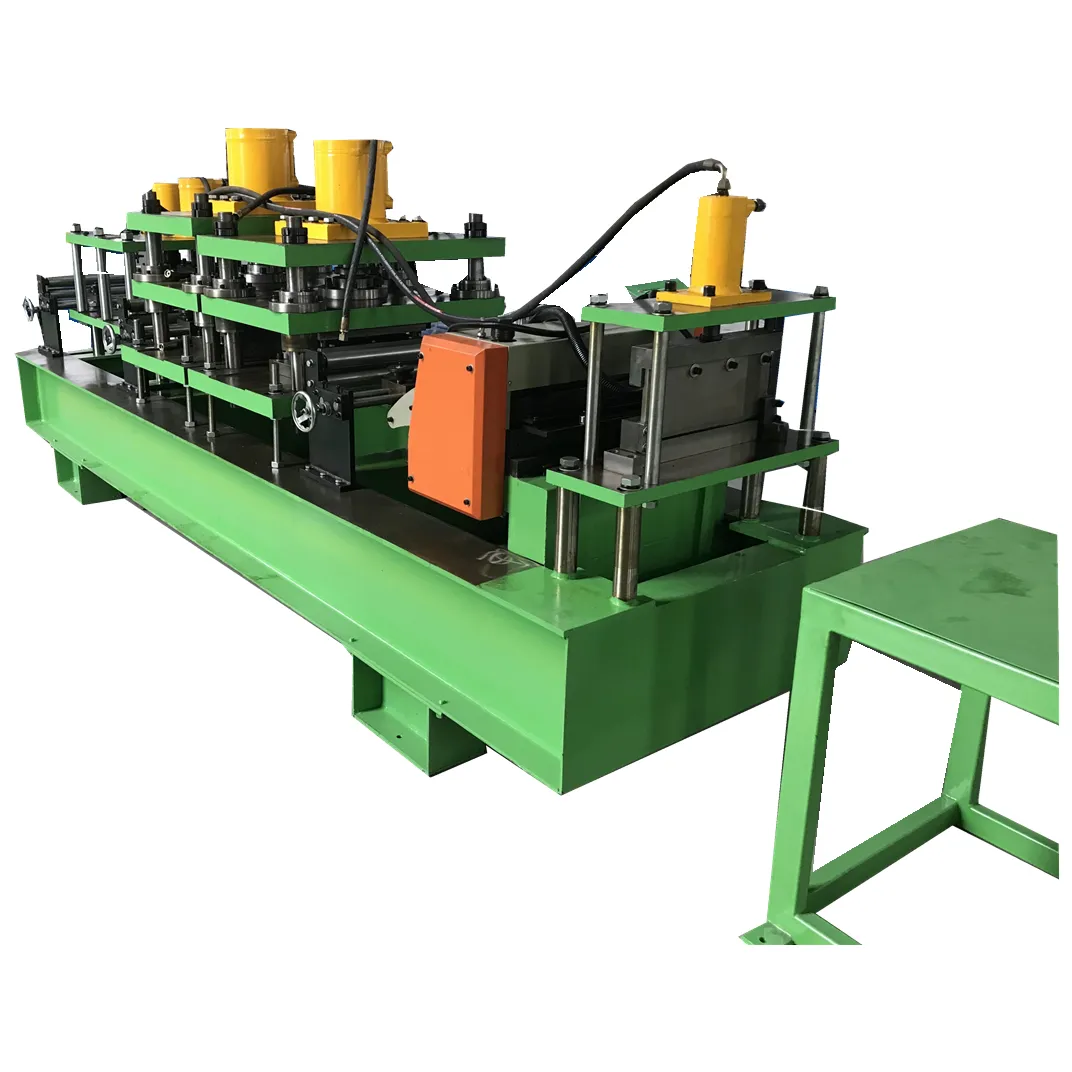

Products Display

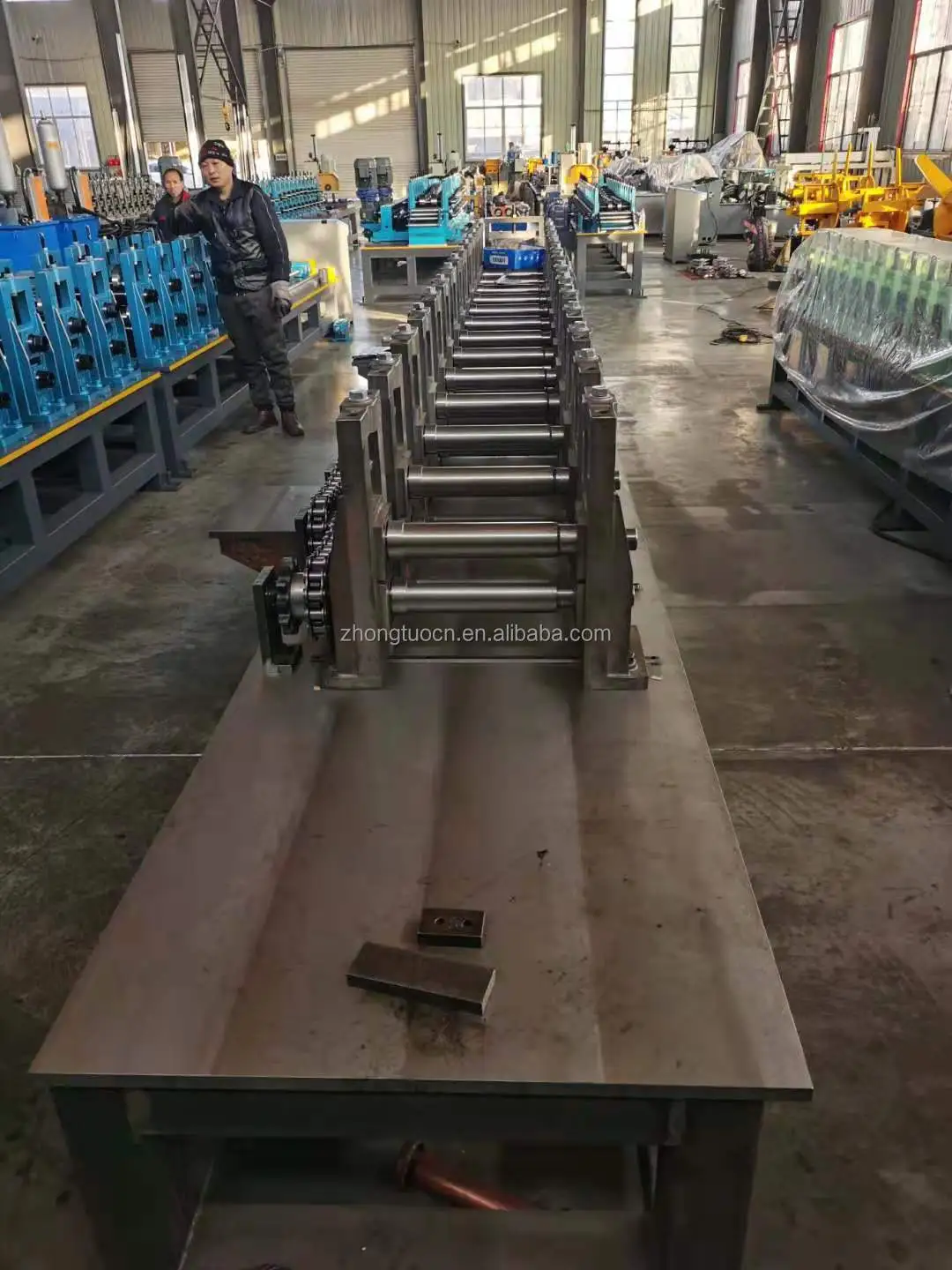

Production process

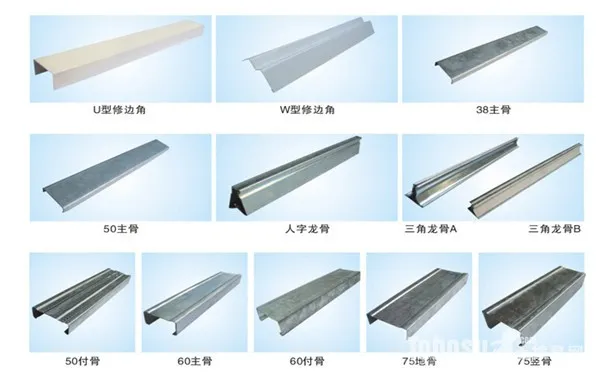

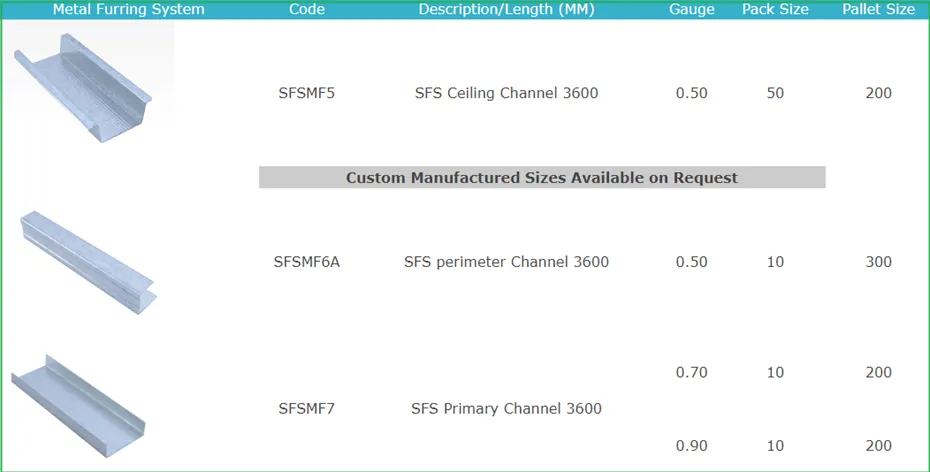

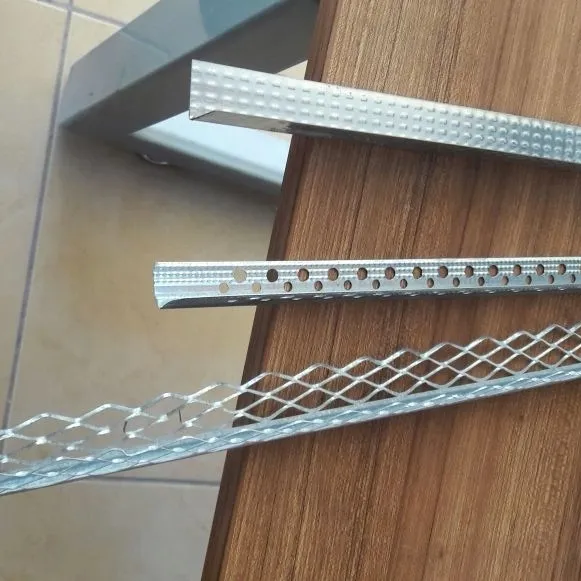

Machines are customized as your drawing,here hot sale drawing profiles for your reference.

Why Choose Us

Company Profile

Product packaging

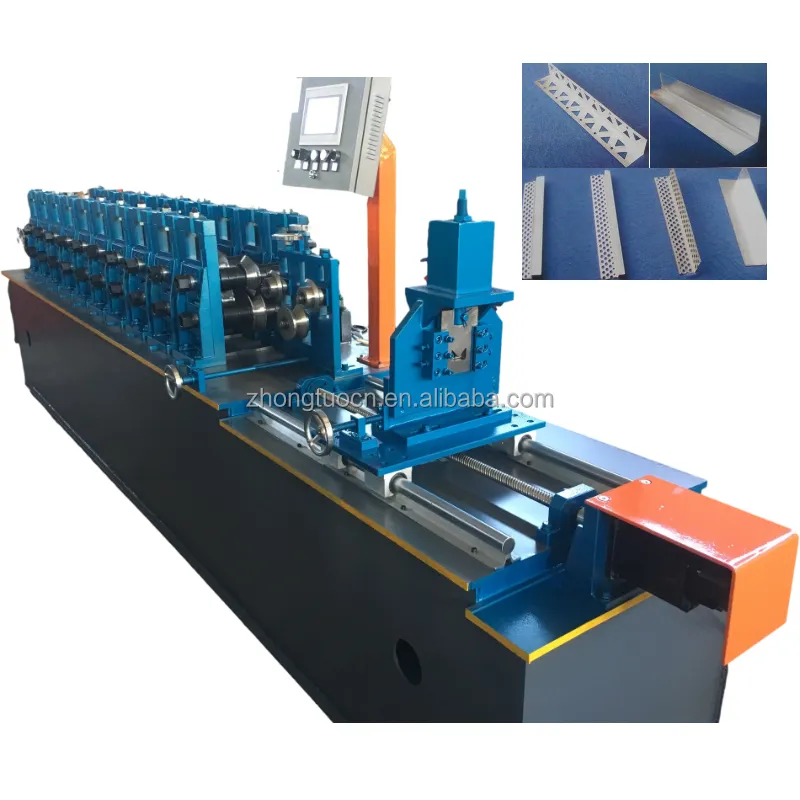

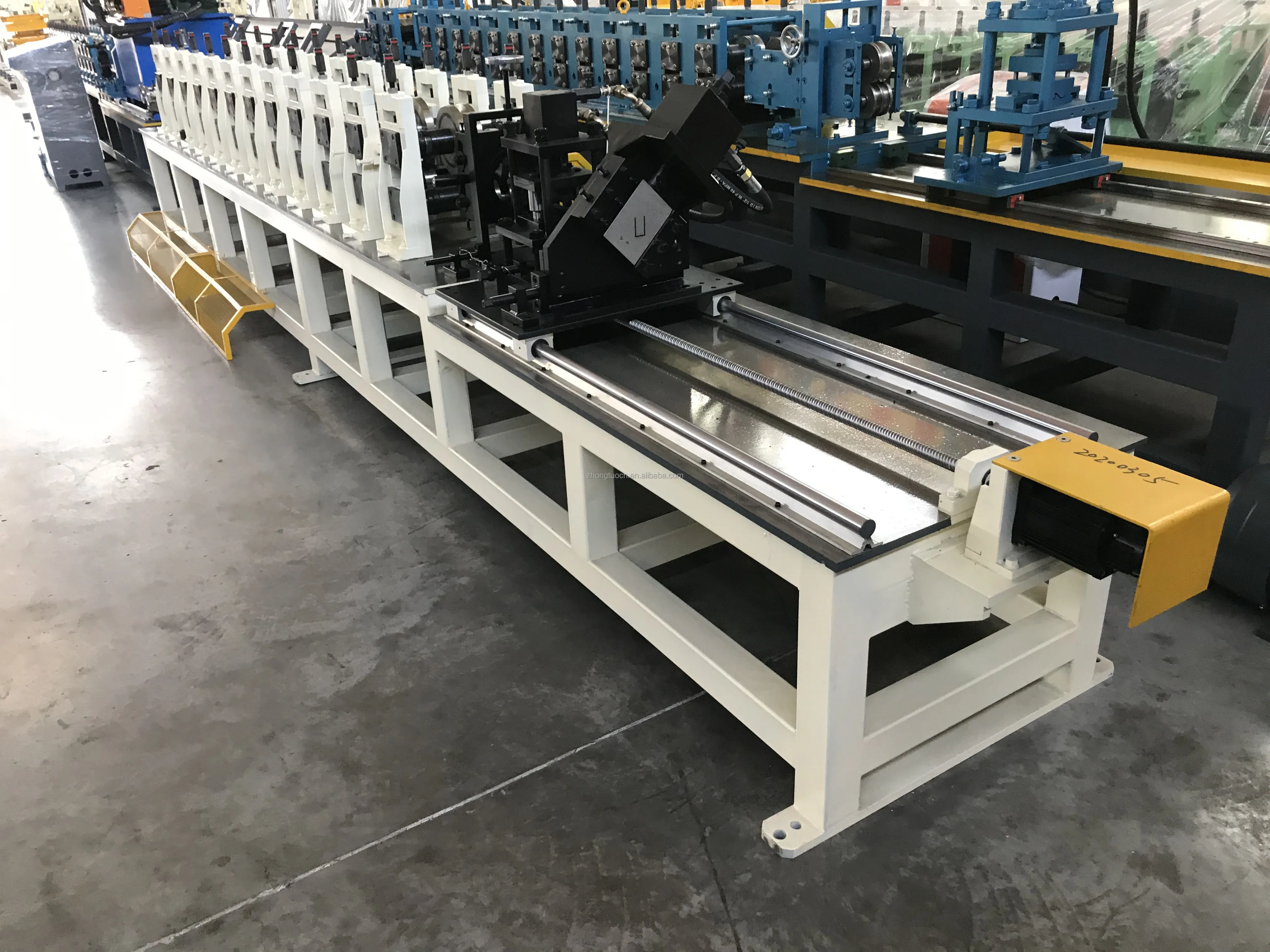

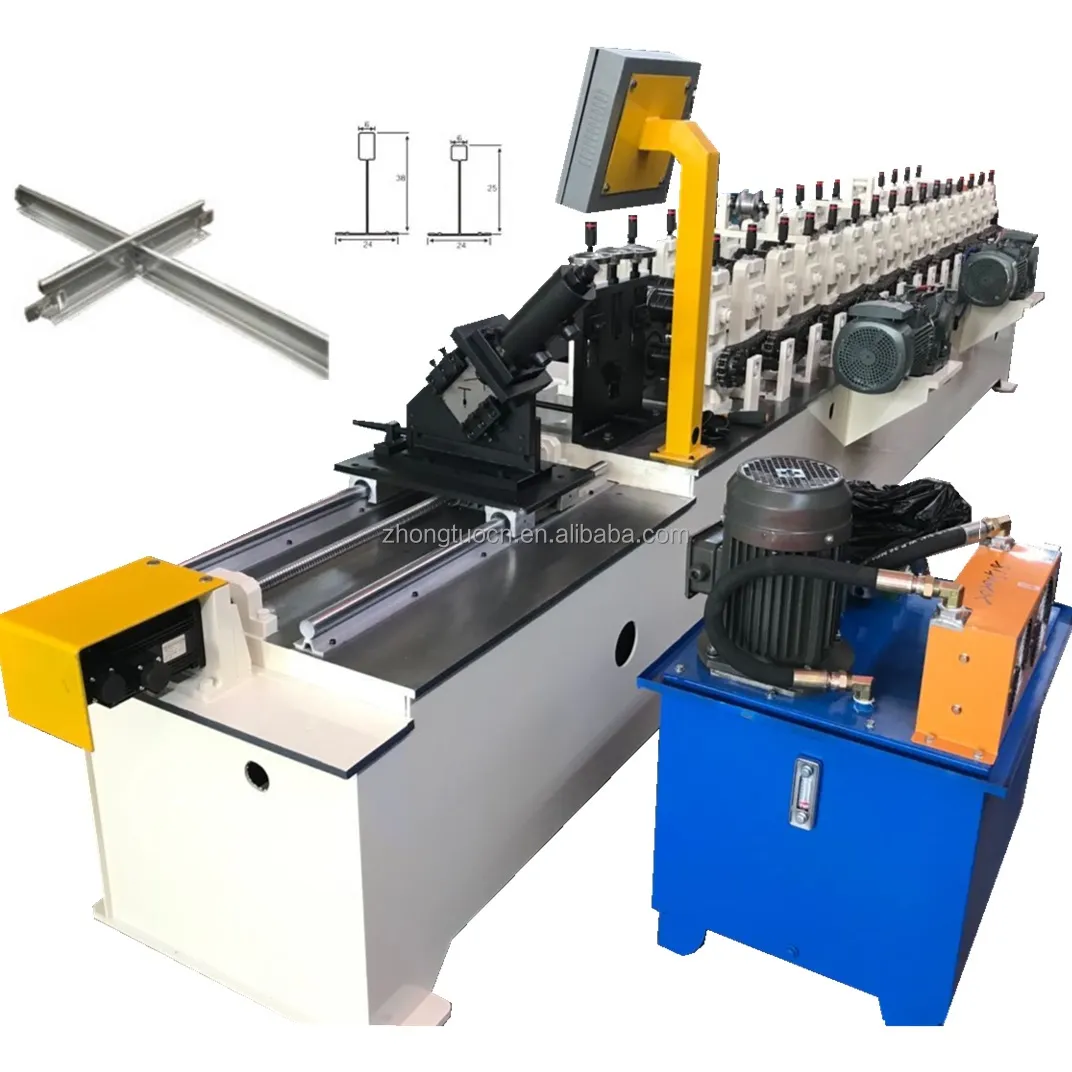

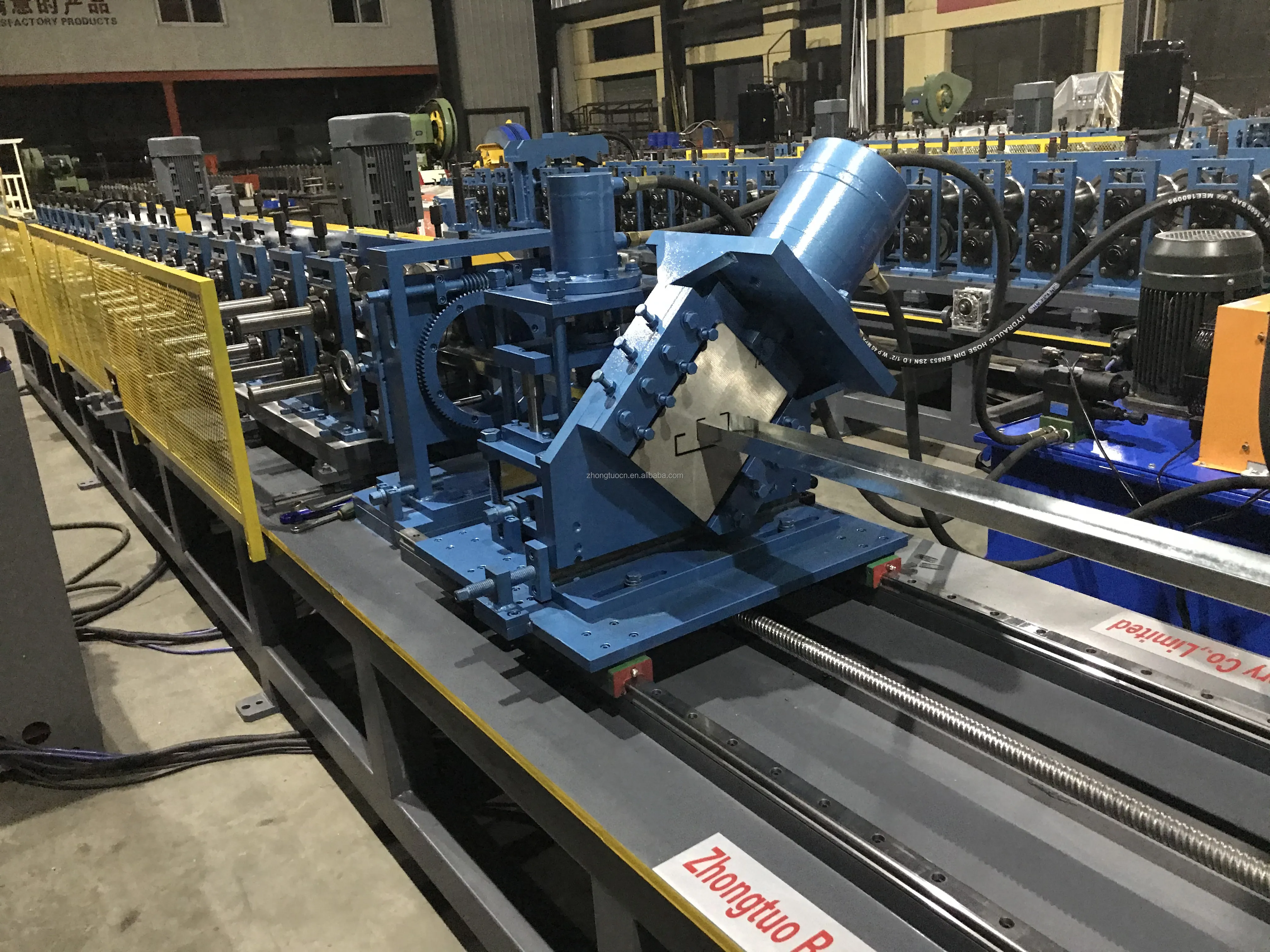

Recommend Products
