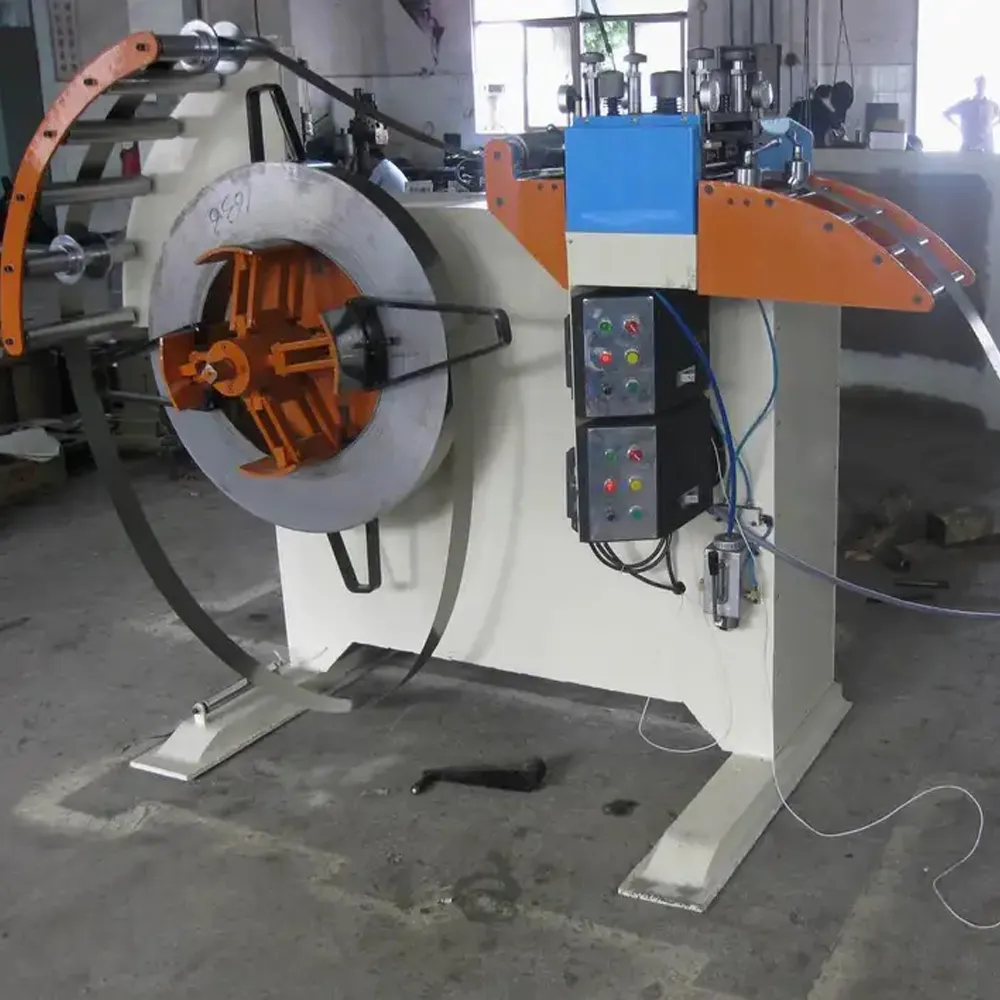

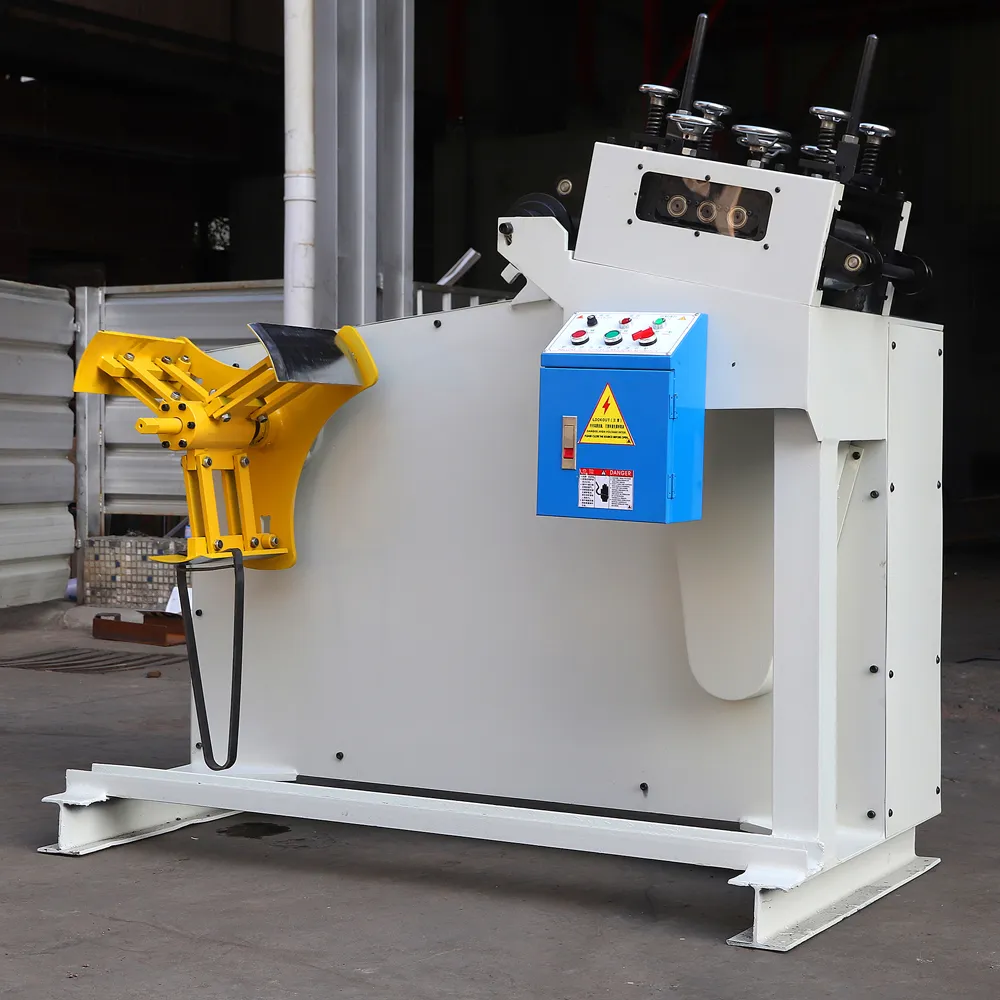

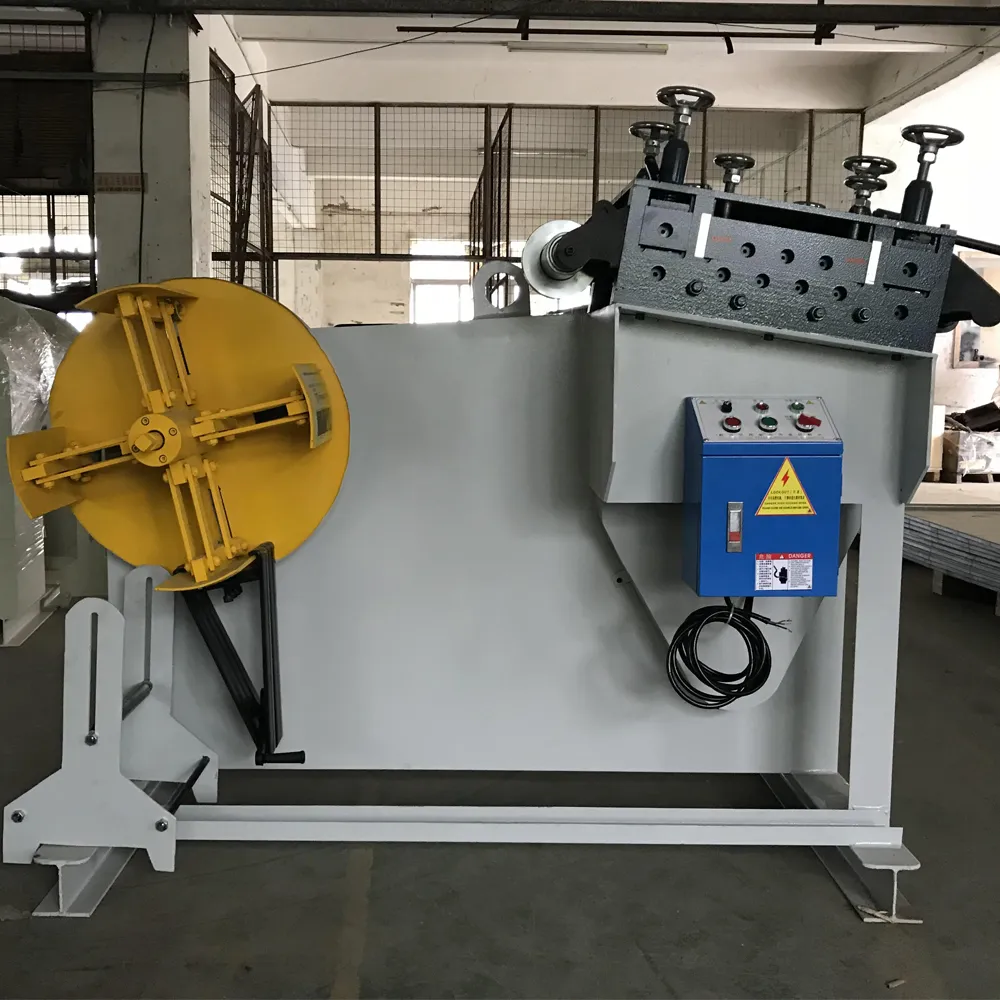

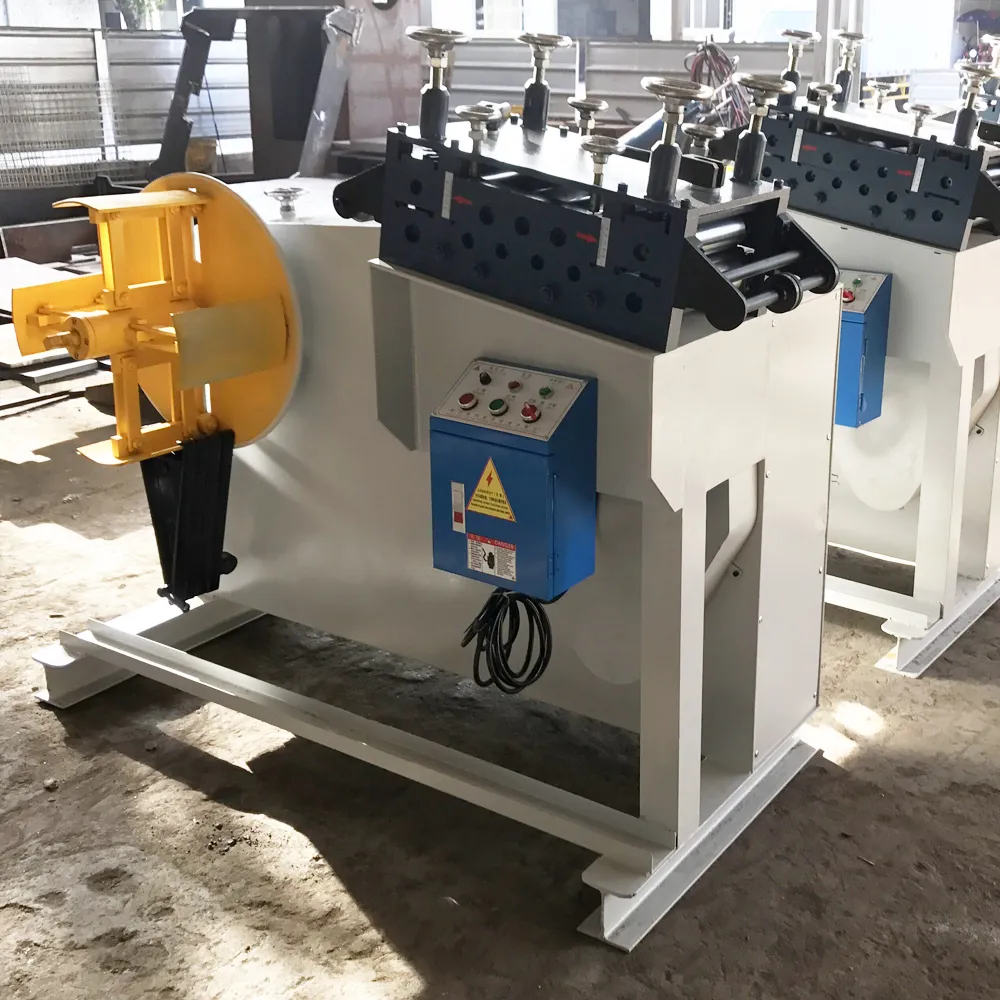

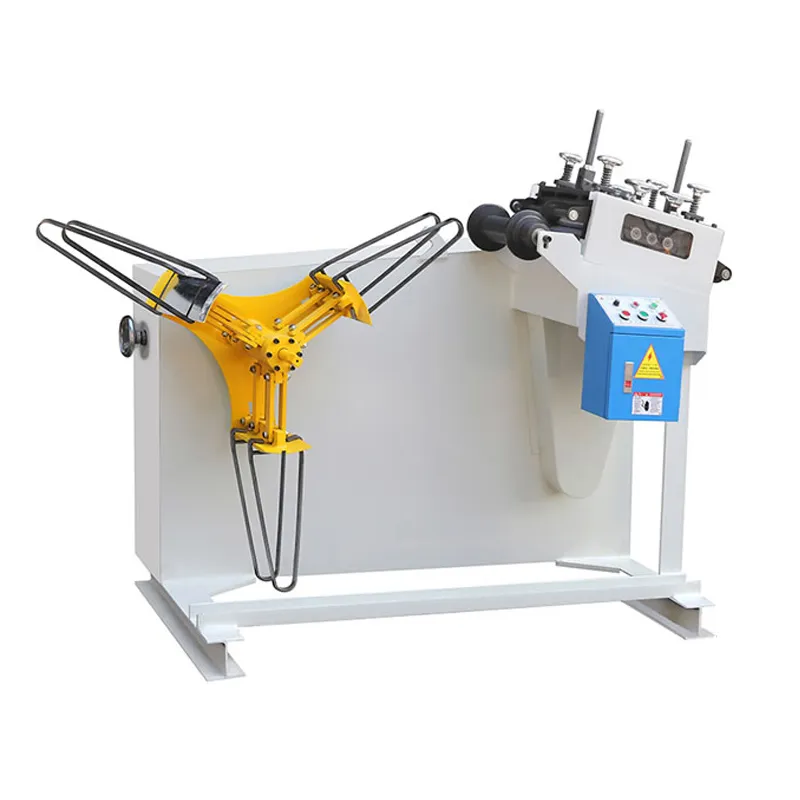

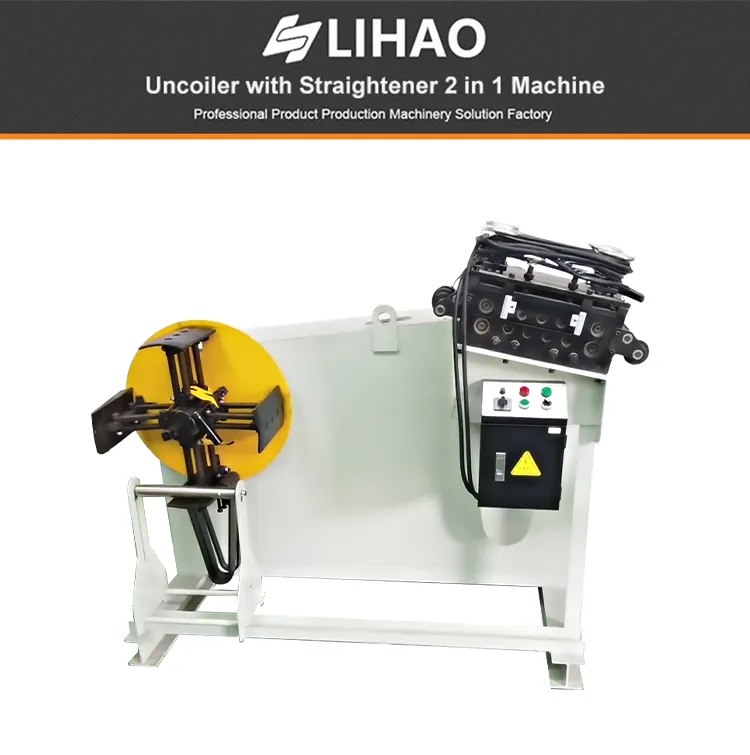

2 in 1 Best Seller Manual Decoiling Machine Metal Stainless Steel Sheet Metal Hydraulic Decoiler Coil Strip Straightener Machine GO-200 (Material width 0~200mm)

Shenzhen Lihao Machine Equipment Co., Ltd

2 in 1 Best Seller Manual Decoiling Machine Metal Stainless Steel Sheet Metal Hydraulic Decoiler Coil Strip Straightener Machine GO-200 (Material width 0~200mm)

Name: 2 in 1 Best Seller Manual Decoiling Machine Metal Stainless Steel Sheet Metal Hydraulic Decoiler Coil Strip Straightener Machine GO-200 (Material width 0~200mm)
Brand: ZTRFM
SKU: ZT74051327
Availability: InStock

$3,980.00/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$3,980.00

Quantity:

≥1Set

Order CodeZT74051327

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

model number:

GO-200 (Material width 0~200mm)

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Voltage
380V or Optional
Power(W)
Optional

MAIN FEATURES

● It can feed material for various thicknesses and feeding stroke length.

● It suits for high speed feeding, long stroke length feeding, to improve production capacity and feeding precision.

● It adopts pneumatic cylinder releasing method, without malfunction.

● Mechanical releasing method can be made according to customers requirement.

● High precision feeding, ±0.02mm

● Releasing device for a roller is high effective, as per press machine’s cam position electronic signal, and steel material thickness.

● Feeding roller is hollow, surface hardness is HRC60, with chrome plating.

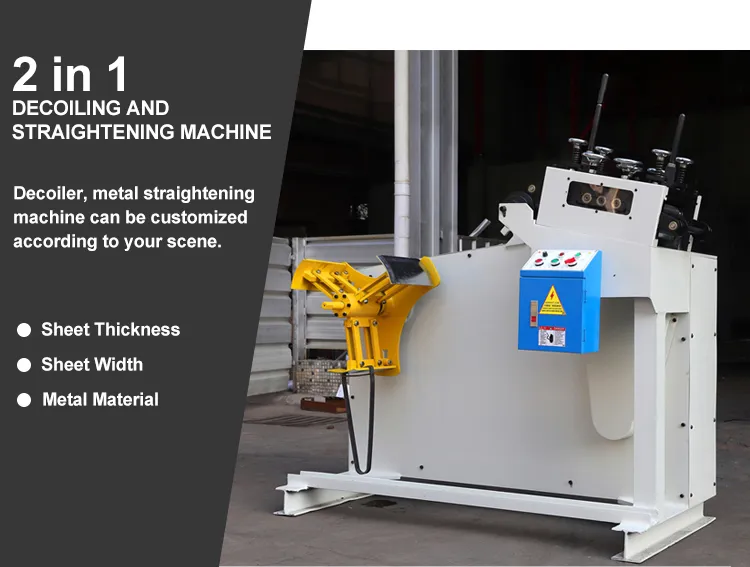

● Integrated with uncoiler and straightener, save volume, suitable for board processing. Automatically adjust feeding time according to output speed.

● Feeding roller is hollow, surface hardness is HRC60, with chrome plating.

● Use Japanese electromagnetic contact and electric parts, long service life.

● A stepless variable speed control is used normal and high speed operation, control by modern frequency converters, keep pace with straightening, stable feeding.

● Leveler inclines appropriately to reduce feeding loop distance.

● Constructed with highly rigid structure and designed with a powerful motorized feeder.

PRODUCT FUNCTION

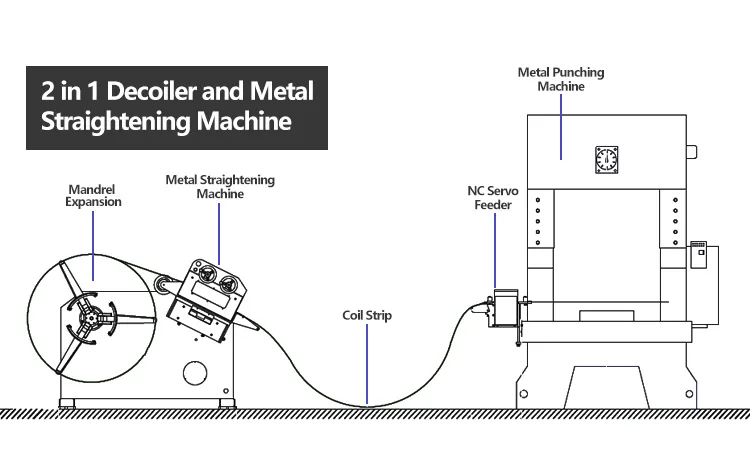

Decoiler is for the metal coil(or other material )uncoiling to be straight and smooth ,then easily for the feeding to the machine like slitting,cut to length and roofing sheet,etc.It can be divided into manual decoiler and electric decoiler,hydraulic decoiler.The hydraulic decoiler whether has the loading car and the length of the guaiding is all customized.

Model	GO-150	GO-200	GO-300	GO-400	GO-500
Material Width	150mm	200mm	300mm	400mm	500mm
Material Thickness	0.4-2.5mm
Coil Inner Diameter	450-530mm
Coil Outer Diameter	1200mm
Coil Weight	500kg	800kg	1000kg	1500kg	2000kg
Expansion Style	Manual Operation
Motor	1/2(HP)	1(HP)	2(HP)	2(HP)	3(HP)

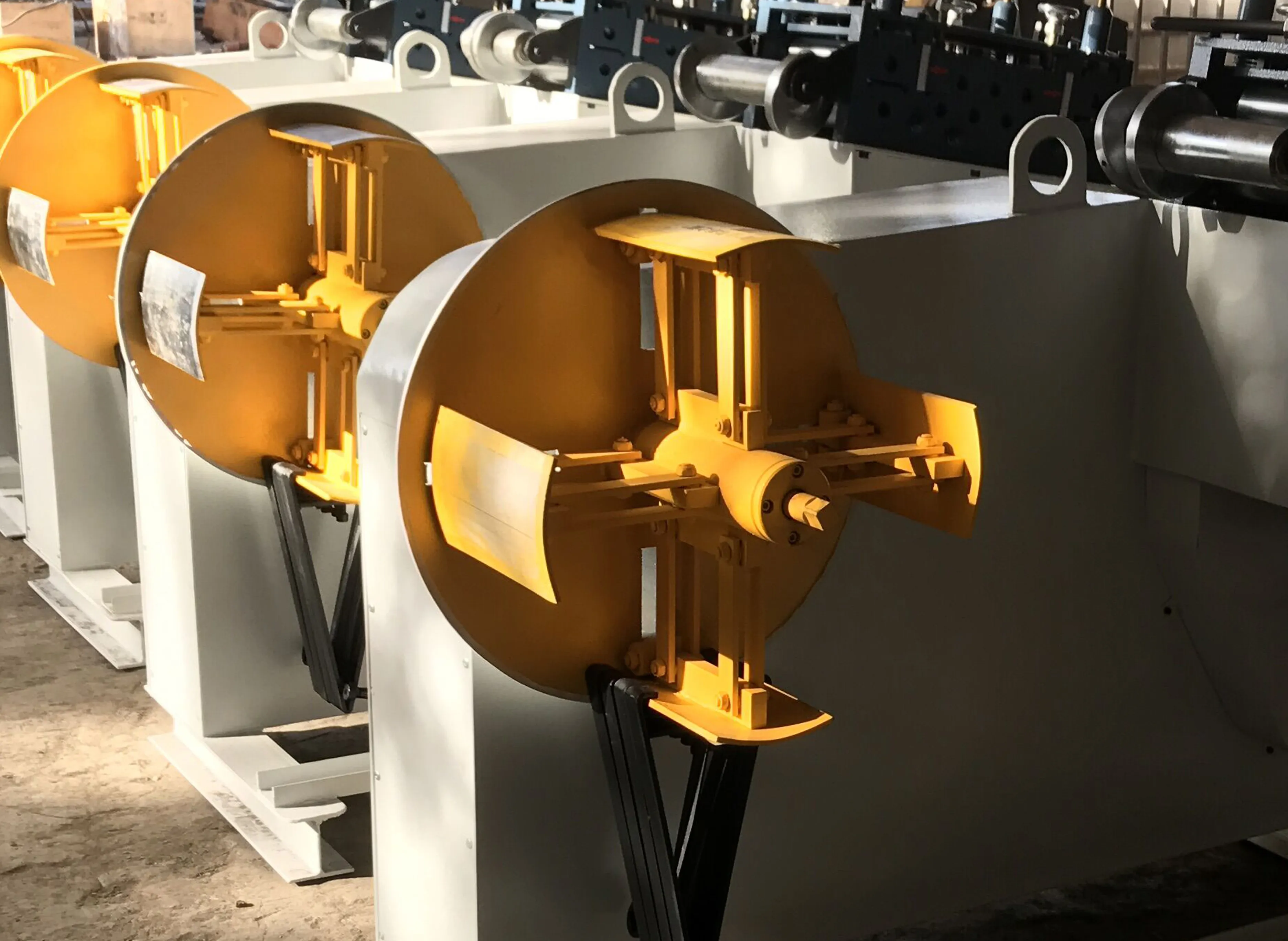

Decoiling Machine

Single-end configurations are provided as standard, and Double-ended configurations can be provided to optimize production efficiency by lowering the coil changeover time. Most models are available as Traveling Reels that can be combined with automatic centering functions.

Custom engineering can be provided to meet any application demands.

Metal Straightening Machinery

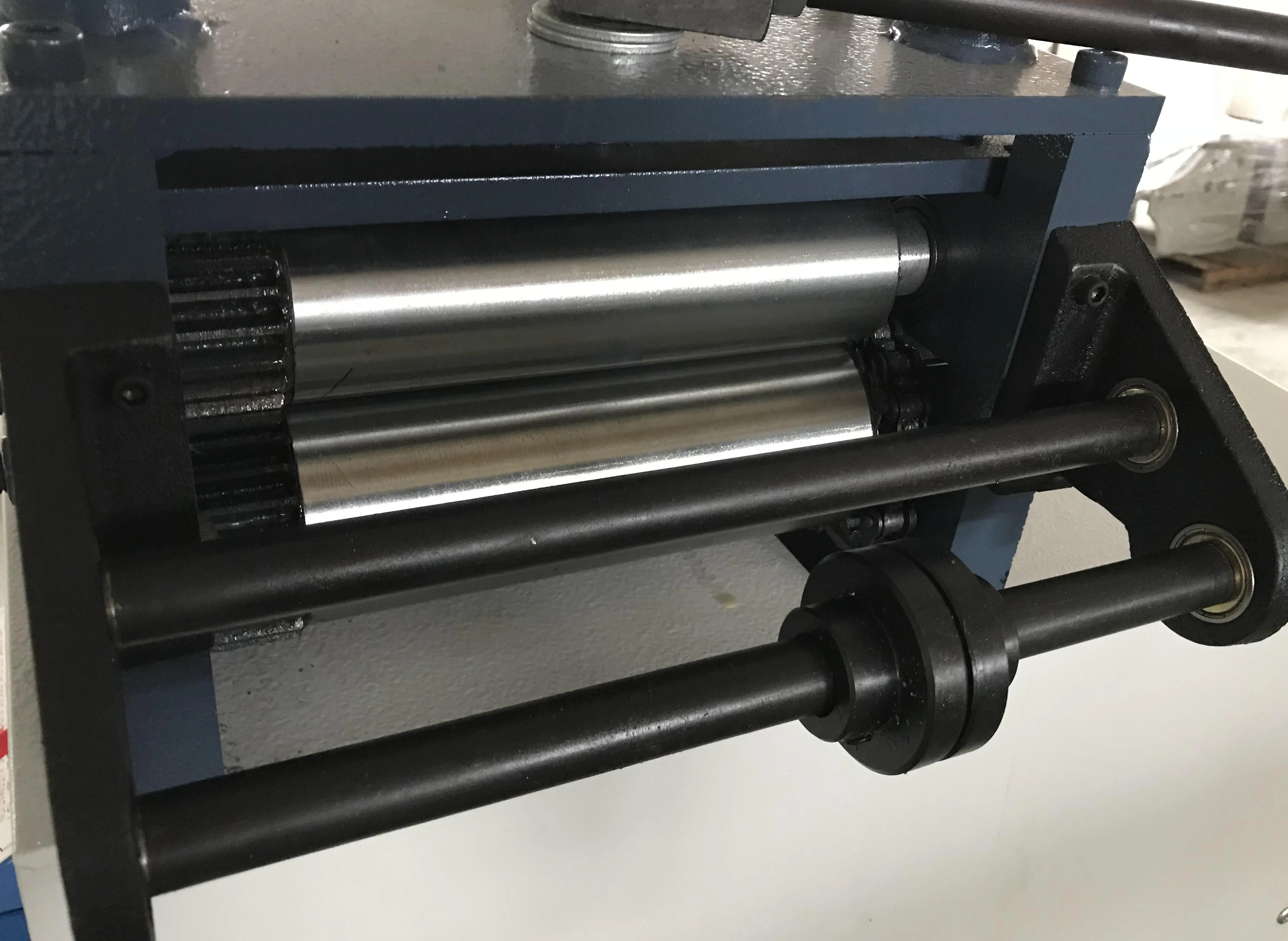

Adopt parallel roller design, 3 up / 4 down, totally 7 rollers.

Adopt four point fine adjustment is adopted, which is more suitable for processing high-precision products. Adopt four point independent pressure to adjust the pressure of feeding roller for entrance and exit, which can prevent material deviation and deformation effectively.

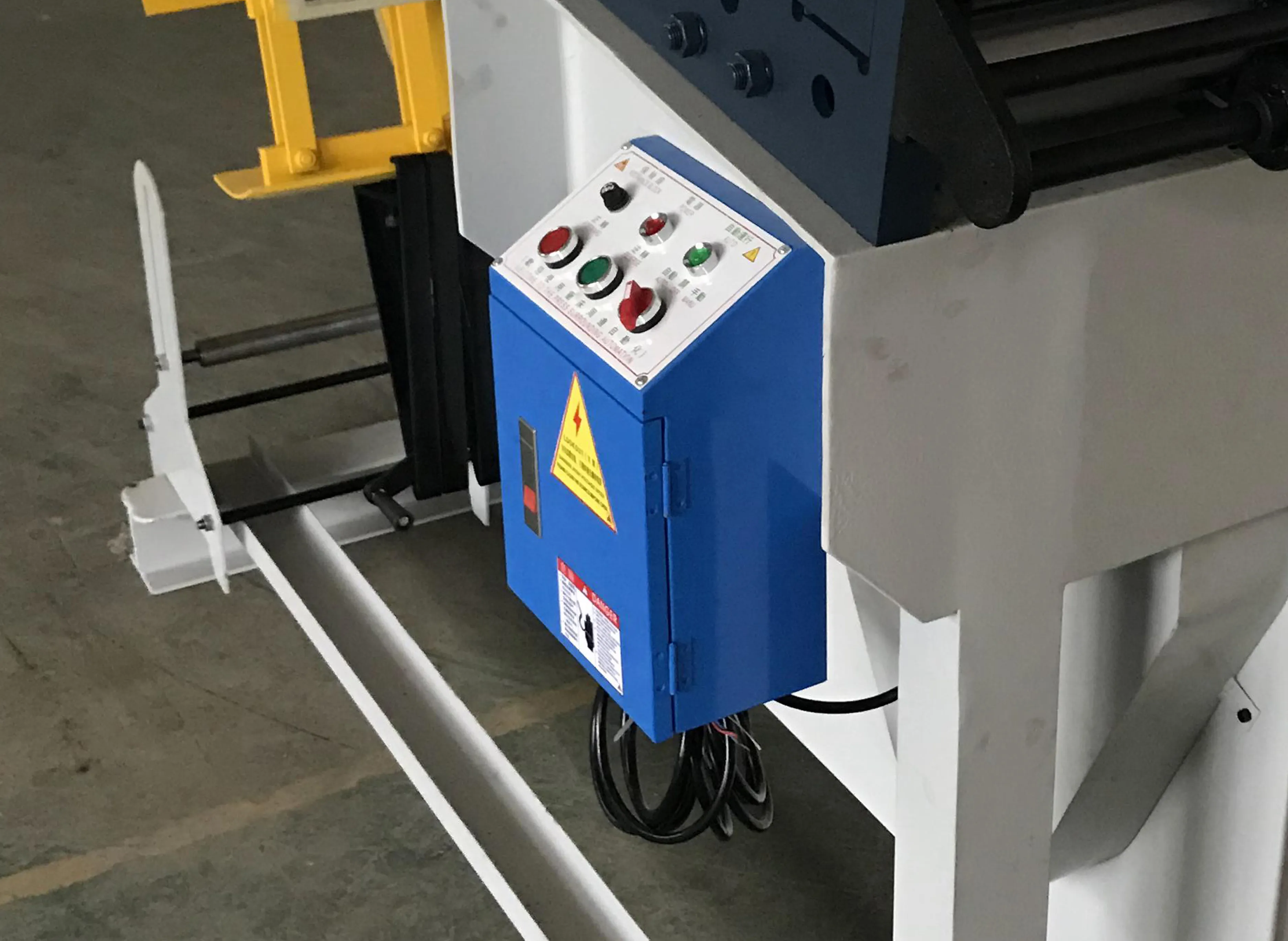

Electric control box

Adopt silver alloy relay, full copper coil, flame retardant safety base, long lasting and durable.

Adopt safety protection adjustment circuit time delay relay, silver alloy contact, satisfied different delay ranges.

Adopt self-duplex flat button, the force is light, the key range is moderate, the building block type combination structure. The contact is made up of keto-base composite points with strong conductivity and large current, with a life span of up to 1 million times.

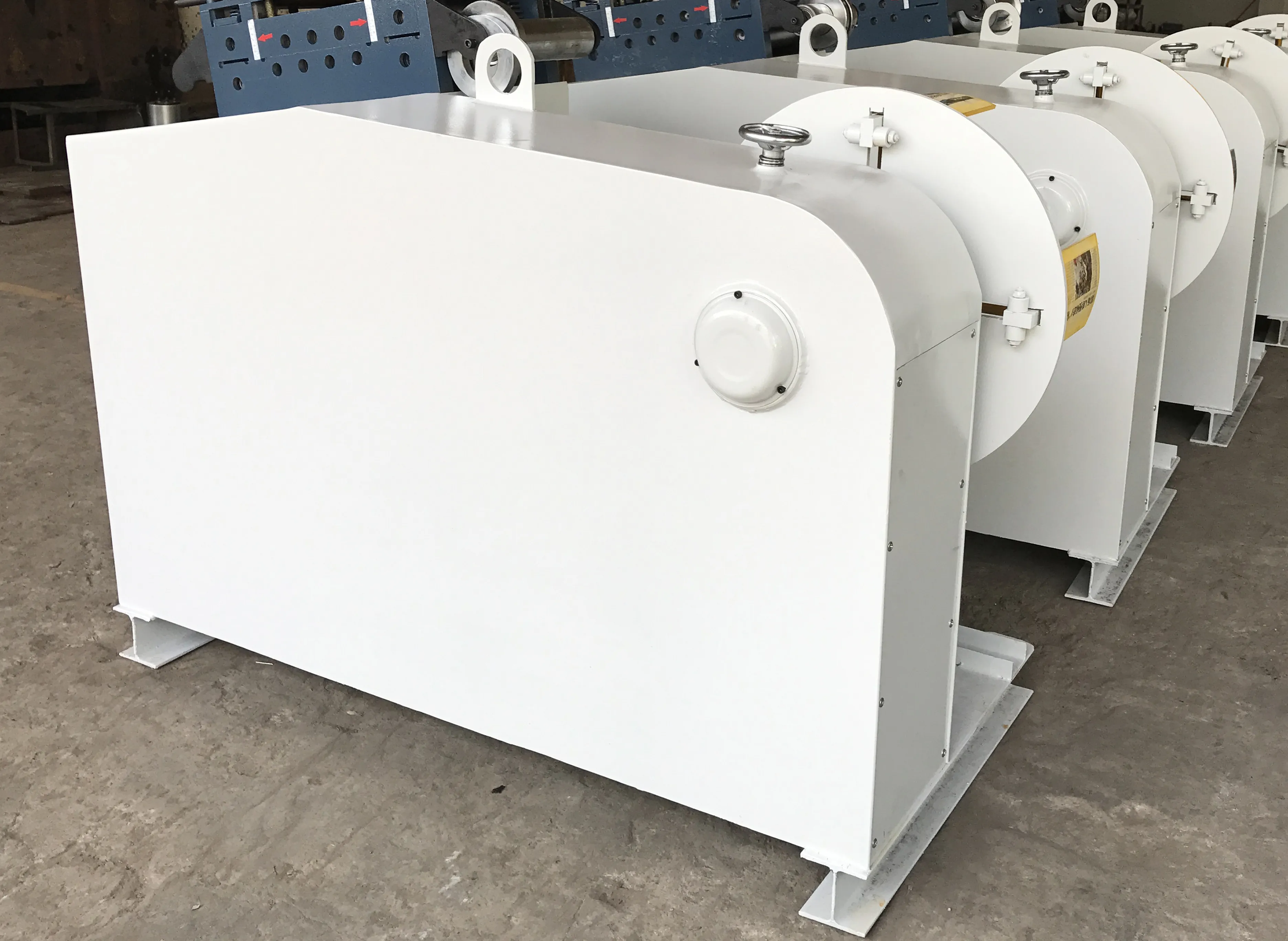

Product Bracket Shell

Surface hardness is HRC60, with chrome plating.

Constructed with highly rigid structure and designed,Provide a more stable processing platform
