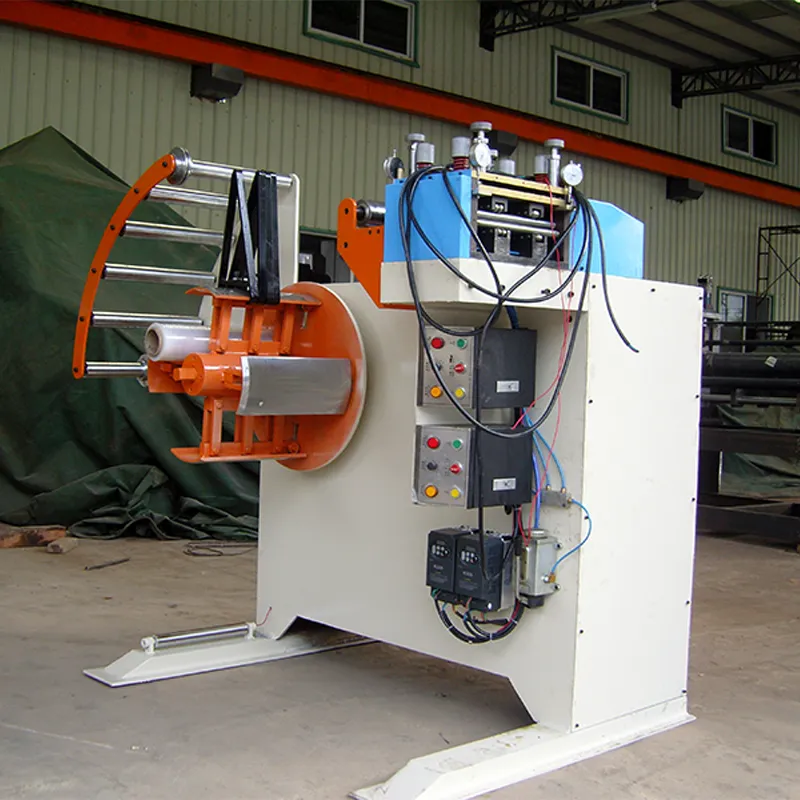

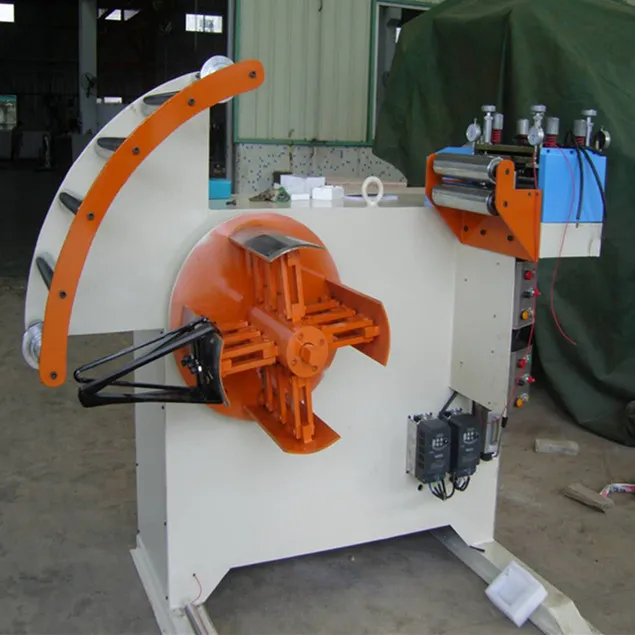

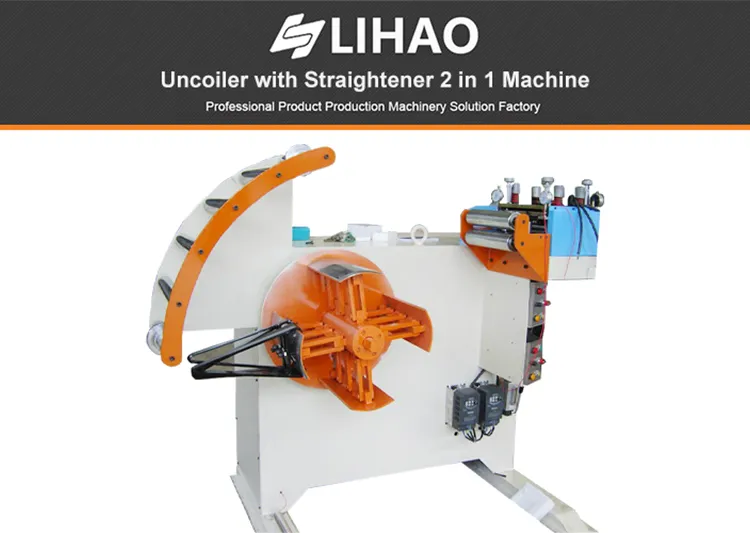

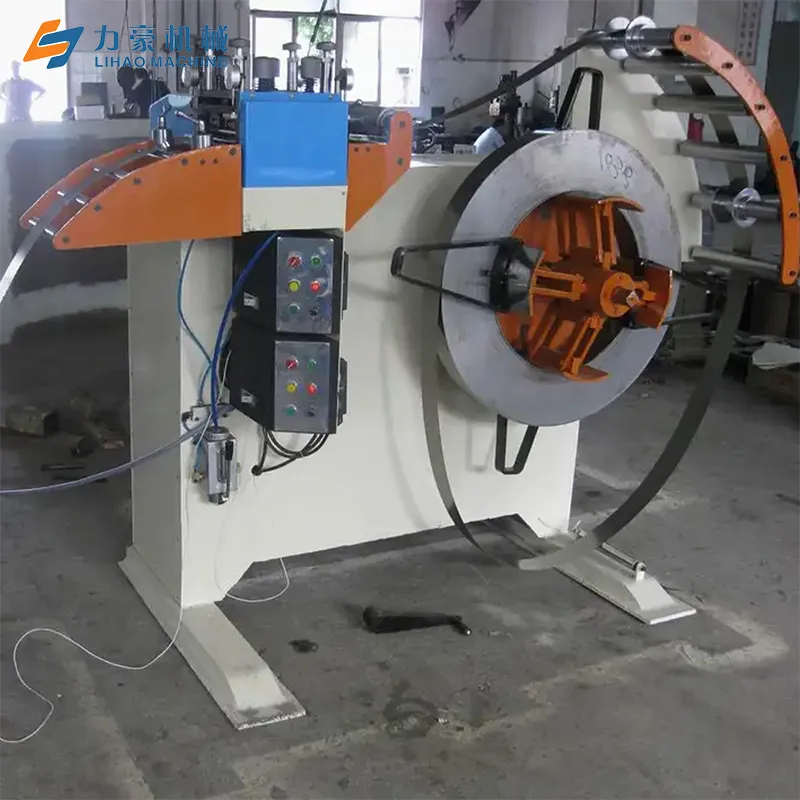

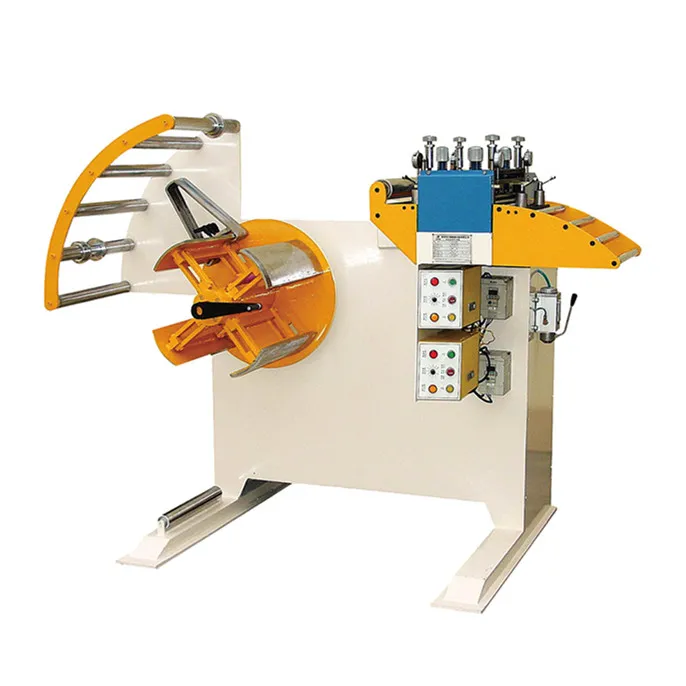

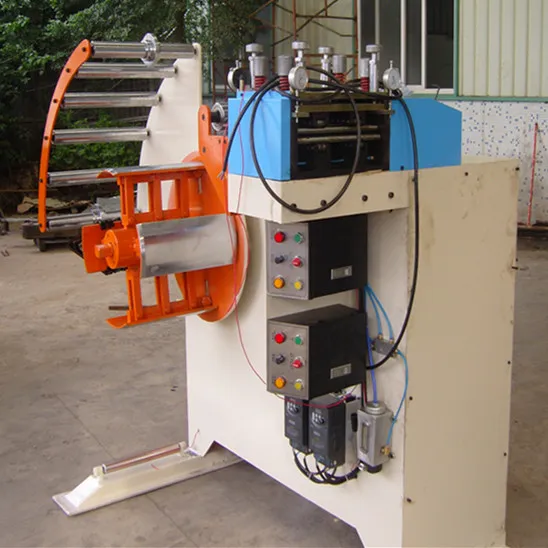

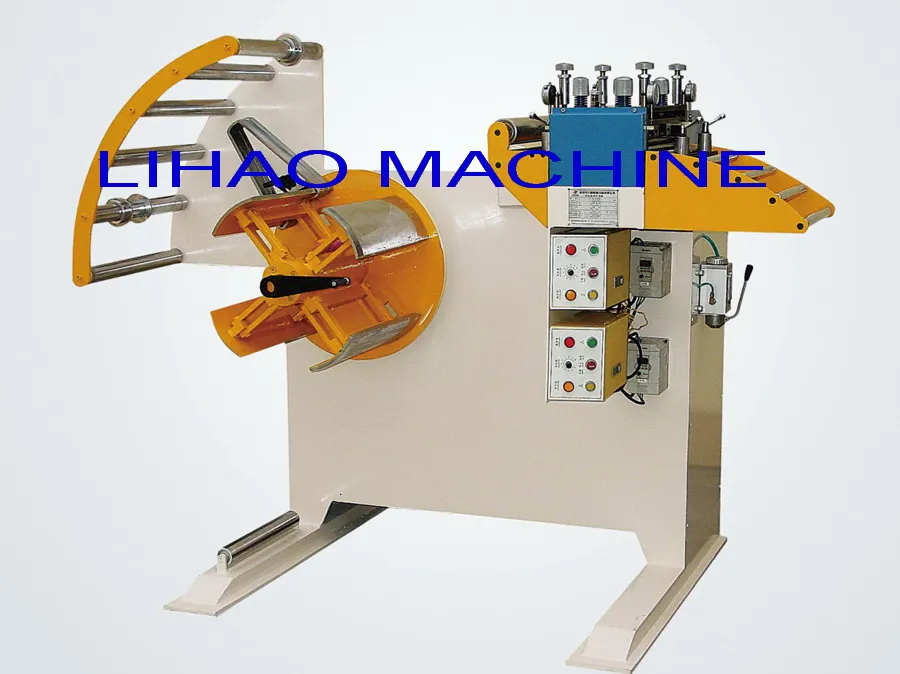

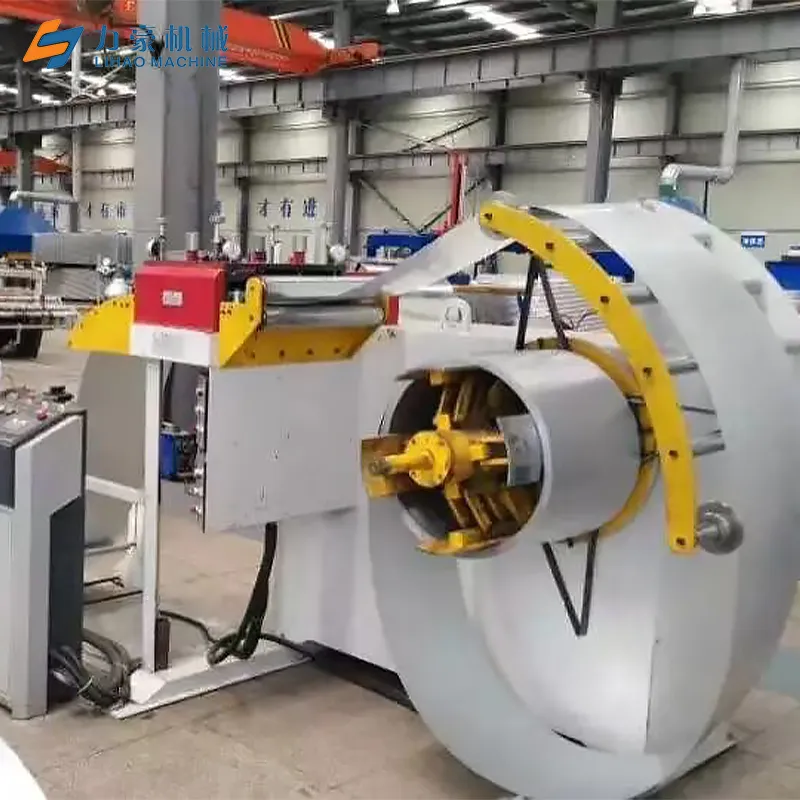

2-in-1 Automatic Steel Uncoiling & Straightening Machine Sheet Metal Equipment with Essential Bearing Gear Motor Components GO-400B-1





2 in 1 machine automatic steel uncoiling machine sheet metal straightener



Features :

•  The decoiler is integrated with straightener, covering a small area, reduce the transition link in the straightening process of precision materials and maximize the performance.
•  The decoiler and straightener controlled separately by independent electric box, and with its own frequency converter, make everywhere running smoothly, protect the machine more effectively, avoid the distortion affected by various external forces.
• The straightener is drive by universal joint, full gear drive, avoid the material damage caused by the passive rotation of the upper rollers effectively.
•  The straightening roller with dial indicator, can find leveling point quickly.
• The addition of the back roller enhances the rigidity of the straightening rollers and makes the straightening effect better.
•   The addition of the system increases the using life of the machine.





Technical Specification:



Model	GO-200B	GO-300B	GO-400B	GO-500B	GO-600B
Material width(mm)	200	300	400	500	600
Material thickness(mm)	0.1-0.8
Coil weight(kg)	800	1000	1500	1500	2000
Coil inner dia.(mm)	450-530
Coil outer dia(mm)	1200
Straightener motor(HP)	1/2	1	2	2	3
Decoiler motor(HP)	1	1	2	2	3
Straightening roller	ø20*up9/down10(full drive)
Straightener adjustment	Four points adjusting
Speed	0-15m/min
Expand type	Manual
Induction type	Induction table stype



 Introduction:

Straightener head

1. Adopt parallel roller design, 3 up / 4 down, totally 7 rollers.

2. Adopt four point fine adjustment is adopted, which is more suitable for processing high-precision products. Adopt four point independent pressure to adjust the pressure of feeding roller for entrance and exit, which can prevent material deviation and deformation effectively.

3. The supporting roller adopts the galvanizing roller without power, the material is one body formed, the surface is scratch-resistant and wear-resistant, use the mechanical bearing, rotating flexible and durable.

4. Handwheel made of cast iron, surface is electroplated. It is the most traditional handwheel.

5. The transmission part is protected by protective cover on both sides, equipped with observation window for easy viewing.

Straightening roller

1. The straightening rollers are made of solid bearing steel, thickening plating treatment after medium frequency, surface hardness is not less than HRC58, to ensure material durability.

2. Adopt GCr15 forging round steel, after preheating treatment (spheroidal annealing), then turning, milling, intermediate frequency treatment, rough grinding and cold stabilization, then fine grinding, finally electroplating. Maximized guarantee the accuracy, concentricity, finish and hardness, and extended the using life of the rollers.



Drive gear

Gear processing includes the following processes: gear blank processing - gear surface machining - heat treatment - gear surface fine grinding. Rough parts are mainly forging parts. Through normalizing treatment, improve the machining to facilitate cutting. According to the gear design drawings, rough machining, and then semi-finishing processing, turning, rolling, gear shaping, to make the gear basically formed. After the heat treatment to improve the mechanical properties. According to the design requirements of the drawings, finally do the finishing, finishing the benchmark, finishing the tooth profile. After all above treatments, our gear grade can reach to grade 6, with high wear resistance, high strength, long using life.





 Frame part

1. The equipment adopts the integrated design of decoiler and straightener, to improve the utilization rate of the site.

2. Decoiler adopt cantilever beam design, all plates of the decoiler are cut by laser plasma with high precision.

3. All parts are processed by numerical control and CNC, with good interchangeability.

4. The overall structure is simple, it is convenient for general technical workers to assemble and replace, can greatly reduces the maintenance cost.



Electric control box

1. Adopt silver alloy relay, full copper coil, flame retardant safety base, long lasting and durable.

2. Adopt safety protection adjustment circuit time delay relay, silver alloy contact, satisfied different delay ranges.

3. The switch adopts sliding contact ,with self-cleaning function , normally open and normally closed contact adopts separate bonding structure, can work with different poles, equipped with anti-rotation positioning and stop loose mounting gasket.

4. Adopt self-duplex flat button, the force is light, the key range is moderate, the building block type combination structure. The contact is made up of keto-base composite points with strong conductivity and large current, with a life span of up to 1 million times.



Power part

1. Adopt model 80 worm gear vertical reducer, use the speed converter of gear , reduce the rotation number of motor to desired rotation number ,and get the mechanism with larger torque.

2. Adopt vertical motor, low vibration, low noise, stator rotor part adopt pure copper coil, life is 10 times of ordinary coil, both ends are equipped with ball bearing, low friction, low temperature.







NOTE:We are capable of desiginging production line according to customer's metal hardware products.





How To Select Straightener Feeder & Uncoiler 2 in 1 Machine

-What's your material?

-Max. width of your strip in coil form ...mm

-Max. Min thickness of your strip ...mm

-Max. weight of your strip in coil form...kg

-What's the inner diameter of your coil...mm

-What's the outer diameter of your coil...mm
