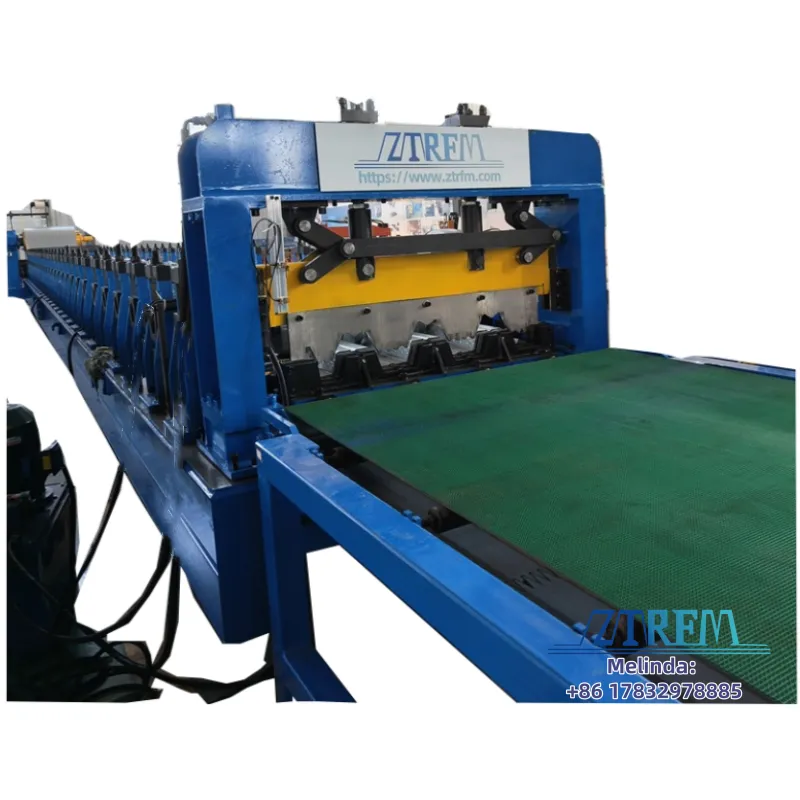

2 Inch Deep Composite Deck Roll Forming Machine Metal Floor Steel Decking Roll Former 25 M/min+3"+44kw

Cangzhou Zhongtuo International Trade Co., Ltd

2 Inch Deep Composite Deck Roll Forming Machine Metal Floor Steel Decking Roll Former 25 M/min+3"+44kw

Name: 2 Inch Deep Composite Deck Roll Forming Machine Metal Floor Steel Decking Roll Former 25 M/min+3"+44kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT68320375

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

25 M/min

Model Number:

Power(W):

44kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
Floor
Voltage
220V Electrical Equipment
Rolling Thinckness
0.8-1.5mm
Feeding Width
1200mm

Machines' advantages

1. high efficiency: high degree of automation of the equipment, can be continuous production, significantly
improve the production efficiency.

2. Reliable Siemens PLC:
adopting precise Siemens control system to ensure the dimensional accuracy and surface quality of the tiles.

3. diversified production:

according to the market demand, adjust the parameters of the equipment to produce a variety of models and styles of color steel roof tiles.

4. strong durability:
steel floor deck has excellent corrosion resistance, weather resistance and bearing capacity, applicable to a variety of building environment.
5. Easy to install:
round arc color steel tile is light in weight and easy to install, which saves construction cost and time.

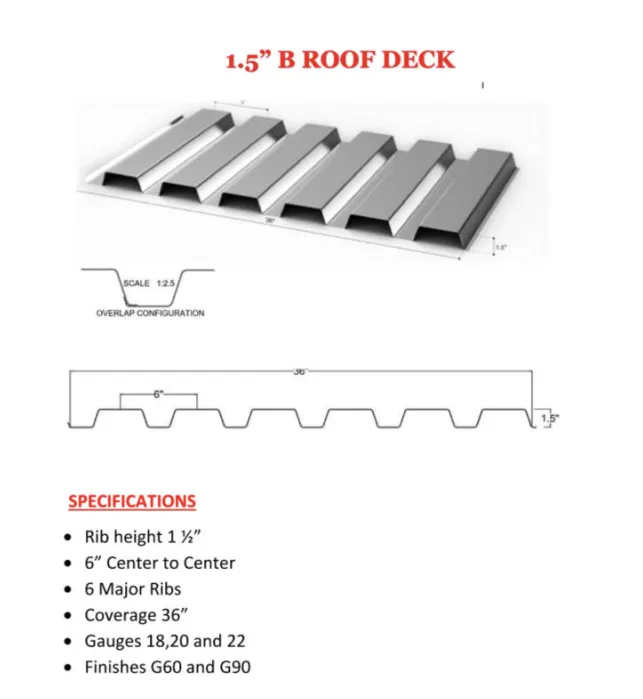

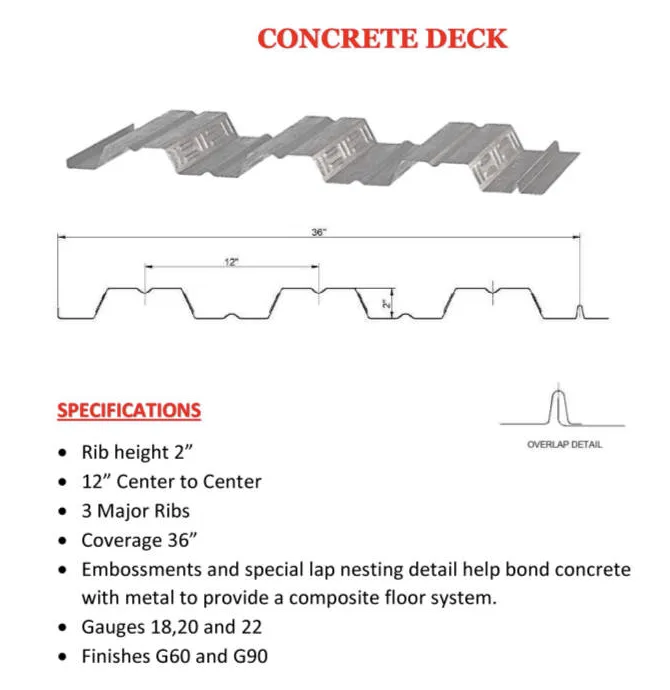

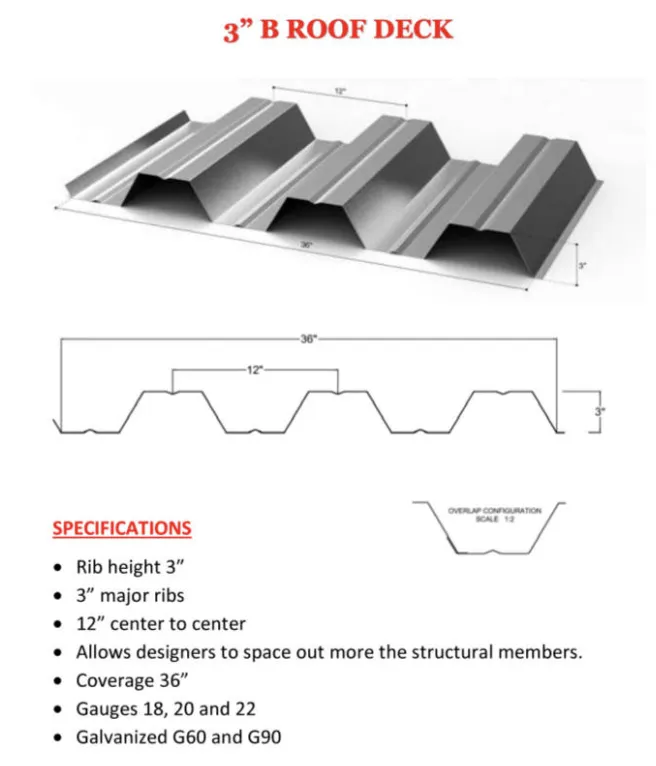

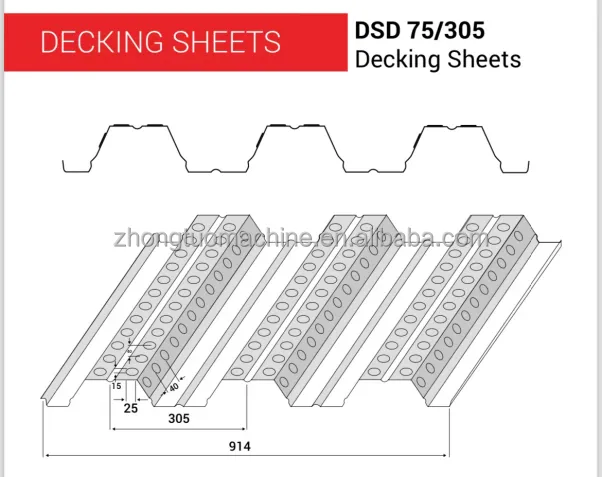

Profile drawing for reference:

We made many floor decking machines for the North American countries, such as the America,
Canada, Mexico. Especially for the America, we already sent many floor decking machines to there, we have customer from New York,Florida, Texas, California as so on.

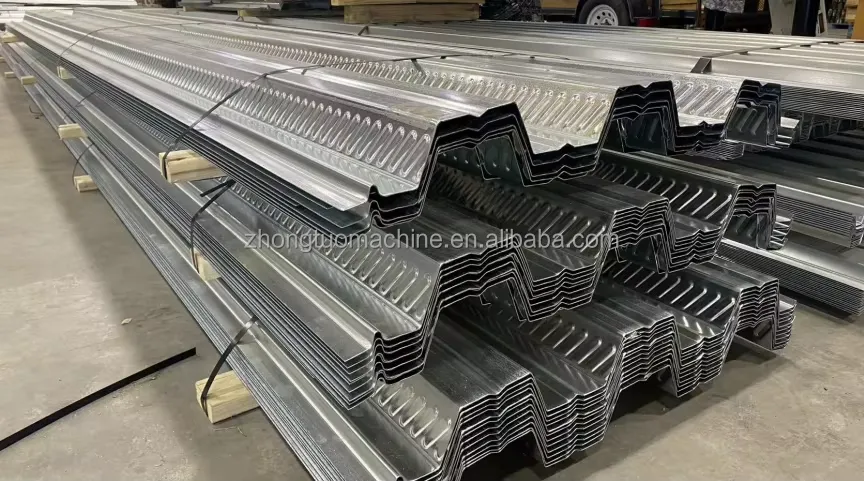

The floor decking machine America use are almost same and standard,1.5B type is one they normally used. and the material thickness they used are Gauges 16 18 20 22 as so on. Most of the metal floor decking panel are 36” effective width and 48” input material width.

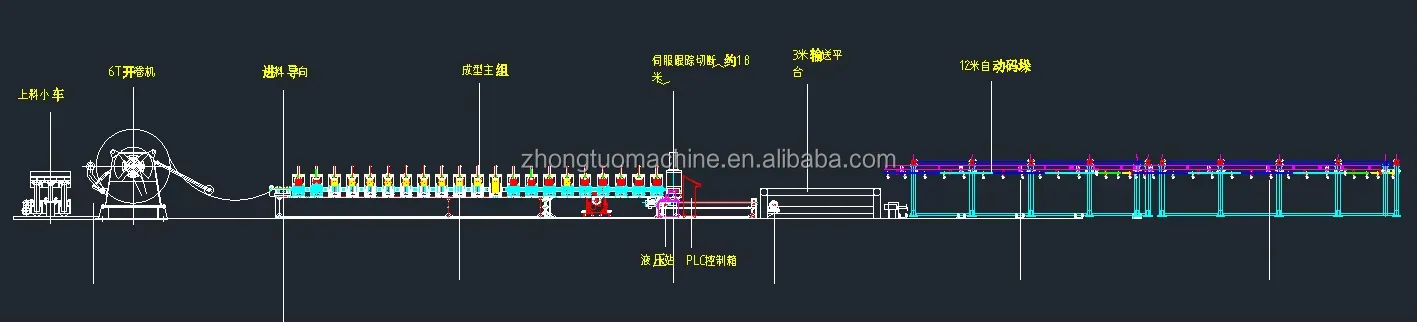

Processing Flow

Decoiler-feeding material-roll forming-cutting-receiving the product

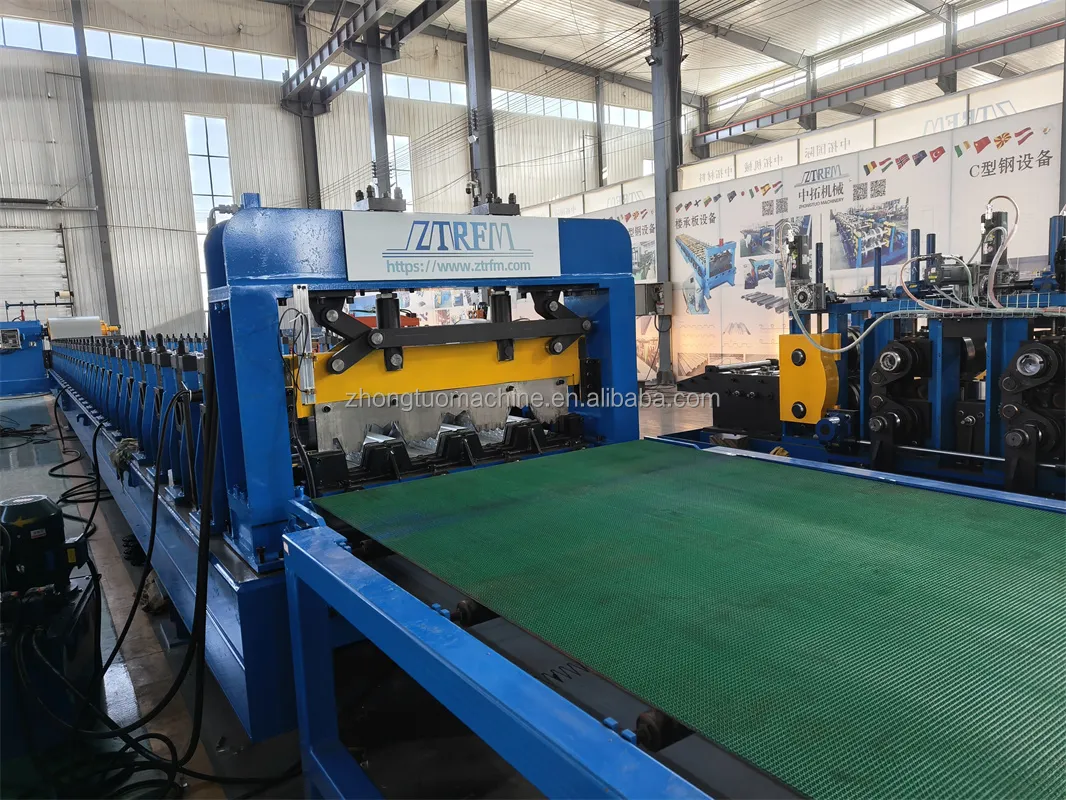

high speed floor deck roll former
Raw material	Galvanized coils yield strength till 550 Mpa
Raw material		Material thickness:16-22gauge( 0.8-1.5 mm)
Machine frame	400 H beam steel welded
Roller fixer	arch structure
Material of rollers	Gcr15 quenching treat HRC58-60
Forming stations	26 roller stations
Diameter of shafts	φ 105mm
Material of shafts	45# steel precision-machined
Forming speed	0-25 m per minute
Voltage	480 v 60 hz 3 phase or as request

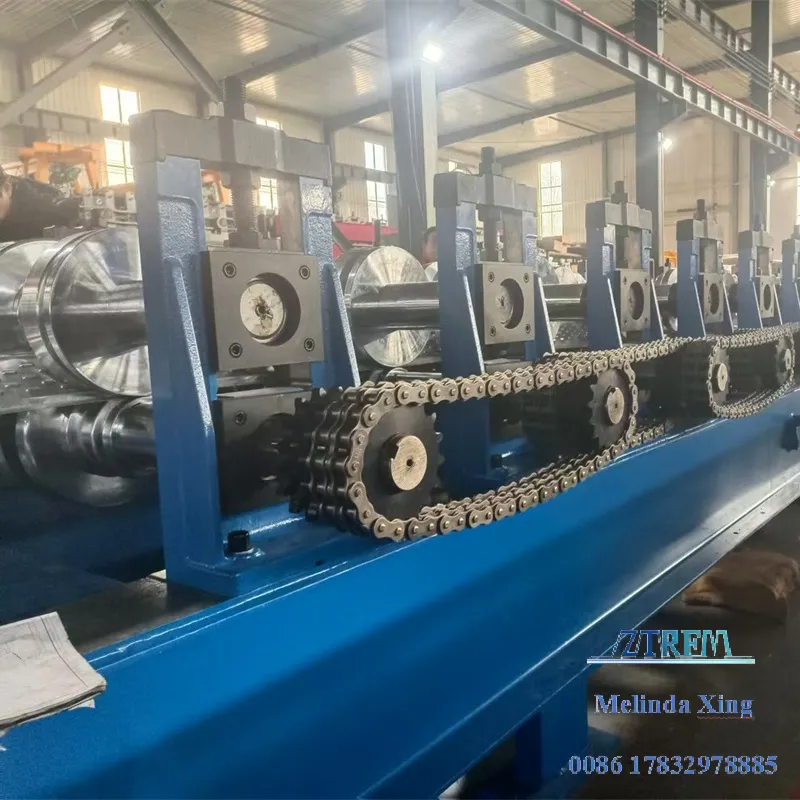

Transmission way	Gear and 2 inches double chain with chain tensors
Drive motor	Power:18.5 kw x 2 sets installation: inside the machine
Cutting blade material	Cr12Mov quenched treatment to improve hardness
Cutting type	Hydraulic cutting
Dimension of the machine	15000 х 1850 х 1500 mm
Weight	about 15.5 t

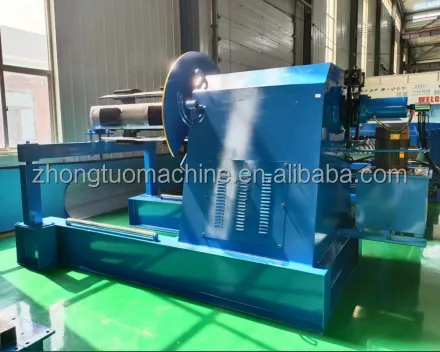

1. Hydraulic decoiler with lifting car capacity 10 tons

Dimension: 3000*1800*1900mm (length*width*height) Weight : decoiler around 3.4 tons, the cart around 1.2 tons Hydraulic station: power 4kw, 380V 60HZ Main motor : power 7.5kw Hydraulic pump motor: power 7.5kw Expand way: slider expanding, 4 PCS supporting arm Capacity: 15 tons Decoiler with hydraulic pressing arm Decoiler with Pneumatic brake Advantage: ①The bearing spindle is made of high strength, fatigue resistant back wall seamless steel, which is processed by turning and has strong strength and heavy bearing. ② Decoiler adopts hydraulic control, convenient, fast and stable ③ electrical control, high precision, good degree of automation, frequency converter control, the speed can be adjusted

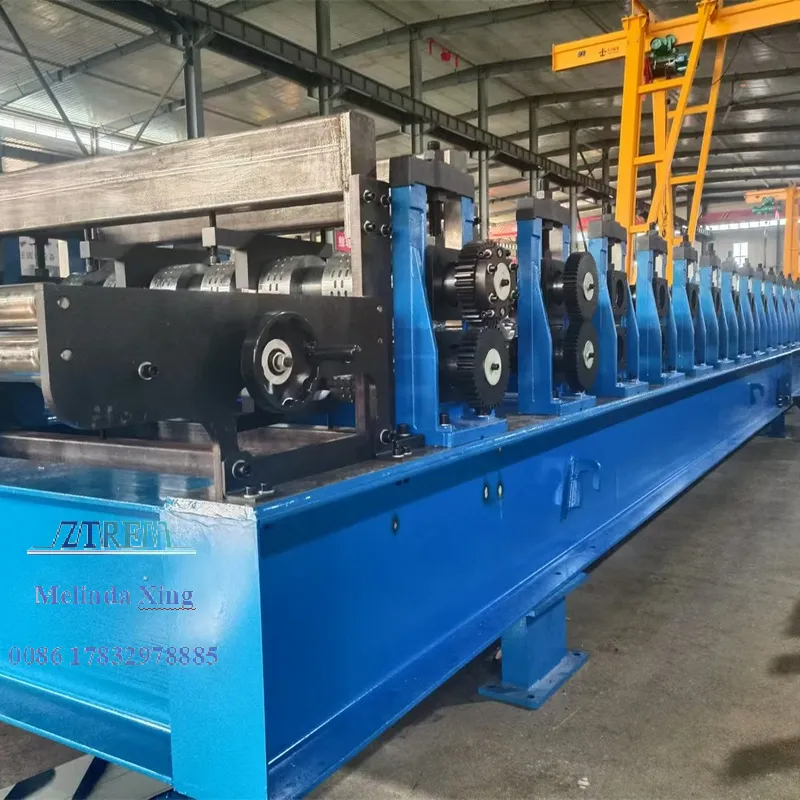

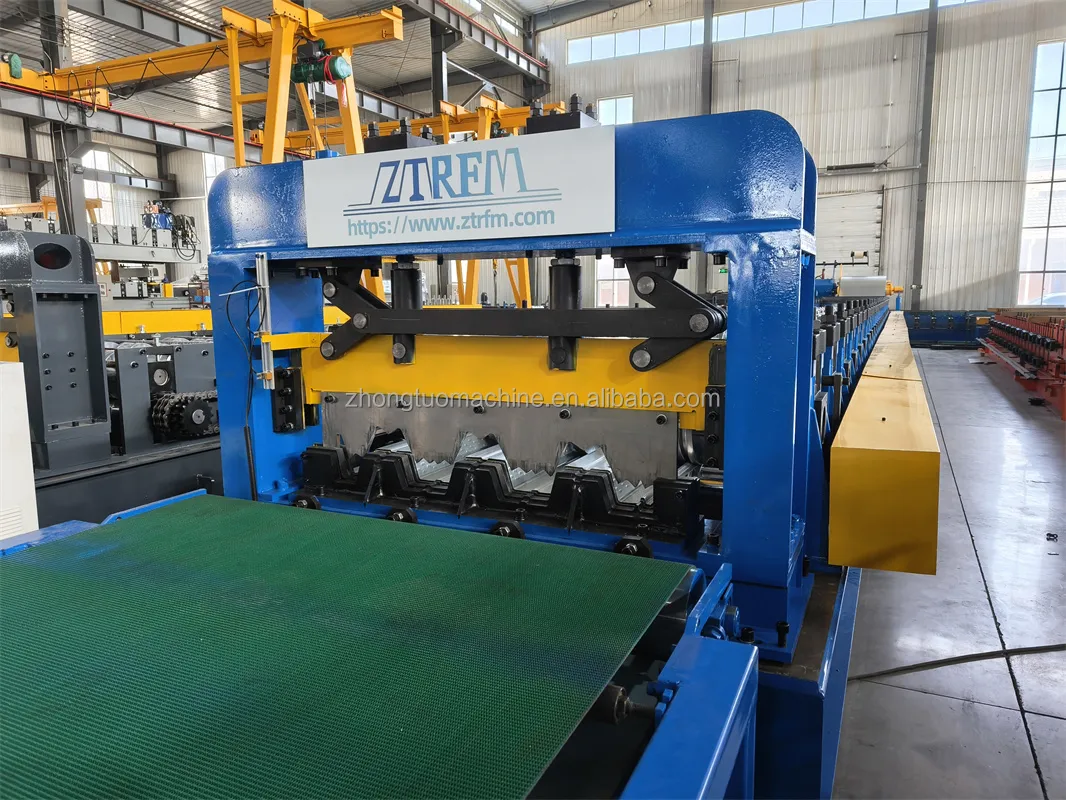

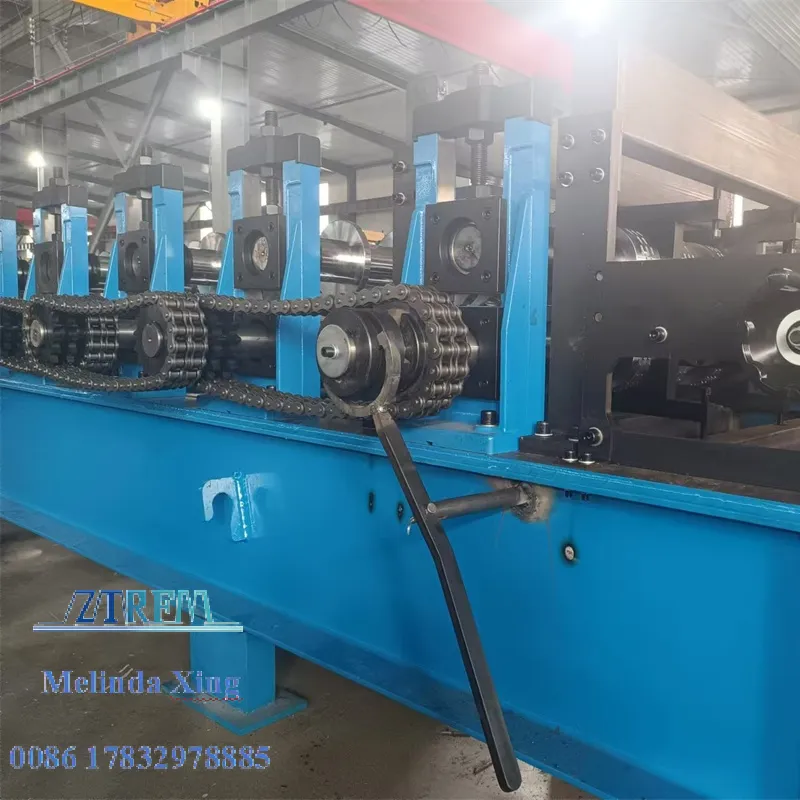

2. Main roll forming machine

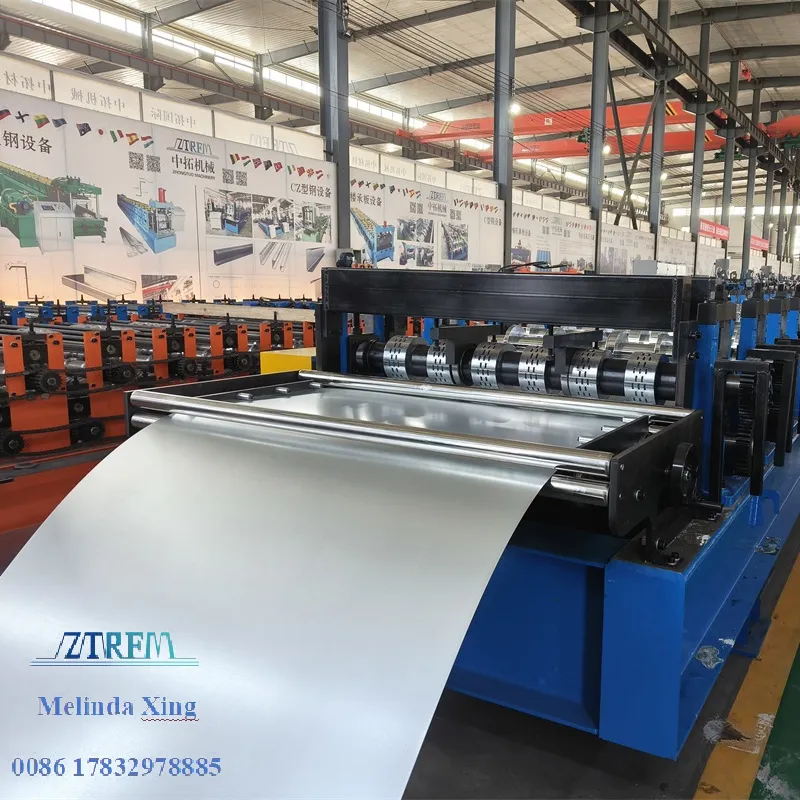

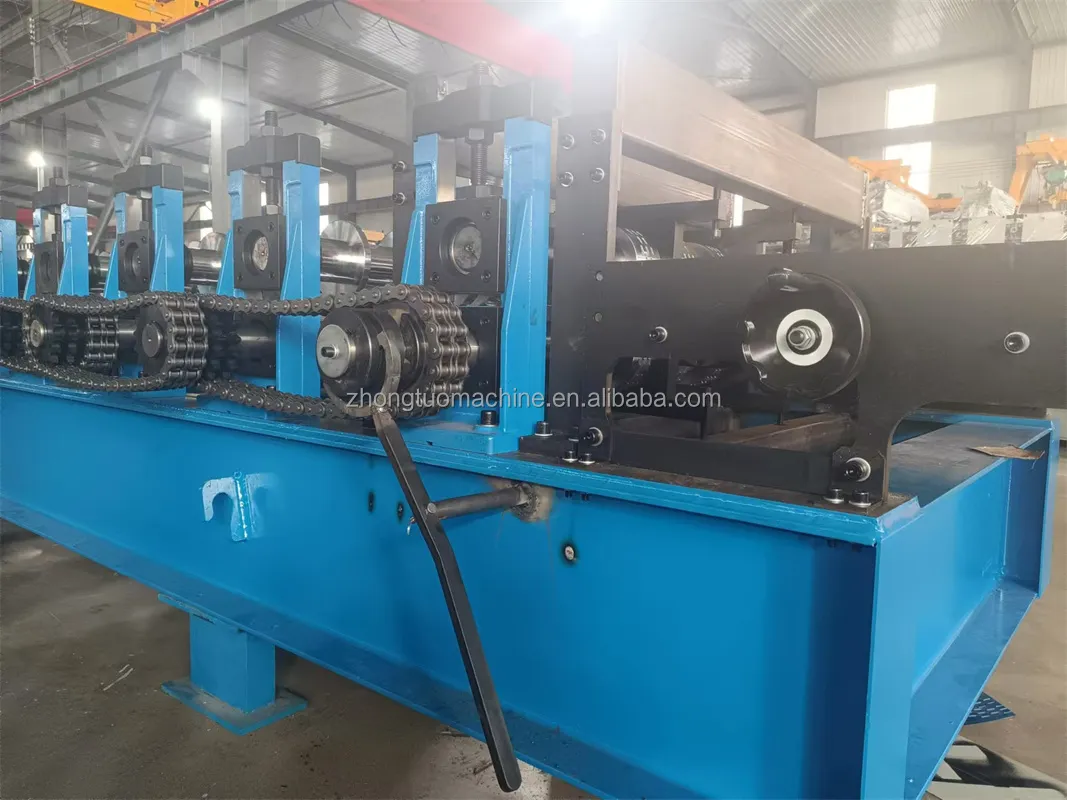

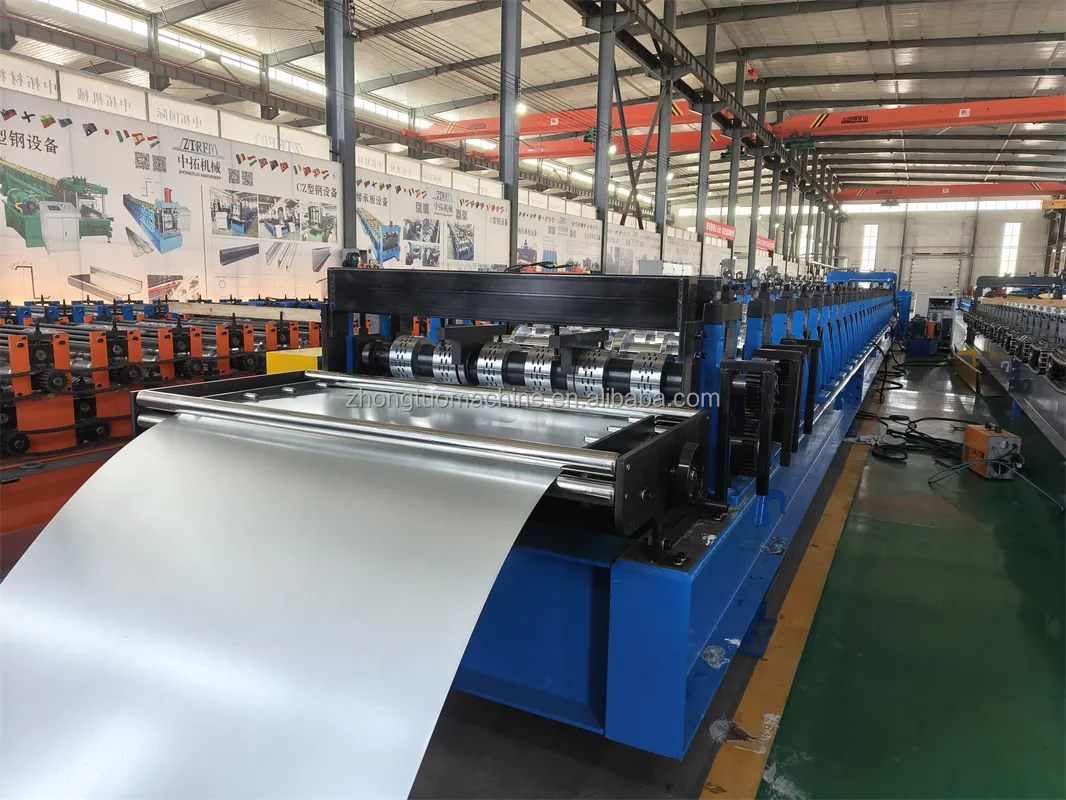

Feeding device:One set guiding roller, Steel plate welded platform to carry the sheet and feed into roll forming system; Feeding width is adjustable with the handle wheels Rolling shaft: Material 45#, Shaft diameter 105mm; fine processing Embossing stand shaft diameter 140mm Rollers: material GCr15, quenched, fine processing Rollers station: 26 rolling station Work speed: 0-15m/min Machine structure:medium steel plate welded structure Machine basic frame: 400H beam welded Driven motor: 2 motors, power 22kw + 22kw Rolling spacer:Anti rusty treatment Transmission:by chains, please note fill the lube in case the chains getting dry Made in 2 parts, in order to loading in container

3. Hydraulic cutting

Work type: Hydraulic cutting Multi-blade, ensure cutting sheet with better surface Cutter material: Cr12MoVquenched Cutting length tolerance:±1mm Channel structure, more stable and durable

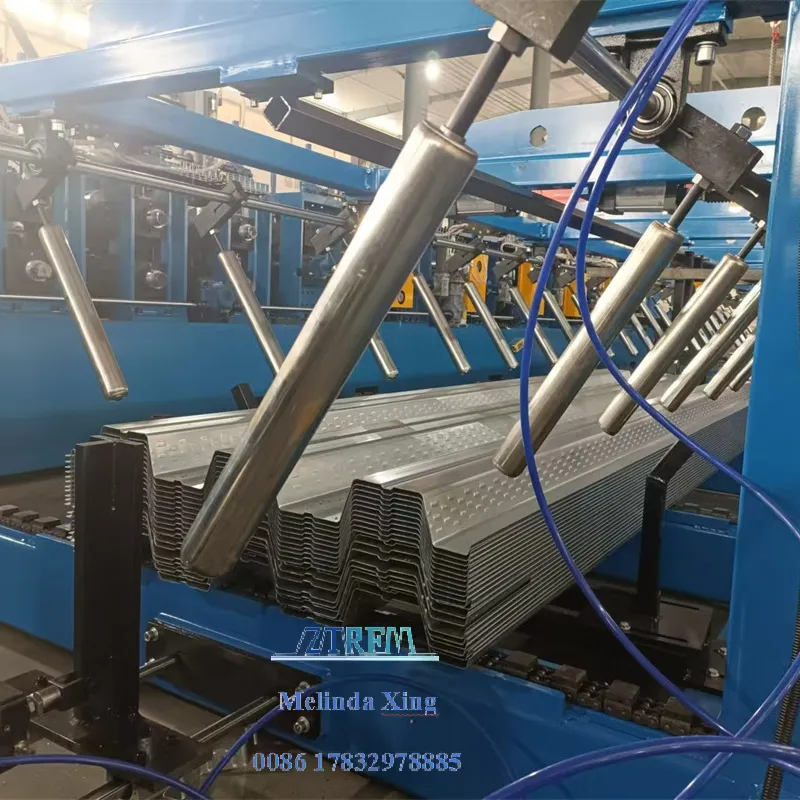

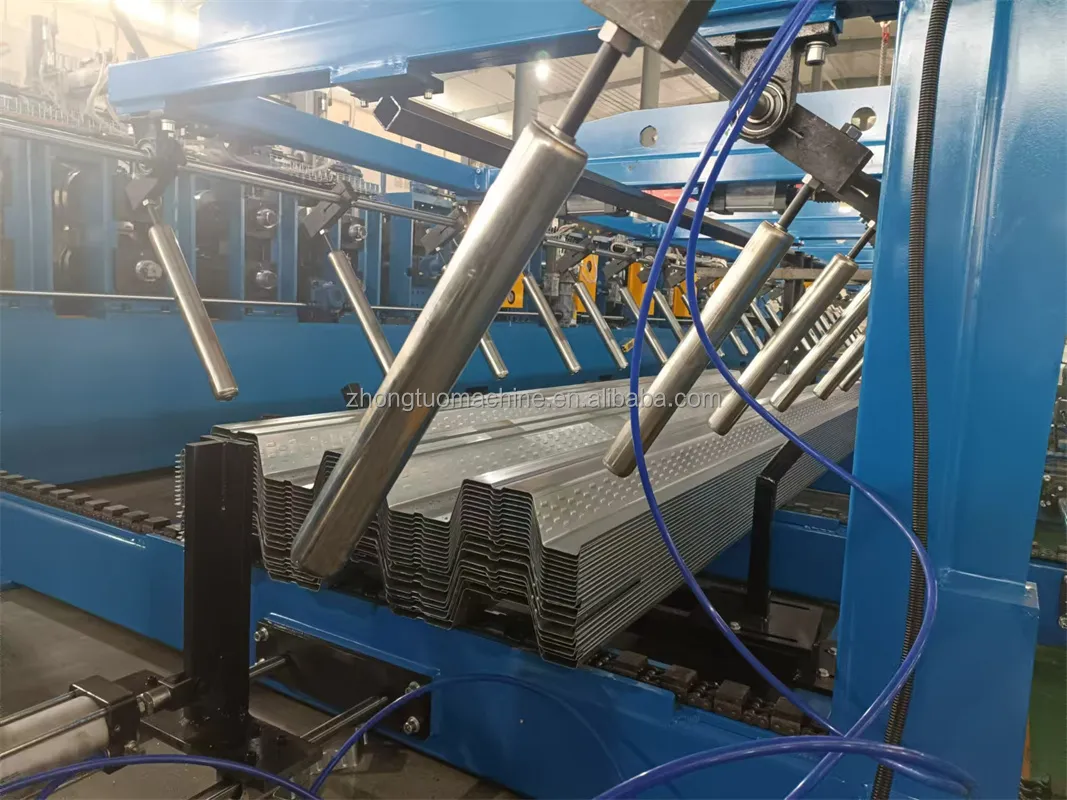

4. Automatic stacker

Collecting panel specification: length 1.5-12m; width: according to the profile drawing Collecting and discharging panel type: pneumatic type, collecting panel can move up and down 50mm Feeding device motor and reducer: 2.2kw, China famous brand

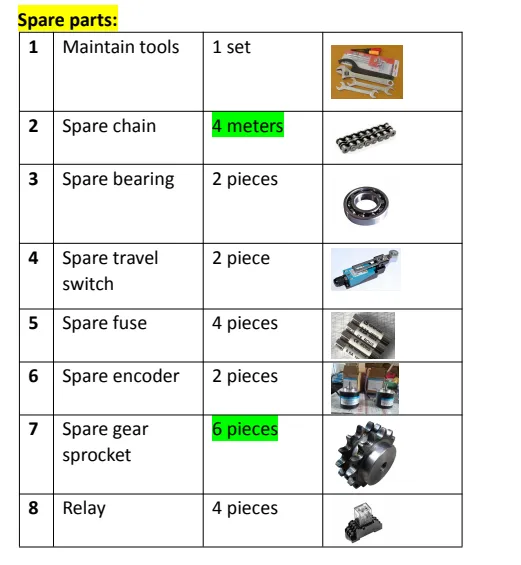

Spar parts

Our machine warranty time 2 years and the below spare parts are with the machine send to you free of charge

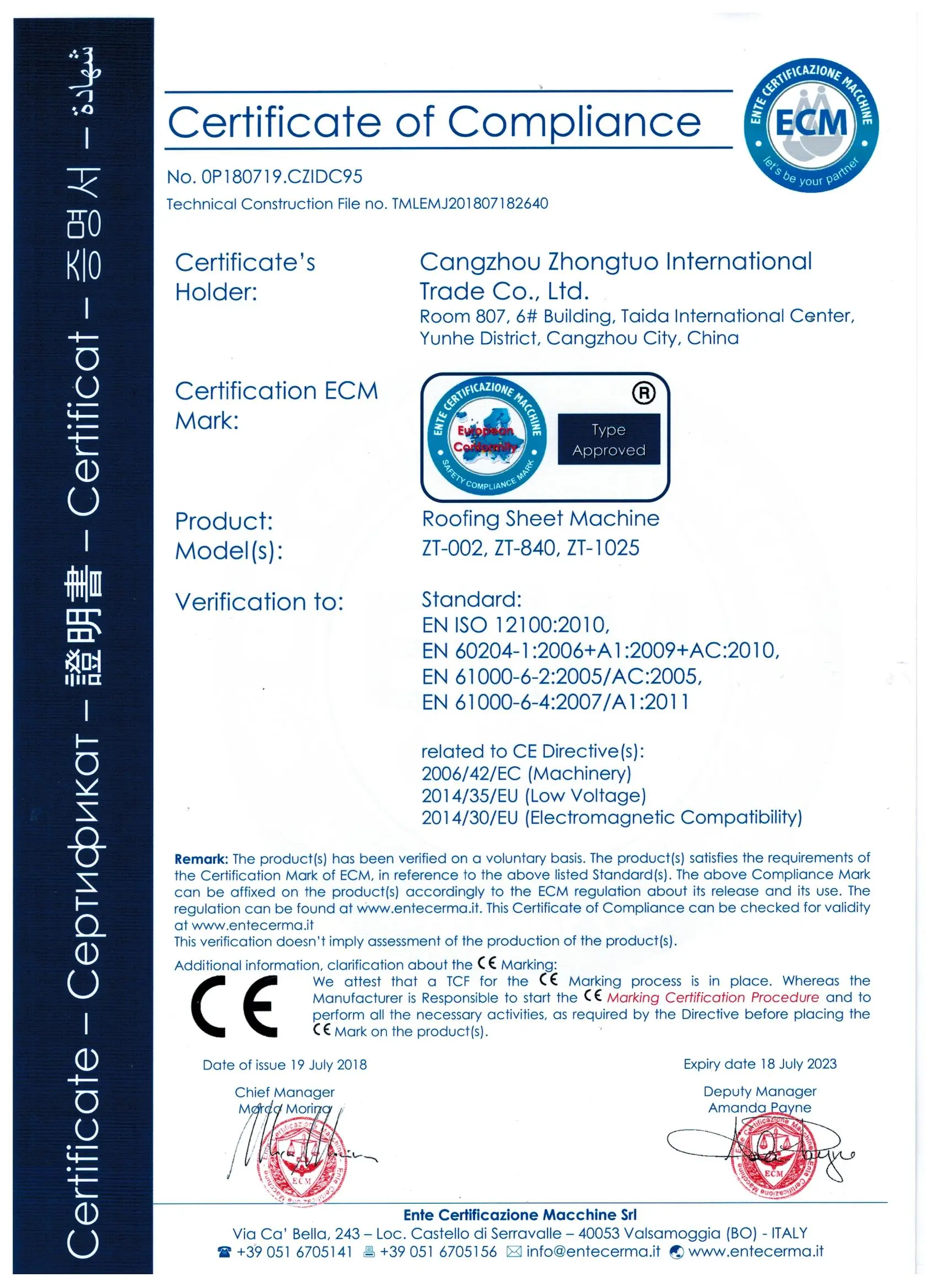

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)

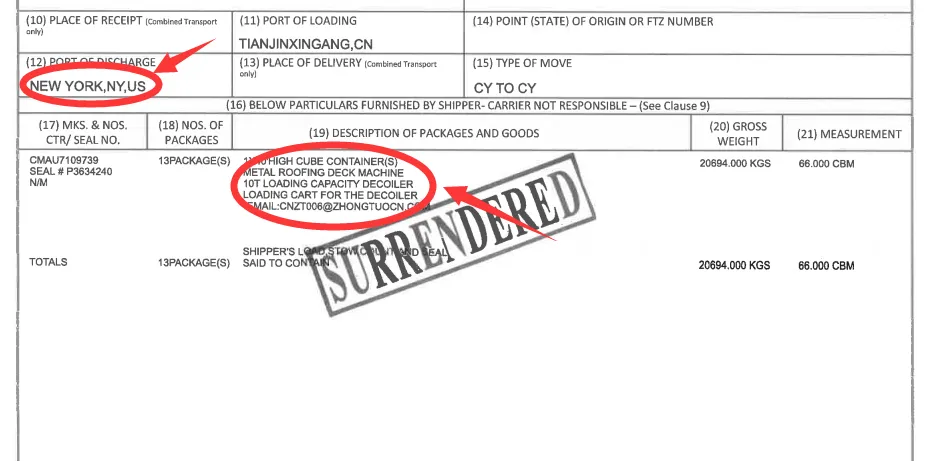

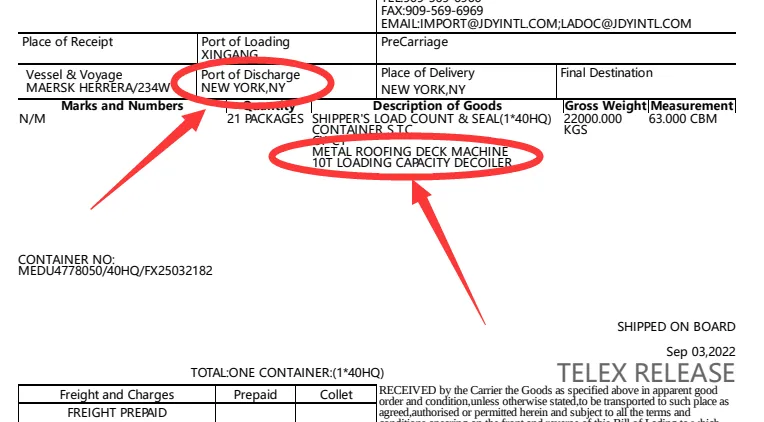

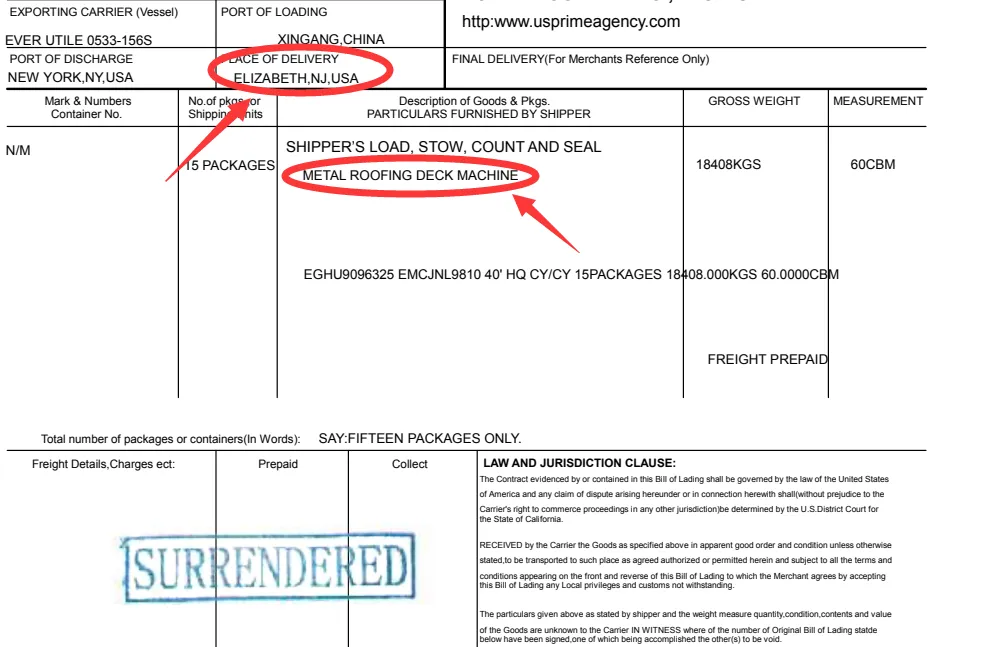

Bill of lading showing

we sent many same machines to North America market full of experience-we are the best choice for you.

Our Machine Sells Well In US
Gets High Praise From US Customers！
