2-3 mm Thickness C Channel Photovoltaic Solar Panel Bracket Roll Forming Machine 30 KW

Name: 2-3 mm Thickness C Channel Photovoltaic Solar Panel Bracket Roll Forming Machine 30 KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT79723075

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

30 KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications
- Type
  Tile Forming Machine
- Tile Type
  Steel
- Voltage
  220V-3P-50HZ
- Rolling Thinckness
  2-3 mm
- Feeding Width
  Other
2-3 mm thickness C channel photovoltaic solar panel bracket roll forming machine

The C strut profile solar mount roll forming machine advantage:
1. Automatic adjustment and movable support several dimension production.
2. Hydraulic punching holes after roll forming.
3. Working with automatic stacker, save much labor.
4. This machine can produce stainless steel material.

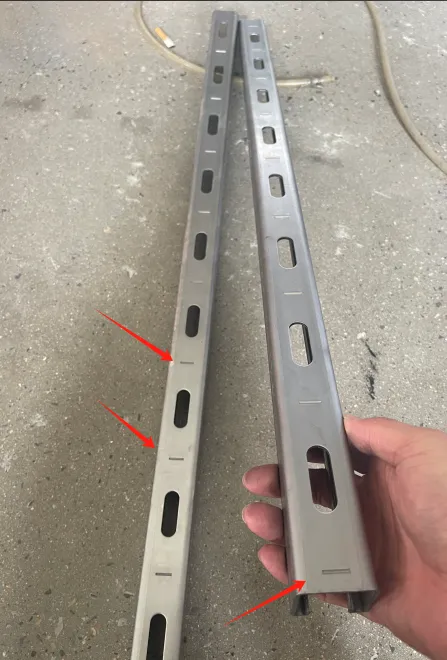

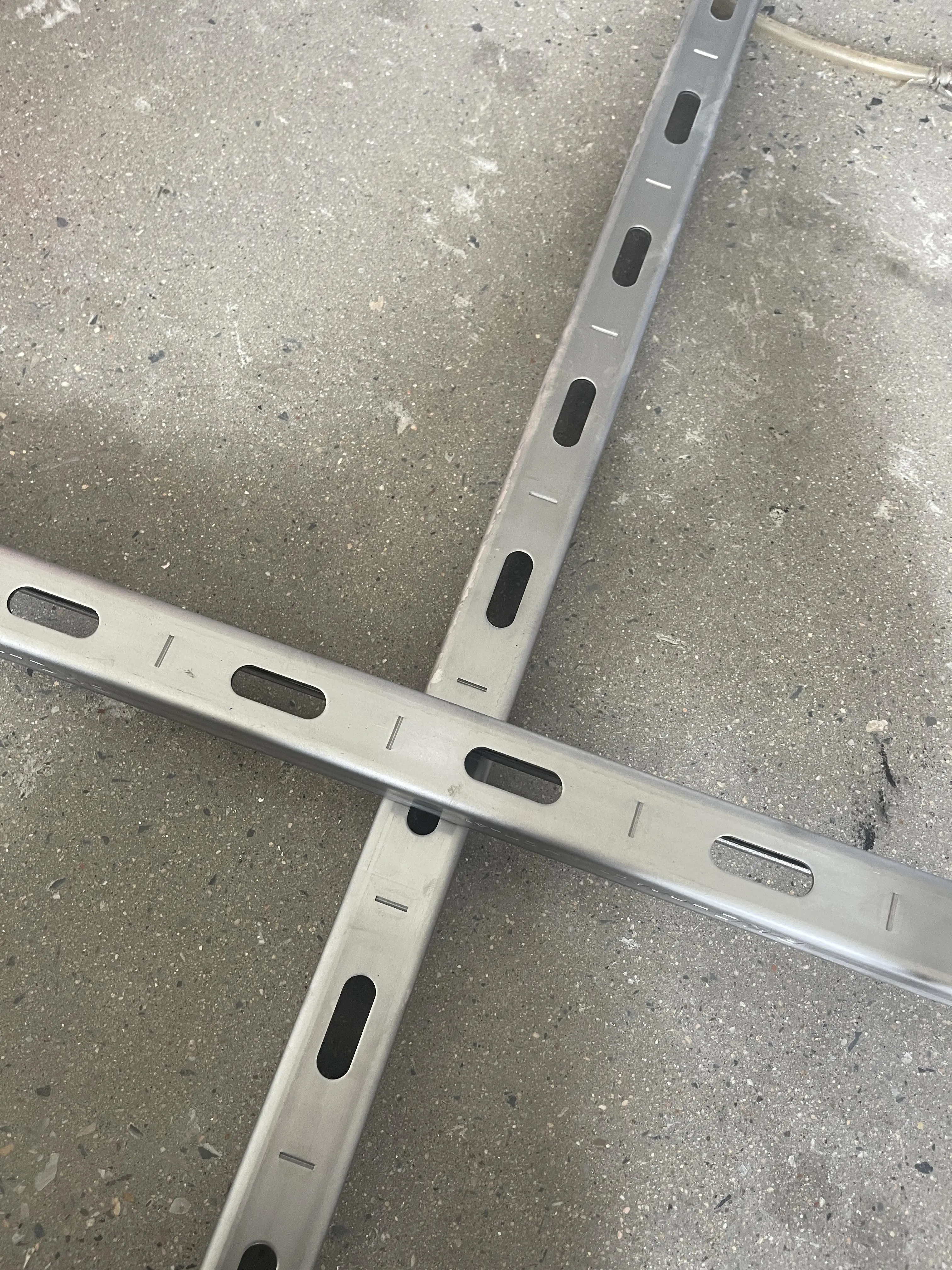

Profile drawing for your reference:

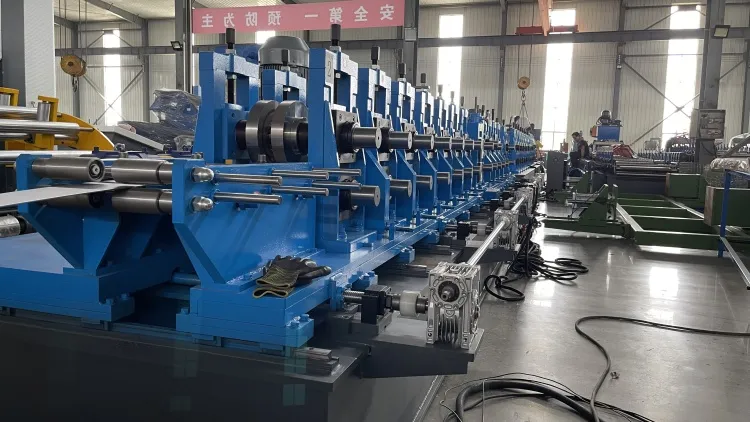

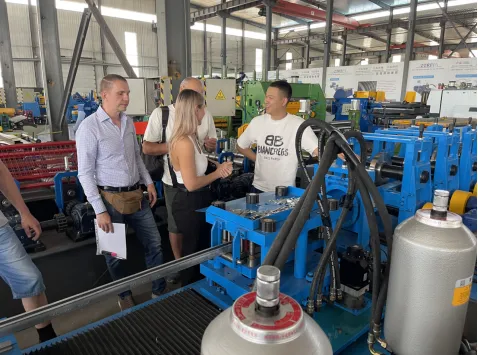

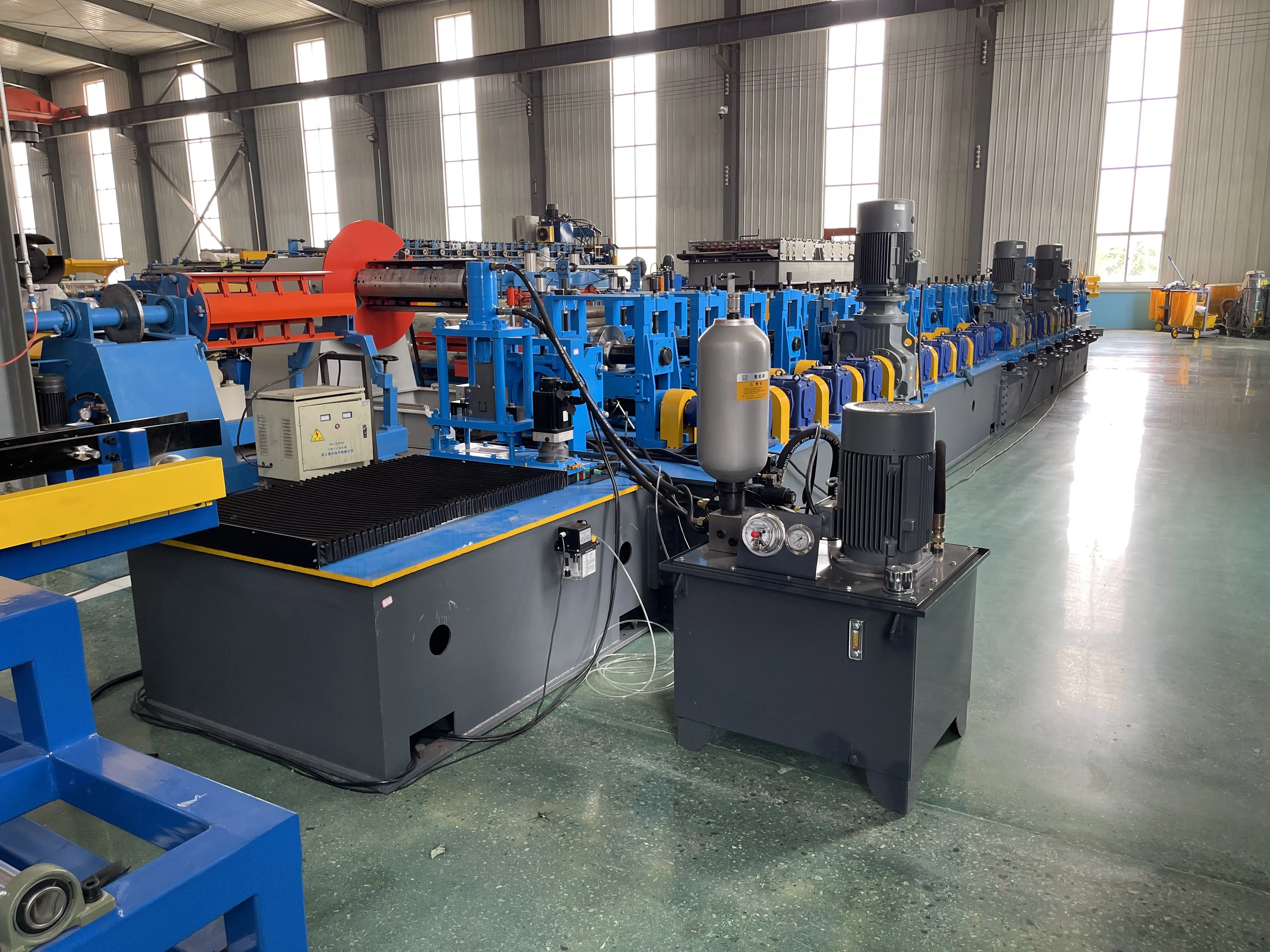

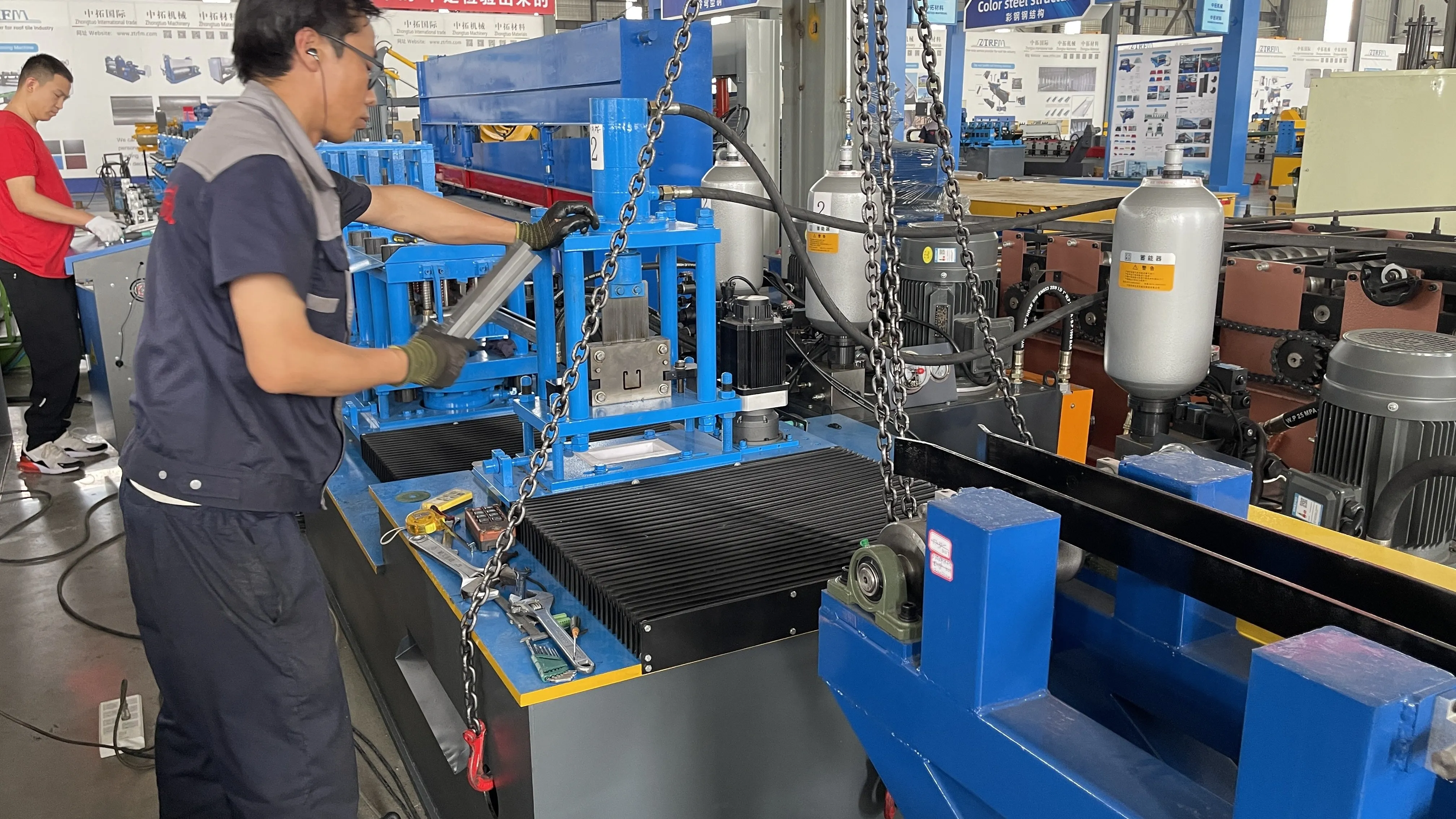

Photos about Russia C strut profile machine customer visit our factory and test the machine:

Some function you may need add on the machine:

Press logo on the surface of the C profile channel
When punching holes, the C profile will adown, ensure no burr will not have any influence to the installation.
The machine can add snicks device on the punching mold.

Compare to other supplier, what advantage we have about technology?
1. How to design the machine and adopt what type method to make the teeth? C strut profile teethes is very import, good teethes will influence the final c strut profile application a lot. Normally teethes used for the bolts connection, in order to let the bolts connection more well, and ensure will not move after installation. So the teeth device design will influence the final machine whether can be accepted by final end user.

There are several methods to make the strut-profile teethes, some can make the teethes well and some can not. Teethes making as below is better, this can guarantee the teeth is more deep and teethes are located in the top of the metal and then the force of friction is better.

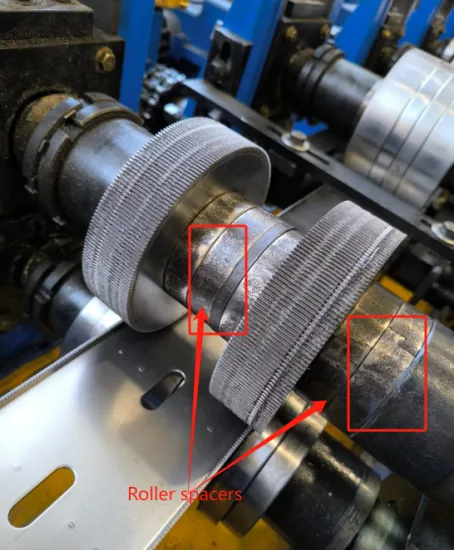

As we can see, there are roller spacers on the shaft, so after the teethes rollers is worn then we can change the teethes position to guarantee the teethed rollers can use many time. And at the same time, this type teethes making can guarantee the teethes rollers longer life time. What our machine adopt is this method to make the teethes for the strut-profile.

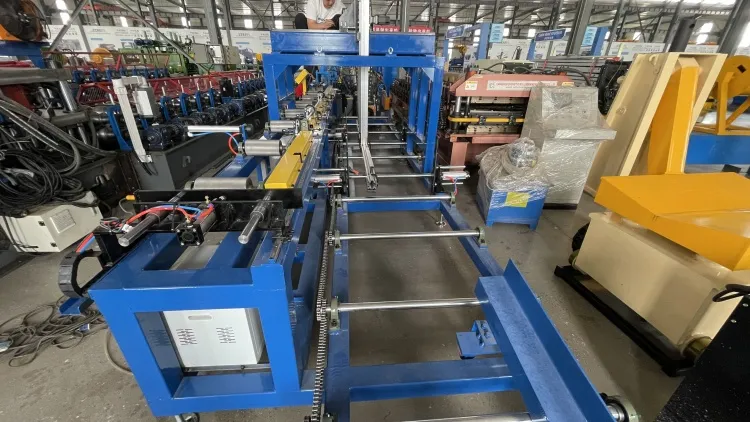

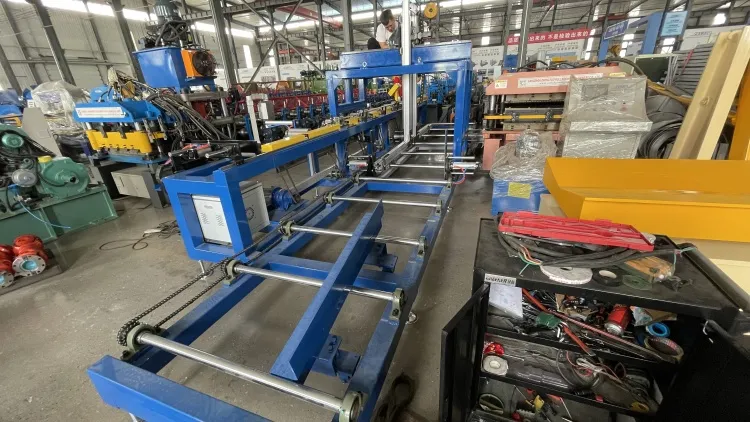

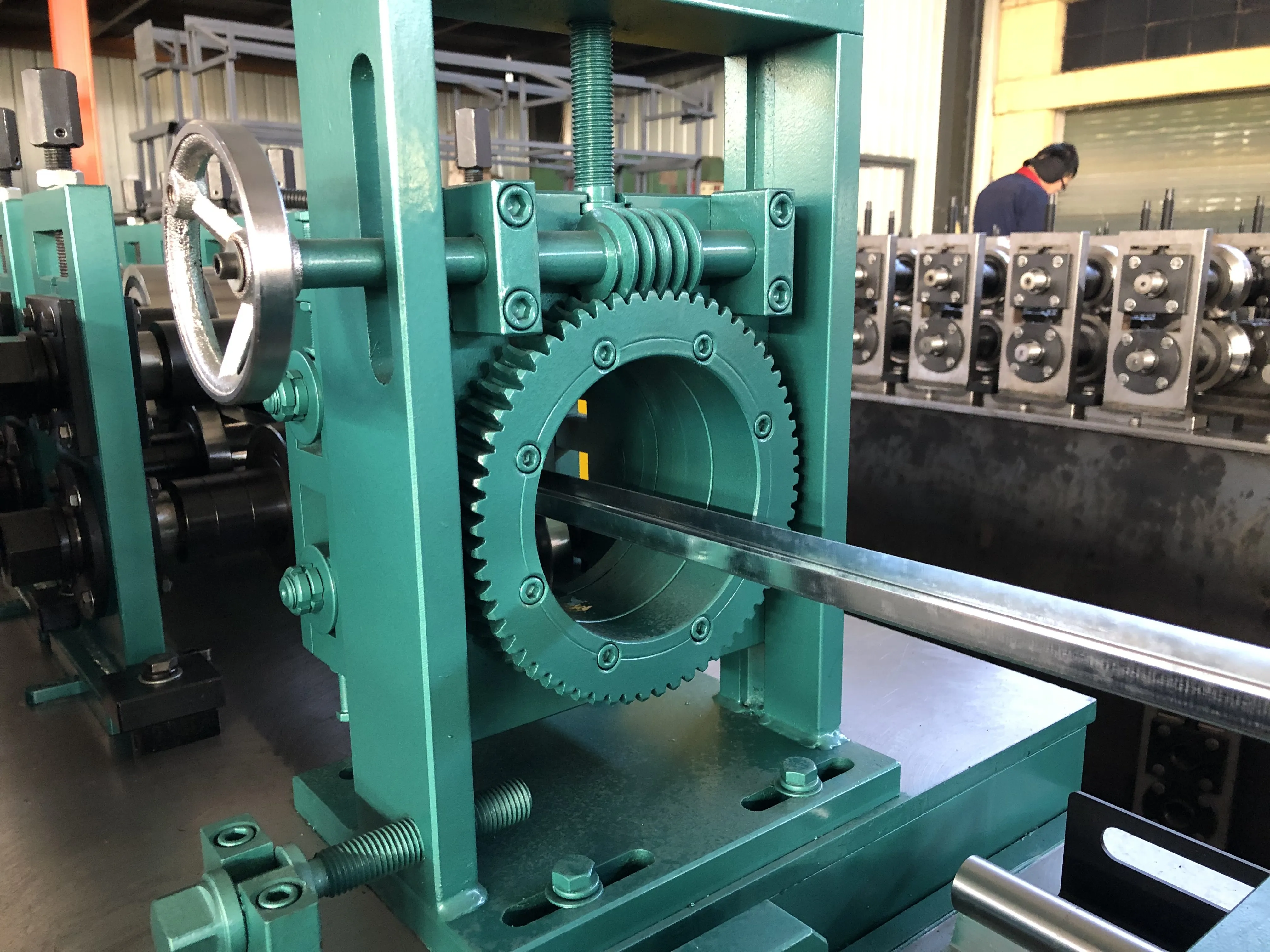

2. After roll forming and before cutting, here have a straightening device
The straightening also called turkey head. It can ensure the C strut profile still keep straight after punching. That is very important device for the final product.

Product
Details
Parameter
Raw material
Galvanized steel
Material thickness
2-3 mm
Cutting length
Adjustable

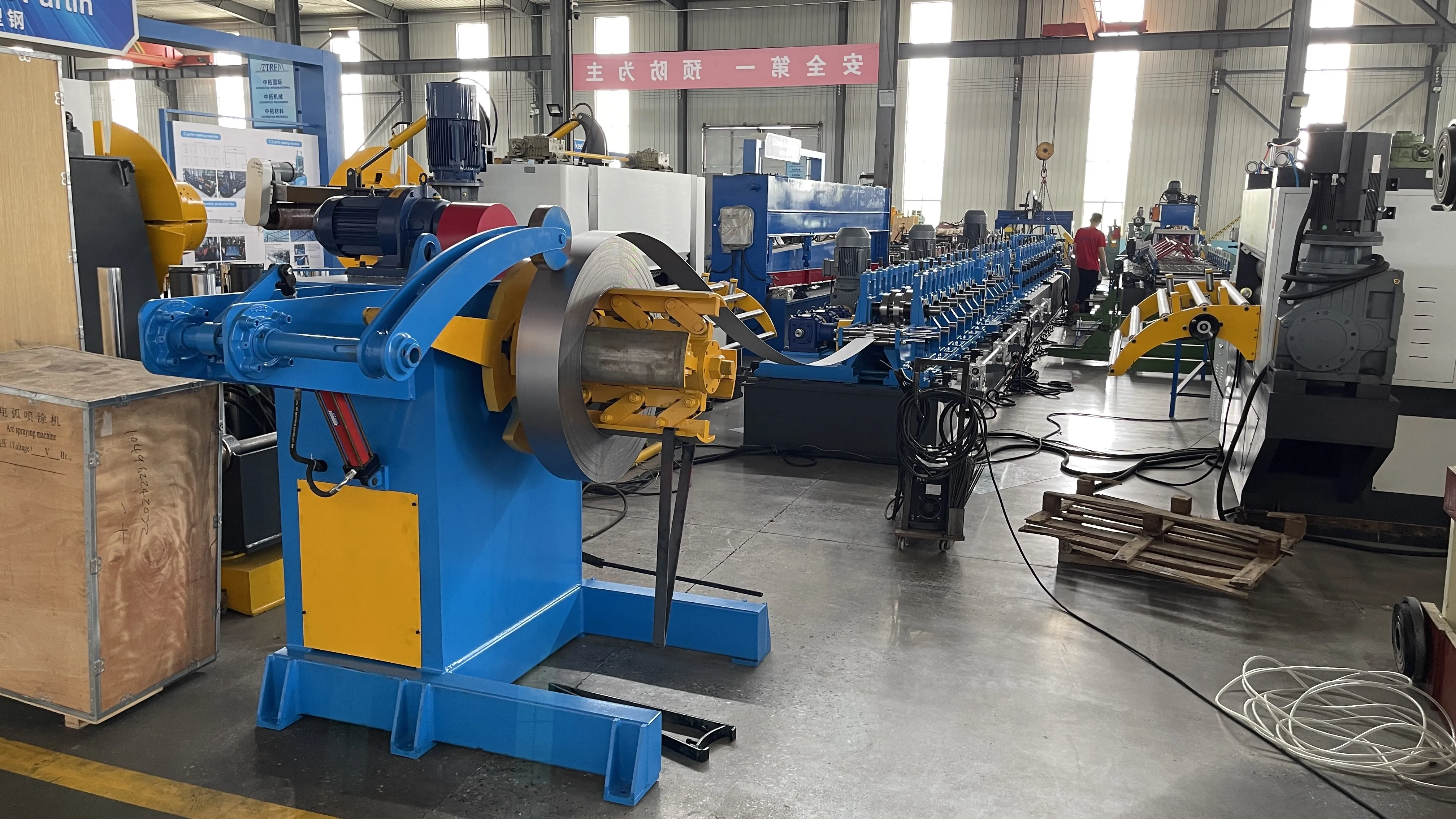

Decoiler

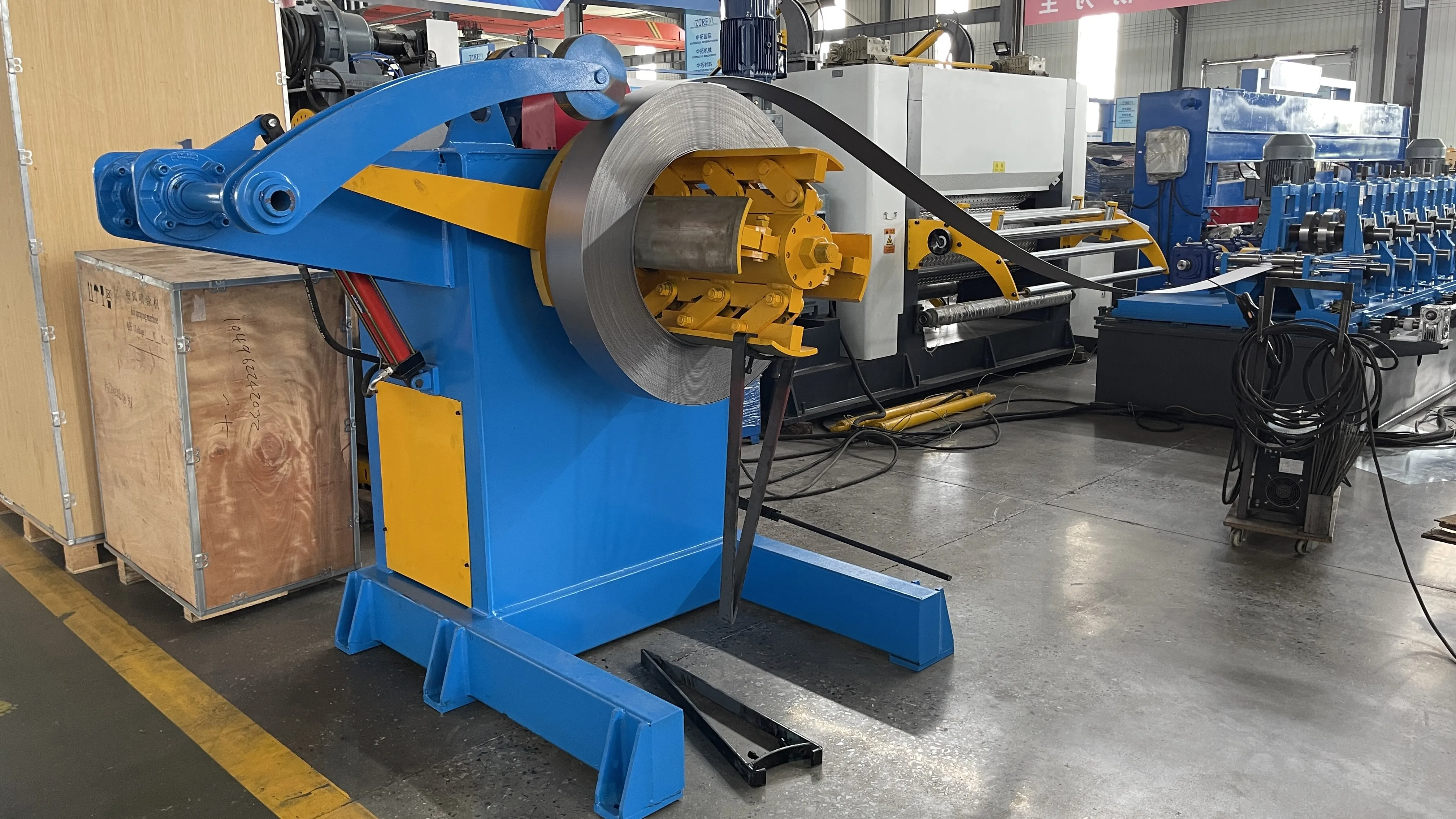

Work type：Hydraulic type Loading capacity：5 Tons Coil inner diameter：450-550 mm (adjustable) Quantity：1 set
The decoiler have press arm, and can uncoiling automatically.

Roll Forming System

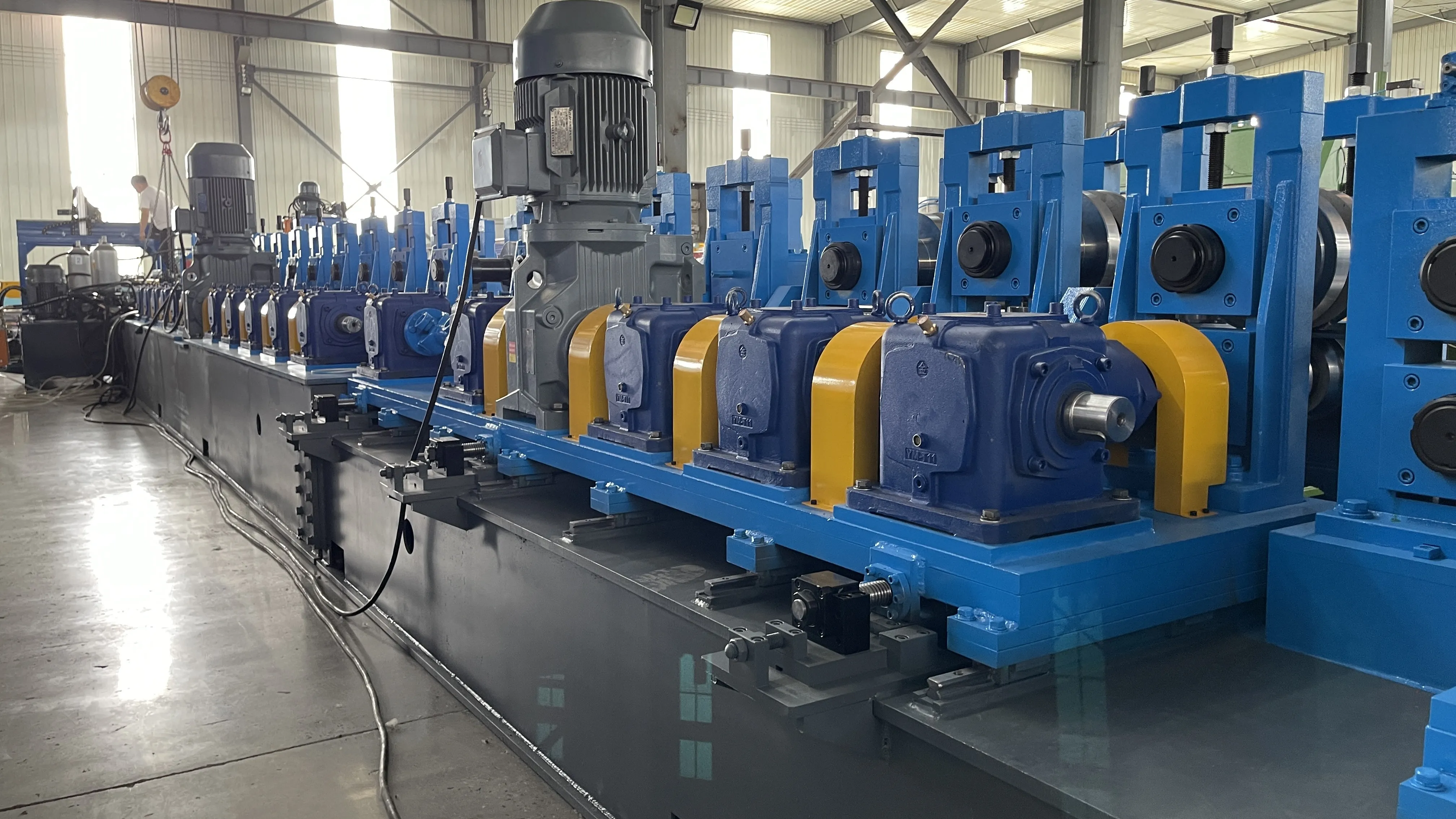

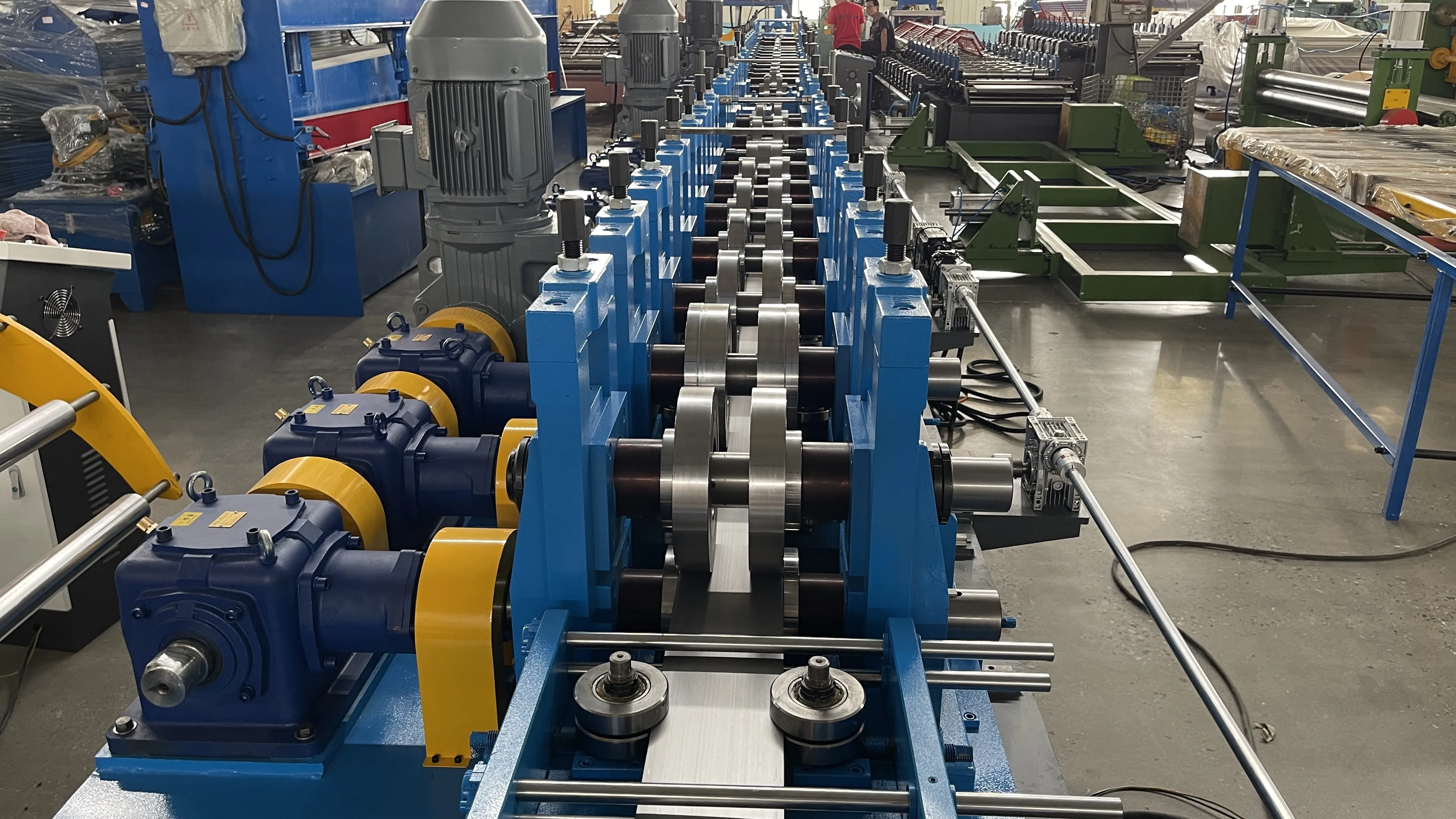

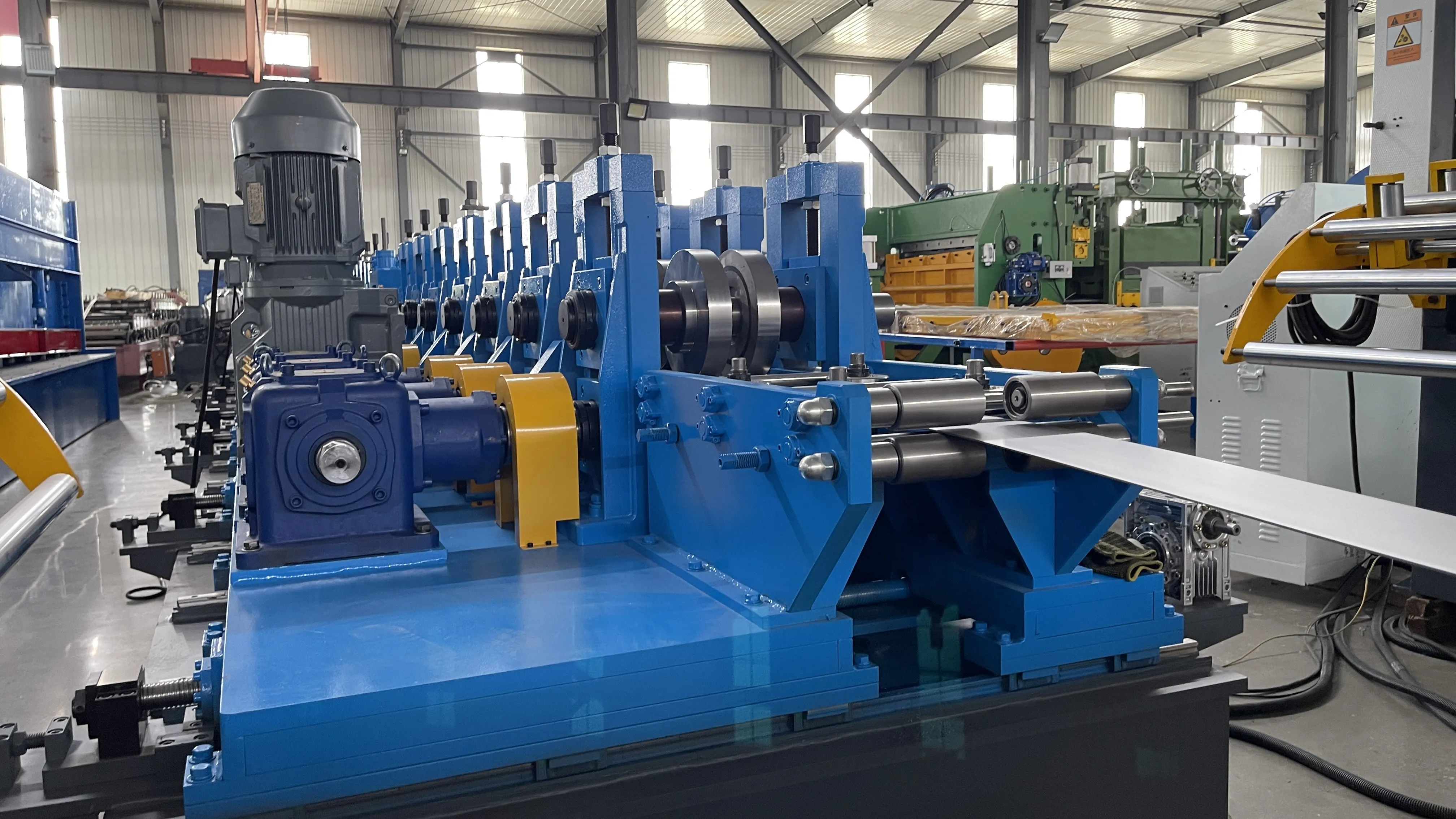

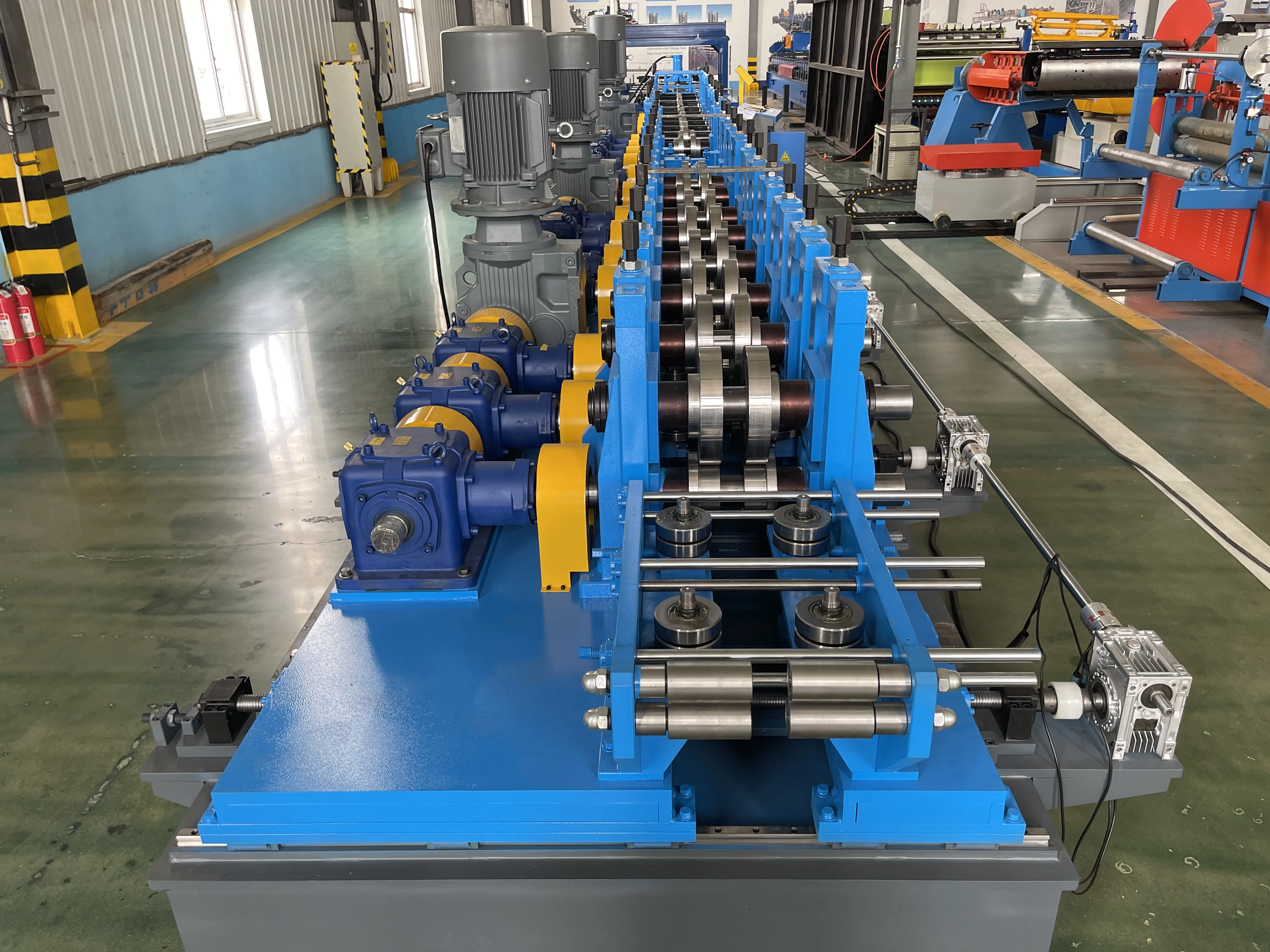

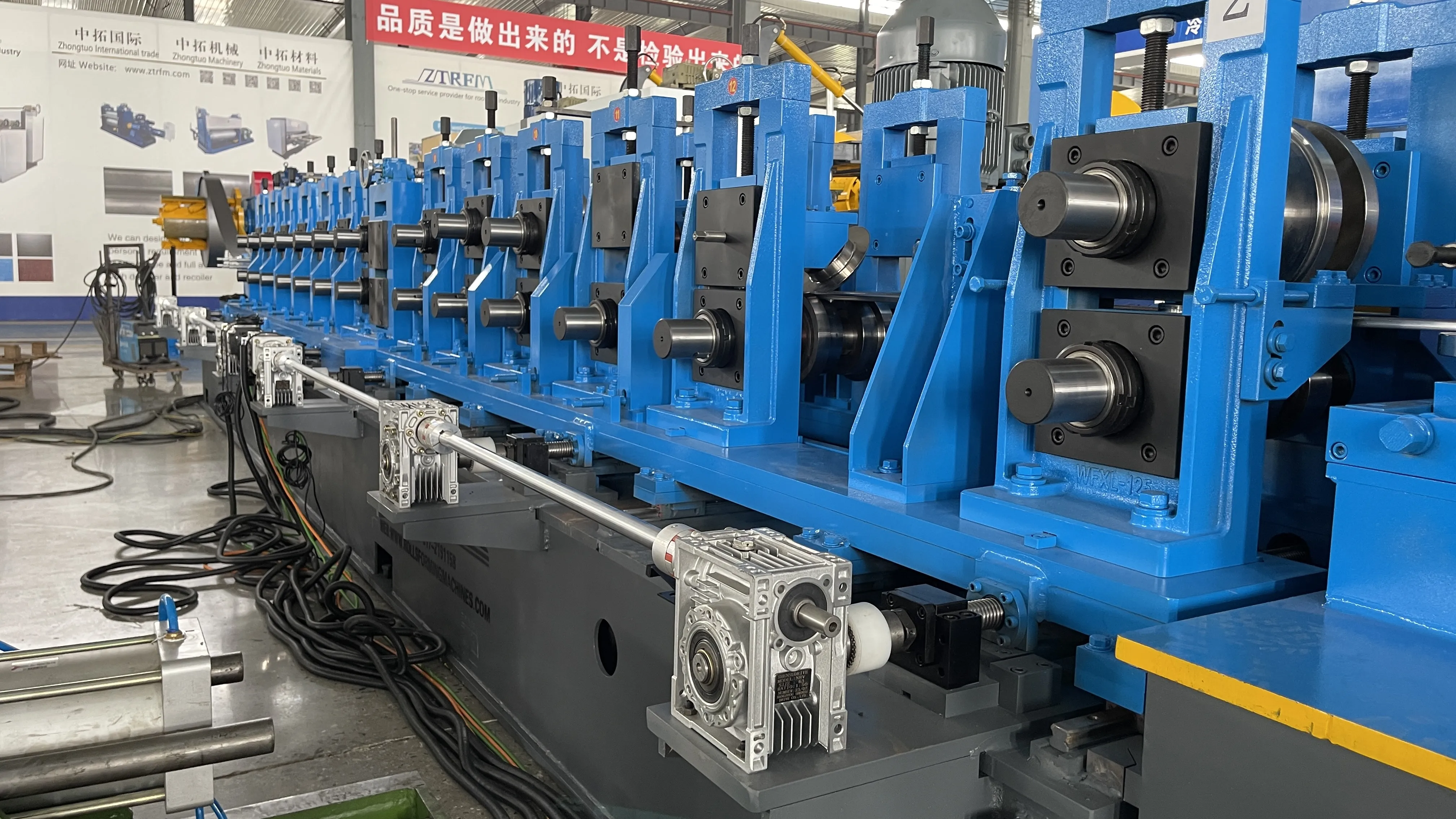

Roller shaft material: 45# steel Shaft diameter: 60 mm Tempering treatment Roller material: Cr12 Quenched treatment Rolling station number: 25 stations Work speed: 0-20 m/min Machine frame: Vertical iron arch casting frame structure Bearing:Chinese famous brand Harbin Work power: 15 kw Transmission:By gear box

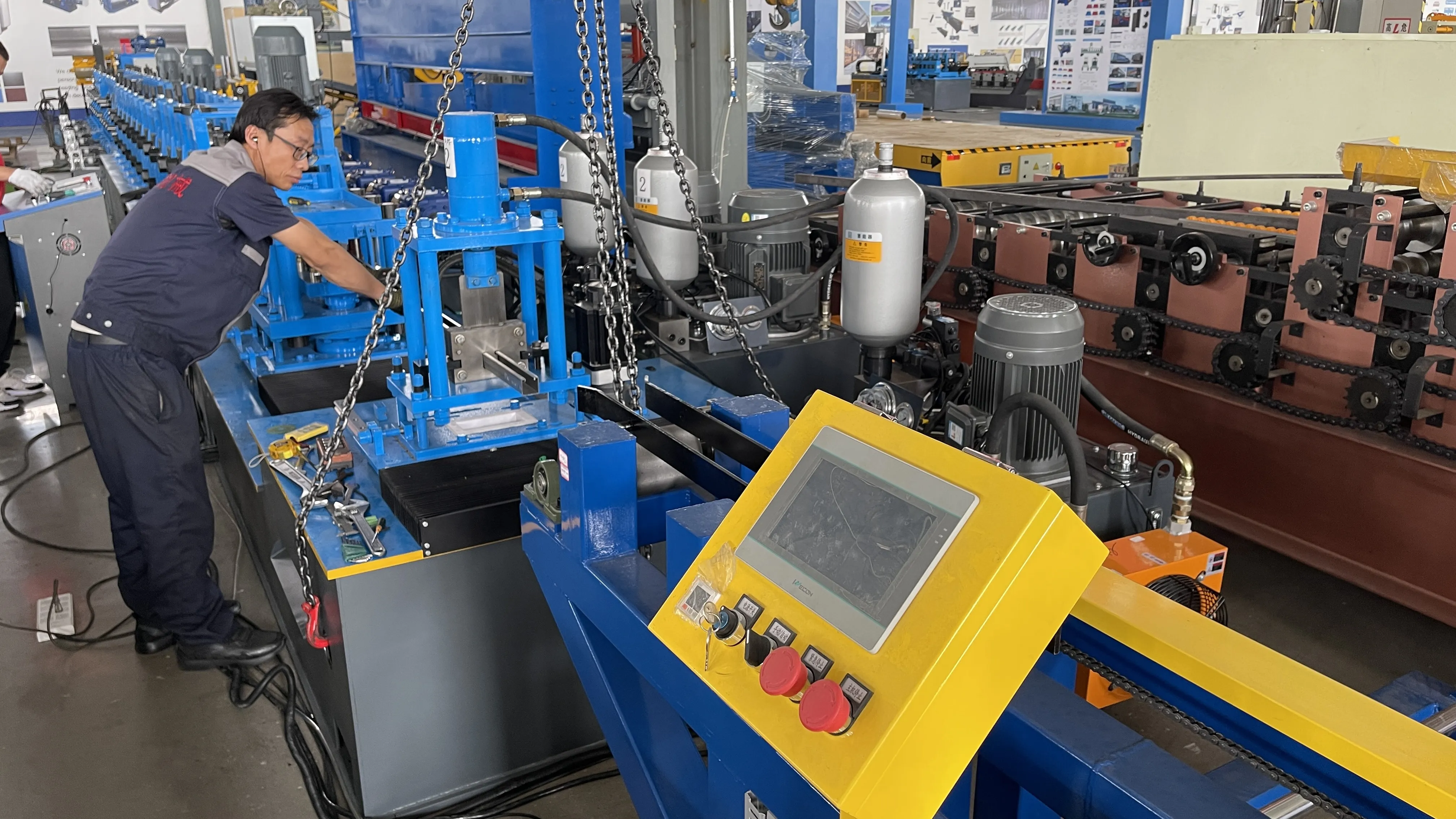

PLC Control System
Frequency brand:Delta (original) PLC brand:Delta (original) Screen type:Touch screen & buttons Screen language:English/Chinese Encoder: Omron Low pressure electrical part brand:Schneider Function:Cutting length and quantity control, speed adjustment control

Hydraulic System
Feature:The cutter have different holes according to the product dimension. PLC brand:DELTA brand Work type:Hydraulic track cutting with servo motor Servo motor power: 2.3 kw Hydraulic power: 5.5+5.5 kw Driving method:By pillar type Cylinder Cutter material:GB-Cr12 Cutting length tolerance:±1 mm/3 m Cutting feature:Automatic cutting after forming, no distorting.

Afer-Sale Service
1.Payment: 30%T/T in advance and 70%balance after testing and before shipment. 2.Delivery: 40 working days after the deposit. 3.Validity time: 15 working days 4.After-sales service A: Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available. B: Training and service: the buyer should charge of visa, round-trip ticket, food and accommodation overseas and USD 100/person/day for salary. C.The advantage of my factory: we have a team of skilled engineers and one group for after-sale service. D: we will provide you the manual for installation, operation and maintenance in English.
