10 Ton Hydraulic Decoiler with Loading Car for Roll Forming Lines 10T

10 Ton Hydraulic Decoiler with Loading Car – Automatic Steel Coil Uncoiling Machine for Roll Forming Line

Description:10 ton hydraulic decoiler with motorized mandrel and loading trolley. Suits 0.3–3mm steel/aluminum coil up to 1250mm wide. CE optional, 380V customizable, factory price.

Product Overview

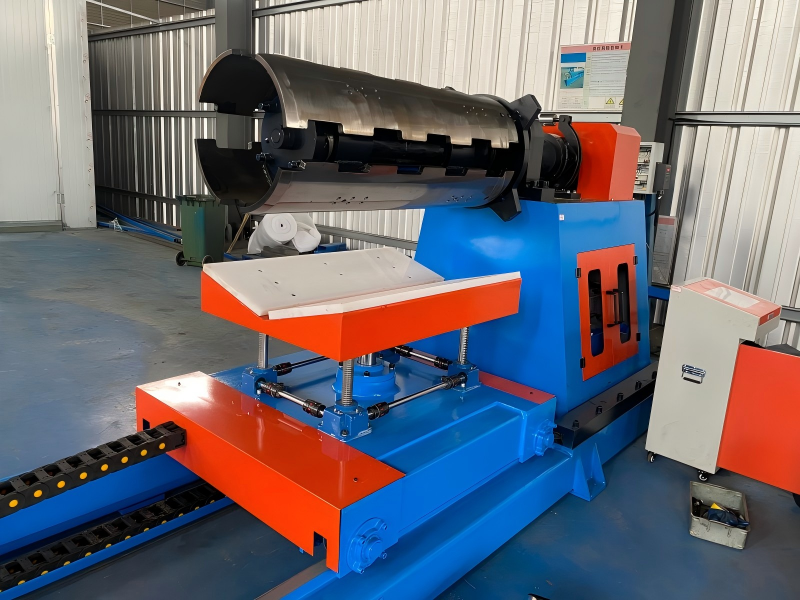

The 10-ton hydraulic uncoiler (decoiler)​ is a medium-duty automatic coil feeding device designed for roll forming lines, cut-to-length lines, and slitting lines. It uses a hydraulic expansion mandrel to clamp the steel coil inner hole (typically Φ470–530 mm), a frequency inverter to match the uncoiling speed with the main machine, and an optional coil loading car to reduce crane dependency and labor cost.

Compared with a manual decoiler, the hydraulic type expands/shrinks the reel automatically, rotates the coil actively, and stops/starts via a loop sensor—so the strip is fed smoothly without scratching or over-pulling the roll former.

Key Features

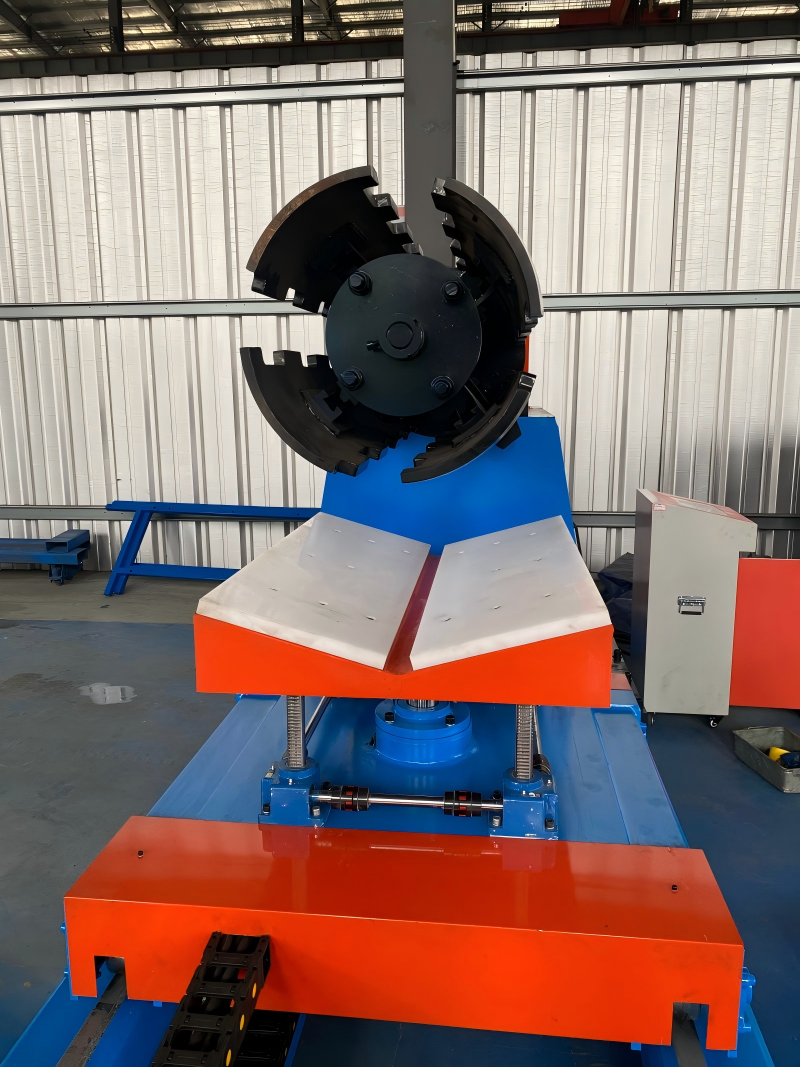

Hydraulic mandrel expansion (Φ470–530 mm adjustable), no manual wedge hammering



5.5 kW main motor + 4–5.5 kW hydraulic pump station, 8–20 m/min variable speed



Loop control sensor: auto start/stop synchronized with roll forming machine



Heavy H-beam base (300–350 mm) and 14–16 mm welded steel housing for 10T static load

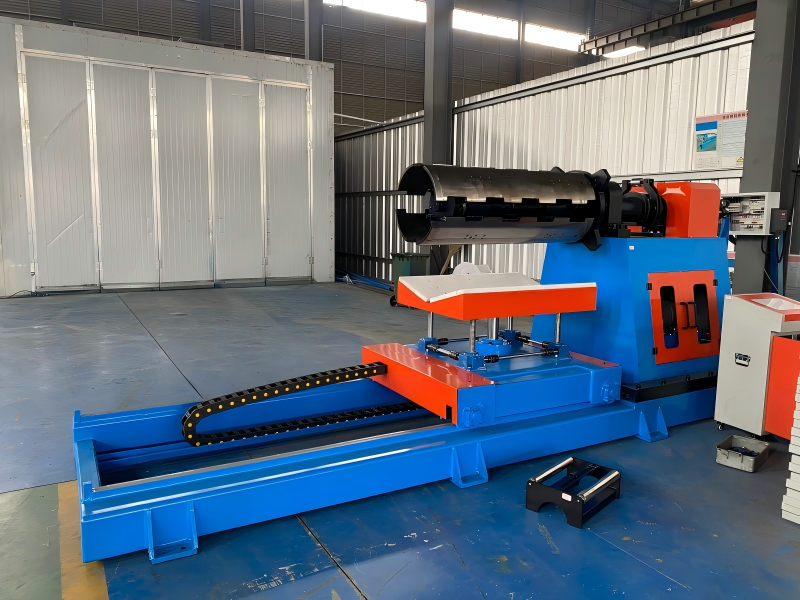

Optional coil car: chain-driven forward/backward, hydraulic lift up/down



Delta / Sanjing inverter, Schneider/CHINT electric parts optional



Voltage customizable: 220V/380V/415V/440V, 50Hz or 60Hz, 3-phase



Applicable material: GI, PPGI, aluminum, cold rolled steel, 0.3–3.0 mm thickness



Technical Specifications

Parameter	Value (standard 10T model)
Max coil weight	10,000 kg (10 ton)
Max coil width	1250 mm (1000/1500 mm on request)
Coil inner diameter	Φ470–530 mm (508/610 mm adaptor available)
Coil outer diameter	≤ Φ1500 mm
Material thickness	0.3–3.0 mm
Main motor power	5.5 kW
Hydraulic pump power	4.0–5.5 kW
Uncoiling speed	0–15 / 0–20 m/min (inverter control)
Main shaft diameter	200 mm
Hydraulic pressure	8–10 MPa (46# hydraulic oil)
Machine size (approx.)	2900×1600×1900 mm (without car)
Total weight	≈ 3.3–3.8 ton (with trolley)
Control system	PLC + inverter + loop sensor
Voltage	380V/50Hz/3PH or customized
HS code	8455221000 / 8479819000
Warranty	12–18 months (spare parts supported)

Customization: coil width, mandrel range, left/right hand feed, pressing arm, pneumatic brake, dual-head structure.

Application Scenarios

Roof sheet / wall panel roll forming machine

C/Z/U purlin roll forming line

Metal deck floor roll former

Steel coil cut-to-length line (CTL)

Slitting line auxiliary uncoiling station

Garage door, shutter slat, highway guardrail production



Why Choose This 10T Hydraulic Decoiler

Labor saving​ – coil car + hydraulic expand means 1 operator instead of 2–3.



Line protection​ – active pay-off avoids passive dragging that wears rollers and breaks thin PPGI.



Stable tension​ – sensor loop keeps strip sag/bend within range, less edge wave.



Export ready​ – nude or plastic-wrap packing, fits 20GP container, FOB Tianjin/Qingdao.



Spare parts​ – mandrel tiles, seals, inverter, limit switches stocked for quick shipment.



Packaging & Trade Terms (example)

Packing: main frame in plastic film + steel wire fixing, small parts in plywood box



Container: 1×20FT for single decoiler with car



Payment: 30% TT deposit, 70% before inspection & shipment



Delivery: 15–25 working days after deposit



Documents: Commercial Invoice, Packing List, BL, CE/ISO on request



After-sales: online video guidance, spare parts within warranty, engineer visit optional
