Process Library · Specialty Section Forming
CS-118 Roller Shutter Slat Forming

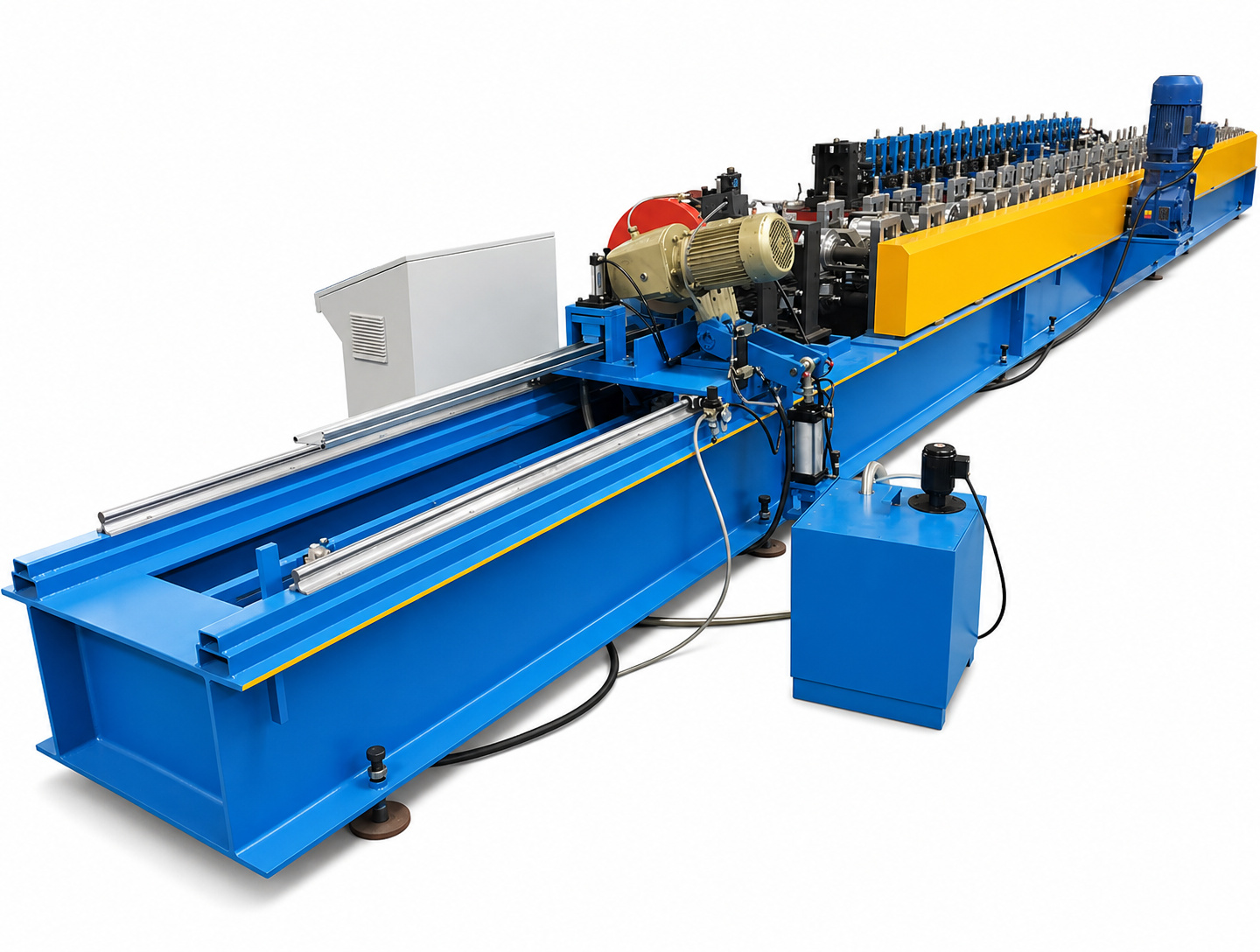

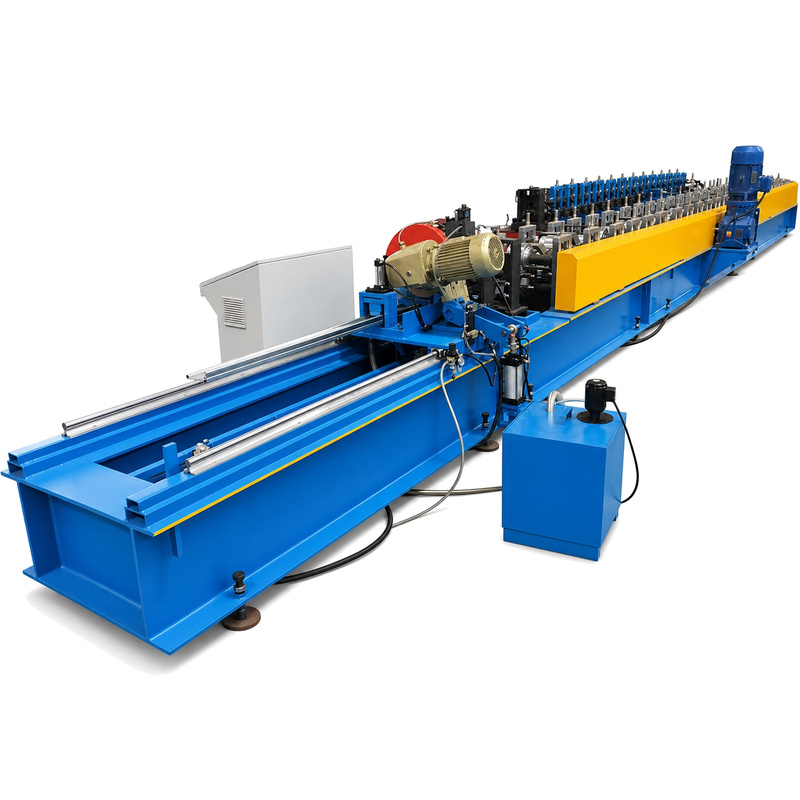

This process covers the slat line, not the whole shutter. A coil is opened, leveled and fed into a gear-driven forming section of about sixteen roll positions, which bends the CS-118 hooked edges and the slat face; the slat is then cut to length. Guide rails, boxes, track and frames are different machines, and PU foaming is a different configuration.
What this process looks like
This process covers the slat line, not the whole shutter. A coil is opened, leveled and fed into a gear-driven forming section of about sixteen roll positions, which bends the CS-118 hooked edges and the slat face; the slat is then cut to length. Guide rails, boxes, track and frames are different machines, and PU foaming is a different configuration.
Thickness
Thickness
1.6 mm
Main motor
Main motor
11 kW
Specifications
| speed | 0–20 m/min |
|---|---|
| Thickness | 1.6 mm |
| Main motor | 11 kW |
| Hydraulic station | 3 kW |
Operation steps
Decoiling
Decoiling
The coil is mounted on the decoiler at the entry; the decoiler is included and its capacity is matched to the coil weight.
Feed and leveling
Feed and leveling
The strip is straightened and centred so the slat width and hook position stay stable through the forming section.
Gear-driven forming
Gear-driven forming
About sixteen roll positions bend the two hooked edges and the slat face in stages; the gear drive keeps the roll positions synchronised.
Optional synchronized punching
Optional synchronized punching
If the order includes punching, the punch station runs with the line to the slat hole pattern; without it, the slat is formed solid.
Hydraulic cut-to-length
Hydraulic cut-to-length

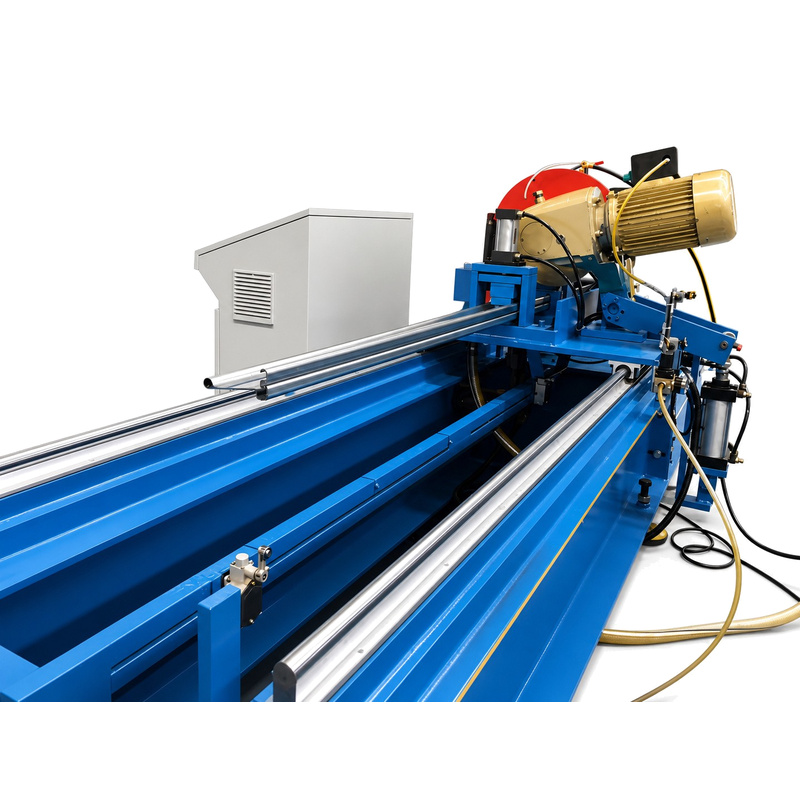

The hydraulic shear cuts the slat at the set length with a 3 kW station, and the slat leaves on the exit table.
What's included
This line
Decoiler (capacity to be confirmed).
Standard build
Feed and leveling section.
Also included
Gear-driven forming section, about sixteen roll positions on φ70 mm shafts.
Scope
11 kW main motor and 3 kW hydraulic station.
Key details
Note 1
A second slat profile needs a full roll-set change; it is not a recipe change on the HMI.
Note 2
Synchronized punching is optional. Without it, the slat is formed solid and holes are a separate operation.
Power & voltage
The 0–20 m/min figure belongs to the CS-118 quotation. Single-layer, European thin and PU double-layer tiers run at their own speeds with their own power packages.
Note 4
The line runs one slat profile at a time; it does not produce two profiles simultaneously.
FAQ
What is the difference between CS-118 and the AU-style line?
CS-118 is a φ70, 11+3 kW, 0–20 m/min package for 1.6 mm strip, with about sixteen roll positions. The AU-style line is a 29-stand, Ø90, 7.5 kW package for 0.4–0.6 mm strip with four decoilers and a 7 m seamer. They are different quotations.
Is the decoiler included?
Yes, the standard build includes a decoiler; its capacity is confirmed against your coil weight and inner diameter.
Can the line punch the slat?
Only if synchronized punching is ordered. The punch pattern follows your slat drawing.
Can one line run a second slat profile?
Yes, with a second full roll set. The change is a roll-set change, not a control recipe.
