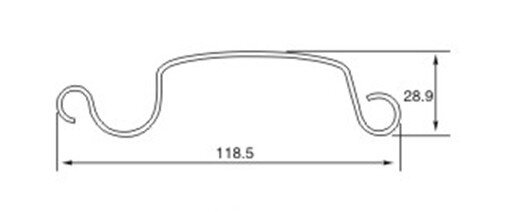

    <h2>What this profile is</h2> <p>This is the CS-118 interlocking roller shutter slat. It is a curtain slat: the hooked edges engage with the next slat, and the assembled curtain rolls up on the drum. It is not a guide rail, a door frame or a garage door panel.</p> <h2>Geometry</h2> <p>Drawing 06 shows a 118.5 mm developed width and a 28.9 mm height. The hook shape and the developed width must match the signed slat drawing before the roll set is released. The slat is formed from 1.6 mm strip on the CS-118 line.</p> <p>Developed width is measured along the strip, not across the finished curtain. Coil width follows the developed width plus the edge allowance on the signed drawing.</p> <p>[用文件：739_卷帘门机_版型__06.jpg]</p> <p>The cover image on this page is that drawing, not a photograph. No photo in this set shows a finished 118.5 mm slat, so the drawing is the reference.</p> <h2>How it is used</h2> <p>Slats are assembled into a curtain, seated in side guide rails, and wound on an octagon drum. The guide rails, box, bottom rail and drum are separate products. A complete shutter project buys them as separate items, not as stations on the slat line.</p> <h2>Boundaries</h2> <p>This is not a single-layer 0.8–1.2 mm slat, a European thin 0.25–0.35 mm slat or a PU double-layer slat. Those are different thickness tiers with their own quotations. It is not a 699/747 mm sectional garage door panel and not a door frame profile.</p> <p>Dimensions on this page are taken from reference drawing 06. Production follows the signed customer drawing; do not scale from photographs.</p>

    CS-118 Roller Shutter Slat

    Section drawing

    CS-118 Roller Shutter Slat

    Key dimensions

    Developed width118.5 mm
    Slat height28.9 mm
    Thickness1.6 mm
    MaterialGalvanized steel / stainless 304
    HookPer drawing 06

    Matching machines

    Roller Shutter Door Slat Roll Forming Machine CS-118 20 m/minView product →

    Related Machines

    Profile numbers help you compare hosts before quoting. They are not a substitute for signed drawings or a technical proposal.
