Process Library · Roofing & Wall Panel
950 Glazed Tile Line Forming

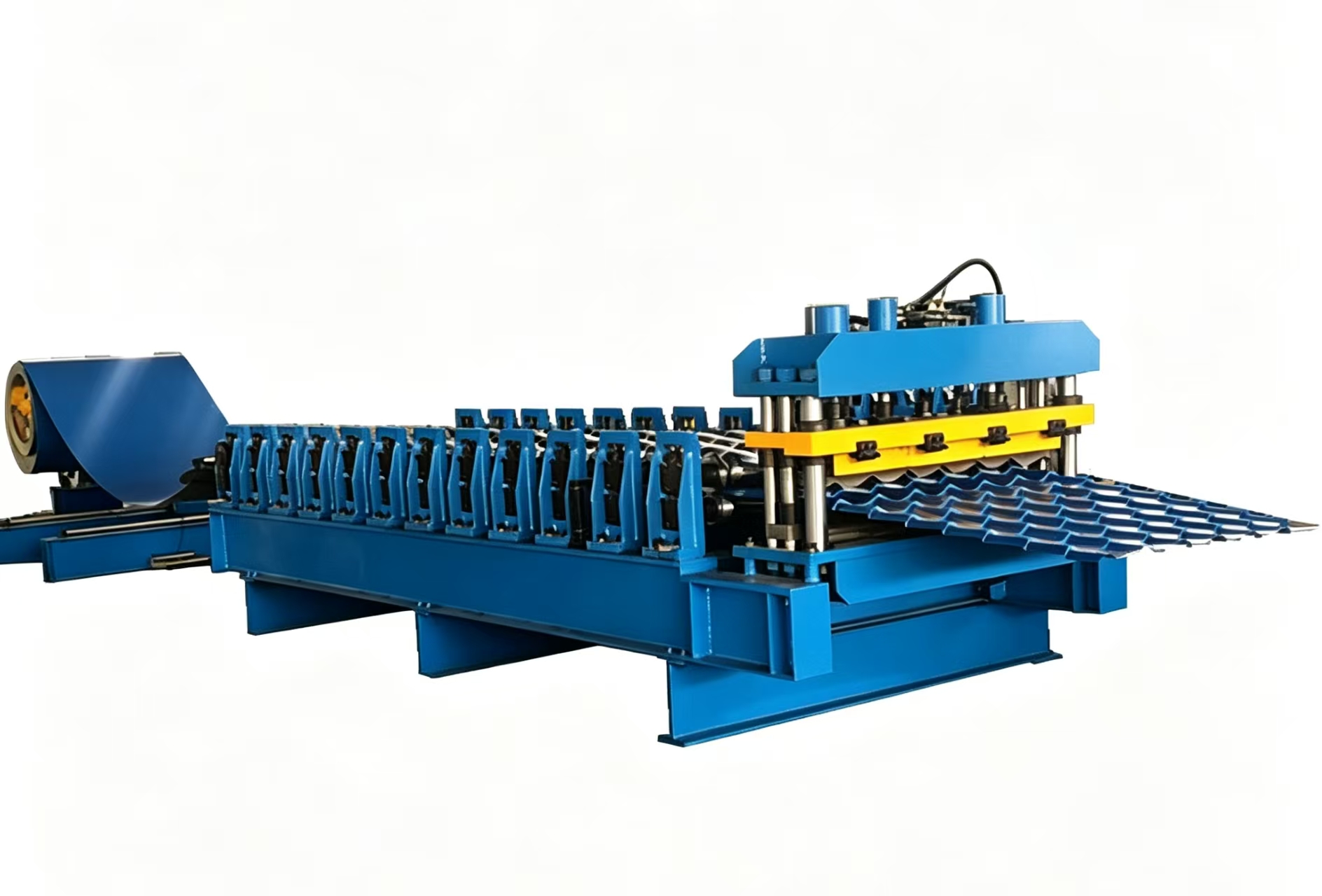

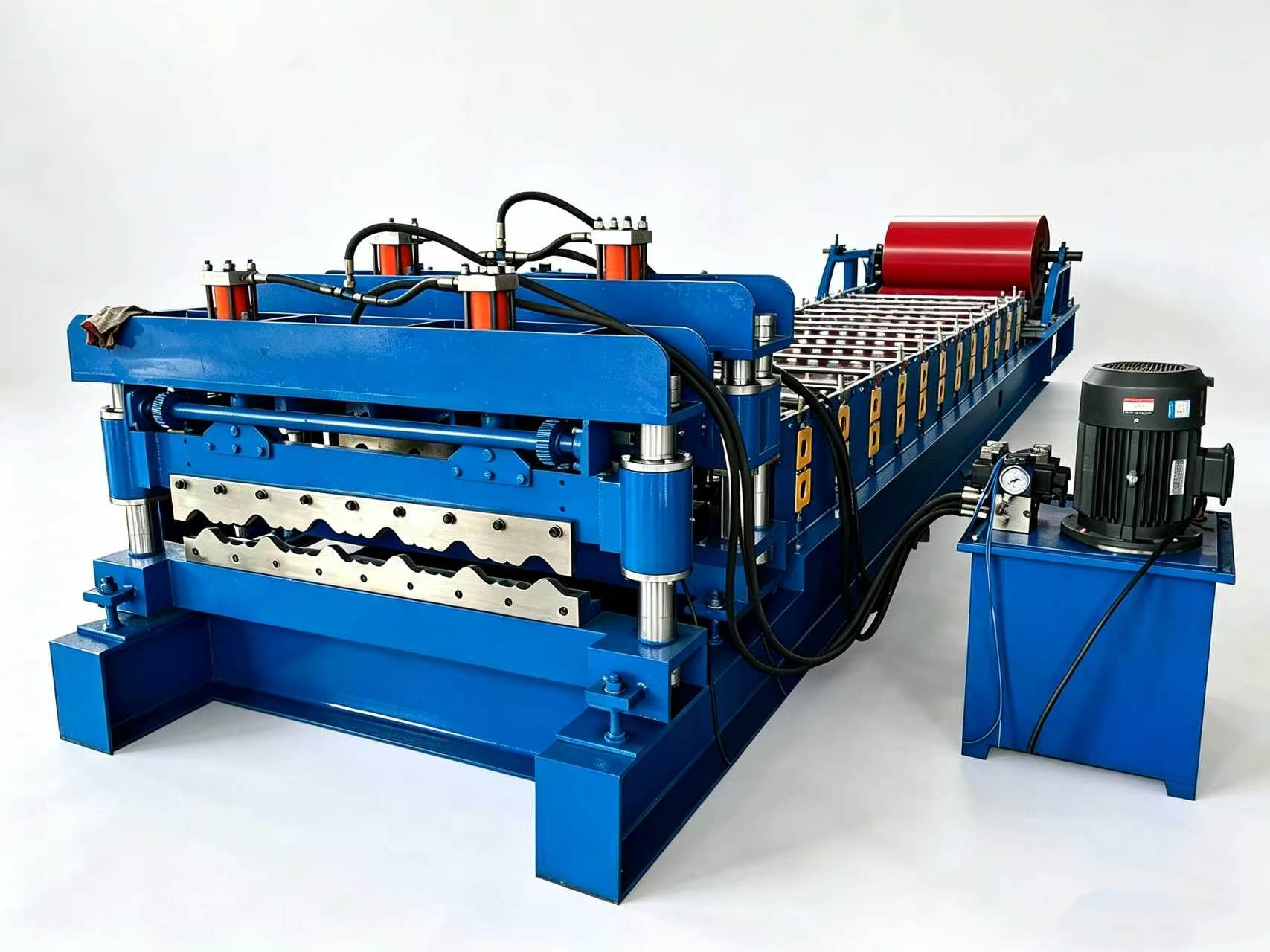

This process forms a single-layer glazed step tile on the 950 cover code. Coil of 0.3-0.8 mm is fed at about 1200 mm to produce about 950 mm of cover, with a pitch of about 190 mm and a crown of about 27 mm, and the transverse step is pressed hydraulically in the line at a spacing adjustable over about 150-380 mm. The host runs about 13 stands on a Φ80 mm shaft with chain drive, on a 5.5 kW main motor and a 5.5 kW hydraulic station.
What this process looks like
This process forms a single-layer glazed step tile on the 950 cover code. Coil of 0.3-0.8 mm is fed at about 1200 mm to produce about 950 mm of cover, with a pitch of about 190 mm and a crown of about 27 mm, and the transverse step is pressed hydraulically in the line at a spacing adjustable over about 150-380 mm. The host runs about 13 stands on a Φ80 mm shaft with chain drive, on a 5.5 kW main motor and a 5.5 kW hydraulic station.
Step band
Step band
150-380 mm
Thickness
Thickness
0.3-0.8 mm
Specifications
| SKU / build | ZT-GLAZE-950 single-layer glazed step tile line |
|---|---|
| Step band | 150-380 mm |
| Thickness | 0.3-0.8 mm |
| Forming stands | 13 |
Operation steps
Uncoiling
Uncoiling
The coil is paid off the decoiler with the painted face kept to the side the roof will show, so the finished tile presents the correct surface.
Guide feeding
Guide feeding
The strip is guided onto the machine centre line, and levelled where the build includes it, so the panel runs true along its length and the side laps finish square.
Roll forming the longitudinal ribs
Roll forming the longitudinal ribs
The strip passes through about 13 driven stands, each adding part of the bend, building the longitudinal rib and the outer profile without breaking the coating.
Hydraulic pressing of the tile steps
Hydraulic pressing of the tile steps

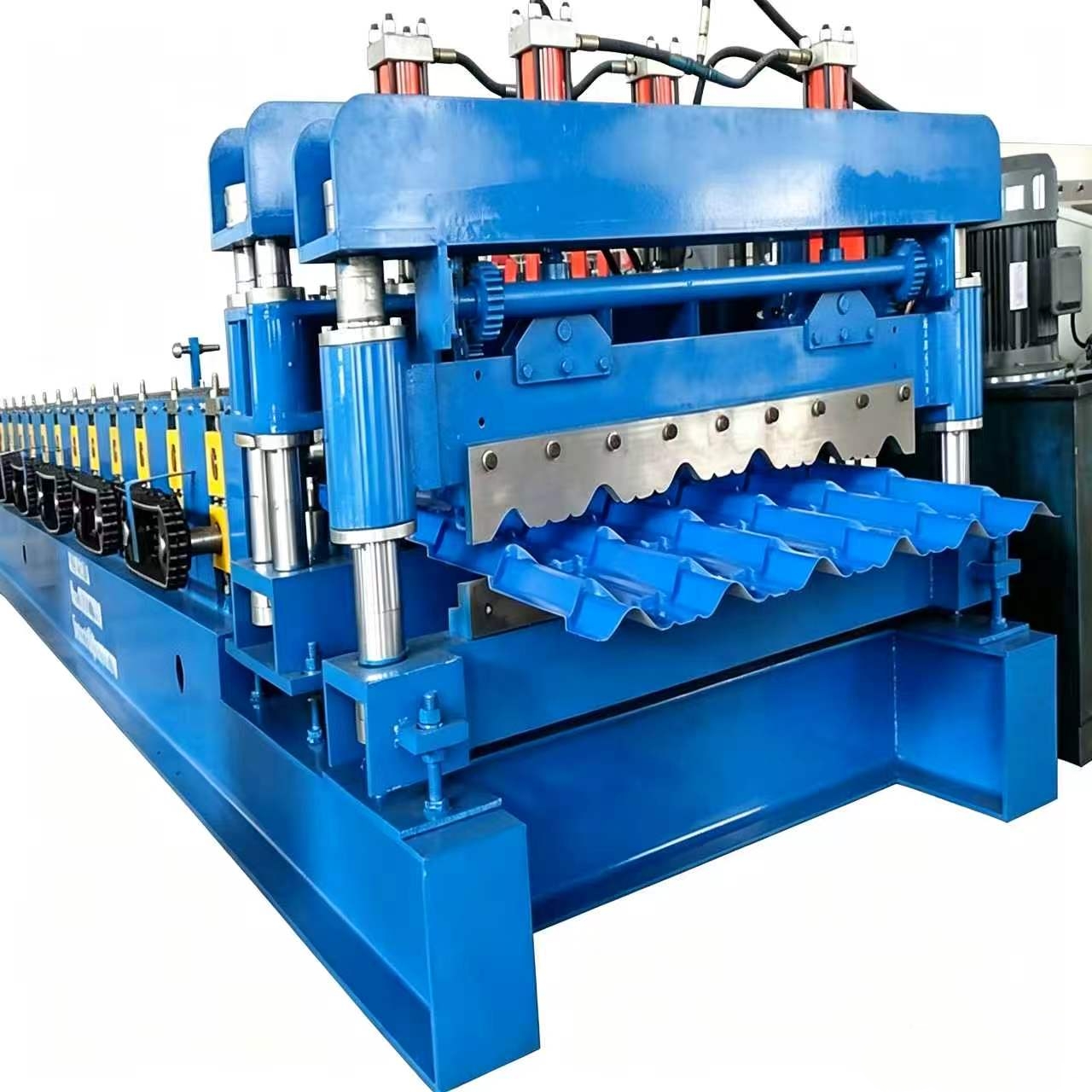

A hydraulic press stamps the tile pattern across the running panel at the step interval; this is the stage that turns a ribbed sheet into a tile, and the stage that makes the line work in cycles.
Cutting to length
Cutting to length

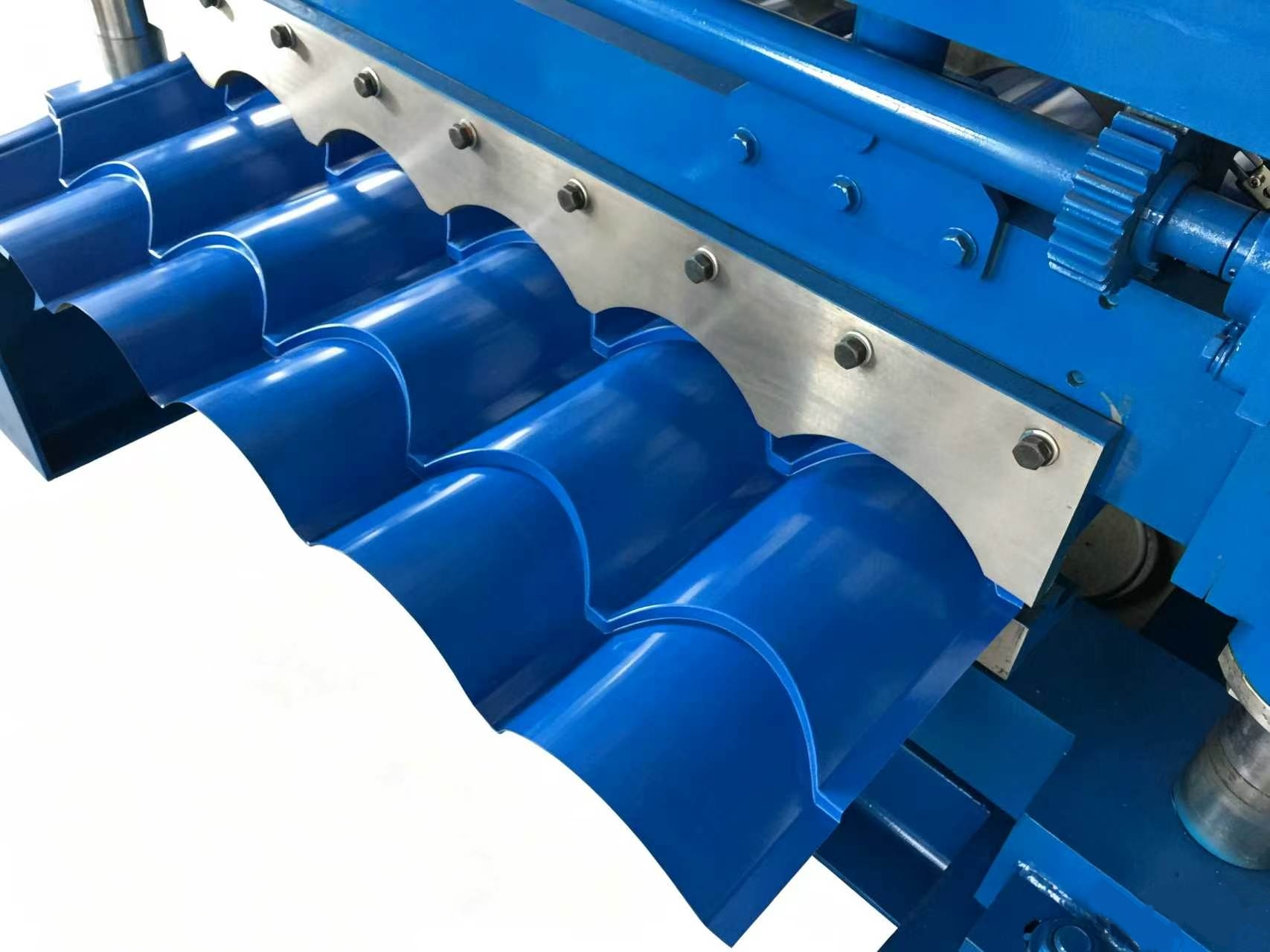

The panel is cut to the ordered length on the hydraulic shear, whose cutter package (guide-post or mid-plate) is fixed with the cover code.
Discharge and first-off check
Discharge and first-off check

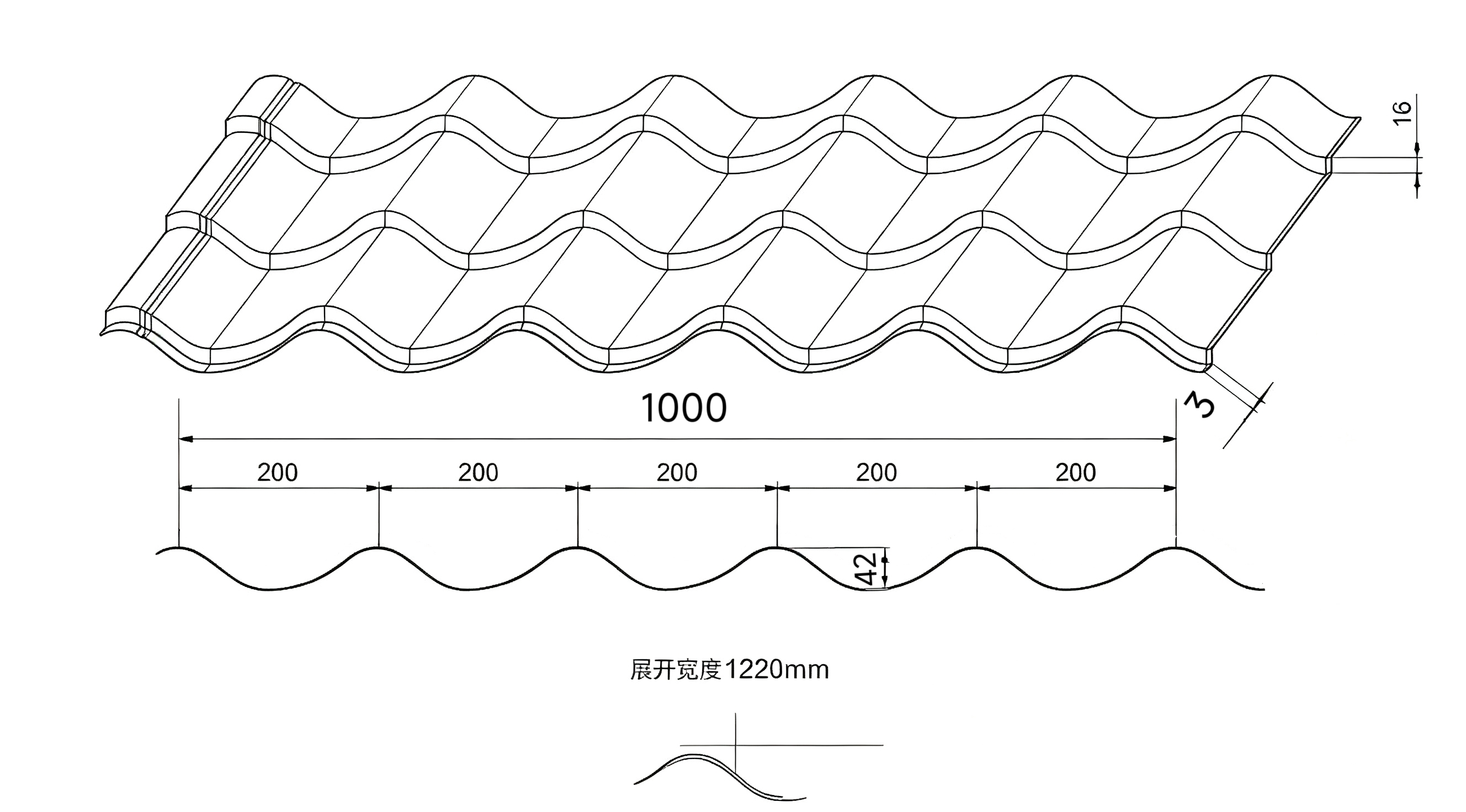

Finished tiles leave on the exit table; the first piece of each batch is checked against the signed section drawing before the run continues.
What's included
This line
Forming main machine (with 950 tile profile tooling)
Standard build
Decoiler and Hydraulic cut-to-length shear
Also included
Exit table and Spare-parts box supplied with the machine
Scope
Factory test run and Export packing in wooden crates
FAQ
Can this line run 828 or 840 as well?
No. Each cover code has its own roll set, number of stands and power package; a different code means a separate machine quotation.
Are 950 and 950 Arc the same machine?
No. Both have a cover width of 950, but 950 has a pitch of about 190, a crown height of about 27 and about 13 stands; 950 Arc has a pitch of about 158.3, a crown height of about 33 and about 18 stands, and its roll set is dedicated. The same cover width does not mean the same tile profile drawing.
Is the step pitch fixed?
The transverse tile step (pitch) is adjustable from about 150–380 mm; the pitch and crown height are fixed by the tile profile drawing.
Does this process include punching?
No. The machine's standard configuration has no in-line punching station; punching of ridge pieces belongs to the ridge line.
