Process Library · Roofing & Wall Panel

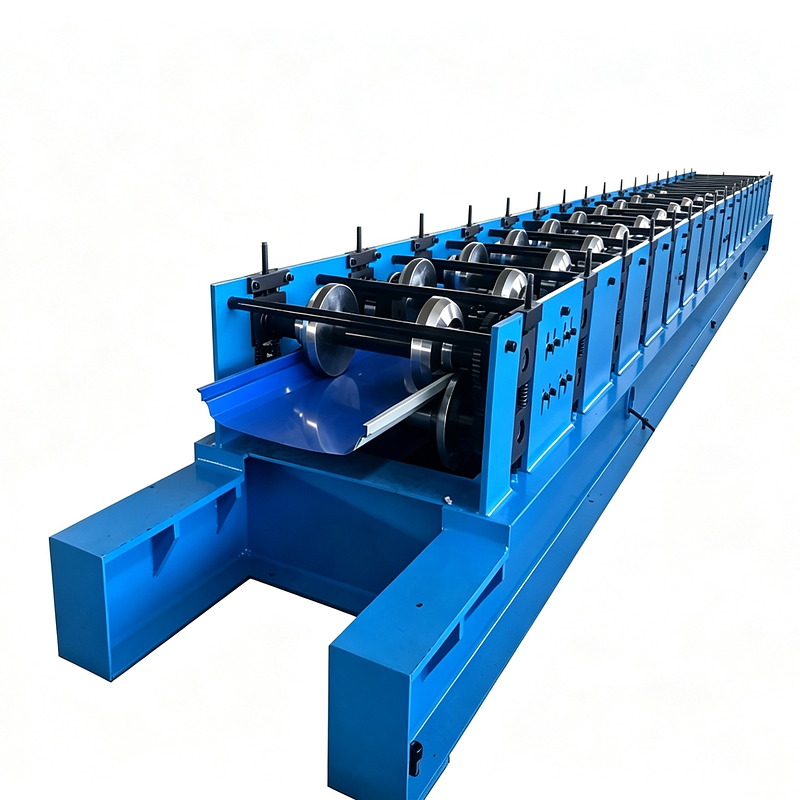

710 Series Floor-Standing Standing Seam Forming
This process covers the shop floor, not the roof. A coil is opened at the entry, guided into the roll line and formed into panels with raised lock legs; the panel is then cut to length. The finished cover width and seam height follow the signed drawing, and closing the seam happens later, on the roof, with a seamer and clips.
What this process looks like
This process covers the shop floor, not the roof. A coil is opened at the entry, guided into the roll line and formed into panels with raised lock legs; the panel is then cut to length. The finished cover width and seam height follow the signed drawing, and closing the seam happens later, on the roof, with a seamer and clips.
Hydraulic station
Hydraulic station
3 kW
Speed
Speed
25 m/mins
Specifications
| SKU | ZT-SEAM-710 Profile |
|---|---|
| Thickness | 0.8–1.2 mm |
| Hydraulic station | 3 kW |
| Speed | 25 m/mins |
Operation steps
Decoiling
Decoiling
The coil is mounted at the entry end; a decoiler is optional and is matched to the coil weight and inner diameter.
Entry guiding
Entry guiding
Strip passes through the entry guide, which centres the coil and holds the pan width before the first forming stand.

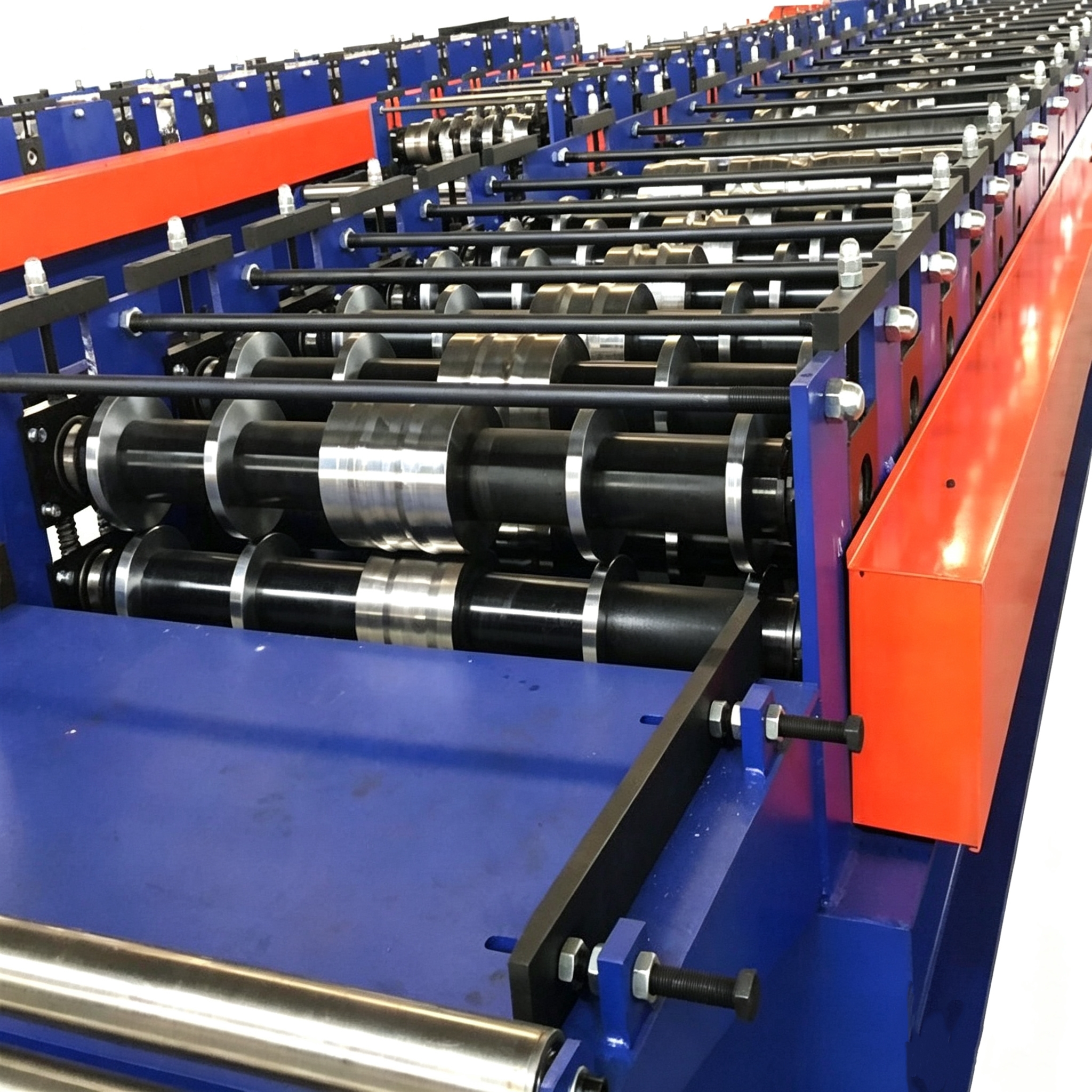

Chain-driven forming
Chain-driven forming
The forming stands bend the pan and the two lock legs in stages; the chain keeps the stands synchronised. The order board confirms the stand count.

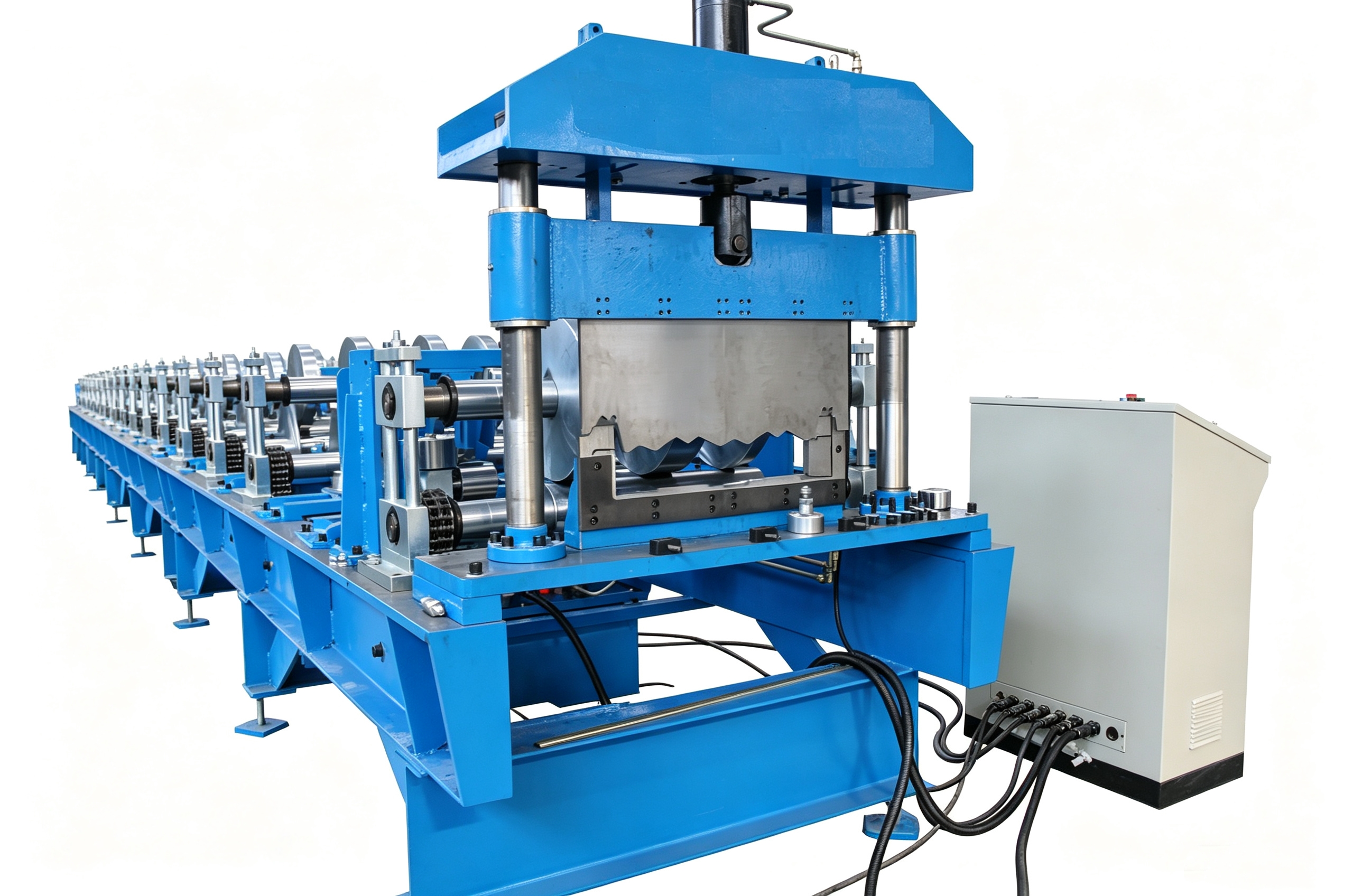

Hydraulic cut-to-length
Hydraulic cut-to-length
The hydraulic shear cuts the panel at the set length, leaving square ends for the next panel.
What's included
This line
Floor-standing main frame with lifting points and guards.
Standard build
Roll forming stands with steel rolls and shafts.
Also included
Hydraulic station and hydraulic cut-to-length shear.
Scope
Control cabinet with operator interface.
Key details
Line speed
A new cover width or seam height needs a new roll set; it is not a recipe change on the HMI. No punching station is listed for this quotation. Holes, notches or bird-mouth cuts are separate options and must be agreed before the roll set is released. The ~25 m/min figure belongs to the quotation baseline. Do not quote the KR18 10–13 m/min or the slide mill's ~8 m/min for this line. The seamer closes the seam on the roof; it is not a forming station on this machine. No signed profile drawing has been released. Do not cut a roll set or promise a cover width until the drawing is signed.
FAQ
Does the line cut the panel to length?
Yes. A hydraulic shear cuts at the set length. The cut is square; any notch or hole is a separate option.
Is the seamer included?
Only if your offer lists it. The host forms the lock legs; the seamer and hand tongs are usually separate line items.
Can one line run several cover widths?
Only within the roll set that was built for it. A different cover width needs a different roll set; confirm the range before ordering.
What is still open on this quotation?
The signed profile drawing, the final stand count, the decoiler, the control configuration and the destination voltage are confirmed on the order.
