ZhongTuo ZTRFM Latest Steel Roof Tile Roll Forming Line Metal Roof Panel Equipment Customizable

ZTRFM latest steel roof tile roll forming line is officially launched as a new‑generation automated metal‑roof‑panel processing unit. It is oriented for building‑material manufacturers and foreign‑trade suppliers to realize high‑efficiency mass‑fabrication of qualified steel roof tiles. This updated version optimizes complete transmission system for smoother operation and lower running noise; forming precision and component durability have been enhanced, serving as key host equipment of metal‑roof‑material workshop.

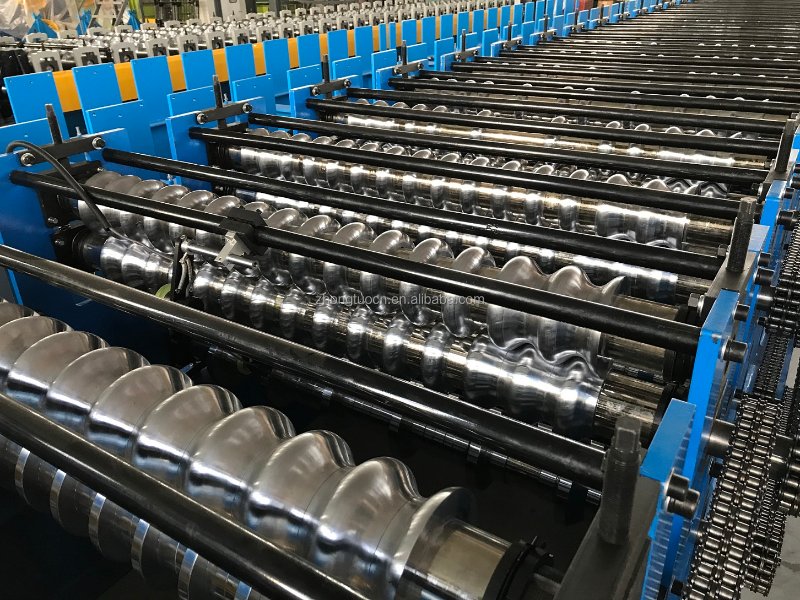

This forming line accepts 1000‑1250 mm width color‑coated steel coils, processing material thickness ranging 0.3‑0.8 mm. Applicable substrate materials are galvanized PPGI and galvalume GL steel sheets. Production speed hits 15‑20 m/min for uninterrupted continuous production. Forming rollers are manufactured from 45# forged steel with hard‑chrome quenching treatment for wear‑resistance and scratch‑proof performance. Solid main shaft delivers outstanding bearing capacity. Multi‑group forming stations deform sheet metal step‑by‑step to control steel‑plate stress spring‑back. Wave height and effective covering width of every finished steel roof tile stay uniform with stable dimensional performance.

The integrated production line comprises decoiler device, feeding‑guide mechanism, roll‑forming main host, hydraulic cutting assembly, PLC intelligent control cabinet and finished‑product discharge table. Touch‑screen PLC offers visualized parameter configuration. Once users input target tile length value, the machine automatically accomplishes feeding, profiling, fixed‑length cutting and yield statistics, accompanied by automatic fault‑reminder function. Hydraulic‑driven cutting blade is made of alloy steel. Neat cutting surface with minimum burr decreases follow‑up‑processing workload and lifts overall production efficiency.

Rich optional‑configuration solutions are provided for customers’ selection. The entry‑level basic version matches manual decoiler bracket featuring low‑investment threshold for startup building‑material plants. High‑grade full‑automatic configuration is equipped with hydraulic automatic decoiler, deviation‑correction system and auto‑stacking platform to cut manual labor intensity for sustained large‑batch‑order manufacturing. Modular mechanical architecture supports reconstruction and upgrading at later stage. Additional functional assemblies can be added when business expands to raise production‑line capability without discarding existing main equipment.

Steel roof panels produced on this roll forming line possess reinforced ribs to promote sheet rigidity. Optimized drainage‑groove design achieves efficient water diversion and fine anti‑wind‑load performance. Application scenarios cover steel‑structure factory workshops, logistics‑distribution centers, countryside roof‑renovation projects and agricultural out‑buildings. It also fits infrastructure‑construction demands in multiple overseas countries and regions with steady foreign‑trade market demand. Roof tiles with varied coating colors can be manufactured on demand. Both PE polyester and PVDF fluorocarbon coated sheets are processable to adapt inland and coastal‑salt‑spray‑area climate conditions.

New‑product delivery scope includes pre‑delivery full‑machine inspection and material‑running test for profile verification. After machine arrival at customer site, our engineers conduct on‑site installation, commissioning as well as practical‑skill training for local operators. Thickened welded machine frame ensures structural stability and anti‑deformation performance during long‑time running. Standardized maintenance workflow: clean forming rollers every working day; lubricate transmission chains periodically; inspect sealing condition of hydraulic circuit; replace worn vulnerable parts timely so as to reduce downtime risk and guarantee order delivery schedule.

Customers can submit profile drawings or physical tile samples for customized‑mold development. Our factory finishes mold trial‑production and provides test‑samples for client confirmation before manufacturing the complete machine. The supplier also provides workshop‑layout proposal and electric‑power‑configuration advice to help customers rationally plan raw‑material storage zone, production area and finished‑goods‑warehouse zone. The whole‑set machine can be packed inside standard shipping containers to meet sea‑export requirement, together with complete English technical documentation.

Compared with older‑generation models, this newly‑launched roll forming line solves typical operating pain‑points including sheet drifting, paint‑layer scratching and fixed‑length deviation under high‑speed status. Core spare‑parts material standards get promoted to extend whole‑machine service lifespan. By purchasing this ZTRFM steel roof tile roll forming line, enterprises can establish self‑owned roof‑panel production workshop. Factories take full charge of finished‑goods quality, product specification and delivery lead‑time, lowering cost caused by purchasing external finished tiles. It supports flexible acceptance for small‑batch and bulk orders and improves market competitiveness. The equipment can be placed in ordinary hardened‑ground workshops without complex infrastructure transformation and can be quickly commissioned to produce qualified steel roof tiles.
