ZhongTuo ZTRFM Good Quality Steel Roof Tile Roll Forming Machine New Release Customizable

The newly‑released ZTRFM good‑quality steel roof tile roll forming machine targets building‑material manufacturers and cross‑border exporters, dedicated to mass‑producing high‑performance metal steel roof tiles for industrial plants, warehouses and residential roof renovation projects. Optimized mechanical structure and core component upgrades deliver stable output for both domestic supply and overseas orders from Africa, Southeast Asia and Latin America.

This roll forming line works with PPGI galvanized coils and GL galvalume steel coils. Processable sheet thickness ranges from 0.3‑0.8 mm with feeding width supporting standard 1000‑1250 mm raw coils. The production speed reaches 15‑20 m/min, balancing small‑batch trial runs and continuous high‑volume manufacturing. Rollers adopt premium 45# forged steel with hard‑chrome surface plating. Solid heat‑treated main shafts resist long‑time heavy‑load deformation. Multi‑station progressive forming eliminates sheet spring‑back, keeps consistent tile profile and minimizes scratches on pre‑painted steel surfaces. Dimensional tolerances of finished roof tiles stay within qualified scope for export‑grade requirements.

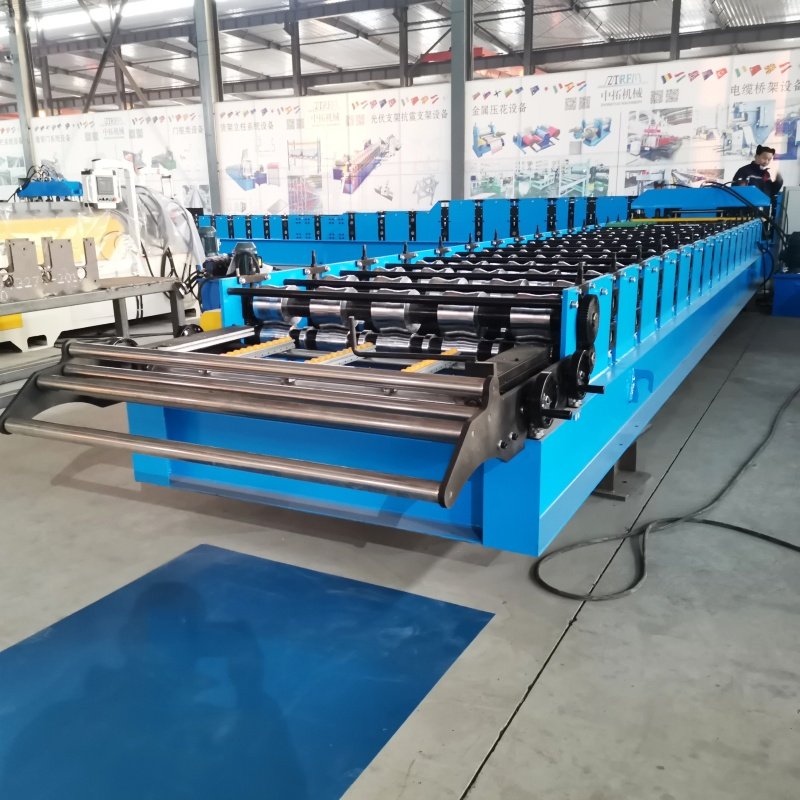

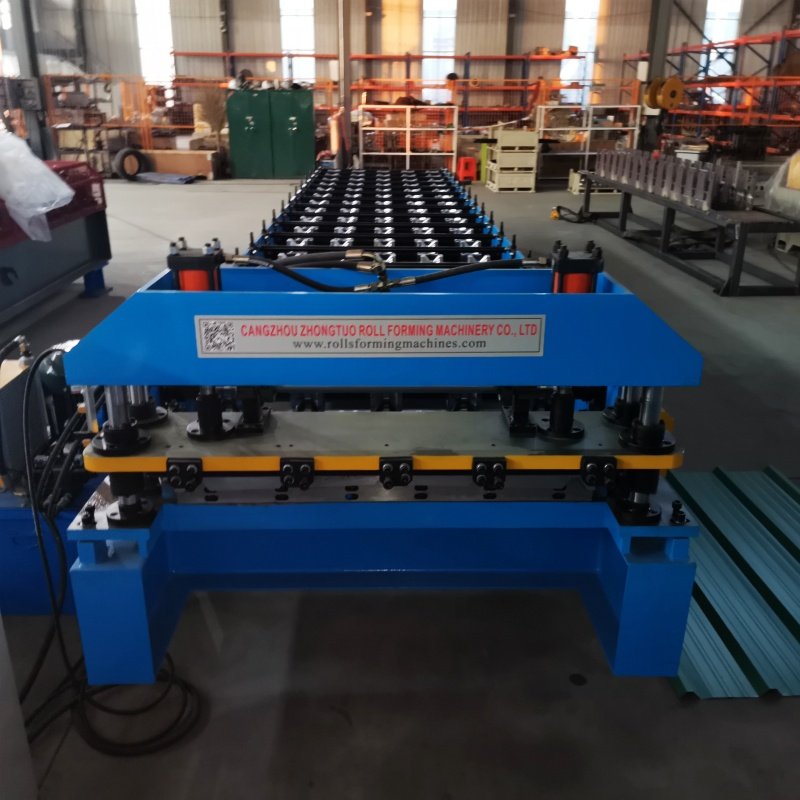

Full production line consists of decoiler unit, feeding guide frame, main forming host, hydraulic cutting mechanism, PLC touch‑screen control cabinet and finished‑product run‑out table. The intelligent PLC system supports visual parameter setting: operators set target tile length, production counter and cutting logic directly on the color touch panel. Fault alarm function helps operators quickly locate abnormal status. Hydraulic cutting unit is fitted with Cr12MOV quenched alloy blades. Cutting edges remain smooth with low burr rates so secondary trimming work can be largely reduced.

Multiple configuration combinations satisfy different‑scale factories. The basic version comes with a manual decoiler for cost‑sensitive startups and local component suppliers. For large‑size foreign‑trade manufacturers, optional hydraulic automatic decoiler, web deviation corrector and automatic stacking table are available to cut manual labor. Modular design allows later‑stage function expansion. Users can add auxiliary units without replacing the whole host, protecting previous capital investment.

Steel roof tiles produced by this machine feature light dead weight, good drainage capacity and reliable wind‑load performance. They are widely applied for steel‑structure workshops, logistics storage buildings, rural housing renovation, agricultural sheds and simple garages. Different coating substrates including PE polyester and PVDF fluorocarbon steel sheets can be processed. PVDF option adapts to coastal high‑salt‑fog environments for extended service life. Custom profile adjustments are acceptable according to customer drawings or physical tile samples. RAL color options for finished roof panels can match local construction market preferences.

Complete after‑sales package is included for each new unit. Every machine undergoes no‑load and material‑passing running inspection before delivery. After equipment arrival at customer’s workshop, our technical team provides on‑site installation, commissioning and hands‑on operation training for local workers. One‑year whole‑machine warranty plus continuous vulnerable‑part supply guarantee stable production rhythm. The main frame adopts thickened 350 H‑beam welded construction, lowering vibration during high‑speed operation and slowing down precision attenuation over years of service.

Routine maintenance workflow is user‑friendly for factory staff. Operators should clear iron scraps stuck on roller surfaces after daily shifts; lubricate transmission chains and check hydraulic‑oil level on a weekly basis; fasten loose connecting bolts periodically. Timely replacement of worn cutting blades helps avoid defective outputs. Full sets of English‑language documents including operation manual, electrical schematic and hydraulic maintenance handbook are delivered together with the machine, convenient for overseas end‑users’ daily inspection and troubleshooting.

When placing orders, customers may send profile drawings or real tile samples. Our workshop completes mold trial‑production and sends test samples for confirmation before formal manufacturing, preventing profile mismatch risks. We also offer reference suggestions for workshop layout, ground bearing requirement and power distribution. The whole set can be packed in standard sea‑going containers with anti‑collision fixation, well‑suited for long‑distance ocean freight export.

Investing in this ZTRFM steel roof tile roll forming machine enables factories to independently produce roof panels instead of purchasing finished tiles from third‑party suppliers. Manufacturers gain full control over sheet thickness, tile specifications and delivery schedules, responding faster to project orders. Whether for regional domestic construction supplies or bulk export business, this forming equipment improves product competitiveness for metal‑roof‑material enterprises.
