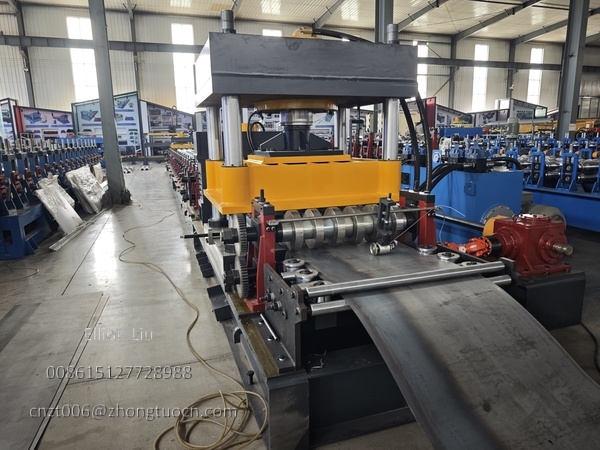

W Beam Guardrail Roll Forming Machine 2.5 to 4.0mm Customizable Stable Production
The biggest risk on a guardrail production line is not too many orders. A w beam guardrail roll forming machine solves the real risk: equipment that can only handle one specification. It configures material thickness, production speed, and line control based on order requirements.
Different road projects need different thicknesses, profiles, and materials for W beam guardrails. If the configuration can't follow the order, the line may sit idle when specifications change. This road guardrail machine adjusts its configuration plan for different profiles and thicknesses based on the order.
What Guardrail Panels Does This Machine Produce
A w beam guardrail roll forming machine produces highway corrugated guardrail panels. Finished panel cover width, profile height, and feeding width are customized to order requirements.
The equipment works with materials such as galvanized steel, cold rolled steel, carbon steel, and Q235. The exact material range is confirmed based on order requirements.
Finished panels are widely used in these applications:
-
Highway side protection
-
Primary road median separation
-
Mountain curve and cliff edge side protection
-
Bridge and tunnel transition sections
Different projects have different panel specifications. Equipment configuration needs to be confirmed based on the actual order.
How Do Thickness and Speed Affect Line Configuration
Thickness, speed, and line control for this w beam guardrail roll forming machine are not three independent parameters. They depend on each other and need to be considered together to determine the configuration plan.
Material thickness affects forming force and process configuration
Material thickness is one factor that affects forming force requirements. Leveling roller quantity, hydraulic press tonnage, and forming station count can all be adjusted during configuration based on order requirements.
Material thickness, material properties, target profile, and process configuration need comprehensive evaluation. Forming force or equipment parameters cannot be derived from thickness alone.
Speed configuration and its relationship with material thickness and forming process
Production speed is affected by material thickness, forming pass count, and target capacity. Speed can be adjusted based on order production rhythm. Motor power and speed regulation method are determined during configuration based on order requirements.
The equipment uses 22KW × 2 stepless speed regulating motors. Operators can adjust speed based on actual material and forming conditions. The specific speed range needs to be determined comprehensively based on material, profile, and capacity requirements.
PLC control coordinates each process
The equipment uses a PLC controller to coordinate line actions. Speed matching between systems is coordinated through the PLC. In some markets, the same equipment is also called a guardrail curve bending machine.
Core Equipment Advantages
The w beam guardrail roll forming machine offers these advantages for order configuration and production adaptation:
-
Multiple processes in one line: Uncoiling, leveling, punching, forming, and cutting are integrated into one continuous production line.
-
Process configuration follows the target profile: Leveling roller quantity, punching position, forming stations, and other settings are configured for the target profile.
-
Line control coordinates each process: A PLC controller coordinates feeding, forming, and cutting actions.
-
Thickness and speed parameters are confirmed by order: Material thickness range and production speed are determined after comprehensive evaluation of order requirements.
Technical Parameters
Reference configurations for the w beam guardrail roll forming machine in the table below are examples. Speed, profile, voltage, and other parameters can be customized to customer order requirements. Actual configuration follows the order plan.
| Parameter | Reference Configuration |
|---|---|
| Applicable materials | Galvanized steel, cold rolled steel, carbon steel, Q235 |
| Material thickness | 2.5 mm to 4.0 mm |
| Feeding width | 490 mm |
| Finished cover width | 312 mm |
| Finished profile height | 90 mm |
| Forming stations | 15 fixed position driven forming stations |
| Stand rollers | 3 sets |
| Main motor power | 22KW × 2 stepless speed regulating motors |
| Gearbox | K127 |
| Roller material | Gr15 bearing steel, hardness HRC55 to 60 |
| Control system | PLC |
| Length measurement accuracy | 4320 mm ± 2 mm (measurement accuracy) |
| Leveling rollers | 9 rollers |
| Hydraulic press | 250T/315T four post type |
Confirmation Logic from Order Requirements to Equipment Configuration
Reference configurations for the w beam guardrail roll forming machine in the parameter table are examples. In actual orders, customers need to confirm the following information based on their production conditions before the equipment configuration is finalized.
Material and product parameters to confirm
-
Material type and thickness range
-
Finished guardrail panel cover width and profile height
-
Feeding width
-
Target capacity requirements
Speed and control requirements to confirm
-
Production speed range requirements
-
Speed regulation method requirements
-
Voltage and frequency requirements
-
Control system function range requirements
Auxiliary system configuration to confirm
-
Decoiler load capacity requirements
-
Finished product support table length requirements
-
Workshop layout and line dimension requirements
Final Configuration Depends on Order Details
Material thickness, production speed, and line control for the w beam guardrail roll forming machine need to be considered together. The equipment configuration plan needs to be confirmed based on actual production conditions, including material type, profile specifications, thickness range, target capacity, and workshop conditions.
After the configuration plan is confirmed, the equipment is configured according to the order. The specific configuration follows the actual order plan.
