The ZTRFM Full Automatic TR5 Metal Trapezoid 5-Rib Roof Panel Roll Forming Machine (Model ZT-TR5) is engineered for the high-speed, continuous fabrication of Peru and South American standard 5-wave trapezoidal roofing sheets and wall cladding panels. Accommodating 1200 mm / 1220 mm wide coils of PPGI, Aluzinc, and galvanized steel (0.3–0.8 mm thickness) at line speeds of 15–20 m/min, this 7.5-ton heavy-duty production line delivers superior structural rigidity, high rain discharge efficiency, and exceptional weatherproofing for commercial warehouses, industrial plants, and agricultural facilities.
| Item | Specification |
|---|---|
| Product Model | ZTRFM Full Automatic TR5 Trapezoid 5-Rib Roll Forming Machine (ZT-TR5) |
| Target Profile | Peru & South America Standard TR5 5-Wave Trapezoidal Roof & Wall Sheet |
| Raw Material | Color Coated Steel (PPGI), Aluzinc / Galvalume (PPGL), Galvanized Steel (GI) |
| Material Thickness | 0.3 mm – 0.8 mm |
| Coil Feeding Width | 1200 mm / 1220 mm (Effective Width: 1000 mm / 1050 mm) |
| Production Speed | 15 – 20 M/Min (High Efficiency Continuous Line) |
| Total Installed Power | 9.5 kW (Siemens Main Motor + Hydraulic Station) |
| Main Motor Brand | Siemens High-Efficiency Industrial Motor |
| Rollers Material | High-grade 45# Forged Steel, CNC Machined, Hard Chrome Plated (0.05 mm) |
| Shafts Diameter & Material | 75 mm – 80 mm Solid Shafts, 45# Carbon Steel Quenched & Tempered |
| Cutting Blade Material | Cr12 High-Alloy Die Steel, Vacuum Quenched (HRC 58-62) |
| Cutting Type | Automatic Hydraulic Profiling Shear (Post-Cutting) |
| Machine Dimensions (L*W*H) | Approx. 10.5 m * 1.5 m * 1.5 m |
| Machine Weight | Approx. 7,500 kg (7.5 Metric Tons Heavy Duty Frame) |
| Control System | DELTA / Siemens PLC System + Color Touchscreen HMI |
| Electrical Standard | 380V, 50Hz, 3 Phase (Customizable: 220V / 440V / 480V) |
| Warranty & Support | 1 Year / 2 Years Standard Commercial Warranty |
| Certifications | CE Certified, ISO9001 Compliant |

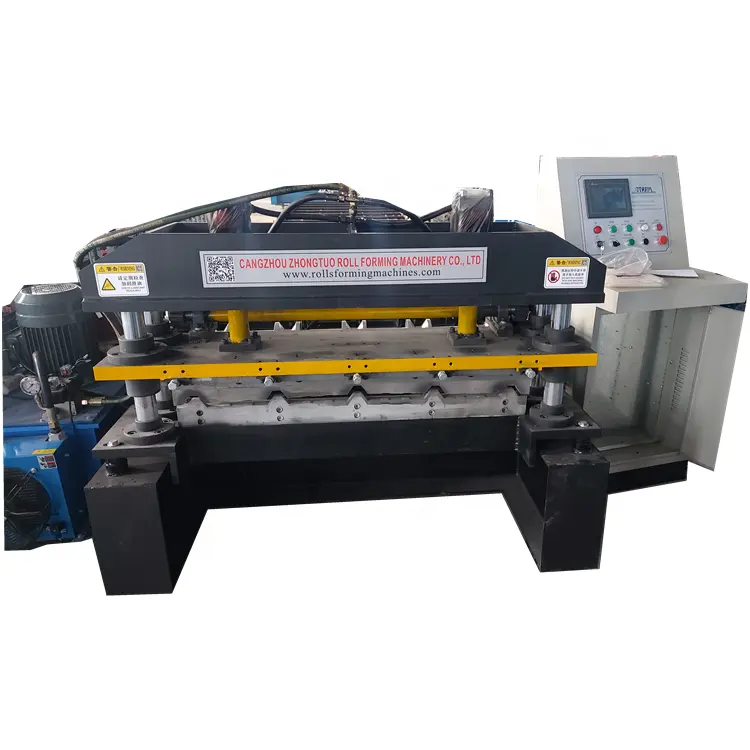

Heavy-duty steel roll stands with hard-chromed dies form 5 uniform trapezoidal ribs progressively without cracking paint coatings.
High-rigidity hydraulic cut-off mechanism fitted with custom Cr12 contour blades slices panels cleanly at exact preset lengths.
Finished TR5 panels showing crisp trapezoid ribs, flat valleys, and water-runoff channels ready for roofing and wall installation.
Sturdy infeed table with lateral guide rollers ensures seamless coil feed alignment into the first forming station without skewing.
Centralized operator console featuring multilingual interface, automated batch quantity management, and real-time diagnostic alerts.
A: Running at 15–20 m/min, the machine produces approximately 7,000–9,000 meters of finished TR5 roofing panels per 8-hour shift.
A: Yes. The hard-chromed rollers are engineered to process prepainted galvanized steel (PPGI), Aluzinc (PPGL), and bare galvanized coils (0.3–0.8 mm) without coating peel.
A: The high-precision rotary encoder and hydraulic cutoff system ensure cutting length tolerance within ±1.0 mm per 10 meters.
