The ZTPFM Automatic PV4 Trapezoidal Roofing Sheet Roll Forming Machine (Model PV4) is engineered for the high-efficiency fabrication of popular 4-rib trapezoidal metal roof and wall cladding panels. Accommodating 1220 mm wide coils of prepainted color steel (PPGI), galvanized steel (GI), and Aluzinc sheets (0.3–0.8 mm thickness) at speeds up to 20 m/min, this 6.0-ton heavy-duty production line produces weather-resistant trapezoid roofing profiles widely utilized in commercial, residential, and agricultural building construction across South America, Africa, and global markets.
| Item | Specification |
|---|---|
| Product Model | ZTPFM Automatic PV4 Trapezoidal Roofing Sheet Machine (Model PV4) |
| Target Profile | PV4 4-Rib Commercial Trapezoidal Metal Roof & Wall Cladding Sheet |
| Raw Material | Color Coated Steel (PPGI), Galvanized Steel (GI), Aluzinc / Galvalume |
| Material Thickness | 0.3 mm – 0.8 mm |
| Coil Feeding Width | 1220 mm (Effective Panel Coverage: ~1000 mm) |
| Production Speed | 15 – 20 M/Min (High Efficiency Continuous Line) |
| Total Installed Power | 11 kW (Main Drive Motor + Hydraulic Station) |
| Rollers Material | High-grade No.45 Forged Steel, CNC Machined & Hard Chrome Plated (0.05 mm) |
| Shafts Material & Type | High-grade No.45 Solid Forged Steel, Chromed Treatment |
| Cutting Blade Material | GCr12MoV Die Steel, Vacuum Quenched (HRC 58-62) |
| Cutting Mechanism | Automatic Hydraulic Profiling Shear with Rotary Encoder Control |
| Machine Dimensions (L*W*H) | Approx. 8.0 m * 1.2 m * 1.3 m |
| Machine Weight | Approx. 6,000 kg (6.0 Metric Tons Heavy Frame) |
| Control System | DELTA / Siemens Imported Brand PLC + Color Touchscreen HMI |
| Operating Voltage | 380V 50Hz 3-Phase (Customizable: 220V / 440V / 480V) |
| Warranty & After-Sales | 1 Year Warranty + Life-time Technology Support |
| Certifications | CE Certified, ISO Compliant |
Precision-machined 45# forged steel roller stations with hard chrome plating shape 4 uniform trapezoid ribs progressively with zero surface blemishes.
Heavy-duty hydraulic cut-off station equipped with custom GCr12MoV profile blades shears panels cleanly at exact preset lengths with ±1.0 mm tolerance.

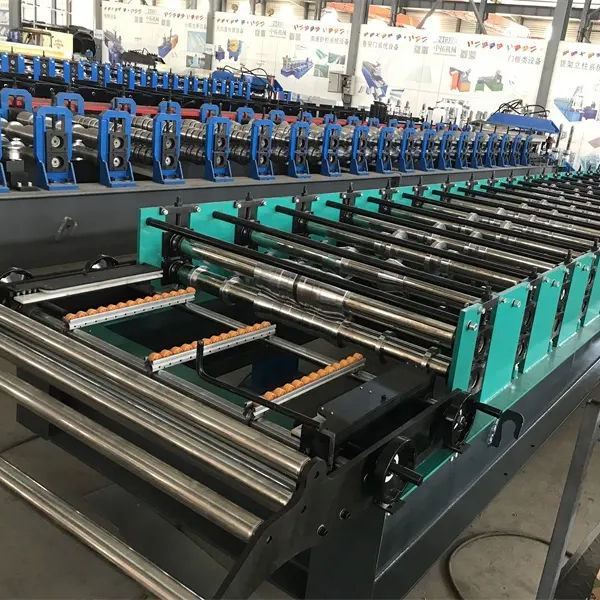

Calibrated infeed table with side positioning rollers guides 1220 mm wide metal coils smoothly into the first forming station without lateral drifting.
Finished 4-rib trapezoidal panels stacked neatly, featuring sharp rib crests, flat drainage valleys, and tight lap joints ready for construction sites.
A: PV4 features 4 pronounced trapezoidal ribs with broad flat pans between ribs, providing higher structural strength and greater rain discharge volume than shallow sinusoidal waves.
A: Yes. The hard-chromed rollers process prepainted steel (PPGI), Aluzinc/Galvalume, and hot-dip galvanized coils (0.3–0.8 mm) without damage to surface coatings.
A: Cutting lengths and total batch counts are entered directly on the PLC touchscreen in seconds, and the machine automatically counts and cuts pieces with ±1.0 mm precision.
