Supermarket Storage Rack Upright Pillar Roll Forming Machine Standard

Supermarket Storage Rack Upright Pillar Roll Forming Machine

A cold roll forming line that turns galvanized, stainless or aluminium coil into storage rack upright posts and shelf pillars through automated roll forming. The formed post is punched and cut to length on the same line, so one machine covers the whole post production cycle.

• Production capacity of 20 m/min (65.62 ft/min).
• Coil thickness 1 mm to 2.5 mm.
• 350H steel main frame with Cr12 forming rollers.
• PLC control system (imported brand) with high accuracy forming.
• Cr12 high grade steel cutting blade.
• 7.5 kW drive, 2 years warranty and overseas machinery service.

Product Overview

This is a cold forming equipment built for shelf post production. Galvanized steel, stainless steel or aluminium coil is fed into the roll forming line, progressively formed into the rack upright section, then punched and cut to length. The result is a shelf post with the slot pattern needed for beam connection, produced in one continuous automated cycle.

The line is aimed at rack and shelving manufacturers, as well as building material shops and plants that need an in-house supply of storage rack uprights instead of buying them in. A 350H steel main frame and Cr12 rollers carry the forming load, and an imported brand PLC runs the line.

Key Features

Cold Roll Forming Of Shelf Posts

The line turns flat coil into the upright post section through a train of forming stations, so the post profile is produced by cold roll forming rather than by pressing or folding.

Covered Post Profiles

The machine drawings cover the SPL762 U 90, SPL762 U 105, SPL762 U 120 and SPL762 U 150 post profiles, giving a spread of upright sizes for different rack load classes.

350H Steel Frame And Cr12 Rollers

The main frame is built from 350H steel and the forming rollers are made in Cr12, the same material used for the cutting blade. That combination is what holds the post section accurate over a long production run.

PLC Control With High Accuracy

An imported brand PLC runs the line. High accuracy forming is the listed key selling point, and the control system handles the forming, punching and cutting sequence automatically.

Punching And Cutting On The Line

The post section is punched with the slot pattern needed for beam engagement and then cut to length by a Cr12 blade, so no separate punching or sawing operation is required.

Material Range

The line is set up for galvanized steel, stainless steel or aluminium coil with a thickness of 1 mm to 2.5 mm, at a production capacity of 20 m/min.

Technical Specifications

Production capacity	20 m/min (65.62 ft/min)
Coil thickness	1 - 2.5 mm
Main frame	350H steel
Roller material	Cr12
Cutting blade material	Cr12 high grade steel
Control system	PLC (imported brand)
Power	7.5 kW (10.06 hp)
Voltage	380 V (as customized)
Working pressure	As customized
Core components	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Dimension (L*W*H)	7.5 x 1.65 x 1.5 m (24.61 x 5.41 x 4.92 ft)
Weight	6500 kg (14330.05 lb)
Key selling points	High accuracy
After-sales service	Service machinery overseas
Warranty	2 years
Outgoing inspection	Video outgoing-inspection and machinery test report provided
Place of origin	Hebei, China

Machine Structure

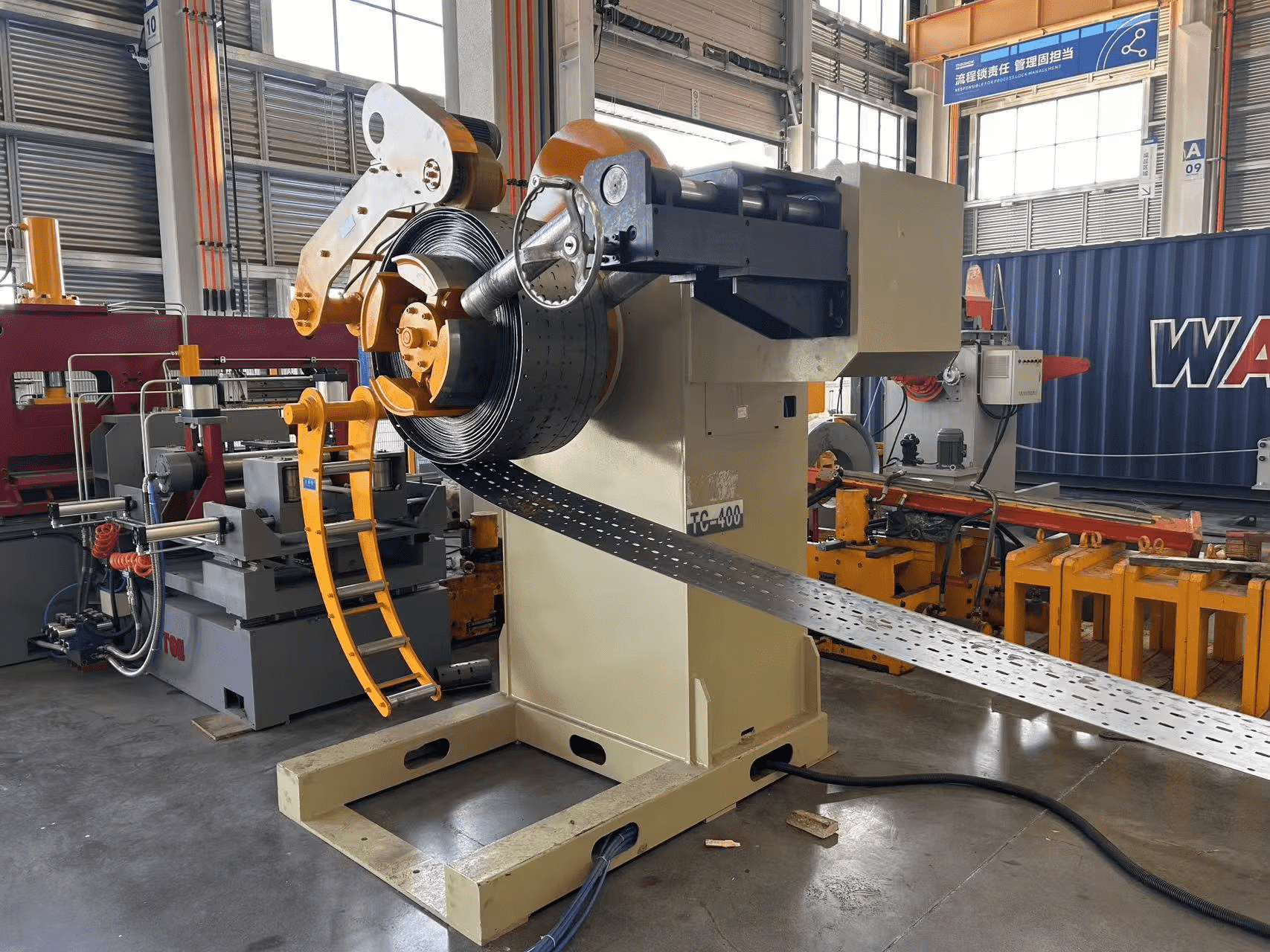

The line runs along a single welded base frame. At the entry end the coil strip is guided into the first stations by an infeed roller; the forming stations then build the upright section stage by stage, with adjustment screws on each station to set the rollers.

Each forming station carries a roller set on a steel shaft with bearing blocks on both sides. The strip passes through the roller train and leaves with the post section formed and the slot pattern already punched.

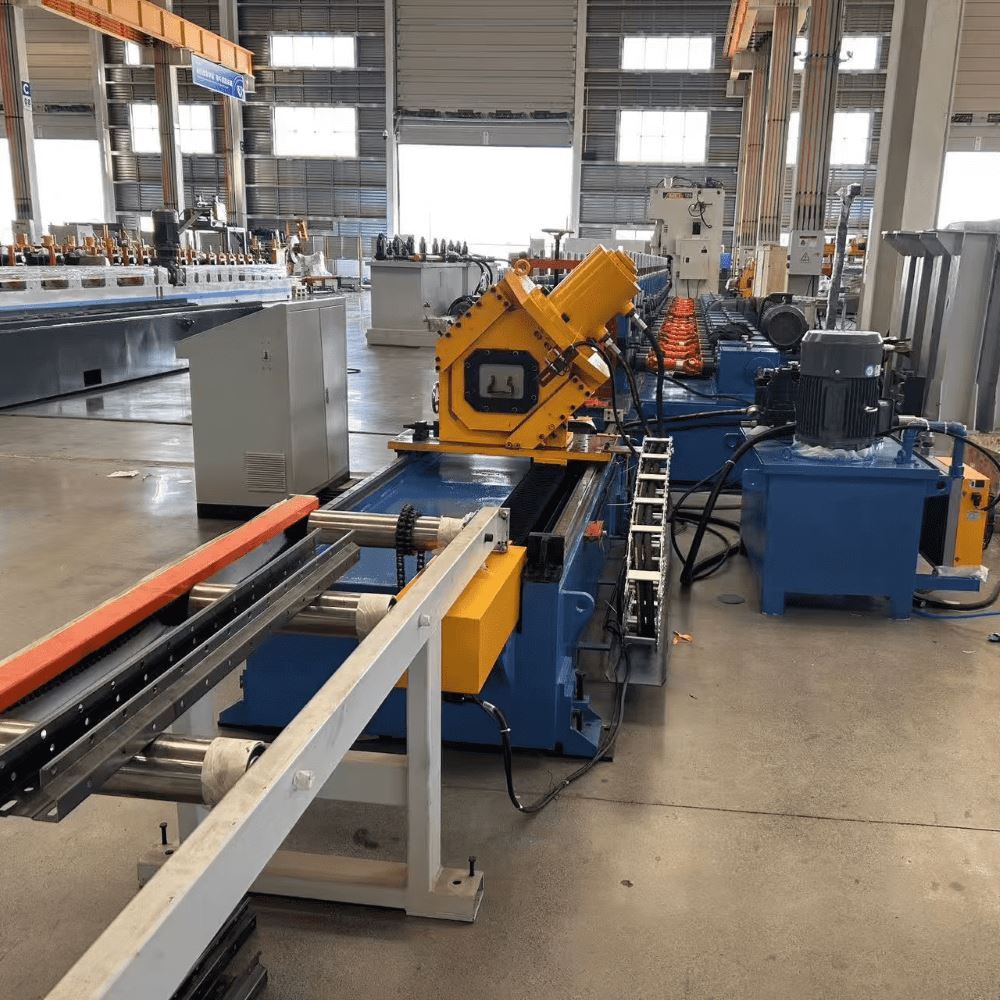

At the end of the line the punch and cut unit takes the formed post. The punch is built on a four pillar frame with a square die opening for the post section, and the post is sheared to length by the Cr12 blade.

Applications

The line produces upright posts and pillars for supermarket shelving, warehouse racking and pallet rack systems, where a punched rack post has to be produced in volume and to a repeatable section. It suits rack manufacturers and building material shops that want the post produced in house.

Packing And Supply Scope

• Supply scope: 1 set, sold as a single item.
• Single package size: 750 x 165 x 150 cm; single gross weight 6500 kg.
• Lead time: 45 days for 1 set, 60 days for 2 sets, further quantities to be negotiated.
• Customization options: packaging, name plate, core components.
• Customization ability: minor, drawing-based, sample-based and full customization.

FAQ

What does this machine produce?

Storage rack upright posts and shelf pillars, formed from coil and punched and cut to length on the same line.

Which materials and thickness can it run?

Galvanized steel, stainless steel or aluminium coil from 1 mm to 2.5 mm thick.

What is the production capacity and power?

20 m/min (65.62 ft/min) with a 7.5 kW (10.06 hp) drive, on a 380 V supply as customized.

What are the main construction materials?

A 350H steel main frame, Cr12 forming rollers and a Cr12 high grade steel cutting blade, controlled by an imported brand PLC.

What warranty and service are provided?

A 2 year warranty with service machinery overseas, plus video outgoing-inspection and a machinery test report before shipment.

Can the machine be customized?

Yes. Packaging, name plate and core components are listed as customization options, with minor, drawing-based, sample-based and full customization available.
