Self Lock Standing Seam Metal Roofing Roll Forming Machine Standard

Name: Self Lock Standing Seam Metal Roofing Roll Forming Machine Standard
Brand: ZTRFM
SKU: ZT124854635
Availability: InStock

$21,000.00/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT124854635

Thickness0.3-0.6mm

Feeding Width610mm (under 610mm)

Forming Speed15-20m/min (0-20m/min)

Drive Power7.5kW

Roller Stations18 stations

Roller Material45# Steel with 0.05mm Hard Chrome Plating

Machine WeightApprox. 5.0 Tons

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

Standard

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Thickness
0.3-0.6mm
Feeding Width
610mm (under 610mm)
Forming Speed
15-20m/min (0-20m/min)
Drive Power
7.5kW
Roller Stations
18 stations
Roller Material
45# Steel with 0.05mm Hard Chrome Plating
Machine Weight
Approx. 5.0 Tons
Model
Self Lock Standing Seam
Voltage
380V or as required
Chassis
350H heavy-duty welded steel base
Raw Material
Color steel coils, galvanized plate (GI), aluminum
Shaft Material
45# Quenched and Tempered Solid Steel
Machine Chassis
350H Heavy Structural Steel Welded
Warranty
2 Years
Certifications
CE Certified, ISO9001

Product Overview

The ZTRFM Self Lock Standing Seam Metal Roofing Roll Forming Machine is an 18-station heavy-duty line engineered for manufacturing snap-lock standing seam roof and wall panels. Featuring concealed clip installation that snaps together with simple foot pressure, it eliminates manual seaming tools and reduces on-roof labor by up to 60%.

standing seam metal roofing roll forming machine

Key Engineering Features

18-Station Precision Forming: 18 progressive stands ensure 100% airtight snap engagement.
Tool-Free Snap-Lock System: Concealed clips snap together by hand/foot pressure without electric seamers.
45# Hard Chromed Rollers (0.05 mm): High-precision CNC turned rollers protect delicate prepainted surfaces.
350H Heavy Welded Base: Rigid H-beam foundation eliminates vibration and maintains tight panel tolerances.
Quenched & Tempered Shafts: Solid 45# steel transmission shafts guarantee decades of deflection-free rolling.
2-Year Comprehensive Warranty: Full 24-month manufacturer coverage on drive and electrical systems.

Technical Specifications

Item	Specification
Product Model	Self Lock Standing Seam Roll Forming Machine
Application	Concealed Fastener Architectural Roof & Wall Panels
Number of Stations	18 Stations
Raw Material	Color Steel, Galvanized Sheet (GI), Aluminum Alloy
Material Thickness	0.3 mm – 0.6 mm
Coil Feeding Width	610 mm (Under 610 mm)
Production Speed	15 – 20 M/Min (0 – 20 m/min variable)
Installed Power	7.5 kW
Roller Material	45# Steel with 0.05 mm Hard Chrome Coating
Shaft Material	45# Quenched and Tempered Solid Steel
Chassis Structure	350H Structural Steel Welded Base
Machine Weight	Approx. 5.0 Metric Tons
Voltage	380V or customized (220V/440V, 3-Phase)
Standard Warranty	2 Years (24 Months)
Certifications	CE Certified, ISO9001 Compliant

Subsystems & Mechanical Details

1. 18-Station Precision Roll Forming System

18-Station Precision Roll Forming System

18 individual forming stands with CNC turned 45# hard chromed rollers and side gear/chain synchronization.

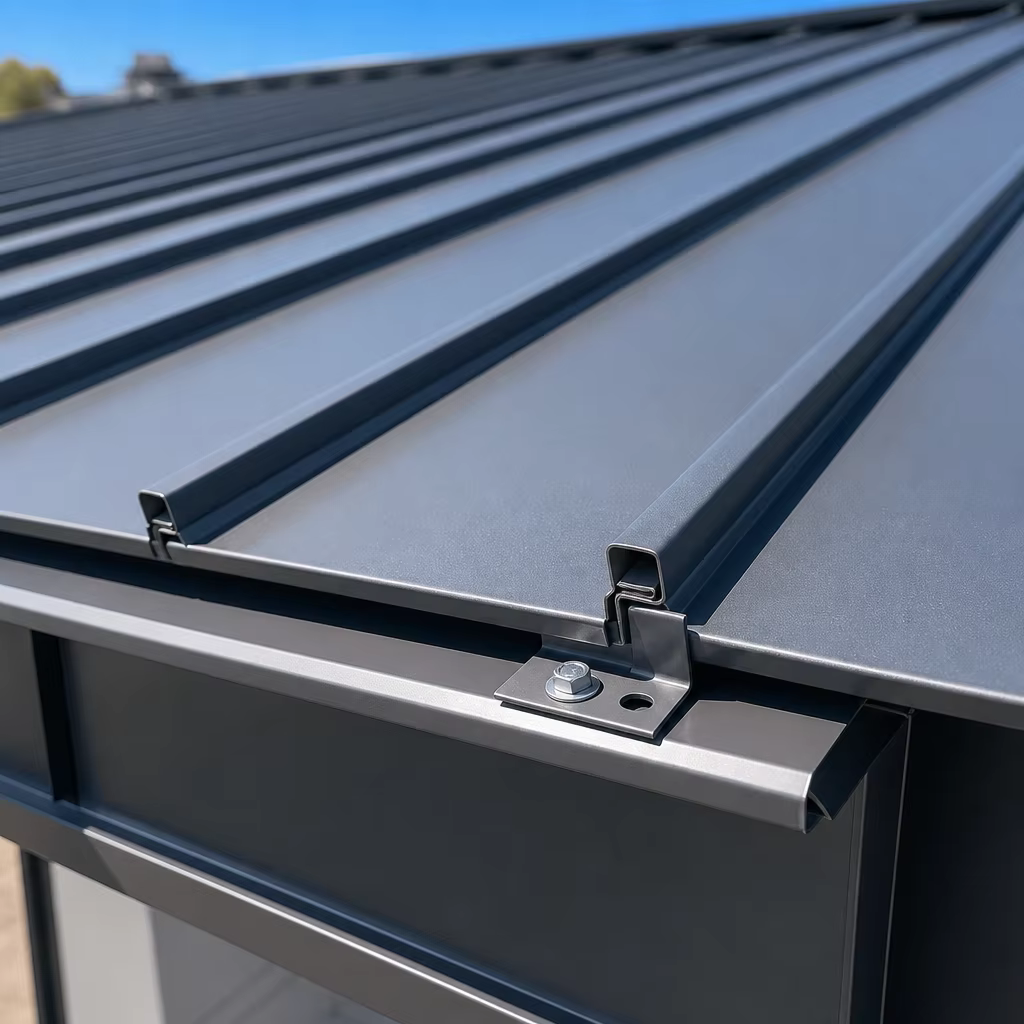

2. Snap-Lock Interlocking & Concealed Clip System

Snap-Lock Interlocking & Concealed Clip System

Engineered male/female snap joint with concealed clips allows thermal expansion and prevents water penetration.

4. Infeed Guiding Table & 350H Chassis Foundation

Infeed Guiding Table & 350H Chassis Foundation

Smooth polyurethane guide rollers with lateral adjustment handwheels align coil blanks onto the 350H frame.

Application Scenarios

Luxury Residential: High-end villas and custom residential pitched roofs with sleek modern lines.
Commercial & Hospitality: Hotels, airport terminals, shopping complexes, and corporate headquarters.
Architectural Wall Siding: Vertical exterior wall cladding providing modern linear facade accents.

Frequently Asked Questions (FAQ)

Q: What is the main advantage of self-lock standing seam?

A: Installers push panels down to snap into place without electric seaming tools, saving over 50% labor.

Q: Can profile rib height and cover width be customized?

A: Yes. Rib heights (25mm, 32mm, 38mm) and cover widths (300-500mm) can be engineered to your CAD drawings.

Q: What warranty is provided?

A: An extended 2-Year warranty covers all core electrical and mechanical drive components.
