Steel Cut to Length 25 Meter Per Minute Reliable Output Guide

Order specs keep getting more varied, material batches differ from one to the next, and delivery dates keep getting tighter. Steel coils sit in the workshop, but turning them into fixed length sheets that customers actually want still runs into bottlenecks. On a steel cut to length line, problems often show up after a material change: uneven sheets, drifting dimensions, speed that won't hold.

Choosing the right setup is about choosing a processing solution that keeps up with changing orders. Process flow, speed logic, automation, and production organization all matter.

From Coil to Cut Sheet

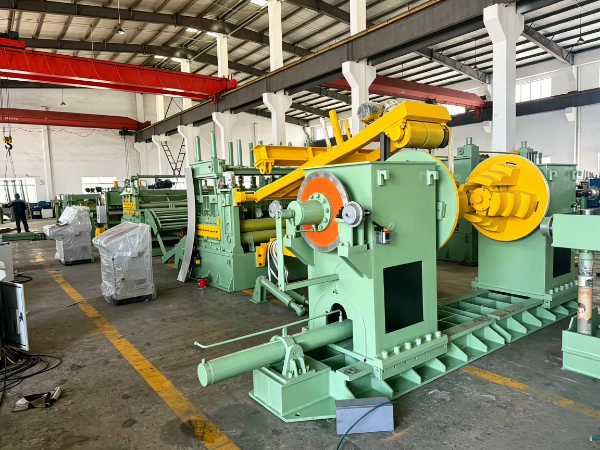

Steel coil is the raw material, but customers downstream want flat sheets at fixed lengths, not a coil. The steel cut to length line uncoils the steel, levels it, and cuts it to length, producing sheets ready for stamping, bending, or welding.

This machine handles CR and GI material, thickness from 0.4 to 4mm, and width from 500 to 1500mm. Shearing is guillotine type from top to bottom. The electrical system uses PLC control mode for encoder based length cutting and automatic counting.

Which Sheet Processing Scenarios Need Cut to Length Sheets

• Automotive parts need flat sheets at fixed lengths before stamping, with requirements for flatness and length consistency

• Steel structure embed plates, connection plates, and stiffeners use flat sheets

• Storage rack shelves and panels are cut from flat sheets

• Transformer enclosure walls and base plates are cut and welded from flat sheets

Under the lightweight automotive trend, parts have more specific requirements for sheet accuracy and consistency. This makes the upstream steel cut to length step more important.

What Comes Out After Cutting

After processing, the coil becomes flat sheets at fixed lengths. A sheet cut to length line machine controls thickness, width, and length so the sheets can go into stamping, bending, and welding.

Line Speed Does Not Equal Actual Output

Line speed is one parameter on the steel cut to length machine, but it does not equal actual output. This point is easy to miss when evaluating equipment.

Where 25 Meters Per Minute Sits on the Line

The steel cut to length machine runs at a line speed of 25 meters per minute. This speed needs to work with feeding, leveling, shearing, and encoder length setting to create continuous processing. Line speed alone cannot show output in real production.

Cut Length and Shearing Rhythm

On the steel cut to length line, different cut lengths produce different shearing rhythms. At 4 meter lengths, the line completes about 4 to 5 sheets per minute. At 2 meter lengths, it completes about 6 to 7 sheets per minute. Shorter cut lengths mean more cuts per unit time. Speed depends on the job, not a fixed production rhythm.

How Material and Spec Affect Speed Judgment

At the same 25 meters per minute, thin and thick sheets perform differently. Narrow and wide sheets also place different demands on stability. Speed has to be understood together with thickness, width, material, and cut length. Whether a cut to length line machine meets production needs depends on whether the whole setup matches actual processing conditions.

What to Check When Comparing Speed to Output

When comparing speed to output, confirm whether the quoted speed is line speed, running speed, or a value under a specific condition. Confirm the cut length and material conditions behind the cutting speed. Compare machine data with the material, thickness, width, and cut lengths you run most often.

Top speed does not equal actual capacity. Actual output depends on cut length, material spec, coil change frequency, and process connection. On a steel cut to length line, these factors need to be looked at together.

Machine Advantages

Key advantages of the steel cut to length line include:

• Encoder length setting: The control system sets cut length through the encoder, so sheet length is controlled by a set value rather than manual measurement

• Automatic counting: The system records output counts automatically, which helps track production without manual tallying

• Pinch feeding: Hydraulic pinch rollers press down and feed the strip, keeping the material moving through the line

• Pneumatic tapping: The receiving table uses a simple pneumatic tapping device to align sheets as they stack

• Centralized control: Parameter setting and process monitoring happen at the console, reducing movement between multiple points

• 15 ton coil capacity: Fewer coil changes for longer runs, which keeps the line moving between stops

Equipment Parameters

Main specifications for the sheet cut to length line machine:

What Role Automation Plays in Production Organization

Automation affects how operating steps are divided and how processes connect. It does not promise a fixed labor reduction. On a steel cut to length line, automation supports the operator rather than replacing judgment.

Encoder Length Setting and Automatic Counting

The electrical system uses PLC control mode for encoder based length cutting and automatic counting. The encoder length setting controls the shear based on the set length, and automatic counting records output. These functions reduce manual measuring and counting, with parameter setting done at the console.

Pinch Feeding and Pneumatic Stacking

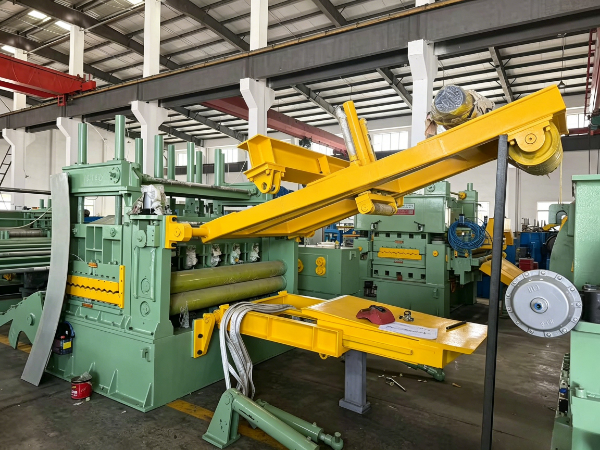

The coil pressing and pinch feeding device uses an 11KW cycloid reducer motor. Hydraulic pinch rollers press down to feed. The receiving and stacking table has a simple pneumatic tapping device to align sheets. Feeding and stacking have matching mechanisms, so operators focus on parameter setting and process monitoring.

Staffing Depends on Production Organization

15 ton coil capacity affects coil change frequency, and the pinch and stacking mechanisms affect how operating steps are divided. But staffing depends on order structure, upstream and downstream processes, and site organization. The machine provides control and mechanism support; the plant decides staffing based on its production rhythm.

What Production Organization This Equipment Fits

If orders are relatively concentrated and batches are stable, with low coil change frequency, continuous processing can better use the rhythm of a steel cut to length line. Encoder length setting and automatic counting reduce manual measuring, and 15 ton coil capacity supports longer batches.

If order specs switch often and batch sizes are small, changeover and adjustment time take a larger share of production organization. In that case, evaluate changeover time together with actual output.

Whether equipment fits does not depend on one speed number. It depends on how well the whole setup matches the actual order structure. Material range, thickness, width, cut length, and coil change frequency together decide how the machine performs.

Final Thoughts

Changing material specs, shifting order structures, and delivery pressure are constant. What matters is whether the whole line matches the sheets you actually need to produce. Comparing the specs of a steel cut to length line with your own orders gives a better basis than looking at one speed number.
