Reliable Channel Making Machine for Drywall with HRC60 Dies
A reliable channel making machine for drywall needs a stable frame and durable dies for long term production. Drywall channel is a core framing material in light gauge partition and ceiling systems. In shaft walls, fire partitions, and equipment shafts, channel accuracy and forming quality affect installation efficiency.
Applications of Drywall Channel in Shaft Walls and Fire Rated Partitions
Drywall channel is used for elevator shafts, stairwell partitions, equipment shafts, and ventilation duct enclosures. It works with matching tracks, and gypsum boards fit between flanges to form partitions. Shaft walls and fire partitions require consistent channel dimensions, and deviations can affect installation fit.
These applications place demands on channel production equipment. The machine must maintain forming accuracy and reduce variation from frame deformation or die wear.

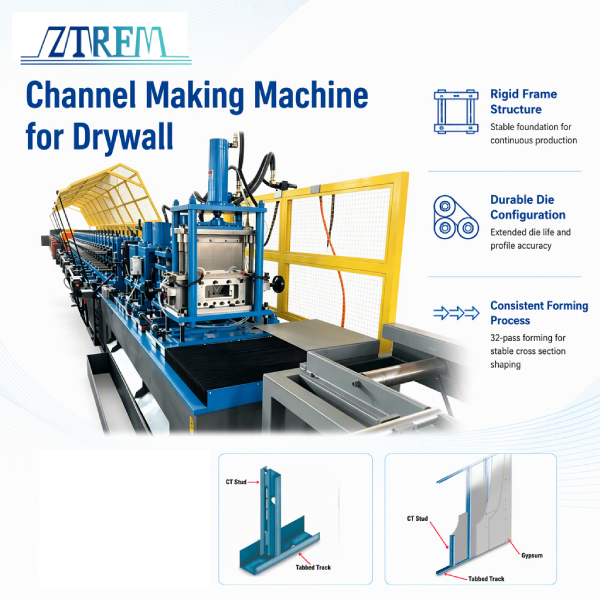

Machine Advantages for Long Term Channel Production
The channel making machine for drywall delivers practical value in three areas:
-
Rigid frame structure: The three platen steel frame is precision machined and heat treated, providing a stable foundation that helps maintain station alignment during continuous production.
-
Durable die configuration: Cr12MoV/D2 forming rollers and punching dies undergo vacuum heat treatment, which helps maintain profile accuracy and extend die replacement cycles.
-
Consistent forming process: 32 pass forming distributes deformation across multiple passes, supporting stable cross section shaping.
A similar type is the Shaft wall CT Stud And Track Roll Forming Machine for C T studs and matching tracks.
Equipment Reference Specifications
Key parameters for the channel making machine for drywall:
| Parameter | Value |
|---|---|
| Material | Galvanized steel coil |
| Material thickness range | 0.8 to 1.2mm (typically 0.9mm) |
| Material yield strength | ≤350 MPa |
| Forming passes | 32 passes |
| Production speed | 4 to 6 m/min |
| Spindle material | 45# steel |
| Spindle diameter | 50mm |
| Spindle precision | 0.02mm |
| Forming roller material | Cr12MoV/D2 |
| Forming roller hardness | HRC55 to 58 |
| Punching die material | Cr12MoV/D2 |
| Punching die hardness | HRC60 to 62 |
| Total power | Approximately 35kW |
| Power supply | 480V, 60Hz, 3 phase, 4 wire |
Some parameters of the channel making machine for drywall can be customized.
Matching the Channel Making Machine to Your Production
Drywall channel production needs dimensional consistency and long term machine stability. The channel making machine for drywall addresses both through its frame and die design. For help choosing a channel making machine for drywall for your production, contact us.
