The metal roof ridge cap roll forming machine from Zhongtuo is designed to produce durable and accurately formed metal ridge caps for a wide range of roofing systems. Installed along the highest point of a roof, ridge caps cover the joint between two roof slopes while providing a clean and finished appearance.
The machine continuously processes galvanized steel, PPGI, PPGL, and other compatible metal coils into customized ridge cap profiles. With suitable roller tooling, manufacturers can produce ridge caps in different widths, heights, angles, and flange configurations.
Zhongtuo can design the complete ridge cap forming machine according to the customer's profile drawing, material thickness, coil width, production speed, and finished product length.
A ridge cap roll forming machine is a continuous metal forming system used to manufacture ridge caps for metal roofing applications. Unlike press forming, the machine gradually bends the coil through a series of forming rollers.
This progressive forming process helps maintain consistent dimensions along the entire production length. It also allows manufacturers to produce customized profiles without changing the basic production concept.
Depending on the required production configuration, the line can include:
The final configuration depends on the customer's product profile and production requirements.
Different roofing systems require different ridge cap designs. A commercial standing seam roof, for example, may require a different cap geometry from a corrugated or tile-profile roof.
For this reason, Zhongtuo designs the forming rollers based on the customer's actual drawing rather than using one fixed tooling design for every project.
The metal roof ridge cap roll forming machine can be configured for different:
Before manufacturing, engineers can review the profile drawing and confirm the forming method, roller arrangement, cutting system, and machine dimensions.
A typical ridge cap roofing machine can process relatively thin metal coils and continuously form them into finished roofing accessories.
| Item | Typical Configuration |
|---|---|
| Machine Type | Metal Roof Ridge Cap Roll Forming Machine |
| Suitable Materials | GI, PPGI, PPGL |
| Material Thickness | 0.3–0.8 mm |
| Yield Strength | 250–350 MPa / 350–550 MPa |
| Forming Speed | 6–10 m/min |
| Forming Stations | 10–18 stations |
| Decoiler | Manual / Hydraulic |
| Drive System | Chain / Gearbox |
| Roller Material | 45# Steel |
| Cutting Method | Hydraulic Post Cut |
| Optional Cutting | Servo Tracking Cutter |
| Control System | PLC + Inverter |
| Output | Run-Out Table / Automatic Stacker |
| Power Supply | 380 V, 50 Hz, 3 Phase |
The actual specifications can be modified according to the customer's profile, material properties, production capacity, and factory requirements.
The production process begins with the metal coil loaded onto the decoiler. The coil is then released and guided into the forming section.
Inside the roof ridge cap machine, multiple roller stations progressively bend the flat strip into the required shape. Each station performs a controlled forming step, allowing the material to reach the final profile gradually.
After the profile is formed, the cutting unit cuts the ridge cap according to the programmed length. The finished products are then transferred to the run-out table or automatic stacker.
A typical production process includes:
Coil Loading → Decoiling → Guiding → Roll Forming → Length Measurement → Cutting → Collecting/Stacking
This continuous process reduces repeated manual operations and helps manufacturers maintain stable production quality.

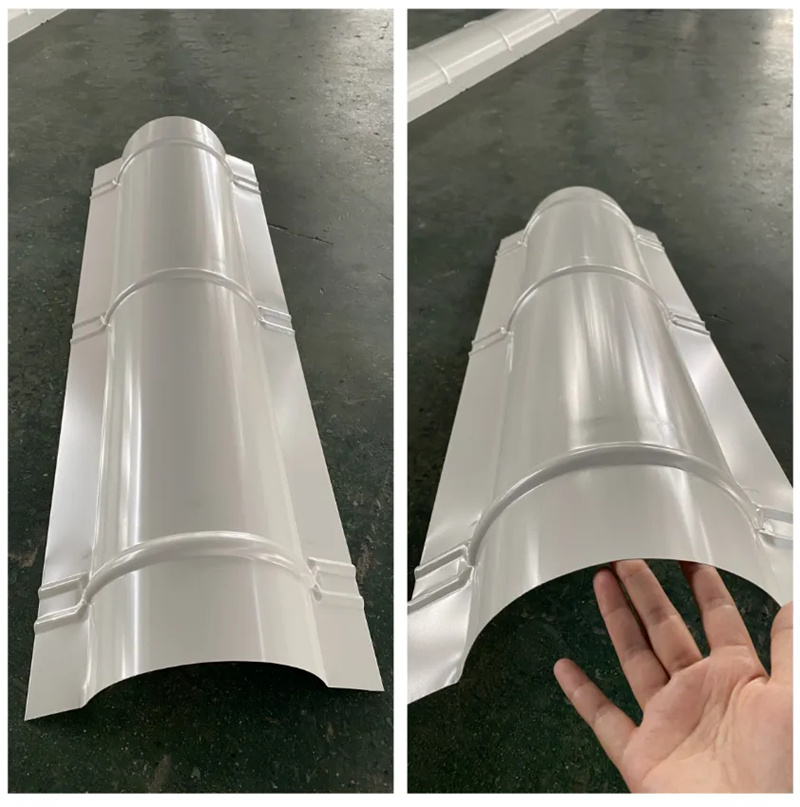

The ridge making machine is mainly used to manufacture metal components installed at the peak of roofing structures.
Depending on the customized profile, the finished ridge caps can be used with various types of roofing systems, including:
The ridge cap profile should be designed to match the geometry of the corresponding roof panel. Therefore, providing the roof panel profile or ridge cap drawing before machine production is important.
The ridge cap forming machine provides manufacturers with a practical solution for continuous production of customized roofing accessories.
Zhongtuo designs the roller stations according to the required ridge cap profile. This allows the same type of machine concept to accommodate different product dimensions.
Multiple forming stations gradually shape the metal instead of applying excessive deformation in one step. This helps maintain consistent profile geometry during continuous production.
The standard configuration can use hydraulic post-cutting. For applications that require synchronized cutting, a servo tracking cutting system can be selected.
Manufacturers can choose a basic configuration with manual decoiling and manual collection or upgrade the line with hydraulic decoiling, automatic cutting, and stacking.
The machine can be configured for galvanized steel, PPGI, PPGL, and other suitable coil materials within the specified thickness and strength range.
Every roofing project does not necessarily use the same ridge cap dimensions. Factors such as roof panel shape, installation method, overlap requirements, and local construction standards can affect the final profile.
Therefore, Zhongtuo recommends confirming the following information before designing the machine:
Based on this information, Zhongtuo can develop the roller tooling and production line configuration for the required product.
The machine can typically process galvanized steel, PPGI, PPGL, and other compatible metal coils. The final material range depends on thickness, yield strength, and profile requirements.
A typical configuration processes 0.3–0.8 mm material. Different thicknesses can be evaluated and configured according to the required profile and material properties.
Yes. Zhongtuo can design the roller tooling according to the customer's profile drawing, allowing the machine to produce customized ridge cap dimensions and geometries.
A typical forming speed is around 6–10 m/min. The actual production speed depends on the profile, material thickness, cutting method, and required product accuracy.
Yes. Hydraulic post-cutting can be used as a standard solution. A servo tracking cutter can also be configured when synchronized cutting is required.
