High Speed Solar Strut Channel Roll Forming Machine for PV Bracket Production Standard

General Industry Tech Hebei Developing Co.,Ltd

High Speed Solar Strut Channel Roll Forming Machine for PV Bracket Production Standard

Name: High Speed Solar Strut Channel Roll Forming Machine for PV Bracket Production Standard
Brand: ZTRFM
SKU: ZT125550133
Availability: InStock

$35,000.00/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT125550133

Capacity25m/min

TypePurlin Roll Forming Machine / Solar Strut Channel Machine

ProfilesC Purlin / U Channel / Solar Strut Profile (Customized)

Rolling Thickness2.0 - 3.0 mm

Installed Power15 kW (Drive Motor + High Pressure Hydraulic Pack)

Machine Weight7,000 kg (7.0 Metric Tons Rigid Steel Base)

Key Selling PointsHigh-Accuracy, Heavy-Duty Continuous Forming

Warranty2 Years Commercial Warranty + Life Time Technology Service

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

Standard

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Capacity
25m/min
Type
Purlin Roll Forming Machine / Solar Strut Channel Machine
Profiles
C Purlin / U Channel / Solar Strut Profile (Customized)
Rolling Thickness
2.0 - 3.0 mm
Installed Power
15 kW (Drive Motor + High Pressure Hydraulic Pack)
Machine Weight
7,000 kg (7.0 Metric Tons Rigid Steel Base)
Key Selling Points
High-Accuracy, Heavy-Duty Continuous Forming
Warranty
2 Years Commercial Warranty + Life Time Technology Service
Model
High-Speed C/U Purlin & Solar Strut Channel Roll Forming Machine (ZT-CU-PURLIN)
Working Material
ST37 / ST52, GI Galvanized Steel, Hot-Dip Galvanized Coils
Material Thickness
2.0 - 3.0 mm (Heavy Structural Steel)
Punching Mechanism
Hydraulic Punching Station for Mounting Holes & Slots
Cutting Mechanism
Hydraulic Profiling Cross Cut / Universal Profile Shear
Control System
DELTA / Siemens PLC with Color Touchscreen HMI
Voltage
380V / 440V / 220V (3-Phase, 50/60Hz, Customizable per Country)
Certifications
CE BV STV ISO Compliant

Product Overview

The High Speed C U Purlin Machine for Photovoltaic Solar Panel Structure is a heavy-duty industrial roll forming production line designed for the continuous fabrication of structural C purlins, U channels, and solar racking strut channels. Built to process high-strength ST37 and ST52 carbon steel, hot-dip galvanized steel (HDG), and GI coils with thicknesses ranging from 2.0 to 3.0 mm at line speeds up to 25 m/min, this 7.0-ton rigid manufacturing line integrates multi-stage precision chromed forming stands, high-tonnage online hydraulic punching for mounting slots, and distortion-free hydraulic profiling cut-off shear units to deliver superior dimensional accuracy for global solar energy installations and steel building framing.

Key Engineering Features

High-Speed Continuous Forming (Up to 25 M/Min): Driven by a powerful 15 kW motor and reinforced drive train for maximum output in high-volume solar bracket manufacturing.
Heavy-Gauge 2.0–3.0 mm Steel Forming Capability: Handles high-tensile ST37, ST52, and hot-dip galvanized structural strips with zero edge wrinkling or flange distortion.
Integrated Hydraulic Punching Station: High-tonnage hydraulic cylinder unit accurately punches mounting slots, base holes, and positioning marks along the strip prior to roll forming.
Multi-Pass Precision Chromed Tooling Rollers: High-grade forged alloy steel rollers CNC-machined and hard-chrome plated resist abrasive wear and prevent zinc coating flaking.
Hydraulic Profiling Cutoff Shear Unit: Form-fitted hydraulic contour blades execute clean, perpendicular cuts across heavy C/U sections with ±1.0 mm length tolerance and zero burrs.
Smart Industrial PLC Automation: DELTA / Siemens touchscreen control terminal allows instant programming of punching patterns, batch production quantities, and automated cutting lengths.

Technical Specifications

Item	Specification
Product Model	High Speed C/U Purlin & Solar Strut Channel Roll Forming Machine (ZT-CU-PURLIN)
Target Profiles	C Purlins, U Channels, Solar PV Mounting Strut Channels, Seismic Bracing Rails
Suitable Raw Material	ST37 / ST52 Carbon Steel, Hot-Dip Galvanized Steel (HDG), GI Galvanized Strip
Material Thickness Range	2.0 mm – 3.0 mm (Heavy Structural Gauge)
Production Speed	0 – 25 M/Min (High-Speed Continuous Production)
Total Installed Power	15 kW (Main Drive Motor + Hydraulic Power Pack)
Machine Weight	Approx. 7,000 kg (7.0 Metric Tons Rigid Steel Base)
Rollers Material & Treatment	High-Grade Forged Alloy Steel, CNC Machined & Hard Chrome Plated (0.05 mm)
Shaft Material & Type	Solid High-Grade 45# Forged Steel, Hardened & Precision Ground
Punching Mechanism	Online High-Tonnage Hydraulic Punching Unit (Cr12MoV Die Tooling)
Cutting Mechanism	Automatic Hydraulic Profiling Cutoff Shear (Cr12 Die Blades)
Control System	DELTA / Siemens Industrial PLC + Color Touchscreen HMI
Operating Voltage	380V / 440V / 220V (3-Phase, 50/60Hz, Customizable)
Warranty & After-Sales	2 Years Commercial Warranty + Life Time Technology Service
Certifications	CE BV STV ISO Compliant

Subsystems & Mechanical Details

1. Multi-Stage Precision Chromed Tooling Roller Stands

C U Purlin Roll Former - Multi-Stage Chromed Tooling Roller Stands

Heavy-duty forming stands with solid shafts and hard-chromed alloy rollers progressively shape 3.0 mm thick steel into rigid C and U channel profiles without surface blemish.

2. Online Heavy-Duty Hydraulic Punching Station

Solar Strut Channel Machine - Heavy-Duty Hydraulic Punching Station

High-tonnage hydraulic cylinder unit with Cr12MoV dies punches solar bracket mounting slots, oval holes, and calibration notches with high pitch precision.

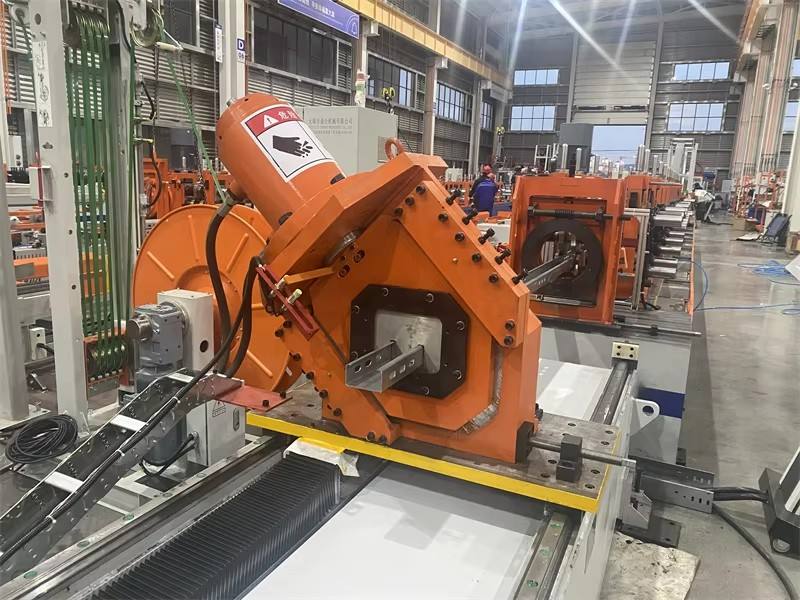

3. Hydraulic Profiling Cutoff Shear Mechanism

C Channel Purlin Roll Forming Line - Hydraulic Profiling Cutoff Shear Unit

Universal contour cut-off station cleanly shears heavy C and U channel sections at preset lengths without distorting profile web or flange angles.

4. Finished C and U Channel Solar Strut Profiles Stacking

Finished C and U Solar Strut Channels - Galvanized Purlin Profiles Stacking

Heavy-duty galvanized C and U channels stacked neatly, displaying straight geometry, sharp 90° bends, and precise hole alignment for solar racking assembly.

5. Industrial PLC Touchscreen Electrical Control Console

C U Purlin Machine - Industrial PLC Touchscreen Electrical Control Console

Touchscreen control panel enables automated length calibration, hole pattern programming, and batch production monitoring with fault diagnostics.

Application Scenarios

Solar Photovoltaic Ground & Rooftop Racking: Continuous production of heavy C-channel mounting rails, support pillars, and diagonal bracing channels for solar farms.
Industrial Steel Structure Buildings & Warehouses: Fabrication of primary and secondary roof and wall C-purlins providing high load-bearing capacity for steel framing.
Seismic Bracing & Cable Management Systems: Manufacturing of slotted Unistrut channels and heavy framing rails for industrial MEP and utility pipe suspension.

Frequently Asked Questions (FAQ)

Q: What steel grades can this high-speed purlin machine process?

A: It is optimized for high-tensile ST37 and ST52 carbon steel, hot-dip galvanized steel (HDG), and standard GI coils in thicknesses from 2.0 to 3.0 mm.

Q: Can this machine produce both C and U channel profiles?

A: Yes. The machine incorporates interchangeable tooling spacers and adjustable stand positions to switch between C purlins and U channels quickly.

Q: How accurate is the hydraulic punching and cutting system?

A: The online hydraulic punch and profiling shear utilize high-resolution rotary encoders to maintain hole pitch and cutoff length accuracy within ±1.0 mm.
