High Performance Aluminum Gutter Guard Roll Forming Machine Standard

High Performance Aluminum Gutter Guard Roll Forming Machine

A roll forming and punching line for perforated gutter guard profiles. The strip is fed at up to 1200 mm width, progressively roll formed, then punched and cut in a servo press station at the end of the line, so the finished guard leaves the machine ready to fit.

• Roll forming and punching combined in one line, with the perforated pattern pressed in after forming.
• Feeding width 1200 mm (47.24 in) for coil strip at 0.3-0.8 mm (0.01-0.03 in) thickness.
• Four column servo press station with a dedicated punch and die set for the perforated profile.
• 11 kW (14.75 hp) installed power, 380 V supply.
• Motor, pump, engine and PLC listed as the core components.
• 2 years warranty, with video outgoing-inspection and machinery test report provided.

Product Overview

This is a forming line for gutter guard strip. Coil is uncoiled into the entry guide, carried through a row of forming stations that build the section, and then pressed in a four column station where the perforations and the end forms are punched. The finished profile is carried out on a belt conveyor.

The line is built for gutter and rainwater product manufacturers that run guard or hanger profiles alongside their gutter range, and who need the perforating operation in the same pass rather than on a separate press.

Key Features

Forming and Punching in One Pass

The forming section and the punching station are mounted on one frame, so the strip is roll formed and perforated without a second handling step between machines.

Servo Press Station

The punching station uses a four column press with a dedicated punch and die set, driven by a servo motor mounted beside the press and coupled with a drag chain for the slide and the die.

Forming Stations and Drive

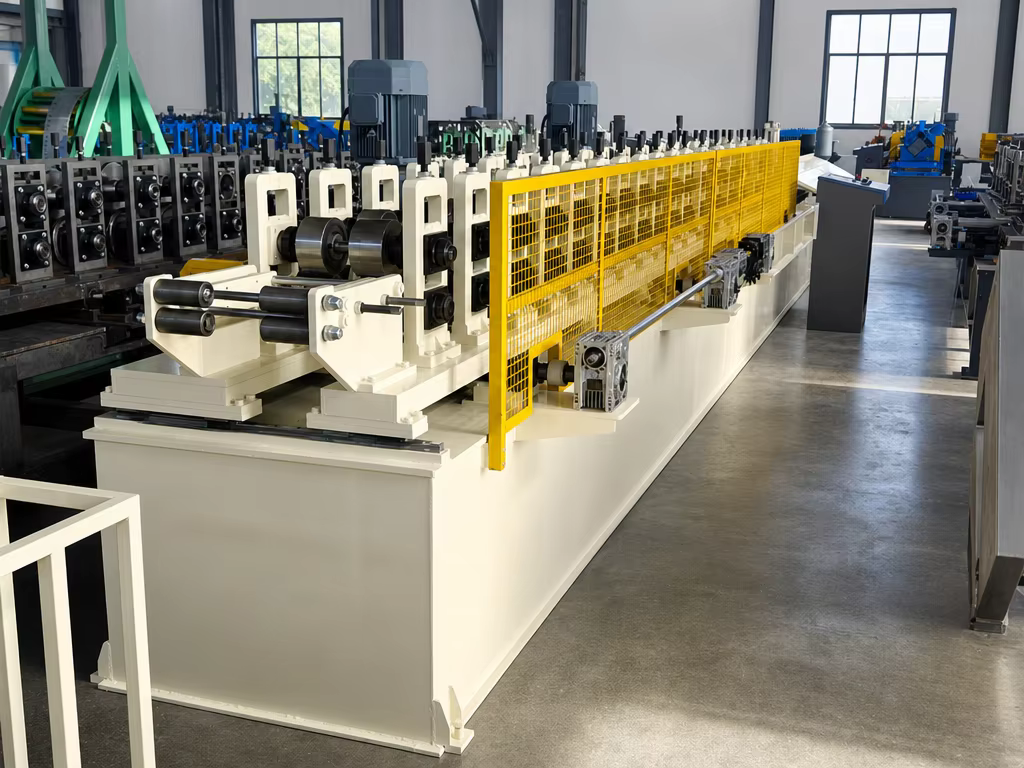

The section is built through a row of forming stations carried on painted steel frames with hardened rollers on shafts, and the line is driven by the motors mounted above the stations.

Material Range

The line takes coil up to 1200 mm (47.24 in) feeding width and forms strip from 0.3 mm to 0.8 mm (0.01-0.03 in) thick.

PLC Control and Power

Control is through a PLC panel with a 380 V supply and 11 kW (14.75 hp) installed power, with the automatic cycle listed as the key selling point of the line.

Warranty and Inspection

The line carries a 2 years warranty. Video outgoing-inspection and a machinery test report are provided before shipment.

Technical Specifications

Item	Specification
Type	Roll forming machine
Tile type	Steel
Feeding width	1200 mm (47.24 in)
Rolling thickness	0.3-0.8 mm (0.01-0.03 in)
Production capacity	30 m/min / 15 m/min / 20 m/min
Power	11 kW (14.75 hp)
Voltage	380 V
Core components	Motor, pump, engine, PLC
Use	Roof
Dimension (L*W*H)	As request
Weight	6000 kg (13227.74 lb)
Warranty	2 years
Outgoing inspection	Video outgoing-inspection and machinery test report provided
Place of origin	Hebei, China

Machine Structure

The punching station sits at the end of the forming section. The four column press carries the die set, and the servo motor beside it drives the slide through the drag chain. The perforated profile is held between the upper and lower dies at each stroke.

Applications

The line is used in gutter and rainwater product production, where guard strip and hanger profiles are formed and perforated for metal roof drainage systems. Typical users are building products manufacturers that run a gutter range and want the guard profiles produced in house, on the same shop floor as their gutter forming lines.

Packing and Supply Scope

• Supply scope: 1 set, delivered as a complete forming and punching line.
• Selling unit: single item.
• Lead time: 60 days for 1-2 sets, 70 days for 3 sets; larger quantities to be negotiated.
• Customization: name plate, tile type and voltage. Minor, drawing-based, sample-based and full customization are supported.

FAQ

What strip size does the line take?

Feeding width up to 1200 mm (47.24 in), with a rolling thickness range of 0.3-0.8 mm (0.01-0.03 in).

What is the production capacity and power?

The listed production capacity is 30 m/min / 15 m/min / 20 m/min, with 11 kW (14.75 hp) installed power on a 380 V supply.

What are the core components?

Motor, pump, engine and PLC.

How is the perforated pattern produced?

A four column servo press station at the end of the line punches the perforations and the end forms with a dedicated punch and die set, after the strip has been roll formed.

What warranty and inspection are provided?

2 years warranty, with video outgoing-inspection and a machinery test report provided before shipment.

Can the machine be customized?

Name plate, tile type and voltage can be specified. Minor, drawing-based, sample-based and full customization are supported.
