Full Automatic Wall Angle Profile Roll Forming Machine 25*25mm

Full Automatic Wall Angle Profile Roll Forming Machine

A PLC controlled roll forming line that produces wall angle profiles from coil. The strip is unwound, progressively formed into the 25*25 mm angle section, cut hydraulically and discharged onto a runout table, so the finished angle is stacked ready for the wall corner protection work.

• Application: wall angle profiles for protecting wall corners.
• Profile size 25*25 mm, maximum working width 50 mm (1.97 in).
• Colour steel sheet or galvanized steel, 0.3-0.6 mm thick.
• Production capacity up to 40 m/min, 5.5 kW (7.38 hp) on a 480 V supply.
• PLC control system and hydraulic cutting.
• 2 years warranty, including 2 years on the core components.

Product Overview

This is a light steel frame system roll former built around a 25*25 mm wall angle profile. A coil of colour steel sheet or galvanized steel is loaded on the decoiler, fed into the forming section, formed through a multi stage tooling train, then cut to length by the hydraulic cutter and delivered to the runout table.

The line is aimed at producers of wall angle and corner profiles for light gauge steel framing and drywall partition systems, who need a continuous supply of the same angle section at a steady rate rather than blanking and bending the profile in separate operations.

Key Features

Wall Angle Section

The line is tooled for the 25*25 mm angle profile used to protect wall corners, with a maximum working width of 50 mm (1.97 in) and hydraulic cutting to length at the end of the forming section.

Multi Stage Forming Tooling

The angle section is built progressively through a multi stage tooling train mounted on the welded base frame, so the 90 degree fold is formed in steps rather than in a single pass.

High Torque Drive

The forming stations are driven by a high torque motor, with the stations carried on shafts and bearing blocks supported by the main frame and protected by a mesh guard along the line.

Expanding Decoiler

The line is fed by an expanding decoiler unwinding stand with an adjustable inner diameter, so different coil bores can be loaded without changing the mandrel.

Automatic Runout Discharge Table

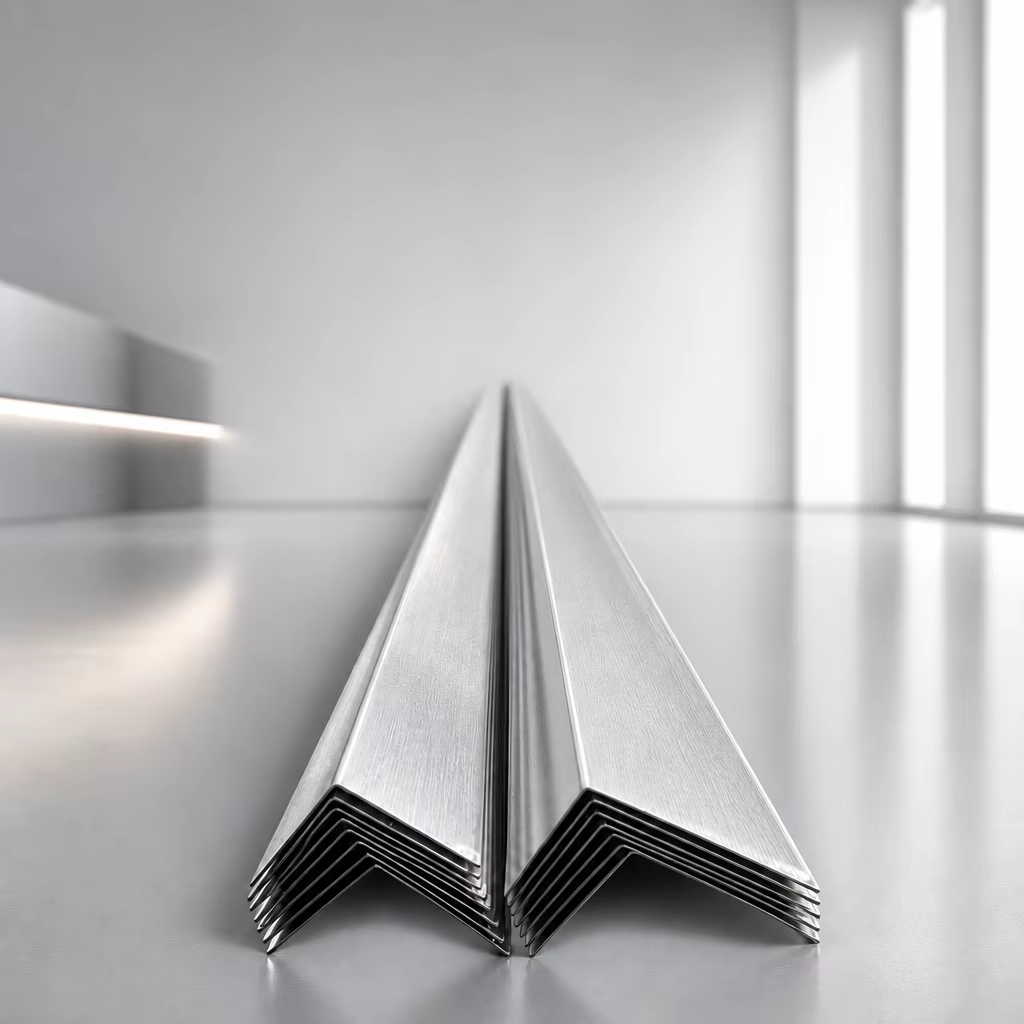

Finished angles are carried out on a runout discharge table with side guides, so the profiles are collected and stacked as they leave the line.

PLC Control and Cutting

Control is through a PLC system with a touch screen panel. Cutting is hydraulic, listed as the cutting type on the machine specification.

Technical Specifications

Item	Specification
Model	25*25mm
Application	Wall angle
Usage	Protecting the wall angle
Raw material	Color steel sheet, galvanized steel
Thickness	0.3-0.6 mm
Max. working width	50 mm (1.97 in)
Production capacity	Max 40 m/min
Power	5.5 kW (7.38 hp)
Voltage	480 V
Control system	PLC
Cutting type	Hydraulic cutting
Core components	PLC, motor, bearing
Dimension (L*W*H)	11*2.0*1.6 m (36.09*6.56*5.25 ft)
Weight	4000 kg (8818.49 lb)
Condition	New
Warranty	2 years
Warranty of core components	2 years
Place of origin	Hebei, China

Machine Structure

The forming section carries the tooling train on a welded and painted base frame, with the drive motors above the stations and a mesh guard running along the operator side. The hydraulic power unit stands at the entry end of the line.

Applications

The finished angle is used to protect wall corners in light steel frame and drywall partition systems, and in the same light gauge steel framing work where the angle is fixed over the corner joint before finishing. Production is continuous, so a single line supplies the angle stock for the framing and finishing stages of a project.

Packing and Supply Scope

• Supply scope: 1 set, delivered as a complete forming line with decoiler, forming section, cutter and runout table.
• Selling unit: single item.
• Single package size: 1200X180X200 cm; single gross weight: 7500.0 kg.
• Lead time: 45 days for 1 set; further quantities to be negotiated.
• Customization: name plate and logo/graphic design. Minor, drawing-based, sample-based and full customization are supported.

FAQ

What profile does the machine produce?

A 25*25 mm wall angle profile used for protecting wall corners. The maximum working width is 50 mm (1.97 in).

What material and thickness can it run?

Colour steel sheet and galvanized steel, from 0.3 mm to 0.6 mm thick.

What are the capacity, power and voltage?

Production capacity up to 40 m/min, 5.5 kW (7.38 hp) installed power on a 480 V supply.

How is the profile cut and controlled?

Cutting is hydraulic, and the line runs on a PLC control system.

What are the core components?

PLC, motor and bearing.

What warranty and customization are provided?

2 years warranty, including 2 years on the core components. Name plate and logo/graphic design can be customized, with minor, drawing-based, sample-based and full customization supported.
