Full Automatic Metal Ridge Capping Roof Tile Making Machine Customized

Full Automatic Metal Ridge Capping Roof Tile Making Machine

An automatic roll forming line that produces metal ridge capping profiles for coloured steel roofing. Coil is fed at up to 1200 mm width, progressively formed through the roller stations, pressed and cut at the end of the line, with a production capacity of 12 m/min.

• Production capacity of 12 m/min, automatic operation.
• Feeding width up to 1200 mm, with a rolling thickness of 0.3 mm to 0.8 mm.
• Forms PPGI and GI colour-coated steel.
• Motor power 7.5 kW with chain transmission drive.
• Hydraulic system power 4 kW for the press unit at the end of the line.
• PLC control, machine colour customized as required.

Product Overview

This is a dedicated ridge capping making machine for the metal roofing industry. It turns colour-coated steel strip into finished ridge capping sections that close the ridge line of a metal roof, matching the tile profile of the roof panel below. The forming line is built on a welded steel base, with a hydraulic press unit at the front end and the forming stations running along the frame.

It suits roofing sheet producers and metal building material factories that need a repeatable supply of capping profiles in the same finish and colour as their roof panels, in villa and residential roofing as well as workshop and warehouse buildings.

Key Features

Automatic Operation

Automatic operation is the headline capability of this line: the strip is fed through the forming stations and the finished capping is delivered as one continuous pass.

Forming Range

The machine accepts a feeding width of up to 1200 mm and forms colour-coated steel between 0.3 mm and 0.8 mm thick, covering PPGI and GI material.

Motor and Drive

A 7.5 kW motor drives the line through chain transmission, with the roller stations carried in the machine side frames along the welded base.

Hydraulic Press Unit

A 4 kW hydraulic system drives the press unit at the front end of the line, where the formed ridge capping is closed and separated from the strip.

PLC Control System

The line is controlled by a PLC, listed as the core electrical component of this machine, so the forming and press cycle run from the control panel.

Colour and Customization

The machine colour is customized as required, and name plate, tile type and voltage can be specified per order, with minor, drawing-based, sample-based and full customization available.

Technical Specifications

Item	Specification
Type	Tile forming machine
Model	Customized
Product name	Full automatic metal ridge capping making machine
Use	Roof
Tile type	Colored steel
Formed material	PPGI, GI, AI
Feeding width	1200 mm
Rolling thickness	0.3 - 0.8 mm
Production capacity	12 m/min
Roller station	As per requirement
Drive	Chain transmission
Motor power	7.5 kW
Hydraulic system power	4 kW
Voltage	380 V / 50 Hz / 3 HP
Core components	PLC
Color	Customized as required
Weight	500 kg
Warranty	1 year
After-warranty service	Field maintenance and repair service
Outgoing inspection	Video outgoing-inspection and machinery test report provided
Place of origin	Hebei, China

Machine Structure

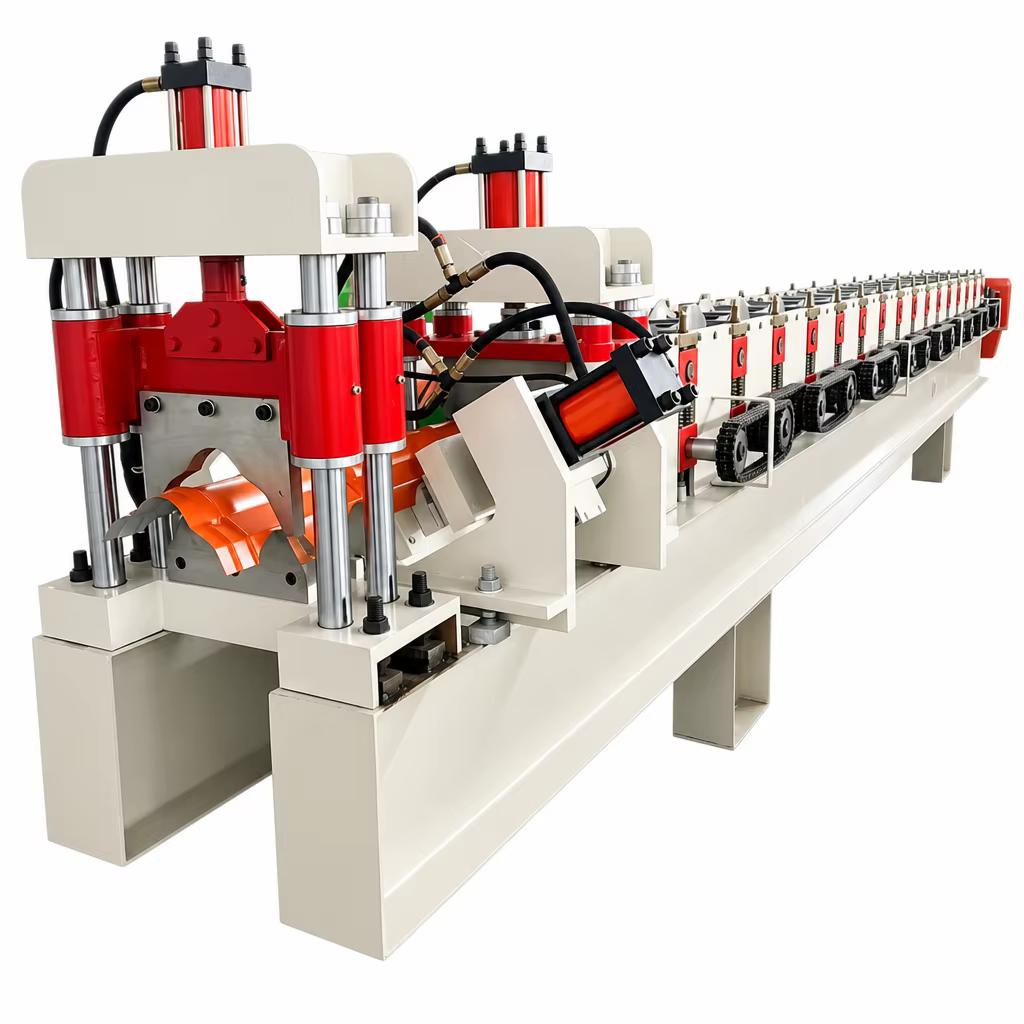

The front of the line carries the hydraulic press unit, built as a heavy plate frame with hydraulic cylinders and chrome piston rods. Behind it, the forming stations run along the welded base, each station holding an upper and a lower roller on the machine side frames, with the chain transmission running along the operator side.

Production Line

The strip is drawn from the coil through the line and leaves the last station as a formed ridge capping section. The roller stations are arranged in a continuous row, so the profile is built up station by station before reaching the press unit.

Applications

The machine produces ridge capping for metal roof systems: villa and residential roofs, workshop and warehouse buildings, and colour-coated steel roof projects where the capping has to match the tile profile of the roof panel. It is normally installed in a roll forming workshop alongside the roof sheet line, so the panel and the capping are made in the same production cycle.

Finished Ridge Capping Profile

The line delivers finished ridge capping straight off the press unit, with the tile relief formed into the section and the overlap joints ready for installation along the roof ridge.

Packing and Supply Scope

• Supply scope: 1 set, including the forming line and the hydraulic press unit.
• Selling unit: single item.
• Lead time: 45 days for 1 set; larger quantities to be negotiated.
• Customization: name plate, tile type and voltage.

FAQ

What material and thickness can this machine form?

Colour-coated steel: PPGI, GI, AI, with a rolling thickness of 0.3 mm to 0.8 mm and a feeding width of up to 1200 mm.

What is the production capacity?

12 m/min.

What are the motor and hydraulic system power ratings?

Motor power 7.5 kW, hydraulic system power 4 kW, with chain transmission drive.

Which voltage does the machine use?

380 V / 50 Hz / 3 HP. Voltage is one of the customization options.

What warranty and service are provided?

1 year warranty, with field maintenance and repair service after the warranty period. Video outgoing-inspection and a machinery test report are provided before shipment.

Can the profile, colour and name plate be customized?

Yes. The machine colour is customized as required, and name plate, tile type and voltage can be specified, with minor, drawing-based, sample-based and full customization available.
