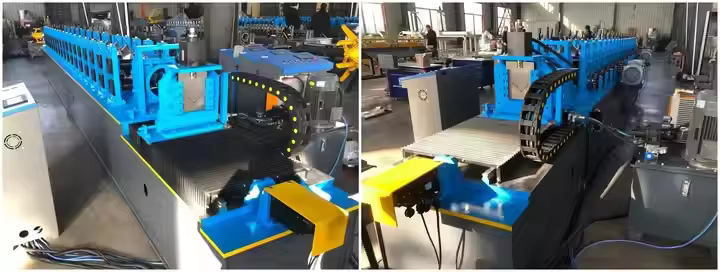

The ZTRFM F5/F8 Style Drip Edge Roll Forming Machine is an automated cold roll forming production line specially engineered for fabricating North American standard FHA, F5, F8, and V-profile metal roof flashing, drip edges, and angle trims. Processing PPGI, PPGL, GI, and aluminum coils from 0.3 mm to 0.8 mm thickness at 15 m/min with an 11 kW drive system, it produces precision drip edge strips that protect roof eave sheathing and guide water runoff safely into gutter systems.
| Item | Specification |
|---|---|
| Product Model | ZTRFM F5 / F8 Drip Edge Roll Forming Machine |
| Profile Style | North America Standard FHA / F5 / F8 Roof Flashing & V-Profile Drip Edge |
| Raw Material | PPGI, PPGL, GI, GL, Color Coated Steel, Aluminum |
| Material Thickness | 0.3 mm – 0.8 mm |
| Production Speed | 15 M/Min |
| Installed Power | 11 kW (Drive Motor + Hydraulic Station) |
| Roller Material | 45# Steel with Hard Chrome Coating |
| Cutting Blade Material | Cr12 Quenched Mold Steel (HRC 58-62) |
| Decoiler Capacity | 5-Ton Manual Decoiler (Included) |
| Control System | PLC Automation (Imported Siemens / Delta Brand) |
| Machine Weight | 5500 kg (5.5 Metric Tons) |
| Voltage | 380V (3 Phase, 50/60Hz, Customizable) |
| Standard Warranty | 1 Year (12 Months) |
| Certifications | CE Certified, ISO9001 Compliant |

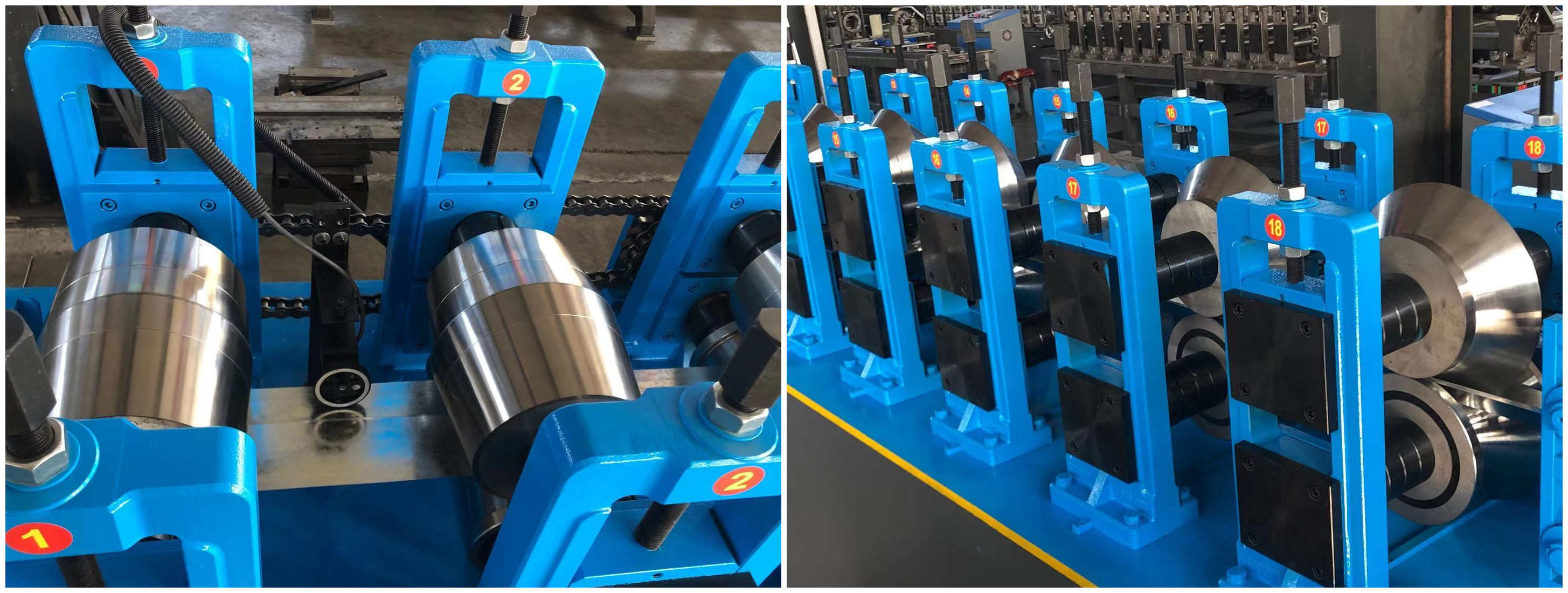

Progressive 45# hard chrome-plated roller stations form sharp angles, hemmed water-break return lips, and nail flanges on drip edge profiles without surface scuffing.

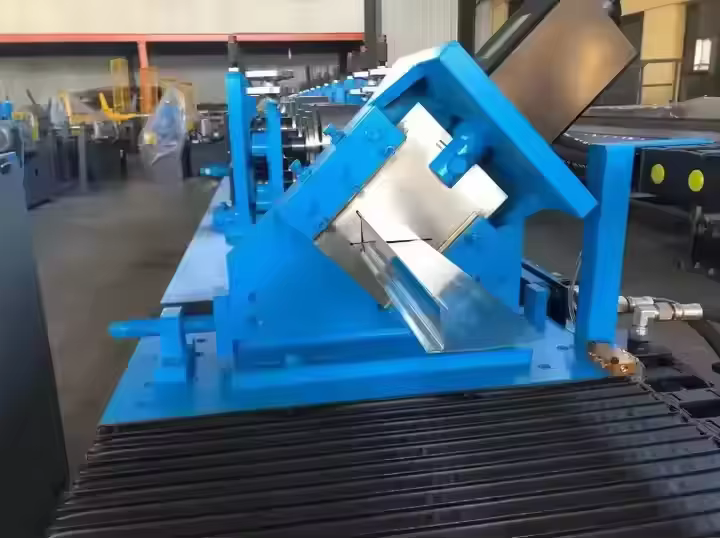

Heavy-duty hydraulic cylinder and custom-machined Cr12 mold steel die shear formed drip edge strips cleanly without flattening the delicate folded water lip.
Uniform F5/F8 panel cross-sections nest tightly in bundles for compact transport, palletizing, and retail building material distribution.
Installed along roof perimeters to direct rainwater away from fascia boards into rain gutters, preventing wood rot, roof leaks, and water infiltration.
5T coil decoiler with adjustable infeed side guide rollers aligns narrow slit coil strips smoothly into the initial forming stations.
A: F5 features a 1/2-inch overhang lip commonly used on standard residential eaves, while F8 provides an extended 1-inch or 1-1/2-inch drop face for heavy water runoff and gutter integration.
A: Yes. Roller tooling and side guiding can be tailored to match your specific angle (e.g., 90°, 105°, 120°) and hem width per CAD drawings.
A: A 1-Year comprehensive warranty covers all major mechanical and electrical components, backed by lifelong online technical support and fast spare parts dispatch.
