Downspout & Gutter Roll Forming Machine Manufacturer Rainwater Drainage Machine 0–12 m/min

In modern construction, efficient roof drainage systems are essential for protecting buildings and extending their service life. Therefore, investing in a reliable and high-precision gutter and downspout production line is crucial for manufacturers targeting international markets.

Our customized Downspout Pipe Machine and Half-Round Gutter Roll Forming Line are specifically engineered for the Russian customer project, combining durability, precision, and stable performance. Moreover, this solution is designed to meet strict inspection standards and deliver consistent product quality.

First of all, the round downspout machine adopts an internal seam and locking structure, ensuring that all joints and teeth remain inside the pipe. As a result, the outer surface stays smooth, clean, and visually appealing.

In addition, the machine supports multiple materials such as galvanized steel, pre-painted steel, and laminated coils. During production, the colored surface is always positioned upward, which effectively protects coating quality.

More importantly, the system guarantees high precision:

• Length tolerance: ±1.0 mm per meter
• Finished length tolerance: ±2.0 mm
• Cross-section tolerance: ±1.0 mm

Consequently, customers receive products that fully meet international standards.

High-Standard Quality Control Requirements

To ensure premium output, we strictly follow comprehensive inspection criteria. For example, all finished products must be free from scratches, dents, deformation, or roller marks. At the same time, protective coatings and films on both sides must remain intact.

Furthermore, the cutting system ensures clean edges without burrs, while waste materials fall freely after cutting. This not only improves efficiency but also enhances workplace safety.

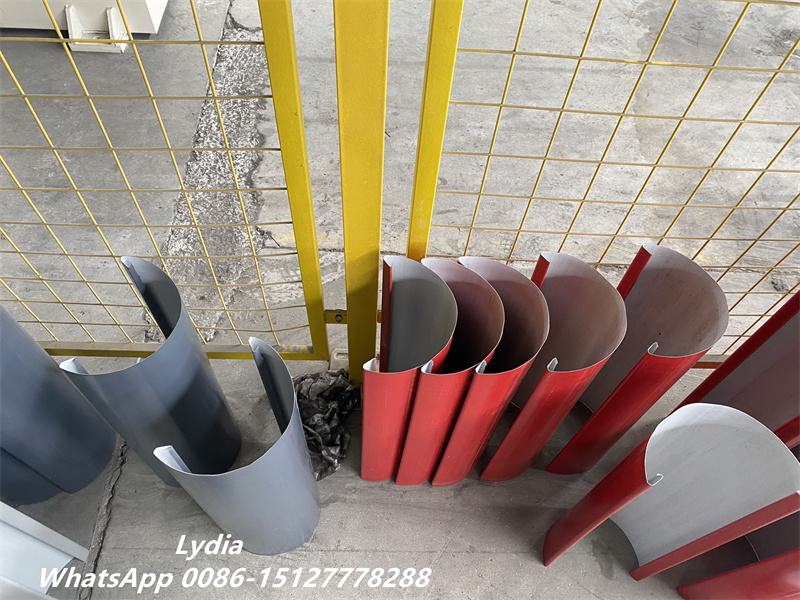

In particular, we eliminate faceting issues, guaranteeing a perfectly smooth and round appearance—an essential requirement for high-end markets.

Robust Machine Configuration

In terms of machine structure, we carefully select high-quality components to ensure long-term stability and performance. For instance, the forming rollers are made of 45# steel with chrome coating, and shafts are processed with a diameter of 70 mm for higher strength.

Additionally, the forming system features:

• 24 forming stations (downspout) / 19 stations (gutter)
• Double chain transmission system
• Adjustable feeding with guiding device and film protection
• Working speed up to 12 m/min

Meanwhile, the hydraulic decoiler supports 3-ton loading capacity with expandable mandrel and bidirectional rotation, making operation more flexible.

Technical Specifications

Item	Downspout Machine	Half-Round Gutter Machine
Material Thickness	0.35–0.55 mm	0.35–0.55 mm
Feeding Width	500 mm	380 mm
Forming Stations	24 stations	19 stations
Speed	0–12 m/min	0–12 m/min
Main Power	7.5 kW	5.5 kW
Cutting Type	Electric cutting	Hydraulic/electric cutting
Blade Material	CR12	CR12
Voltage	380V / 50Hz / 3P	380V / 50Hz / 3P

Reliable Delivery and After-Sales Support

Before shipment, we conduct full machine testing using actual materials to ensure stable operation. In addition, each machine is delivered with complete documentation, including manuals, electrical drawings, and maintenance tools.

To further enhance usability, we also:

• Mark all wiring clearly for easy installation
• Protect cables with conduits for safety and neatness
• Provide spare parts such as limit switches, fuses, counters, and chains

Finally, all machines are branded with the customer’s required logo, ensuring a professional appearance.

In summary, this customized downspout and gutter production line offers a perfect combination of precision, durability, and intelligent control. Whether you are producing for residential, commercial, or industrial drainage systems, this solution will significantly improve your productivity and product quality.

If you are looking for a reliable partner for roll forming solutions, feel free to contact us for more details and tailored configurations.
