Corrugated Metal Iron Sheet Making Tile Forming Machine Standard

General Industry Tech Hebei Developing Co.,Ltd

Corrugated Metal Iron Sheet Making Tile Forming Machine Standard

Name: Corrugated Metal Iron Sheet Making Tile Forming Machine Standard
Brand: ZTRFM
SKU: ZT124812375
Availability: InStock

$15,000.00/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT124812375

Main Motor Power4kW

Hydraulic Power3kW

Roller Material45# Forged Steel with Hard Chrome Plated

Cutting MethodHydraulic Guide Pillar Cutting

Machine Dimensions7500*1650*1500mm

Machine Weight4500kg

Warranty12 Months

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

Standard

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Main Motor Power
4kW
Hydraulic Power
3kW
Roller Material
45# Forged Steel with Hard Chrome Plated
Cutting Method
Hydraulic Guide Pillar Cutting
Machine Dimensions
7500*1650*1500mm
Machine Weight
4500kg
Warranty
12 Months
Model
Standard
Voltage
220V/380V/440V (3 Phase, 50/60Hz)
Raw Material
Color steel, GI, PPGI, Galvalume
Application
Industrial & residential corrugated roofing
Thickness
0.3-0.8mm
Feeding Width
1220mm
Forming Speed
20m/min
Blade Material
Cr12 Quenched Mold Steel

Product Overview

The ZTRFM Corrugated Metal Iron Sheet Making Machine is an automated cold roll forming production line designed for continuous manufacturing of sinusoidal corrugated steel roofing and siding panels. Processing PPGI, GI, and Galvalume coils up to 1220 mm wide with 0.3-0.8 mm thickness at speeds up to 20 m/min, it provides high dimensional accuracy and corrosion resistance for commercial, residential, and agricultural structures.

Corrugated roof sheet machine

Key Engineering Features

Heavy-Duty H-Beam Frame: High structural rigidity eliminates vibration during high-speed rolling.
45# Forged Steel Rollers: Mirror-polished hard chrome plating (0.05 mm) prevents paint and coil damage.
Hydraulic Guide Pillar Cutoff: Dual-pillar guided shear with Cr12 quenched dies ensures burr-free cuts.
Synchronized Solid Shaft Drive: High-torque solid steel transmission shafts guarantee smooth continuous forming.
Smart Multi-Language PLC Control: Precision encoder feedback provides ±1.0 mm cutting accuracy.
Broad Material Versatility: Handles PPGI, GI, Aluzinc, and prepainted color steel coils seamlessly.

Technical Specifications

Item	Specification
Product Model	Corrugated Metal Iron Sheet Making Tile Forming Machine
Tile Type / Profile	Sinusoidal Corrugated Wave / Colored Glaze Profile
Raw Material	Color Steel, Galvanized Iron (GI), PPGI, Galvalume
Material Thickness	0.3 mm – 0.8 mm
Coil Feeding Width	1220 mm
Production Speed	20 M/Min
Main Motor Power	4 kW
Hydraulic Station Power	3 kW
Total Power	7 kW (4kW + 3kW)
Roller Material	45# Forged Steel with Hard Chrome Coating (0.05 mm)
Cutting System	Hydraulic Guide Pillar Cutting / Cr12 Quenched Blade
Machine Dimensions (LWH)	7500 mm * 1650 mm * 1500 mm
Machine Weight	4500 kg (4.5 Metric Tons)
Voltage	220V / 380V / 440V (3 Phase, 50/60Hz, Customizable)
Standard Warranty	12 Months (1 Year)

Subsystems & Mechanical Details

1. Multi-Stage Cold Roll Forming Stations

Multi-Stage Cold Roll Forming Stations

Precision-machined 45# forged steel roller stands with hard chrome finish and solid steel shafts ensure progressive, smooth shaping without scratching paint.

2. Hydraulic Guide Pillar Post-Cutter

Hydraulic Guide Pillar Post-Cutter

Custom Cr12 mold steel blades vacuum-quenched to HRC 58-62 deliver clean shear cuts synchronized automatically with PLC length encoder.

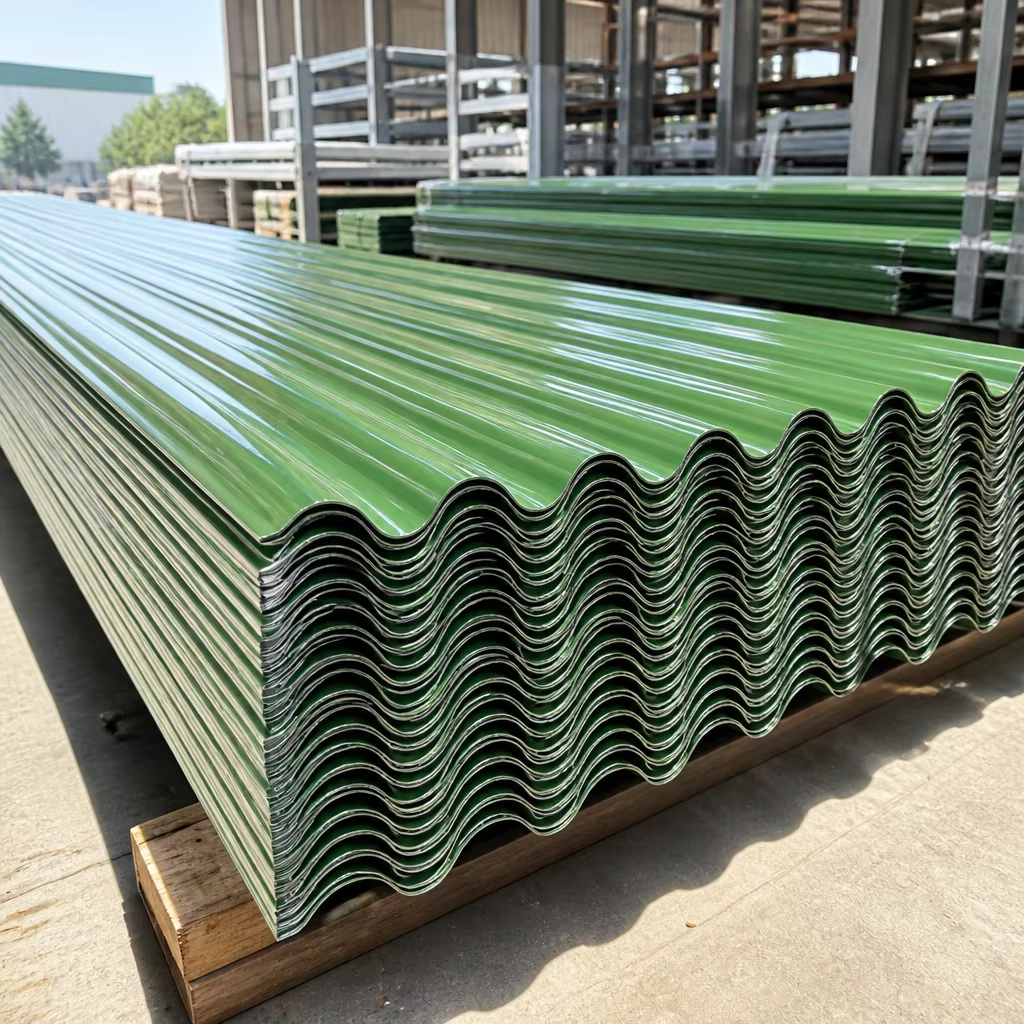

3. Finished Corrugated Roof Panels & Stacking

Finished Corrugated Roof Panels & Stacking

Accurate wave pitch and uniform crest height provide tight panel nesting for sea container shipping and foolproof interlocking roof installation.

4. Complete Turnkey Production Line Architecture

Complete Turnkey Production Line Architecture

Turnkey roll forming architecture integrating decoiler, infeed guide, roll former, hydraulic cutter, PLC cabinet, and discharge table.

Application Scenarios

Industrial Buildings: Large-span manufacturing plants, logistics warehouses, and distribution centers.
Residential & Commercial: Pitched residential roofs, awnings, carports, and architectural wall siding.
Agricultural Sheds: Grain storage silos, livestock barns, greenhouses, and equipment garages.

Frequently Asked Questions (FAQ)

Q: Can this machine be customized to match our local profile drawing?

A: Yes. Provide your wave pitch, height, and width, and our engineering team will tailor roller tooling to your CAD drawing.

Q: What is the electrical voltage configuration?

A: We configure motors and control panels for 220V, 380V, 415V, or 440V (3-Phase, 50Hz/60Hz) per your factory electrical grid.

Q: What warranty and after-sales support are provided?

A: A standard 12-Month warranty covers core components, accompanied by lifetime remote technical support and fast spare parts supply.
