Cable Tray Roll Forming Machine Automatic Cable Tray

Product Overview

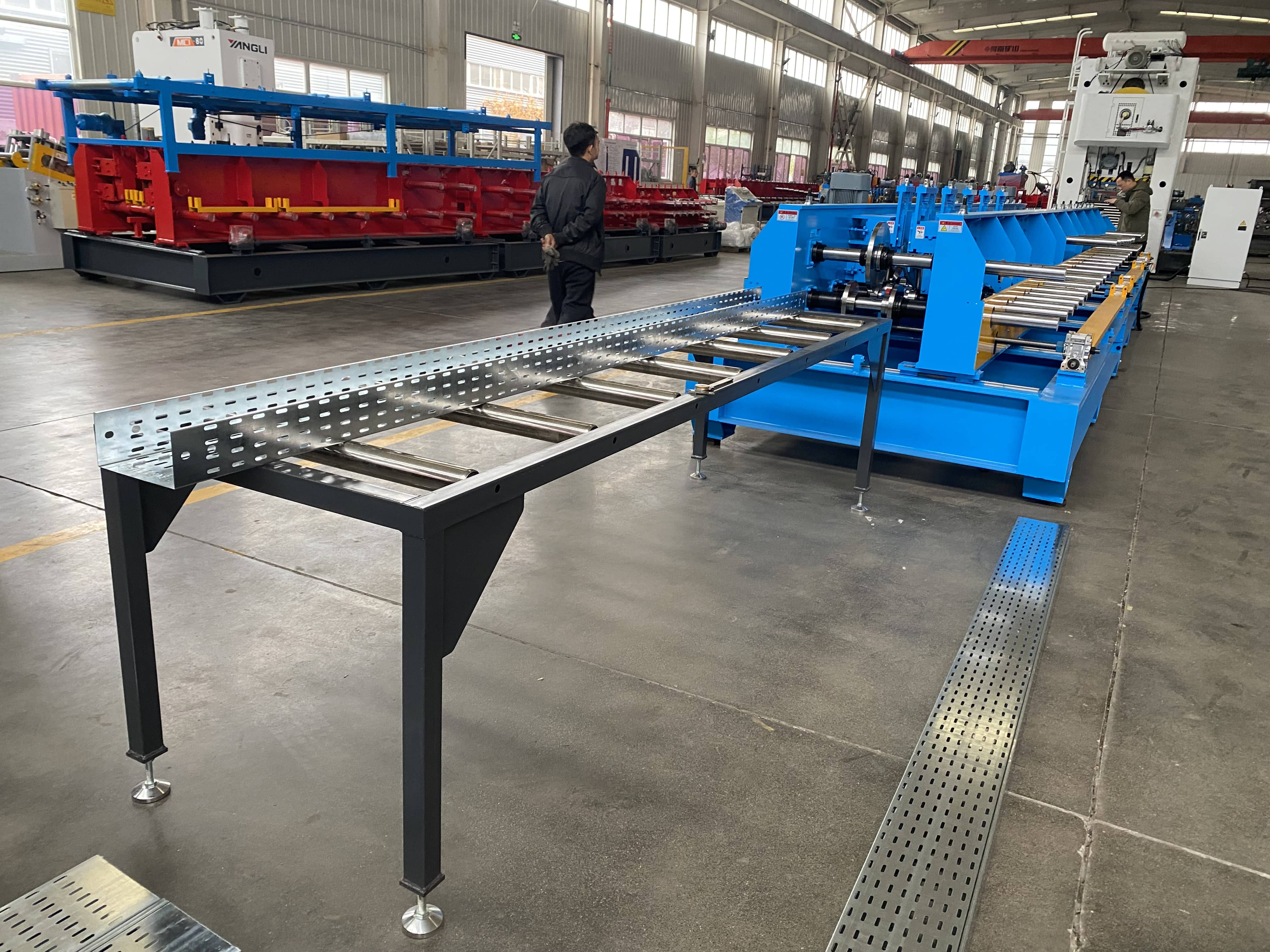

This high-speed cable tray roll forming production line is specifically designed for the large-volume, high-precision production of cable trays. The entire line adopts a fully automated PLC control system, integrating uncoiling, leveling, punching, forming, and cutting into one unit, achieving continuous automated production from raw materials to finished products. Production efficiency can reach over 20 meters per minute, making it an ideal choice for cable tray manufacturers.

Product Attributes :

Core Advantages

1. High Speed ​​and High Efficiency

Production Speed: 0-20m/min (adjustable)

Stable operation for 24 consecutive hours

Efficiency increased by over 40% compared to traditional equipment

2. High-Precision Forming

Rollers are made of high-quality alloy steel, CNC precision machined and heat-treated.

Forming accuracy ±0.5mm, angle error ≤1°

18-26 passes of progressive forming ensure product is free from deformation and scratches.

 3.Fully Automatic Intelligent Control

PLC + Touchscreen HMI

Automatic fixed-length cutting, accuracy ±1mm

Automatic fault alarm and diagnosis

Supports parameter storage and one-click model changeover

Application Areas

• Building Electrical Engineering Cable Trays
• Industrial Plant Cable Laying Systems
• Data Center Cable Management
• Infrastructure such as Subways, Tunnels, and Airports
• Petrochemical Plants and Power Plants

Pattern Diagram：

Why Choose Us?

✅ 10+ Years of Industry Experience – Focused on R&D and Manufacturing of Roll Forming Equipment

✅ Turnkey Service – Solution Design, Equipment Manufacturing, Installation and Commissioning, Personnel Training

✅ Global Service Network – Products exported to 60+ countries, timely after-sales response

✅ Quality Assurance – 12-month warranty on the entire machine, lifetime technical support

Get a customized solution and quote now!

If you are looking for a stable, efficient, and intelligent Cable Tray Roll Forming Machine Automatic Cable Tray High-Speed ​​Line, please feel free to contact us.

We offer free technical consultation, solution design, equipment selection, and on-site trial services to help you make your cable tray production more efficient and worry-free.
