Automatic Wall Cladding Roofing Sheet Roll Forming Machine

A roll forming line for metal wall cladding and roofing sheet, built to run colour-coated and metallic coil through a forming section and cut it to length in a four pillar hydraulic shear station. The line is used for architectural siding and cladding panels with a concealed joint profile.

• Forming speed 20 m/min with 7.5 kW installed power.
• Feeding width 1250 mm (49.21 in), rolling thickness 0.3-0.8 mm (0.01-0.03 in).
• 45# steel rollers with chrome plating on High Grade No.45 forged shafts.
• Hydraulic 4 pillar automatic cutter with a Cr12MoV cutting blade.
• PLC control system (imported brand SIEMENS / DELTA) on a 400H steel main frame.
• 220 V, 380 V and 440 V supply options.

Product Overview

This is a single profile cladding line. Coil is uncoiled into the entry guide and carried through the forming section, where the panel section is built up stage by stage, then cut to length by the hydraulic shear station at the discharge end. The finished panel runs out from the shear ready for stacking.

The line is built for panel and building material producers that need a steady output of cladding and roofing sheet in the same finish as the rest of their range, and it is normally installed as part of a roll forming shop alongside other forming lines.

Key Features

Hydraulic 4 Pillar Shear Station

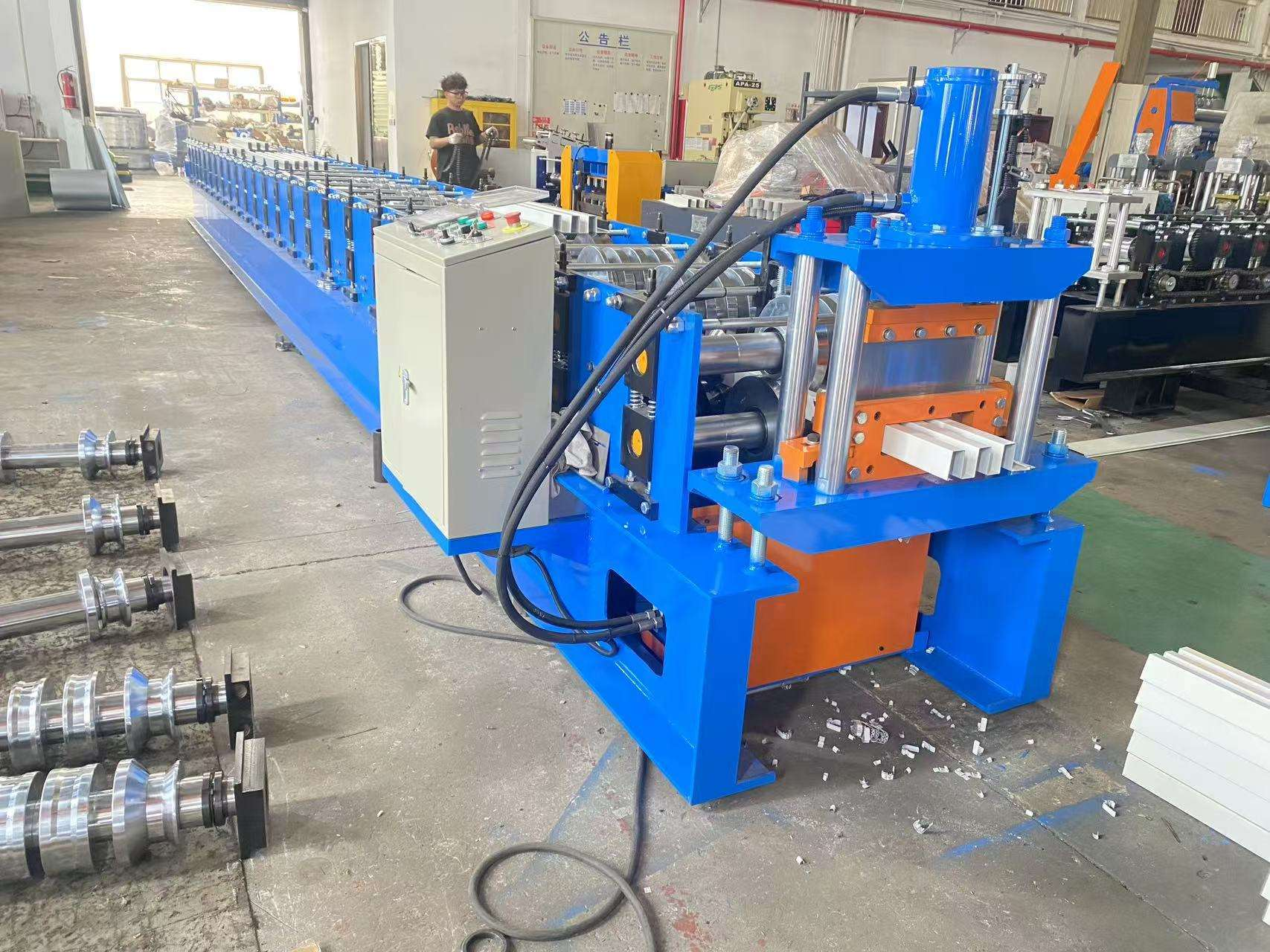

The post-cutting station is a four pillar hydraulic cutter. The die set runs on chrome guide pillars inside a welded frame, so the cut face is held square across the profile in every stroke.

Precision Roll Tooling

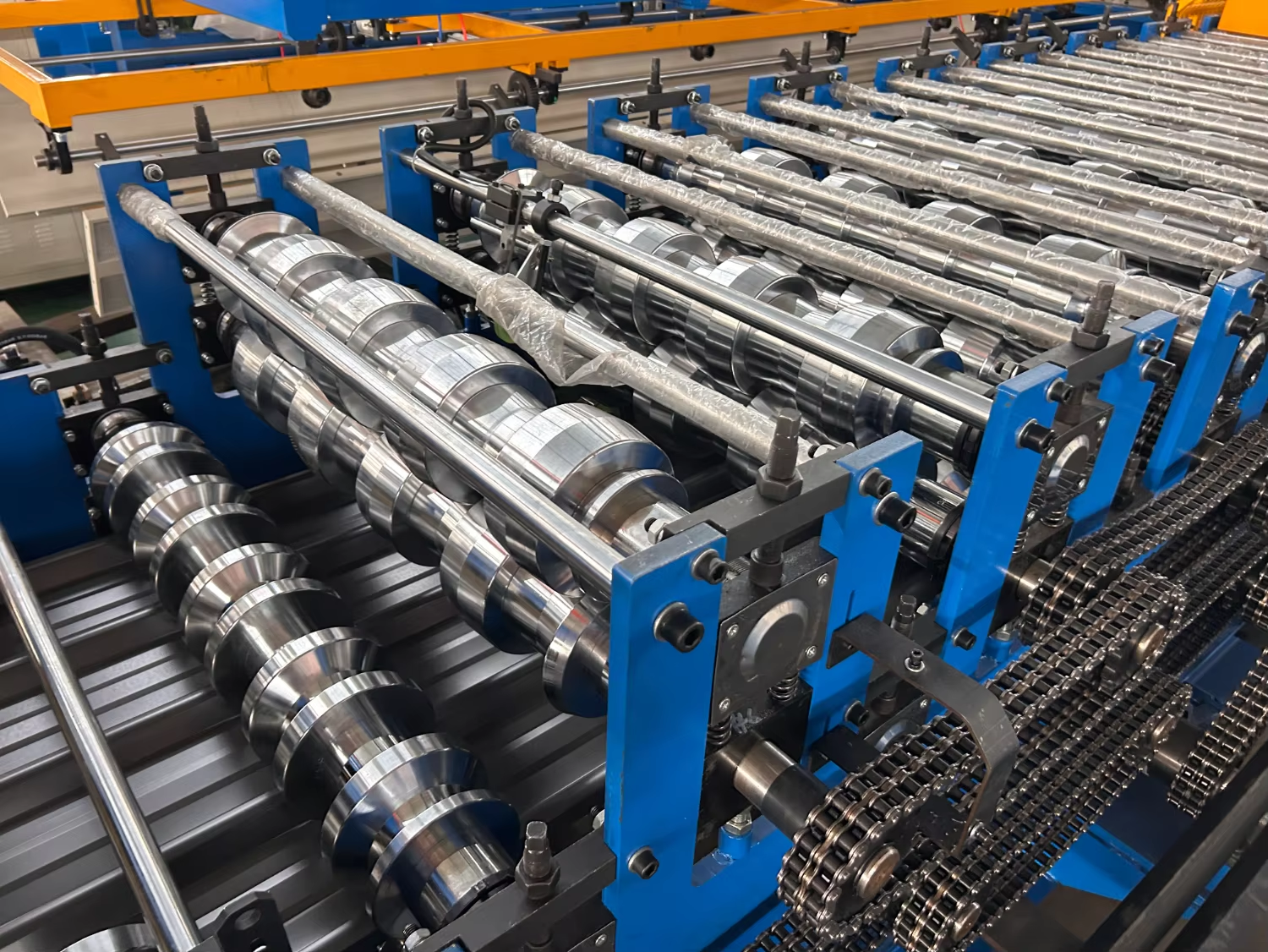

Rollers are made from 45# steel with a hard chrome plated surface, mounted on High Grade No.45 forged shafts, which carries the 0.3-0.8 mm (0.01-0.03 in) rolling thickness range.

400H Steel Main Frame

The machine is carried on a 400H steel main frame, which keeps the forming section and the shear station aligned along the full length of the line.

PLC Control and Drive

Control is through a PLC system using an imported brand controller (SIEMENS / DELTA), with the hydraulic cutter working to the set cut length automatically.

Cutting Blade and Wear Parts

The cutting blade is made from Cr12MoV, and the machine list includes motor, bearing, gear, gearbox, engine, PLC, roller and shaft as the core components.

Customization

Name plate, production capacity and voltage can be specified. The metal protect cover supports customization, and minor, drawing-based, sample-based and full customization are all offered.

Technical Specifications

Item	Specification
Type	Tile forming machine
Model	Wall cladding roofing sheet making machine
Feeding width	1250 mm (49.21 in)
Rolling thickness	0.3-0.8 mm (0.01-0.03 in)
Forming speed	20 m/min
Power	7.5 kW (10.06 hp)
Voltage	220 V, 380 V, 440 V
Roller material	45# steel, chrome plated
Shaft material	High grade No.45 forged
Cutting blade material	Cr12MoV
Main frame	400H steel
Control system	PLC (imported brand SIEMENS / DELTA)
Post-cutting system	Hydraulic 4 pillar automatic cutter
Core components	Motor, bearing, gear, gearbox, engine, PLC, roller, shaft
Metal protect cover	Support customized
Certification	CE, BV, STV, ISO
Warranty	1.5 years
Weight	12000 kg (26455.47 lb)
Outgoing inspection	Video outgoing-inspection and machinery test report provided
Place of origin	Hebei, China

Finished Panel Profile

The supplier's profile drawing for this line shows a cladding profile with a cover width of 200-300 mm and a rib height of 15-25 mm, formed with a concealed fastener joint so the fixings are hidden once the panels are lapped. Panels are shown below as they come off the line.

Applications

The line is used to produce metal siding and cladding panels for industrial and architectural buildings, and roofing sheet of the same section. Typical users are building products manufacturers and roll forming shops that run their own panel range and want cladding sheet formed from coil in house.

Packing and Supply Scope

• Supply scope: 1 set, delivered as a complete forming and cutting line.
• Selling unit: single item. Single package size 850 x 150 x 190 cm, single gross weight 12000.0 kg.
• Lead time: 50 days for 1 set, 65 days for 2 sets; larger quantities to be negotiated.
• Customization: name plate, production capacity and voltage. Minor, drawing-based, sample-based and full customization supported.

Certification and Service

• Certification listed for this machine: CE, BV, STV, ISO.
• Free spare parts and online technical support are provided.
• Customized design in 3 days.
• 1.5 years warranty, with video outgoing-inspection and a machinery test report provided before shipment.
