Automatic Glazed Tile Roll Forming Machine with Remote Monitoring Glazed roof tile making machine

Automatic Glazed Tile Roll Forming Machine with Remote Monitoring

An automatic roll forming line that produces glazed tile and profiled panel sections from coloured steel coil. The strip is progressively formed through the roller stations and closed by the press and die unit at the front of the line, at a production capacity of 20 m/min.

• Production capacity of 20 m/min.
• Forms coloured steel with a rolling thickness of 0.3 mm to 0.8 mm.
• 12 kW power supply, motor driven and automatic in operation.
• PLC control, with the control box language set to the customer's request.
• Remote monitoring listed as the key selling point of the line.
• Welded steel frame with guide columns and bearing blocks along the forming stations.

Product Overview

This is a glazed tile forming line for building material production. Coloured steel strip is drawn from the coil through a row of roller stations mounted on a welded steel frame, then closed by the press and die unit at the front end of the line, which carries the wavy tile profile in its upper and lower dies.

The machine is supplied with its electrical control cabinet as a complete forming line. It is designed to run automatically, and it is listed for floor use in building applications, so it suits producers of formed building panels who need a repeatable profile in the same coating finish as the rest of their range.

Key Features

Remote Monitoring

Remote monitoring is listed as the key selling point of this line, so the running state of the machine can be followed without standing at the control cabinet.

High Efficiency Forming

The line runs at a production capacity of 20 m/min on a 12 kW power supply, which keeps the output high for a machine of this forming length.

Stable Running Frame

Every roller station is carried in machined frame blocks with bearing blocks and guide columns on a welded steel base, so the profile stays consistent along the full length of the line.

Press and Die Unit

The front of the line carries the press unit with its upper and lower dies. The die cavity holds the wavy tile profile, so the formed section leaves the line closed and ready for use.

PLC Control

A PLC is the control component of the line, together with the motor and engine listed as core components. The control box language can be set to the customer's request.

Customization

Tile type, name plate, voltage and production capacity can be specified per order. Machine colour and overall dimensions (L*W*H) are customized, and minor, drawing-based, sample-based and full customization are available.

Technical Specifications

Item	Specification
Type	Tile forming machine
Model	Glazed roof tile making machine
Product name	Automatic glazed tile forming machine
Use	Floor
Usage	Building
Tile type	Colored
Rolling thickness	0.3 - 0.8 mm
Production capacity	20 m/min
Voltage	380 V
Power	12 kW
Core components	Motor, engine, PLC
Dimension (L*W*H)	Customized
Color	Customised
Weight	8000 kg
Warranty	2 years
After-sales service	Engineers
Outgoing inspection	Video outgoing-inspection and machinery test report provided
Place of origin	Hebei, China

Machine Structure

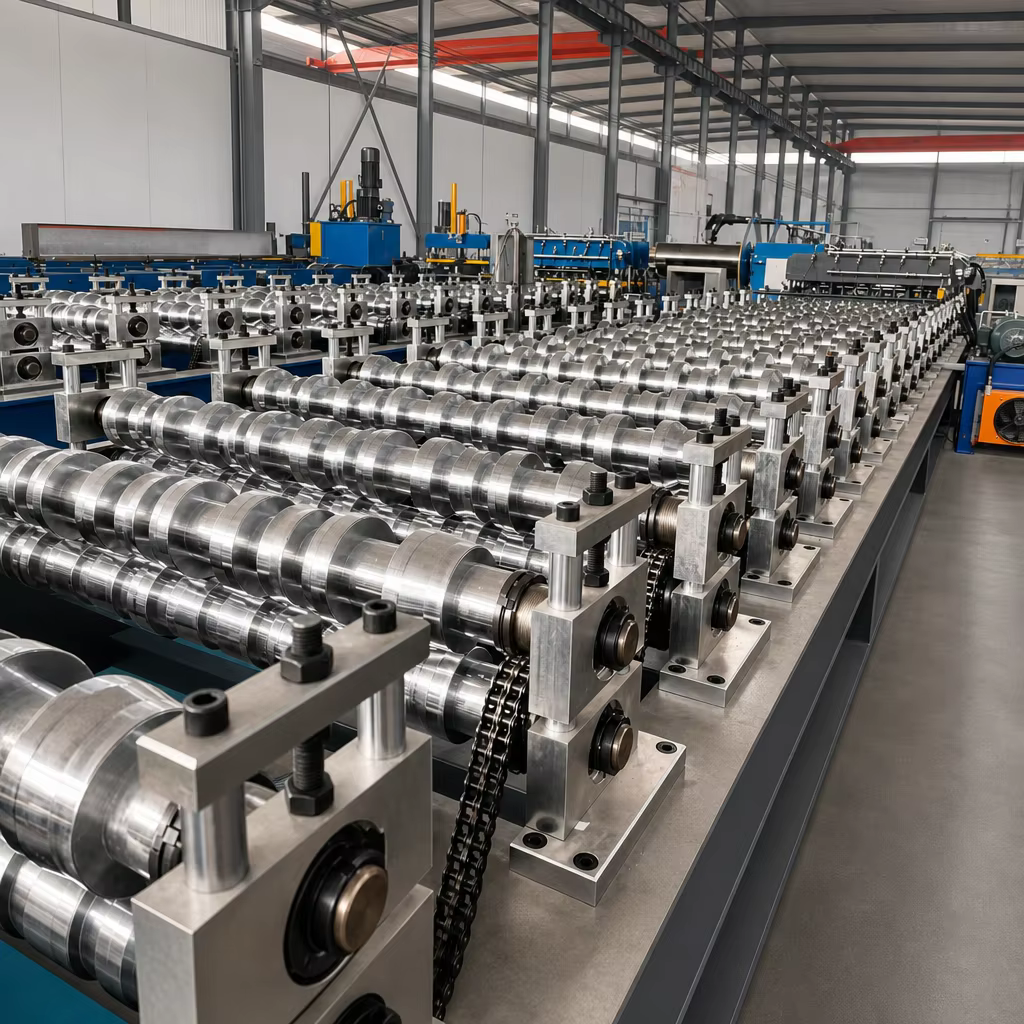

The forming stations are the core of the line. Each station carries an upper and a lower roller on shafts held in machined frame blocks, with the chain transmission running along the operator side and threaded adjusters on top of every station for setting the roller gap.

At the front of the line, the press unit holds the tile profile in its dies: a welded beam carries the upper die, a green rail ties the die set together, and chrome guide columns with bearing blocks keep the two halves aligned during the pressing stroke.

Production Line

The strip is drawn through the roller row station by station, so the profile is built up gradually before it reaches the press unit. The roller stations are arranged in a continuous line on the welded base, which is what allows the profile to leave the machine without distortion.

Applications

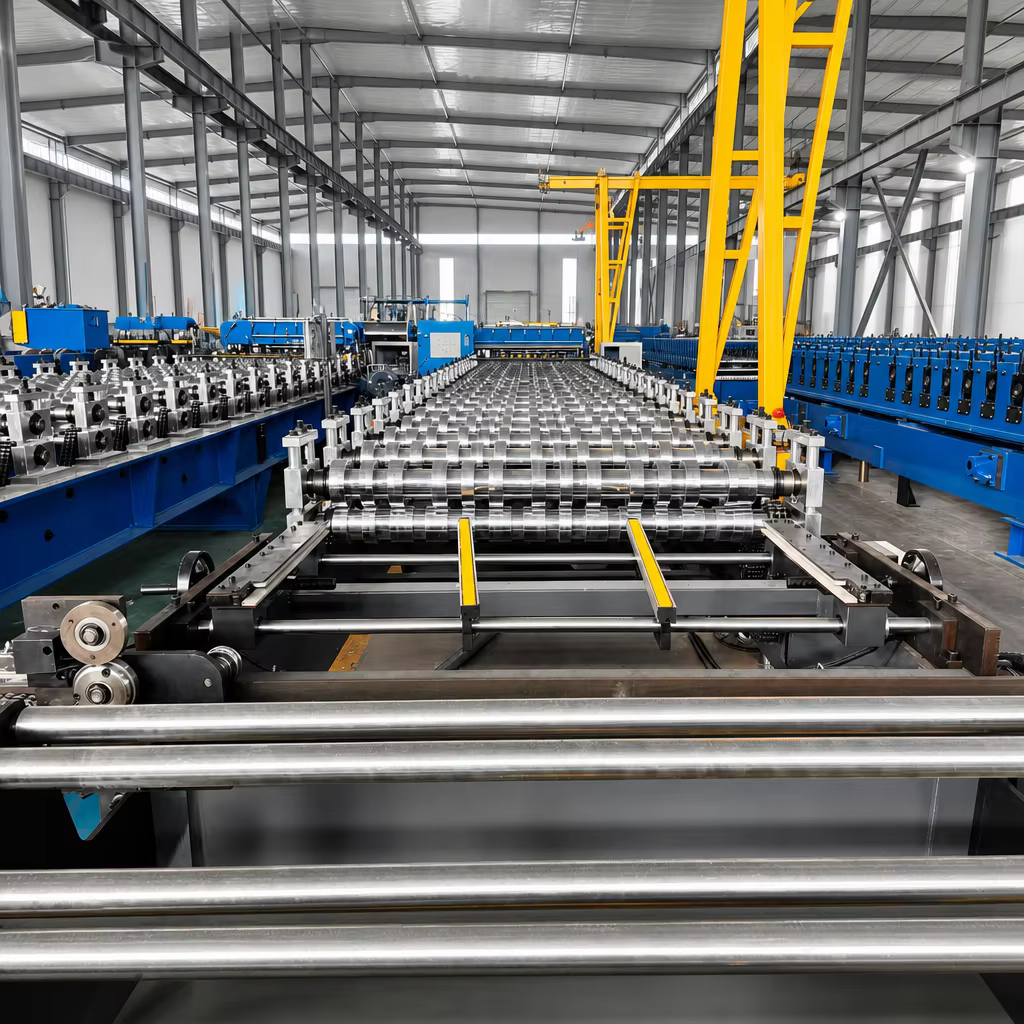

The machine is listed for floor use in building applications. It produces glazed tile and profiled panel sections from coloured steel coil, for building material producers that need a steady supply of formed panels. It is normally installed inside a roll forming workshop together with the other forming lines in the plant.

Packing and Supply Scope

• Supply scope: 1 set, including the forming line and its electrical control cabinet.
• Selling unit: single item.
• Lead time: 45 days for 1 set; larger quantities to be negotiated.
• Customization: tile type, name plate, voltage and production capacity.

FAQ

What material and thickness does this line form?

Coloured steel with a rolling thickness of 0.3 mm to 0.8 mm.

What is the production capacity and power?

20 m/min on a 12 kW power supply.

Which voltage does the machine use?

380 V. Voltage is one of the customization options.

What are the core components of the line?

Motor, engine and PLC, with the control box language set to the customer's request.

What warranty and service are provided?

2 years warranty, with engineer service. Video outgoing-inspection and a machinery test report are provided before shipment.

What can be customized?

Tile type, name plate, voltage and production capacity, plus machine colour and overall dimensions. Minor, drawing-based, sample-based and full customization are supported.
