Automatic Double-Line Hat Section and Wall Angle Roll Forming Machine Up to 45 m/min

A double-line hat section and wall angle roll forming machine combines two independent forming lines into one integrated production system. It allows manufacturers to produce different light steel framing profiles from coil material while saving valuable factory space.

This configuration is particularly suitable for manufacturers producing drywall framing and ceiling system components. Instead of installing two separate roll forming machines, the dual-line design brings both production lines together in one compact machine structure.

Each line can operate independently according to its own production requirements. With a maximum forming speed of up to 45 m/min, the system provides an efficient solution for continuous profile production.

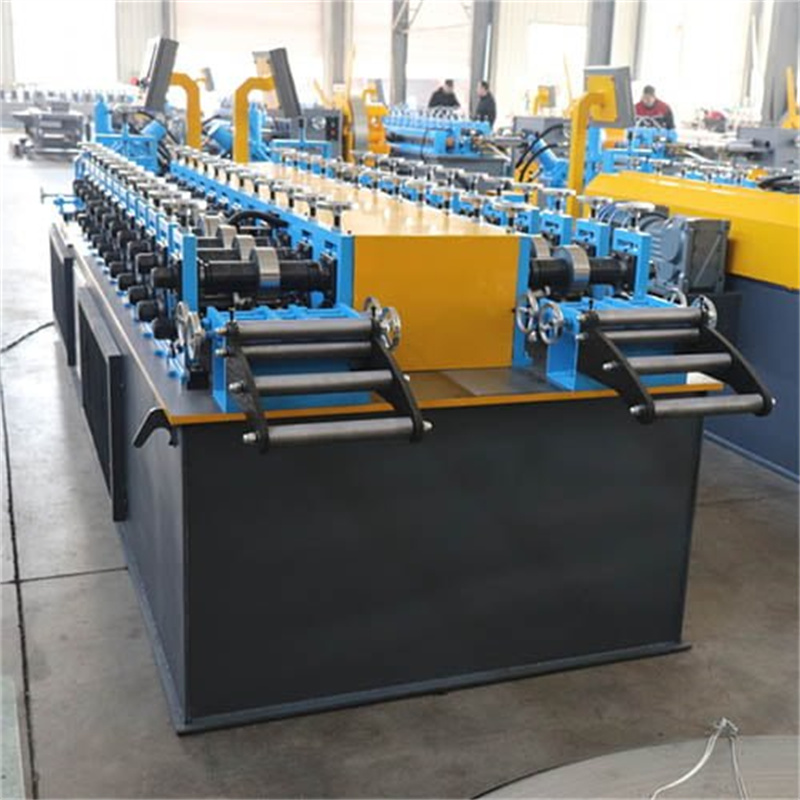

Two Independent Forming Lines in One Machine

The main advantage of this system lies in its double-line configuration. The machine integrates two profile-forming sections into one production platform, allowing users to manufacture different profiles without installing two complete machines.

Typical configurations include hat sections and wall angles, while the machine can also be customized according to the customer's profile drawings.

Each forming line uses its own drive and control components, allowing the two lines to maintain stable and independent operation. This configuration also simplifies factory layout and can reduce the floor space required for multiple machines.

For manufacturers handling several light gauge steel profiles, the dual-line design provides a practical way to increase production capacity without expanding the entire production area.

High-Speed Roll Forming with Servo Tracking Cutting

The machine uses a continuous roll forming process to transform galvanized steel or other suitable metal coils into accurately shaped profiles.

A high-precision encoder monitors the feeding length during production. The control system then coordinates feeding, forming, and cutting operations to maintain consistent profile dimensions.

The servo tracking hydraulic cutting system can cut profiles while the material continues moving through the line. This eliminates unnecessary stops during cutting and helps maintain production efficiency.

The cutting accuracy can reach approximately ±2 mm, depending on material characteristics, profile design, and machine configuration.

With a maximum production speed of 45 m/min, the machine is suitable for medium- and high-volume production environments.

Heavy-Duty Roll Forming Structure

The machine uses a rigid welded frame designed for continuous industrial operation. Its forming rollers are manufactured from GCr12MoV steel, providing good hardness and wear resistance during long-term production.

The forming shafts use tempered 40Cr steel with a diameter of 60 mm. Together with the gear transmission system, these components provide stable power transmission throughout the forming process.

A lubrication system can also help reduce zinc accumulation when processing galvanized steel coils. This feature is particularly useful for manufacturers running the machine for extended production periods.

The machine structure can be further customized according to the required profile dimensions, material thickness, and production speed.

Technical Specifications

The final configuration can be adjusted according to the customer's profile drawings and production requirements.

Applications for Drywall and Light Steel Framing

Hat sections and wall angle profiles are commonly used in modern building systems. The finished profiles can serve different functions in interior and architectural construction.

Typical applications include:

• Drywall framing systems
• Suspended ceiling structures
• Wall and ceiling support systems
• Light steel framing
• Roof substructures
• Interior partition systems
• Architectural facades
• Canopies and related structures

Hat-shaped profiles can provide additional support for ceiling and wall assemblies, while wall angle profiles help create stable perimeter connections between framing components.

Why Choose a Double-Line Configuration?

For factories producing multiple profiles, installing two completely separate machines can require additional floor space, electrical connections, operators, and auxiliary equipment.

A double-line system offers a more compact alternative.

The two forming lines are integrated into the same machine structure while maintaining independent operation. This arrangement can help manufacturers:

Save Factory Space
Two production lines occupy less space than two fully separate machine systems.

Improve Labor Efficiency
One operator can supervise the integrated equipment under normal production conditions.

Increase Production Flexibility
Different profiles can be assigned to different forming lines according to production requirements.

Maintain Continuous Production
Servo tracking cutting reduces unnecessary line stops during the cutting process.

Simplify Machine Management
The integrated structure makes it easier to organize feeding, forming, cutting, and control systems within one production area.

Optional Punching and Customization

Different construction projects require different profile dimensions and hole patterns. Therefore, the machine can be customized beyond the standard forming configuration.

Optional functions may include:

• Automatic punching
• Hole punching according to drawings
• Logo or mark embossing
• Customized profile dimensions
• Customized roller stations
• Different material thickness ranges
• Customized electrical standards
• Customized feeding and cutting systems

Before manufacturing, customers should provide the profile drawing, material type, material thickness, finished width, punching pattern, and required production speed. Our engineers can then evaluate the forming process and determine whether the requested profiles are suitable for a double-line configuration.

Not every profile can be produced through a dual-line arrangement. Wider profiles, special cross-sections, or particular material combinations may require a different machine layout. Early technical evaluation helps ensure the final machine configuration matches the actual production requirements.

A Flexible Solution for Profile Manufacturers

The double-line hat section and wall angle roll forming machine provides a practical combination of high-speed forming, compact installation, independent production lines, and flexible customization.

For manufacturers working with drywall, ceiling, and light steel framing profiles, it offers an efficient way to expand production capability while keeping the factory layout compact.

If you have a specific hat section, wall angle, C stud, U channel, or other light gauge steel profile, send us your profile drawing and material specifications. We can evaluate the forming design and recommend a suitable double-line roll forming machine configuration.
