BOLT Solutions & Industrial Equipment
Structural bolts, heavy hex fasteners, and foundation anchor bolt assemblies are foundational hardware components engineered for pre-engineered steel buildings, industrial machinery mounting, and civil infrastructure connections. Manufactured from high-strength alloy and carbon steels in strength grades 8.8, 10.9, ASTM A325, and ASTM A490, these fasteners feature certified tensile yield strengths, calibrated preloading capabilities, and heavy hot-dip galvanized corrosion protection, ensuring structural safety across global construction and equipment installations.
Filters
Factory Customized Zinc M14 Grade Wholesale 4.8 Hexagonal Plated Head M16 Din 6291 Flange Bolt Industry- Hex Flange Bolts+Custom+M6
$0.10
MOQ: 100
M8-1.25*16 Green Zinc DIN6921 JIS B1189 Grade 8.8 Flange Bolt- Hex Flange Bolts+20mm+M6
$0.10
MOQ: 100
About BOLT Solutions & Industrial Equipment
Structural bolts serve as the primary mechanical joint connectors in modern steel construction, pre-engineered buildings, and heavy equipment installations. In structural engineering, bolts are designed to transfer severe shear forces, tensile loads, and dynamic bending moments between steel columns, rafters, purlin cleats, and concrete foundations. High-strength structural bolts operate under two distinct connection mechanisms: bearing-type connections and slip-critical (friction-grip) joints, where bolts are tightened to specific proof loads to clamp steel flanges together with immense frictional resistance.
Key mechanical specifications encompass heavy hex head geometry (providing larger bearing surfaces under the head), precision thread rolling with rounded roots to eliminate fatigue notch sensitivity, and hardened structural washers conforming to ASTM F436 or DIN 6916. For foundation installations, cast-in-place anchor bolts (such as ASTM F1554 Grade 36, 55, and 105) provide reliable baseplate anchoring for vibrating roll forming machinery, hydraulic presses, and structural steel building columns.
To safeguard against atmospheric corrosion across industrial and marine environments, structural bolts are treated with hot-dip galvanizing (ASTM A153 / EN ISO 10684), zinc flake coatings (Geomet / Dacromet), or mechanical zinc plating. Each production batch is backed by 3.1 chemical analysis, tensile testing, Charpy V-notch impact validation, and torque-tension k-factor calibration, ensuring absolute compliance with AISC, Eurocode 3, and ISO structural standards.
Applications

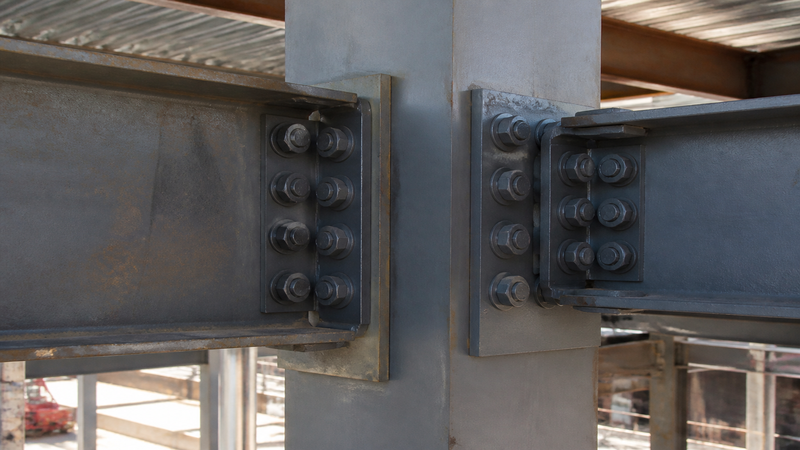

Heavy Structural Steel Frame Beam-to-Column Splices
High-strength structural bolt assemblies (Grade 8.8 / 10.9, ASTM A325 / A490) provide preloaded slip-critical and bearing connections for primary steel frames. Applications: Multi-story commercial steel structures, heavy industrial manufacturing plants, airport terminals, and bridge frameworks. Features: Certified proof load strength, calibrated torque-tension performance, heavy hex geometry, and hot-dip galvanized weather protection.
C & Z Purlin to Rafter Flange Cleat Bolting
Standardized Grade 4.8 / 8.8 hex bolts with hardened flat washers fasten cold-formed secondary C and Z purlins directly onto main roof rafters and wall girts. Applications: Pre-engineered metal building roof framing, side wall girt systems, and solar mounting purlin grids. Features: Precision shank length prevents thread shearing inside cleat plates, uniform zinc plating, and rapid power-impact tightening.

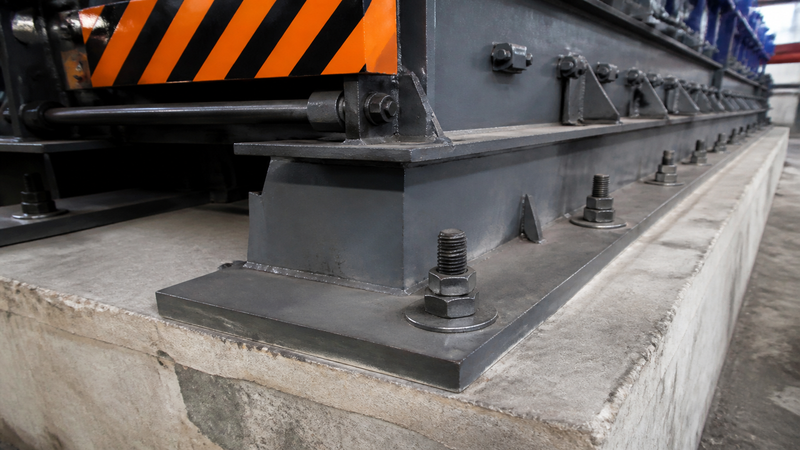

Roll Forming Machine Foundation Anchor Embedment
High-tensile heavy foundation anchor bolts (L-type, J-type, and welded plate anchors) cast into concrete foundations to lock heavy machinery rigidly. Applications: Roll forming line bedplates, heavy decoilers, high-speed flying shears, and industrial press equipment installations. Features: Deep mechanical embedment depth, vibration-resistant double-nut locking, high shear resistance against operating machine vibration.
Highway Guardrail W-Beam Splice & Post Fastener Assemblies
Specialized round-head oval-neck splice bolts and hex post bolts engineered to connect corrugated guardrail panels and absorb extreme crash impact forces. Applications: Highway median crash barriers, roadside W-beam guardrails, bridge approach railings, and industrial perimeter crash protection. Features: Flush mushroom head prevents vehicle snagging during collision, Class 8.8 high-tensile steel, and heavy hot-dip galvanizing to ASTM A153.
Industrial Portal Frame Haunch & Moment Resisting Joints
Preloaded high-strength friction-grip (HSFG) structural bolts join rafter haunches and column bases under high bending moments and shear loads. Applications: Wide-span portal frame warehouses, logistics aircraft hangars, sports arenas, and heavy crane workshop buildings. Features: Strict torque-coefficient calibration (k-factor 0.11–0.15), direct tension indicator (DTI) washer compatibility, and zero joint slippage.
Technical Overview
| Parameter | Information |
|---|---|
| Structural Bolt Standards | ASTM A325, ASTM A490, ISO 4014 / 4017, DIN 931 / 933, EN 14399 (HSFG) |
| Strength Grades | Grade 4.8, 8.8, 10.9 (Metric) / ASTM A325, A490, Grade 5, Grade 8 (Imperial) |
| Anchor Bolt Grades | ASTM F1554 Grade 36, 55, 105; L-type, J-type, Welded Plate Anchors |
| Diameter Range | M12 to M36 (Metric) / 1/2" to 1-1/2" (Imperial) |
| Length Range | 30 mm to 500 mm (Bolts) / 200 mm to 2000 mm (Foundation Anchors) |
| Base Raw Materials | Medium Carbon Steel (1045), Alloy Steel (40Cr, 42CrMo, 35CrMo) |
| Anti-Corrosion Finish | Hot-Dip Galvanized (ASTM A153), Zinc Flake (Dacromet/Geomet), Black Oxide, Electro-Zinc |
| Nut & Washer Matching | Heavy Hex Nuts (ASTM A563 DH, ISO 4032) + Hardened Washers (ASTM F436, DIN 6916) |
| Special Configurations | Tension Control (TC) Bolts, Guardrail Splice Bolts (oval neck), Shear Studs |
| Inspection & Testing | EN 10204 3.1 MTC, Proof Load, Charpy Impact (-20°C), Wedge Tensile, K-Factor |
Related Solutions
Pre-Engineered Building Component Line
Integrated solution for PEB secondary framing: C/Z purlins, girts, eave struts,…
Roof & Wall Purlin System Solution
Secondary steel for roofs and walls is a section family first: dedicated C, dedi…
C-Purlin Production Line for Roof Systems
Complete cold roll forming solution for C-section purlins used in metal building…
Z-Purlin Roll Forming Solution
Dedicated Z-purlin line for overlapping roof purlin applications. Lap joint desi…
Trapezoidal Roofing Line Solution (TR4)
Coil-to-panel TR4 roof line for metal buildings. Host + 5 T decoiler; curving, r…
Custom Profile Roll Forming for OEM
Flexible roll forming line for custom cross-sections. Suitable for OEMs who need…
Related Information
Purlin Roll Forming Machine: Complete Buyer's Guide (2026)
C-purlin vs Z-purlin machines, servo vs manual changeover, production speed, pri…
Read More
C/Z Purlin Quick Changeover Roll Forming: How Fast Can It Switch?
C-to-Z purlin changeover in 15 minutes or 4 hours? A practical guide to quick-ch…
Read More
High-Strength Steel (HSLA) in Roll Forming
High-strength low-alloy steel lets you build lighter structures—but it fights ba…
Read More
Advanced High-Strength Steel (AHSS) in Roll Forming
DP and TRIP steels at 800 to 1500 MPa are reshaping automotive structures and pu…
Read More
What Is a CZ Purlin Roll Forming Machine? Specs, Changeover & RFQ Guide
Define CZ purlin roll forming machines: dual C/Z profile capability, changeover…
Read More
How Does a CZ Purlin Roll Forming Machine Work?
Learn how CZ purlin roll forming machines work: from decoiling to precision cutt…
Read More
FAQ
What are the common strength grades for structural steel bolts?
Standard grades include ISO Grade 8.8 (tensile strength 800 MPa, yield 640 MPa) and Grade 10.9 (tensile 1040 MPa, yield 940 MPa), corresponding to ASTM A325 (Grade A) and ASTM A490 structural standards.
What is the difference between a bearing connection and a slip-critical connection?
In bearing connections, the bolt shank resists load by direct shear against the hole wall. In slip-critical joints, bolts are preloaded to high tension so friction between clamped steel surfaces resists shear, preventing joint displacement.
What coating methods are standard for structural bolts?
Hot-dip galvanizing (HDG) per ASTM A153 / ISO 10684 is standard for outdoor exposure. For Grade 10.9/A490 bolts, zinc-flake non-electrolytic coatings (Geomet/Dacromet) prevent hydrogen embrittlement.
How are foundation anchor bolts classified and specified?
Foundation anchor bolts follow ASTM F1554 (Grades 36, 55, and 105) in straight threaded rods with end plates, L-bends, or J-hooks to provide mechanical pull-out resistance inside reinforced concrete.
Why are structural washers required under bolt heads and nuts?
Hardened structural washers (ASTM F436 / DIN 6916) distribute high clamping forces evenly across the oversized holes, prevent steel galling during torquing, and maintain consistent pre-load tension.
What tightening methods ensure proper bolt tensioning?
Acceptable methods include calibrated torque wrench method, turn-of-nut method, tension control (TC) twist-off bolts with splined tips, and Direct Tension Indicator (DTI) squirt washers.
What quality certifications accompany structural bolt shipments?
Shipments include EN 10204 3.1 Inspection Certificates detailing chemical heat analysis, tensile testing, yield strength, wedge tensile test, and rotational capacity test results.
