Water Downspout Downpipe Roll Forming Machine Colored Steel Color ZT-300+27.5kw

Name: Water Downspout Downpipe Roll Forming Machine Colored Steel Color ZT-300+27.5kw
Brand: ZTRFM
SKU: ZT85204838
Availability: InStock

$25,000.00/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$25,000.00

Quantity:

≥1Set

Order CodeZT85204838

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZT-300

Power(W):

27.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
decking machine
Tile Type
Colored Steel
Use
gutter
Voltage
380V
Rolling Thickness
0.45-0.55mm
Feeding Width
1000mm

Water Downspout Downpipe Roll Forming Machine Colored Steel Tile Color Steel Sheet Canaletas Bajantes Maquina

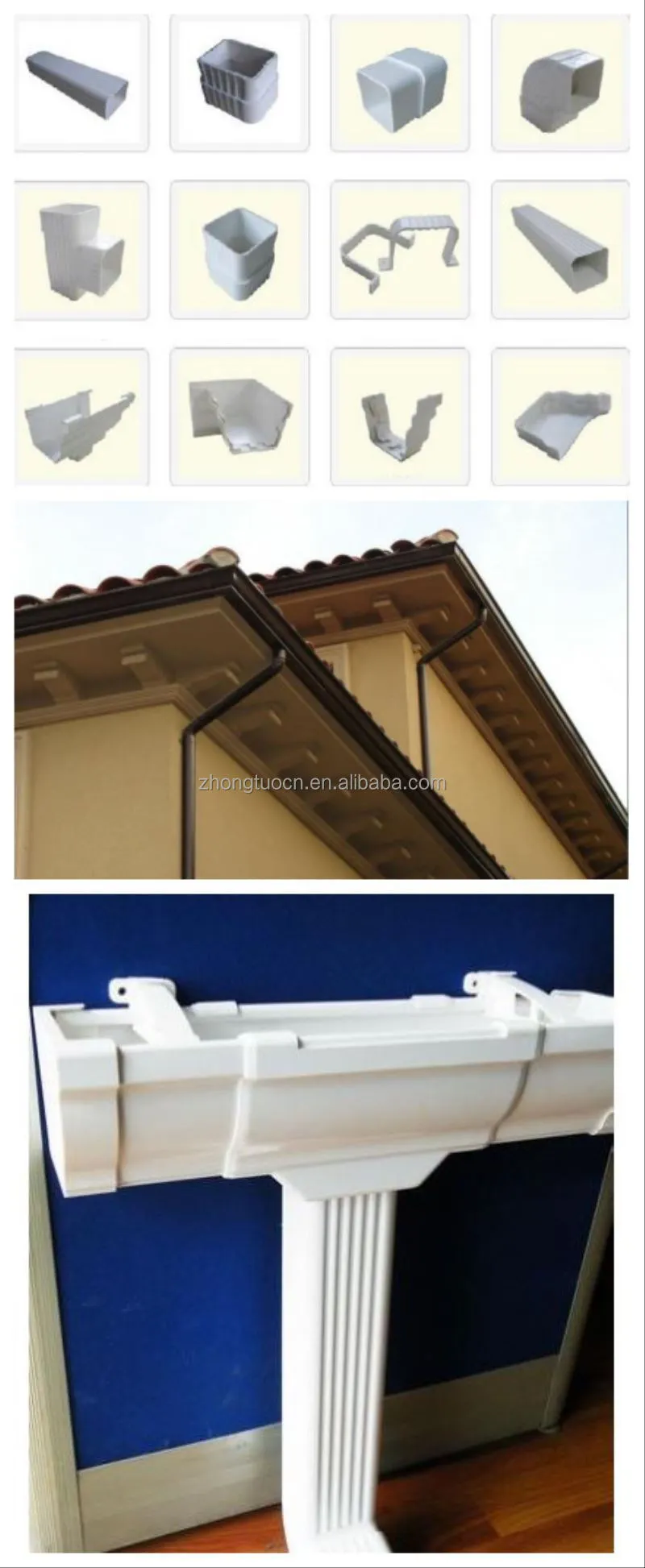

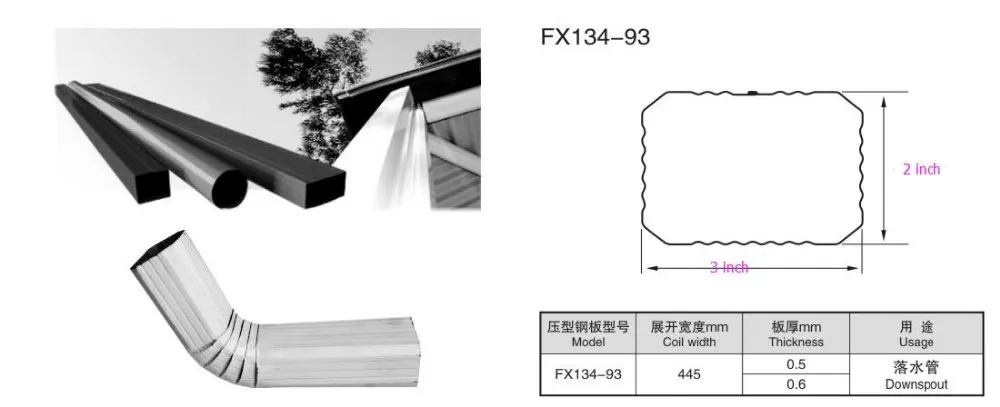

TILE TYPE FOR YOUR REFERENCE

DESIGN IDEA

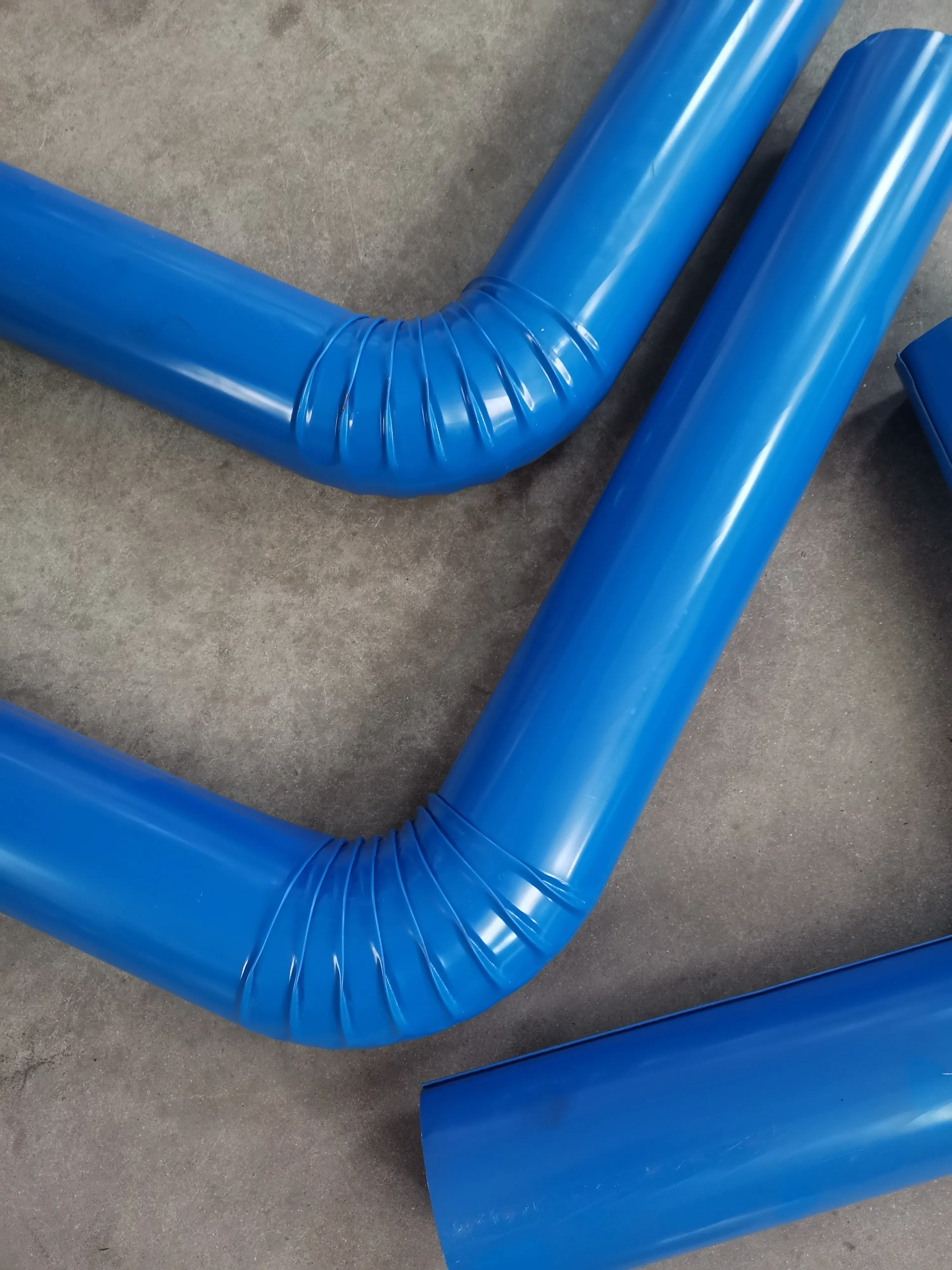

Downspout roll forming machine, also known as downpipe roll forming machine, downspout elbow machine, roof leader, downcomer or gutter downpipe machine.

Automatic control PPGI steel downspout making machine, downspout machine and bending machine are for making the downspout pipe for rain water collection and guiding.

PRODUCT PARAMETERS

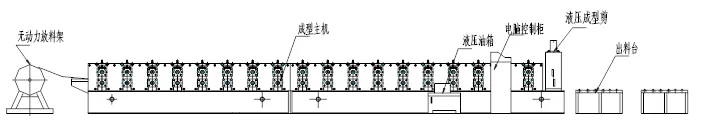

Working Flow

1. Formed material	PPGI,GI,AI,GL	Thickness:0.7-0.8mm Width: As per profile drawing
2. Decoiler	Hydraulic automatic decoiler	Manual decoiler (will give you as free)
3. Main body	Roller station	21 rows(As your requirement)
	Diameter of shafts	60mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	350 H steel
	Drive	Chain transmission
	Dimension(LWH)	8.51.651.5m(customize)
	Weight	4.5T
4. Cutter	Aotomatic	Cr12mov material, no scratches, no deformation
5. Power	Motor Power	5.5KW
5. Power	Hydraulic system power	5.5KW
6. Voltage	380V 50Hz 3Phase	As your requirement
7. Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
8. Forming speed	8-10m/min	The speed depends on the shape of the tile and the thickness of the material.

Technology Is The Primary Productive Force

5 ton Manual Decoiler

1. capacity: 5t

2. coil diamater: 450-550mm

3. coil outer diameter: 1500mm

4. coil width: 1250mm (as requst)

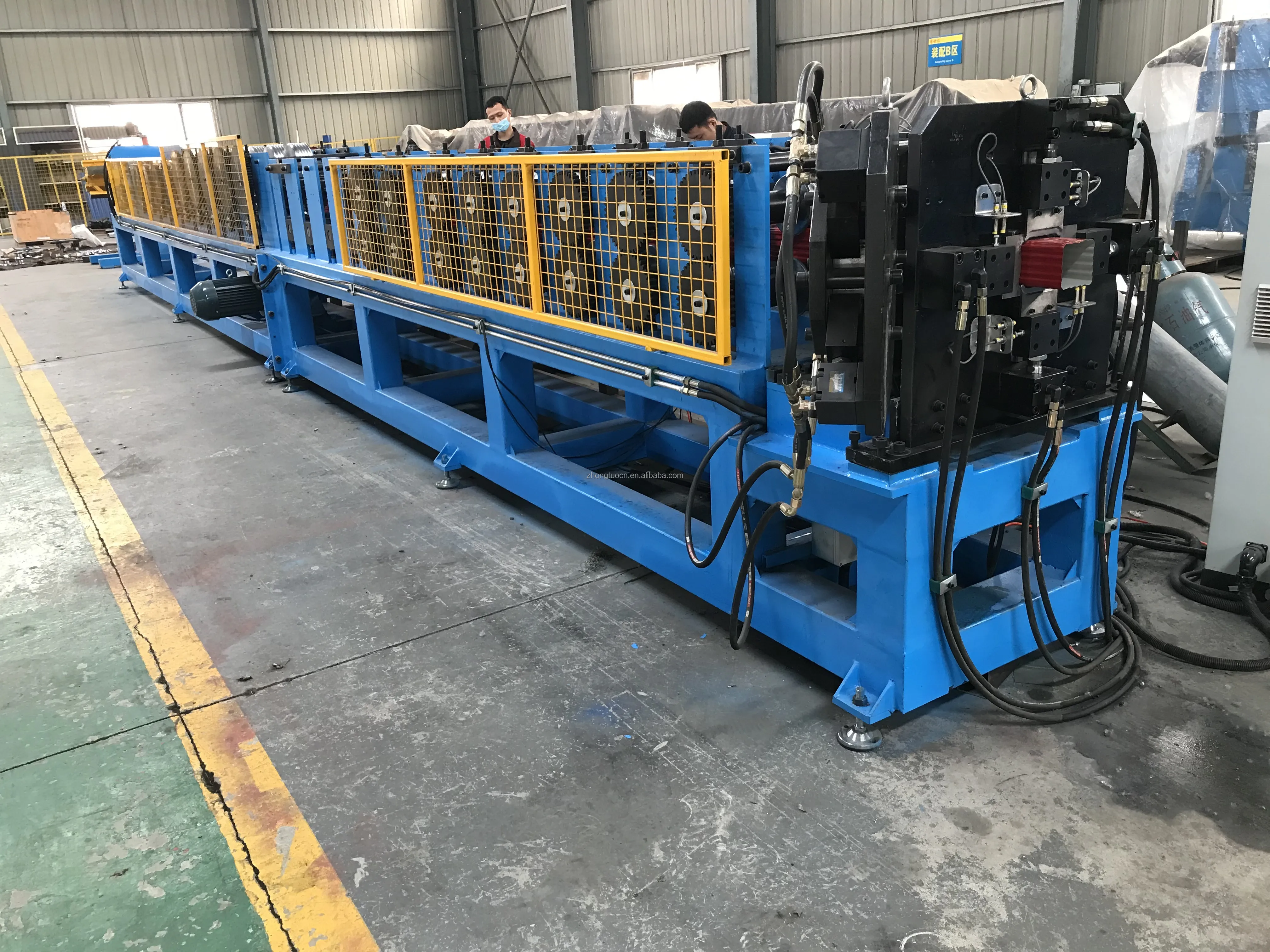

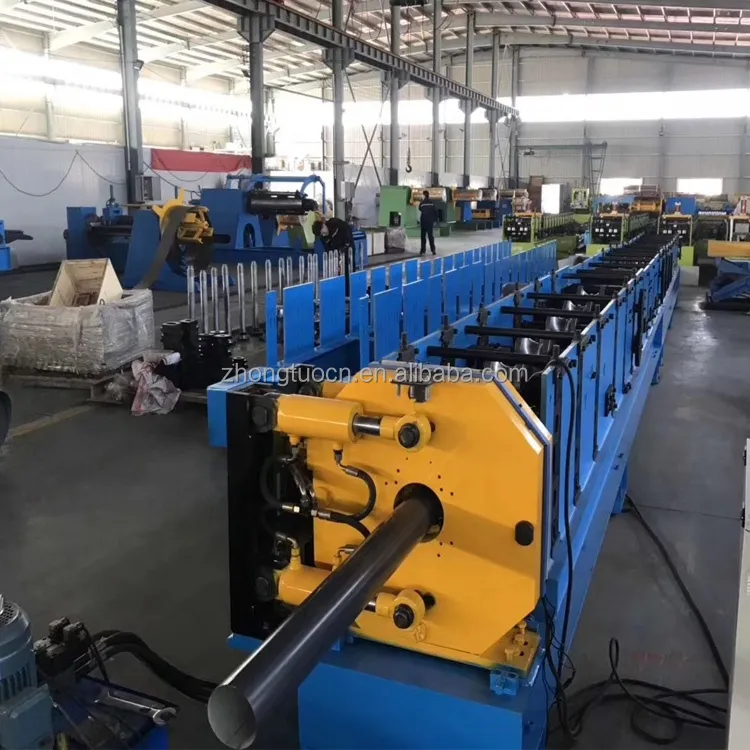

Main roll former

Stainless rollers as the feeder, will protect the material from scratching the surface

Hydraulic Cutting System

1.Surface with chromed treatment
2.Material:45# steel

Cutter

Strong cutting blade

Receiving table

1.Manual or hydraulic as optional
2.Length:3-12m as request

PLC Control System

1. Control system: PLC 2. PLC brand: Delta from Taiwan 3. Frequency converter brand: Delta from Taiwan 4. Encoder: Omron 5. Function: Automatic control the length and quantity

Hydraulic Station

1. Hydraulic station motor: 5.5KW

2. Hydraulic oil: 46# hydraulic oil

3. Main components: include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism value
