Model | FU-1000 | FU-2000 | FU-3000 | ||||
Materila thickness | mm | 1 | 1.2 | 1.2 | |||
Material width | mm | 120 | 150 | 150 | |||
Load weight | Kg | 1000 | 1500 | 3000 | |||
Load height | mm | 600 | 600 | 600 | |||
Coil outer diameter | mm | 800 | 1000 | 1100 | |||
Feeding speed | m/min | 0-24 | 0-24 | 0-24 | |||
Motor | HP | 1/2 | 1 | 3 | |||
Electrical power | 3 Phase, AC380V±10%,50HZ ±2% (It can be changed according to your requirement) | ||||||
Color | blue and white,can also customized according to customer'd demand | ||||||
Optional Configuration | Can choose frequency inverter to adjust speed | ||||||

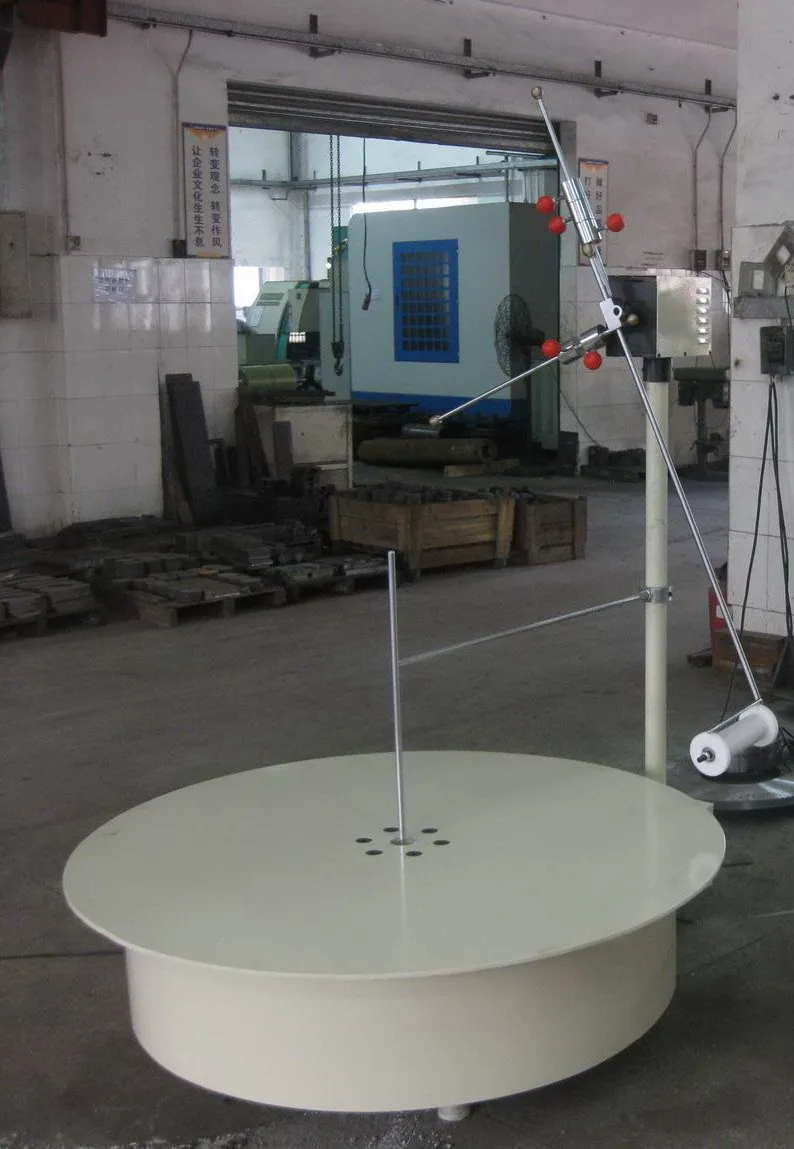

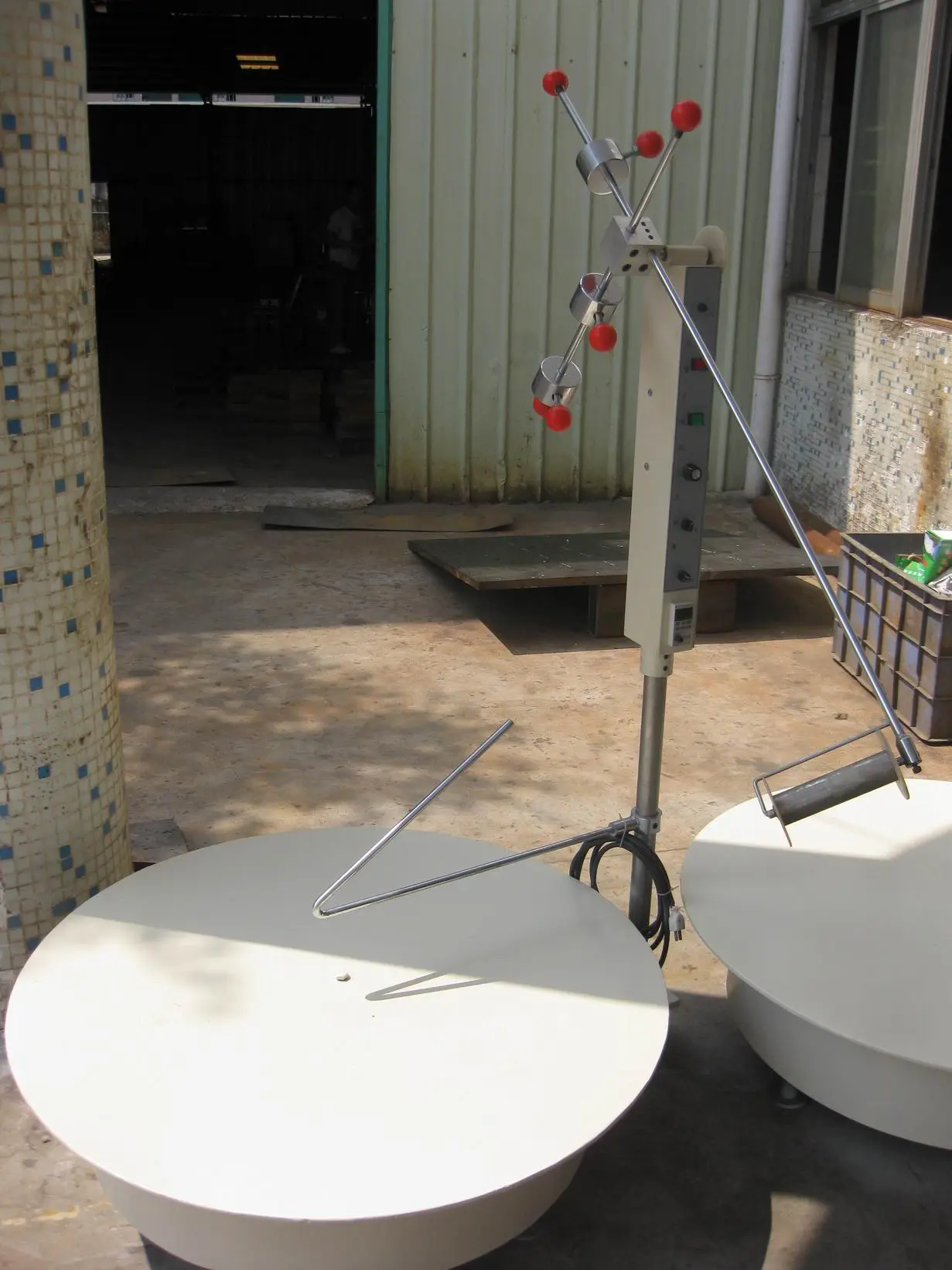

1) Adopt horizontal traverse plate feeding styoe, with as big as 3 tons of loading capacity, material can be overiaed to reduce the feeding and save the changing time, adopt two-level speed,with the individual adjusting to catch main machine working speed,feeding speed can reach 0-30 meters per minute.
2) With suitable structure,low gravity center and suitable for material loading.
3) Two level speed automatic adjusting,adopt tension switch equipment.
Name: electric cabinet
Brand: Lihao machine
Original: China

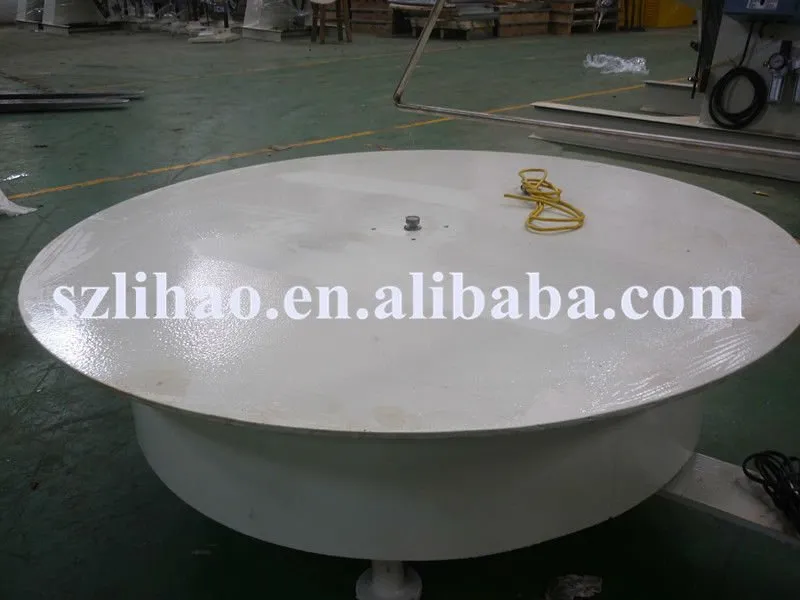

Name: loading plate
Brand: Lihao
Original: China
The coil is loading on it,ready for uncoiling work.
