Metal Colored Steel Trapezoidal Roof Sheet Roll Forming Machine 20 m/min+ZTRFM-T01+7.5kw

Cangzhou Zhongtuo International Trade Co., Ltd

Metal Colored Steel Trapezoidal Roof Sheet Roll Forming Machine 20 m/min+ZTRFM-T01+7.5kw

Name: Metal Colored Steel Trapezoidal Roof Sheet Roll Forming Machine 20 m/min+ZTRFM-T01+7.5kw
Brand: ZTRFM
SKU: ZT51544016
Availability: InStock

$15,000.00/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$15,000.00

Quantity:

≥1Set

Order CodeZT51544016

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

20 m/min

Model Number:

ZTRFM-T01

Power(W):

7.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
Wall
Voltage
220V-3P-50HZ
Rolling Thickness
0.3-0.8 mm
Feeding Width
Other

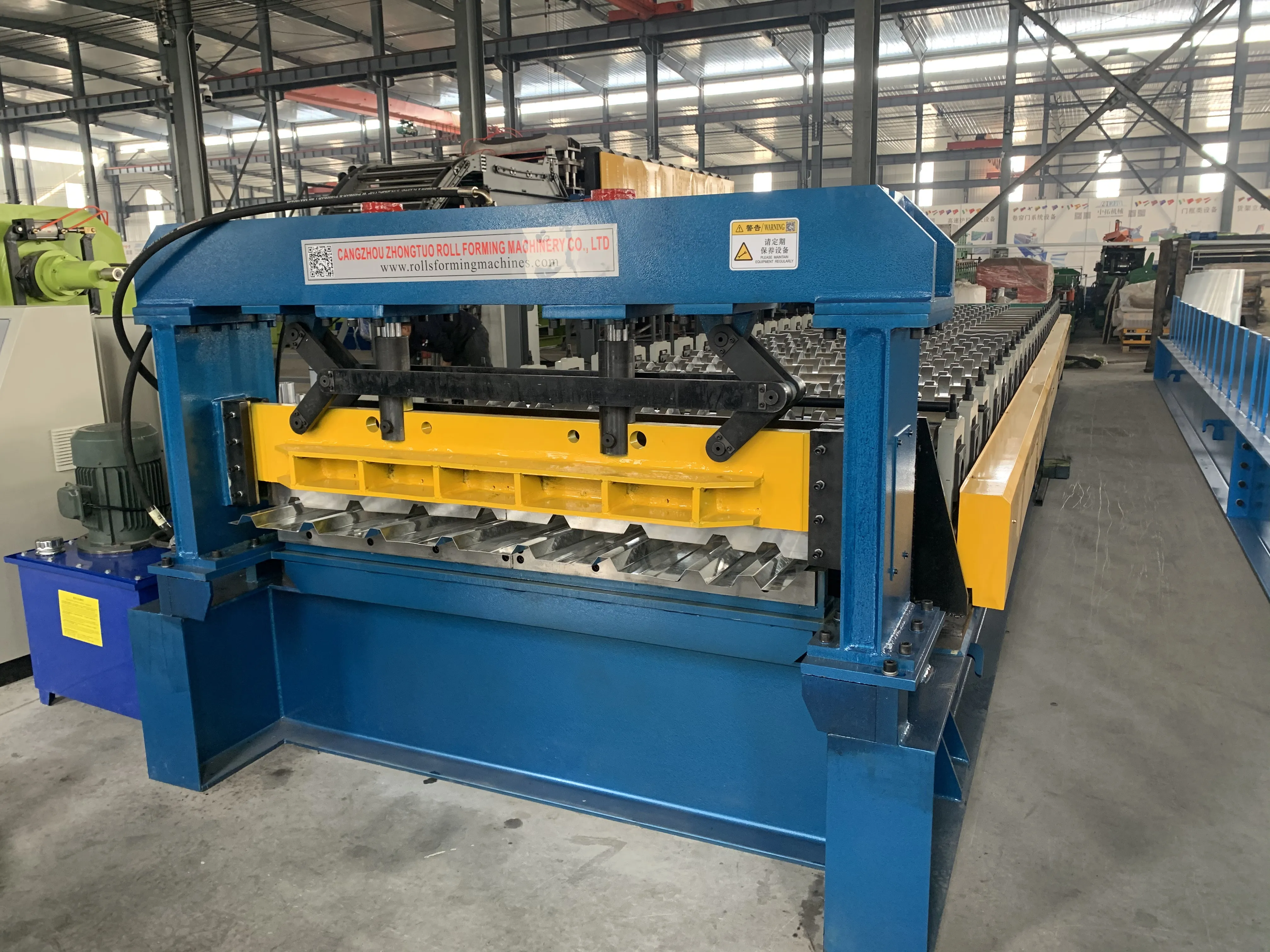

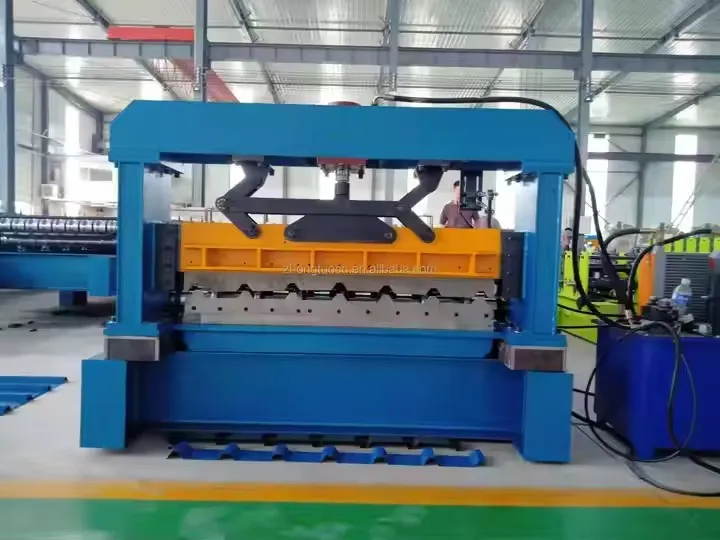

Metal Colored Steel Trapezoidal Roof Sheet Roll Forming Machine Ibr Roofing Sheet Making Machine

Design Idea：

Fast Speed: 20 m /min forming speed ,very fast ,more efficiency.

Stable Forming:the roller stand is vertical cast steel stand, chains driving,very strong ,the forming very stable and final product very accurate.

Here introduce some feature about our machine

The cutting device design use connecting rod type. The cutter no easy broken.

Machine basic frame add diagonal bracing in it to keep machine stable running.

Use double chains to drive the machine

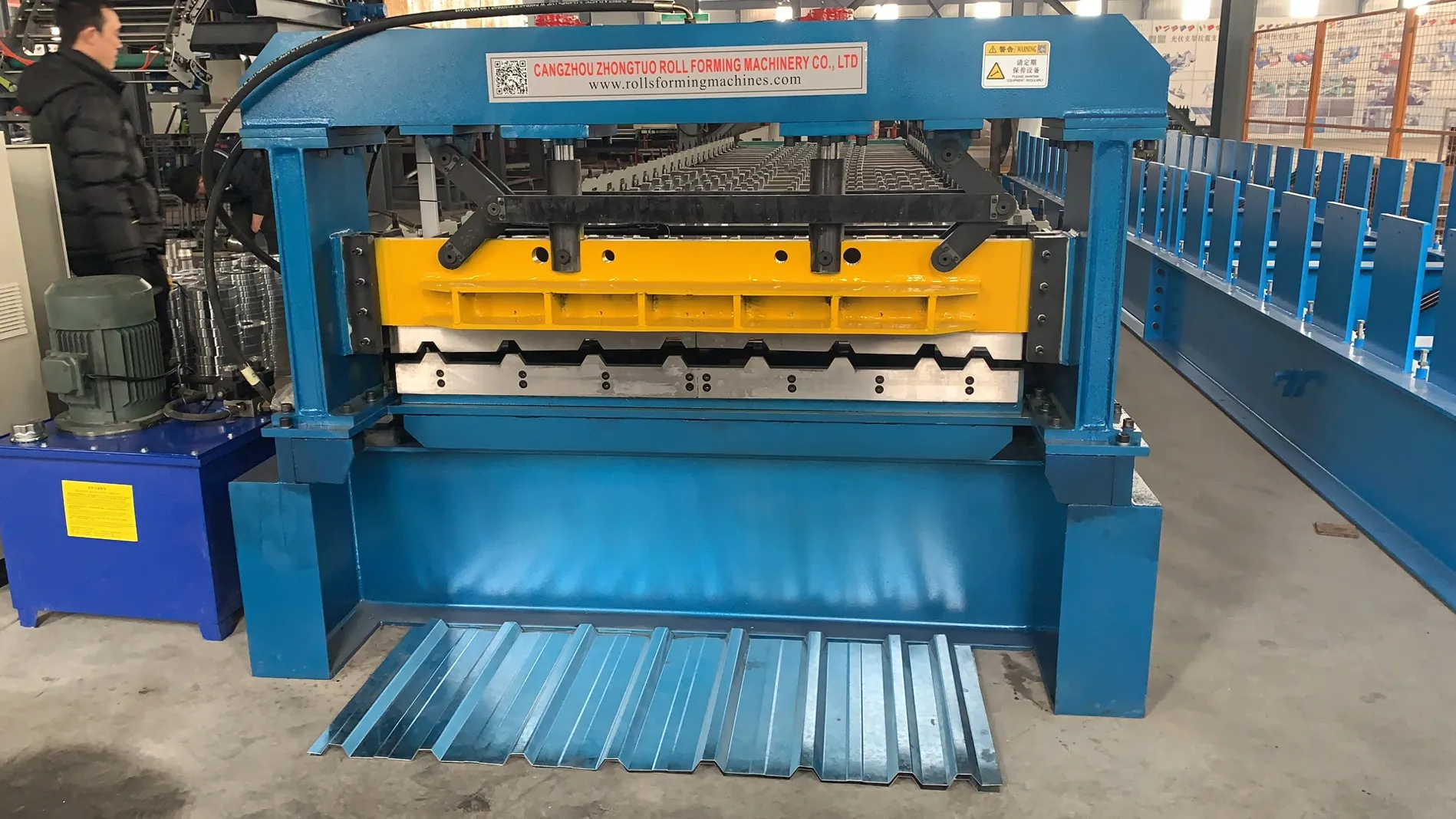

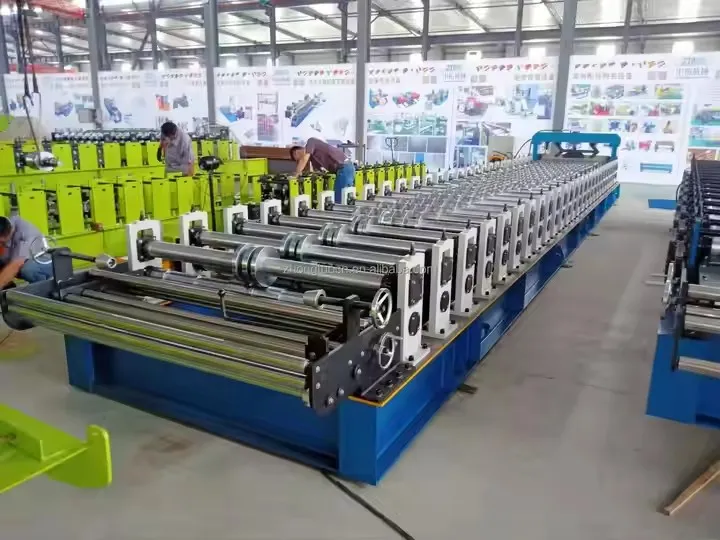

Finished roof sheet for your reference

Roofing sheet has many different shapes,usually different countries have its own popular design ,we can customize the machine as customers’ demand.

Processing Flow

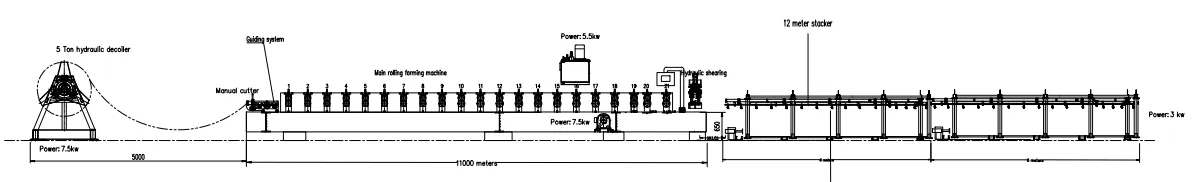

Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving Table

Metal Colored Steel Trapezoidal Roof Sheet Roll Forming Machine Ibr Roofing Sheet Making Machine
Raw Material	PPGI,PPGL
Raw Material	Raw material	Material Thickness: 0.3-0.8 mm
Machine Frame	350mm H beam structure
Material Of Rollers	High grade 45# forged steel,Chromed treatment
Roller Stand	Vertical cast steel structure
Forming Stations	22 rows
Diameter Of Shafts	Φ80mm Solid
Material Of Shafts	High Grade 45#,With Heat Treatment
Forming Speed	25 M/Min
Voltage	380v/50hz/3p (As Requested)
Transmission Way	By double chains
Main Motor	11 KW
Cutting Blade Material	Gcr12 quenched treatment
Cutting Type	hydraulic post cutting
Driving method	By pillar type Cylinder

5T Hydraulic Decolier

Capacity:5 tons Coil inner diameter:450-550mm Feeding width: max 1220mm Function:Supporting the coils and doing uncoiling,It adopts the hydraulic cylinder to make the decoiler expand and fit to the inner diameter of coils. It is equipped with the cantilever.Motor drive the coils running and can do forward and reverse running as well as do the decoiling with tension.

Feeding Device

1.Hand wheels on both sides can be used to adjust the feeding width. 2.Four stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface. 3.with manual pre-cutter for save material

Roll Forming And Transmission Device

1.rollers thick chromed good hardness for long service time. 2. Each roller has number and with keynotes, it can fix on the shaft stablely 3.gear and double chain,stable

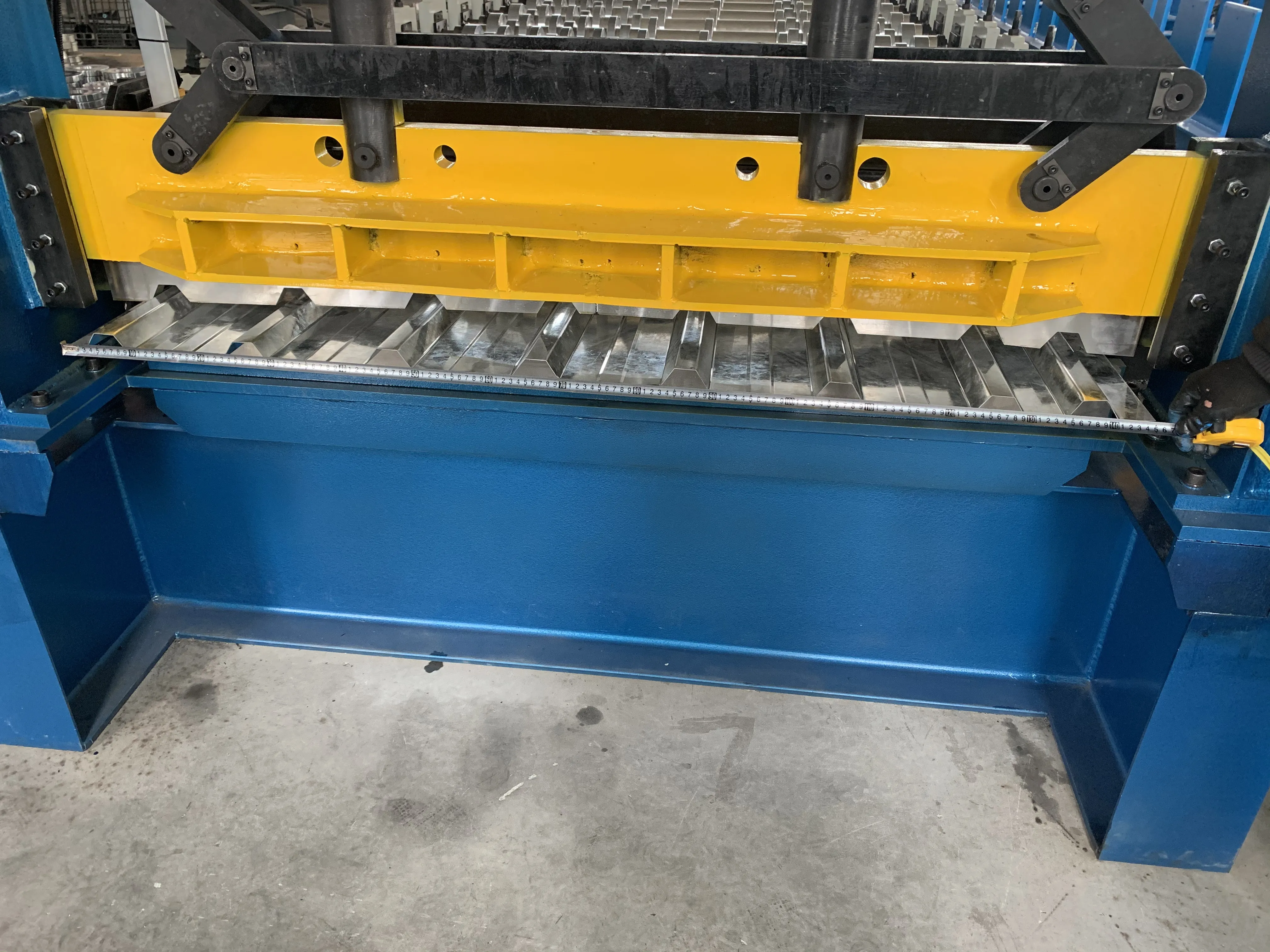

Hydraulic Cutting Device

We use four pillars cutting system structure, it can make sure the cutting stable

PLC control system

PLC brand:Delta(Taiwan) PLC, and transducer and touched screen ● Encoder brand:Omron ● Electrical components:Schneider ●Operating language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

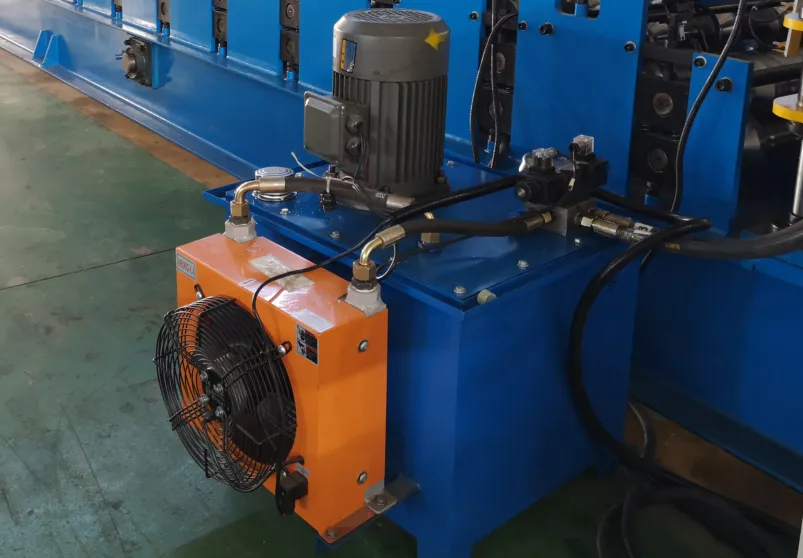

Hydraulic station

● Hydraulic station motor:7.5KW ● Hydraulic oil:46# hydraulic oil ● Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve

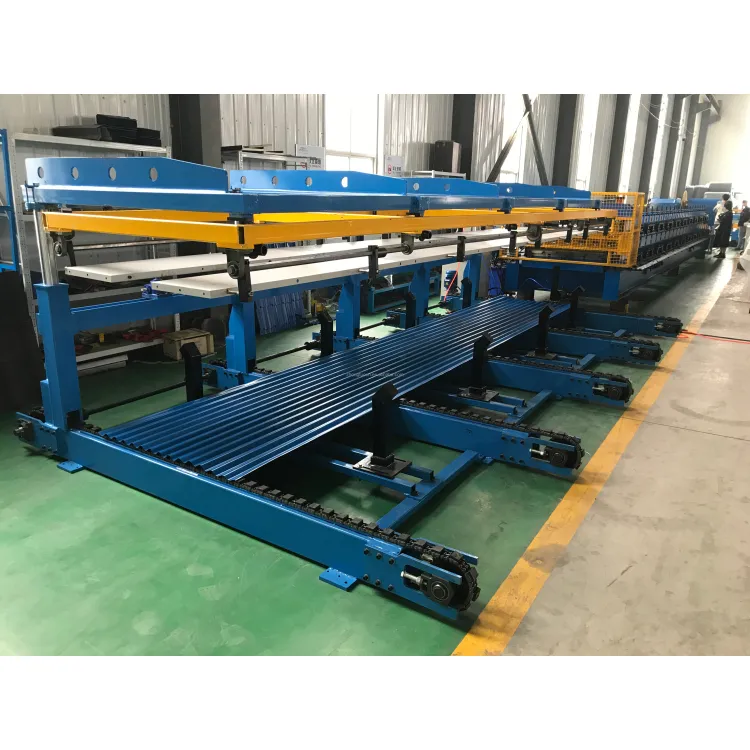

Automatic Stacker

Function :Collect the finished product automatically ,save labor,and very efficiency.

Why Choose Us

USA customer feedback of our roof sheet making machine

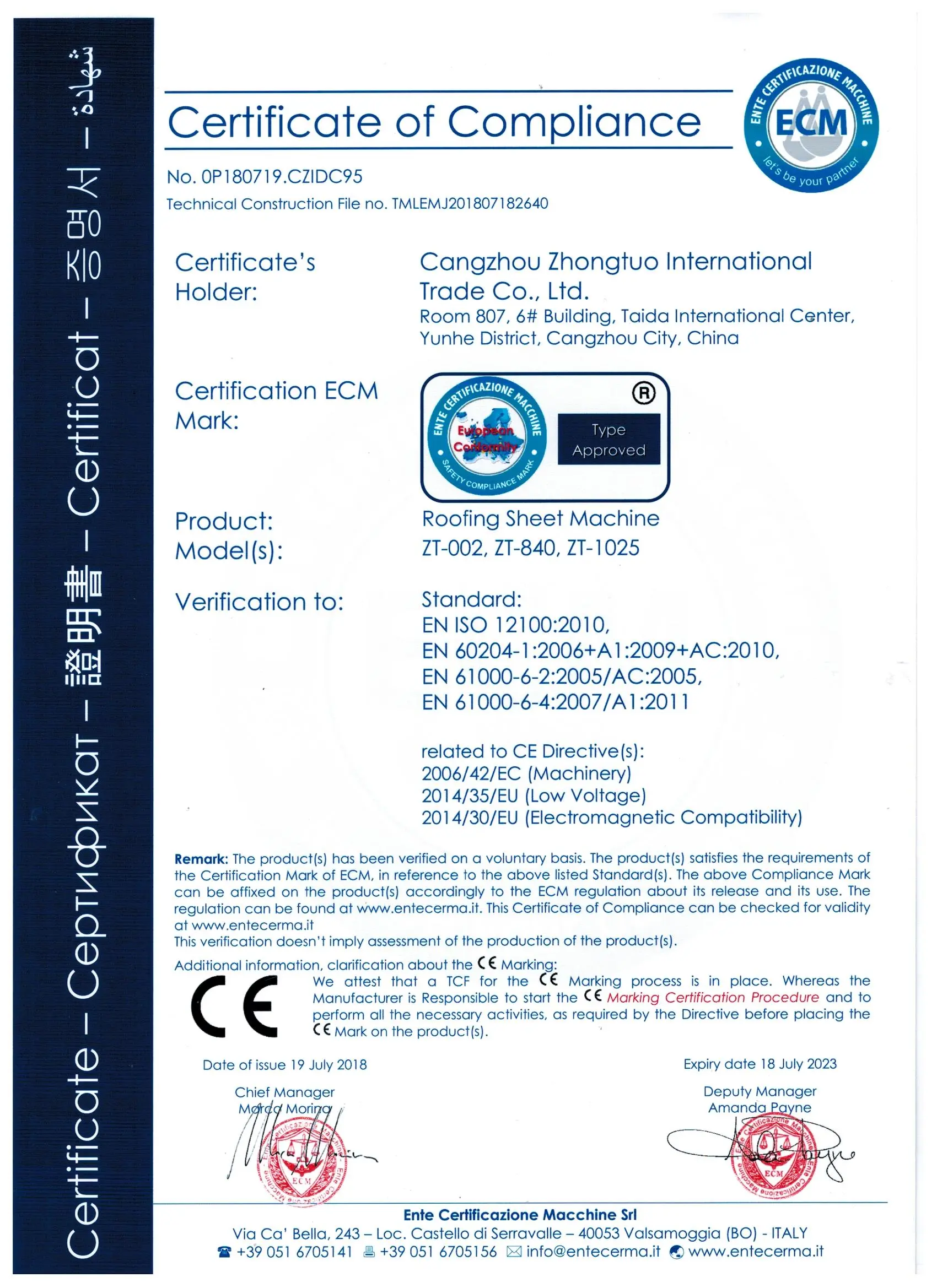

CE(NO.OP180719.CZIDC95)
