Highway Sound Barrier Wall Panel Machine

Product Overview

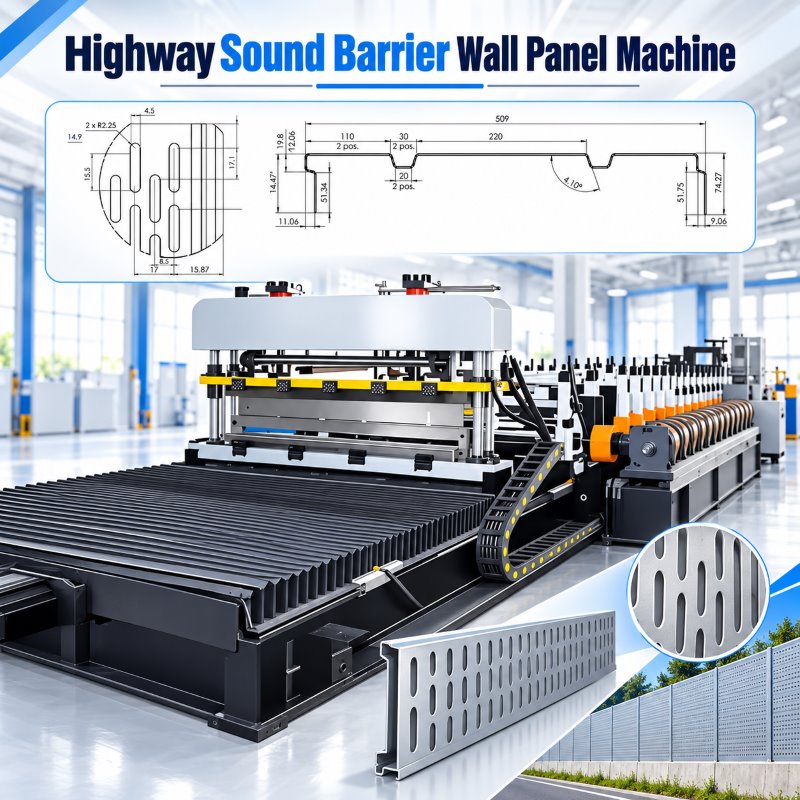

The ZHONGTUO Highway Sound Barrier Wall Panel Machine is a professional cold roll forming solution designed for manufacturing metal acoustic barrier panels used in highways, railways, industrial facilities, and other noise control applications.

The machine is developed to produce customized metal sound barrier profiles through a continuous roll forming process. It can be combined with an automatic punching production line to manufacture perforated and non-perforated panels according to customer requirements.

Metal sound barrier panels are widely used as structural components in engineered noise reduction systems. Depending on the panel design, perforated metal surfaces can be combined with suitable sound-absorbing materials and rear panels to provide acoustic performance.

ZHONGTUO provides customized equipment solutions covering material decoiling, leveling, punching, roll forming, automatic cutting, and finished product collection.

The production arrangement can be designed according to the required panel dimensions, metal thickness, punching patterns, manufacturing capacity, and project budget.

What Is a Highway Sound Barrier Panel?

A highway sound barrier panel is a component used in a noise reduction barrier system installed along roads, railways, and other noise-sensitive locations.

Metal sound barrier panels are commonly manufactured from formed steel or aluminum sheets.

Depending on the acoustic system design, the panels may include perforated metal surfaces, internal sound-absorbing materials, and non-perforated backing panels.

Perforated surfaces allow sound energy to interact with the absorbing material inside the panel assembly.

The overall noise reduction performance depends on the complete barrier design, materials, installation height, joint sealing, and site conditions.

Sound barrier panel profiles may also be customized to meet different appearance, installation, and structural requirements.

Product Highlights

1. Automatic Roll Forming Production

The Highway Sound Barrier Wall Panel Machine uses precision forming rollers to gradually shape metal strip into the required sound barrier panel profile.

Automatic production control helps maintain consistent profile dimensions while reducing repetitive manual operations.

2. Integrated Punching and Forming Options

The production system can be configured with a separate punching line or an integrated punching and roll forming arrangement.

This allows manufacturers to select a production method based on the required hole pattern, production speed, and available factory space.

3. Precision Roller Technology

The forming rollers are designed according to the required sound barrier panel cross-section.

Selected roller assemblies can incorporate internal bearings to support smooth movement and reduce friction during forming.

Proper roller design and adjustment help maintain consistent product geometry and surface quality.

4. Flexible Profile Customization

Different acoustic barrier systems require different panel shapes, widths, edge connections, and perforation arrangements.

ZHONGTUO can customize the forming rollers, machine configuration, and tooling according to customer profile drawings.

5. PLC Automatic Control

The automatic PLC control system supports convenient production settings, including product length, quantity, and batch information.

The electrical control system and operating language can be customized according to customer requirements.

6. Multiple Transmission Options

The machine can be designed with different mechanical transmission systems according to production requirements and budget.

Available configurations include gearbox transmission with independent forming stands, or an economical middle-plate structure with chain transmission.

7. Convenient Maintenance

ZHONGTUO can mark forming rollers, shafts, and spacers with identification numbers to simplify assembly, maintenance, and component replacement.

The shaft locking arrangement is designed to help maintain secure mechanical positioning during normal operation.

Technical Specifications

Highway Sound Barrier Wall Panel Machine

Technical Parameter	Reference Specification
Machine Name	Highway Sound Barrier Wall Panel Machine
Application	Metal Acoustic Barrier Panels
Reference Material	Aluminum
Material Thickness	0.8-1.2 mm
Profile Dimensions	Customized According to Drawings
Size Adjustment	Manual or Automatic, as Configured
Reference Forming Speed	15-20 m/min
Power Supply	380V / 50Hz / 3 Phase or Customized
Control System	PLC Automatic Control
Control Language	English or Customized Languages
Electrical Components	Customized Brand Options
Transmission	Gearbox or Chain Transmission
Punching System	Separate or Integrated Configuration
Forming Roller Design	Customized According to Profile

Note: The parameters above describe a reference machine configuration. Actual production speed depends on profile geometry, material thickness, forming arrangement, and cutting requirements.

Applications of Sound Barrier Panels

Customized Sound Barrier Production Solutions

ZHONGTUO provides customized roll forming and punching equipment for different metal sound barrier panel designs.

Customers can provide product drawings, metal specifications, required perforation patterns, and target production capacities.

Our engineering team can evaluate suitable equipment configurations according to the selected production process.

Available customization options include forming roller design, profile dimensions, punching tooling, electrical control, transmission system, machine layout, and auxiliary production equipment.
