Heavy Duty Colored Steel Roof Ridge Cap Roll Forming Machine Blue-Series ZTRFM Blue-Series Precision

Advanced Roof Ridge Cap Manufacturing Solution

The Provided Customized Colored Steel Roof Ridge Cap Roll Forming Machine is engineered for professional manufacturers seeking precision and durability. In modern construction, the ridge cap plays a vital role in ensuring the weatherproofing and longevity of roofing systems. Located at the highest intersection of roof slopes, our blue-series heavy-duty machine produces profiles that create a clean, maintainable, and watertight surface. This prevents rainwater penetration around chimneys and roof joints, protecting the entire building structure from internal damage.

Industrial-Grade Engineering & Technical Advantages

Our ridge cap roll former is built to outperform standard models through superior engineering. This heavy-duty 7.5-ton system utilizes a 350 H-steel beam middle plate framework, providing exceptional stability even at its peak forming speed of 15 m/min. The machine features 16 sets of forming stations with 70mm solid steel shafts. Each roller is precision-machined from 45# forged steel and hard-chrome plated to 0.05mm, ensuring maximum wear resistance and consistent accuracy for high-volume production of PPGI and galvanized steel caps.

Full Technical Specifications

Core Machine Components Analysis

1. Heavy Duty Decoiler & Feeding Unit

The line starts with a 6-ton hydraulic decoiler and a guiding table with rubber rollers to protect the raw material surface. Precision handwheels allow for easy adjustment across different material thicknesses.

2. Roll Forming Unit Detail

The 16-row forming section ensures a gradual and precise profile creation. All rollers are numbered for stability and maintenance ease on the 70mm solid shafts.

3. Control & Hydraulic System

Equipped with a Delta PLC system and Schneider low-voltage components, the control cabinet ensures full automation. The 5.5KW hydraulic station includes an advanced cooling system for continuous industrial production.

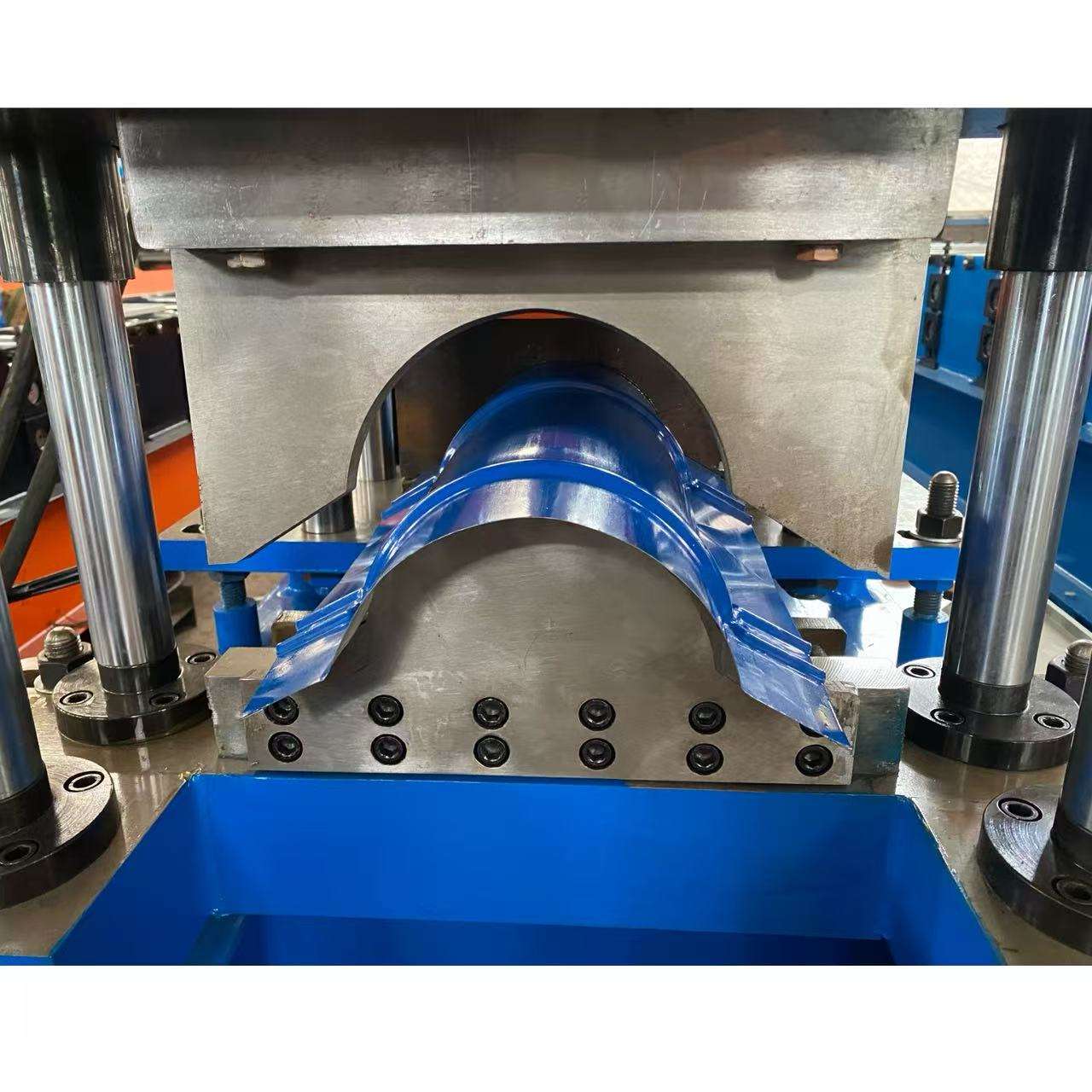

Finished Product & Global Success

ZTRFM blue-series machines are trusted by manufacturers in over 150 countries. Every unit undergoes rigorous full-line testing before delivery to ensure zero-defect production of metal roof ridge caps.
