Colored Glazed Tile Forming Machine Double Layer Roofing Sheet 7.5kw+20 M/Min

Cangzhou Zhongtuo International Trade Co., Ltd

Colored Glazed Tile Forming Machine Double Layer Roofing Sheet 7.5kw+20 M/Min

Name: Colored Glazed Tile Forming Machine Double Layer Roofing Sheet 7.5kw+20 M/Min
Brand: ZTRFM
SKU: ZT53950586
Availability: InStock

$18,000.00/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$18,000.00

Quantity:

≥1Set

Order CodeZT53950586

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

7.5kw

Production Capacity:

20 M/Min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
colored
Use
ROOF
Voltage
380V or as required
Rolling Thickness
0.3-0.8mm
Feeding Width
1250 mm

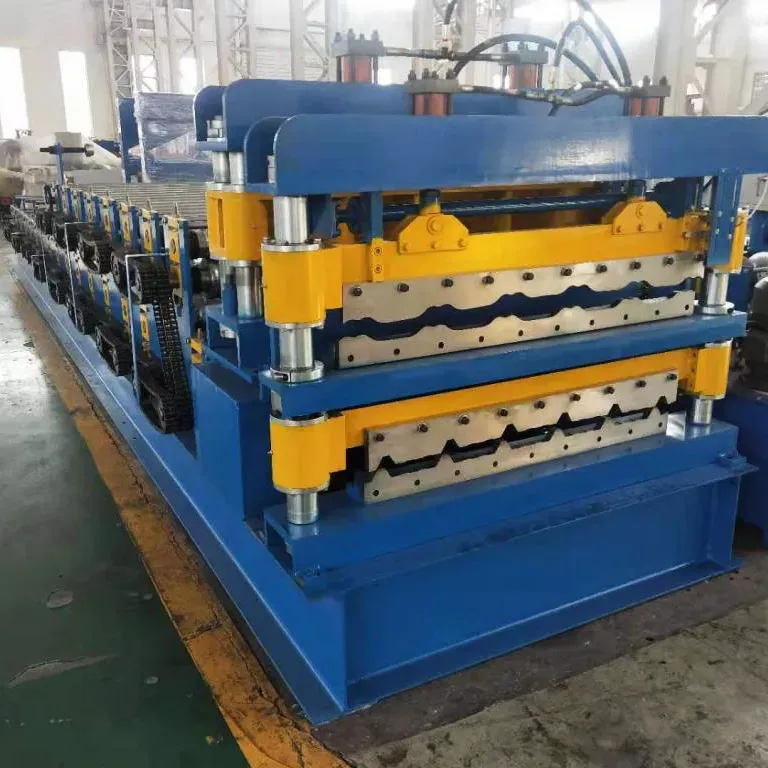

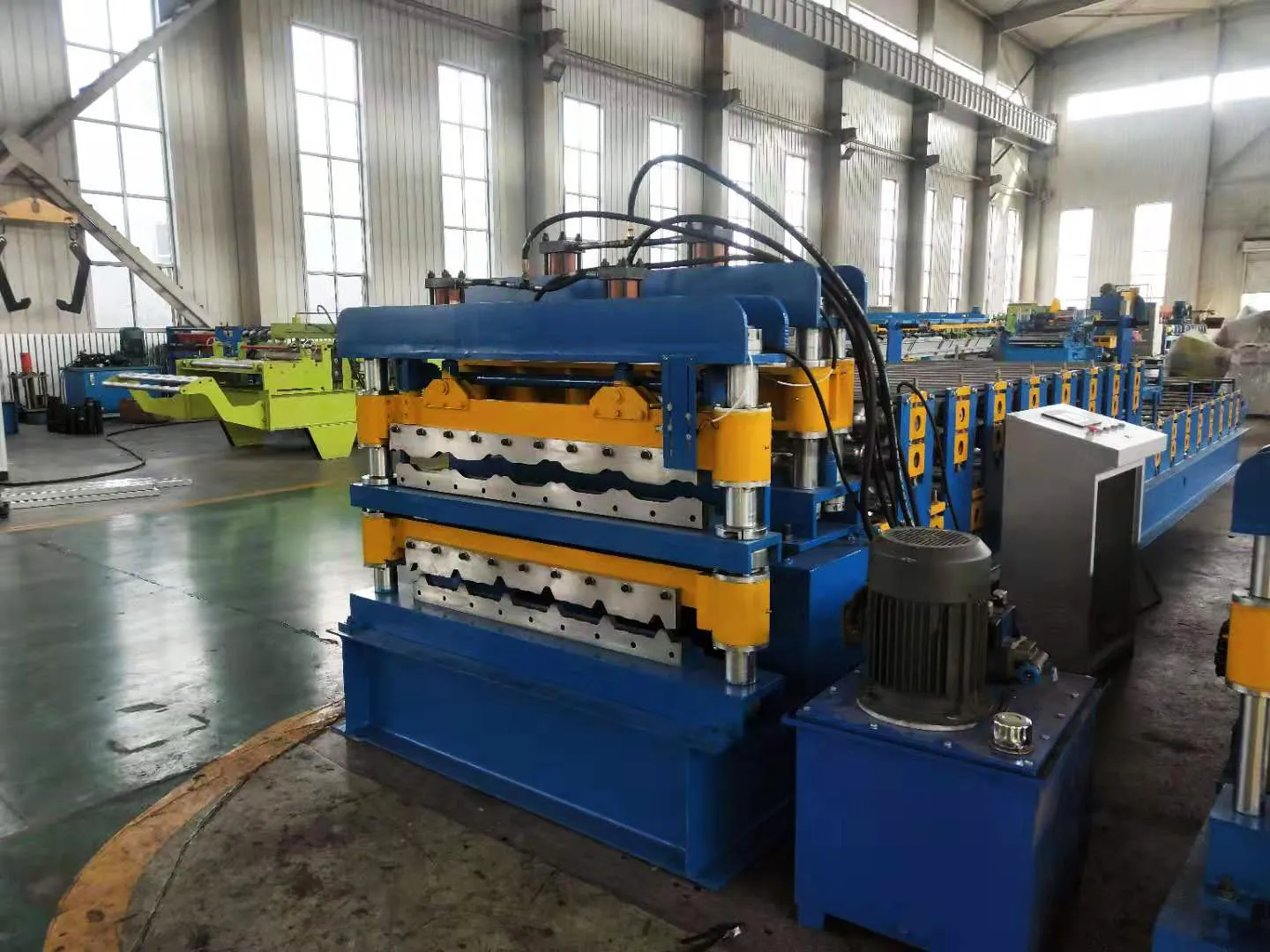

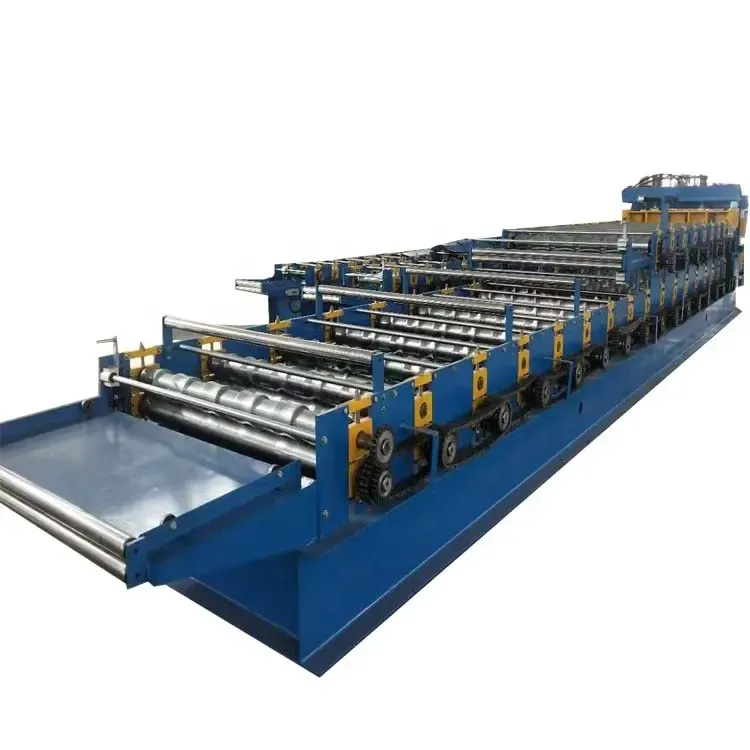

ZTRFM Glazed Tile Forming Machine Double Layer Roofing Sheet Machine Sheet Metal Machine

Design Idea：
1. More good application: We choose a innovative way that already solved the glazed tile press step distance problem. This method can ensure the each finished glazed tile will in a same distance step and can be well overlap one by one together.This can save you a lot of money and time for you about this problem.
2. High quality, Machine longer service time: We are focus on machine detail design, will use many years experience to supplement the machine details and avoid some problems.Will improve the machine service life.

The pictures for the finished product:

Up layer for metal Glazed roof sheet

Down layer for trapezoid IBR roof sheet

The working flow as below:

Decoiling-feeding-roll forming-pressing depth-hydraulic cutting-receiving table

ZTRFM Glazed Tile Forming Machine Double Layer Roofing Sheet Machine Sheet Metal Machine
Formed Material	PPGI,GI,AI
Thickness	0.3-0.8mm
Felt device	Available
Roller station	18 rows(As your requirement)
Roller material	45# steel with quenched treatment
Shaft diameter	80mm solid shaft
Shaft material	45# steel with tempered
Transmission	by chain
Motor power	5.5kw
Machine frame	350H steel welded
Cutting type	Hydraulic cutting
Cutting blade material	Cr12 with quenched treatment
Cutting tolerance	+/-1mm
Control system	PLC

Manual Decoiler

Structure: welded by the steel plates and profiled bar.

The shrink and expand of core is manually, with manual brake, The coil moving forward or reverse is pulled by roll forming machine.

Feeding Device

1. guiding roller: One set
2. Feeding thickness: With handwheels easy adjust.
3. rubber rollers: Protect coil surface not damaged

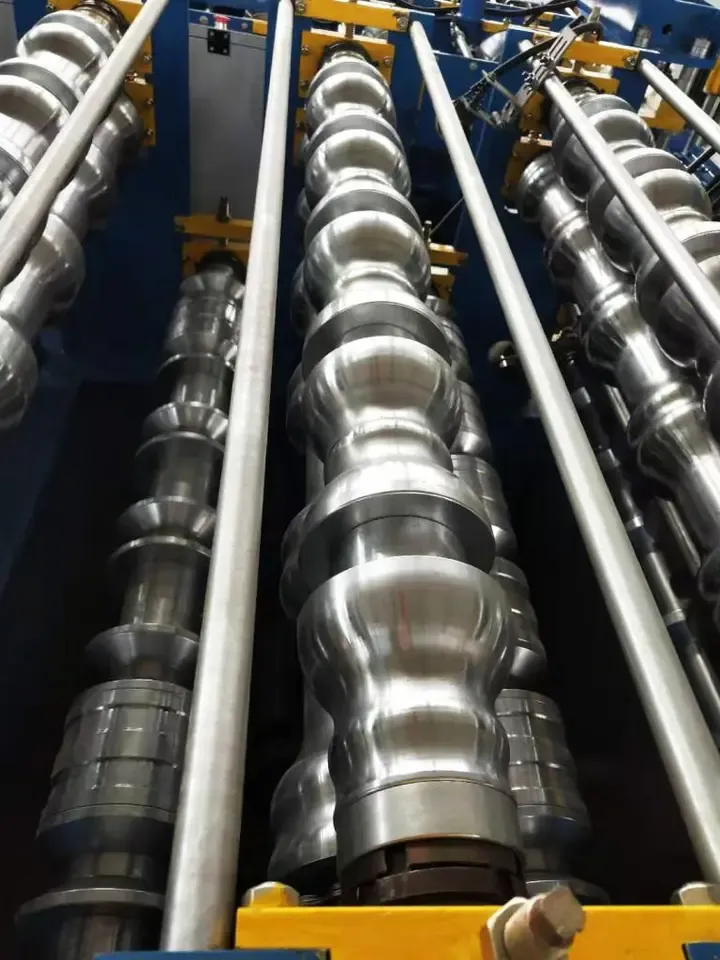

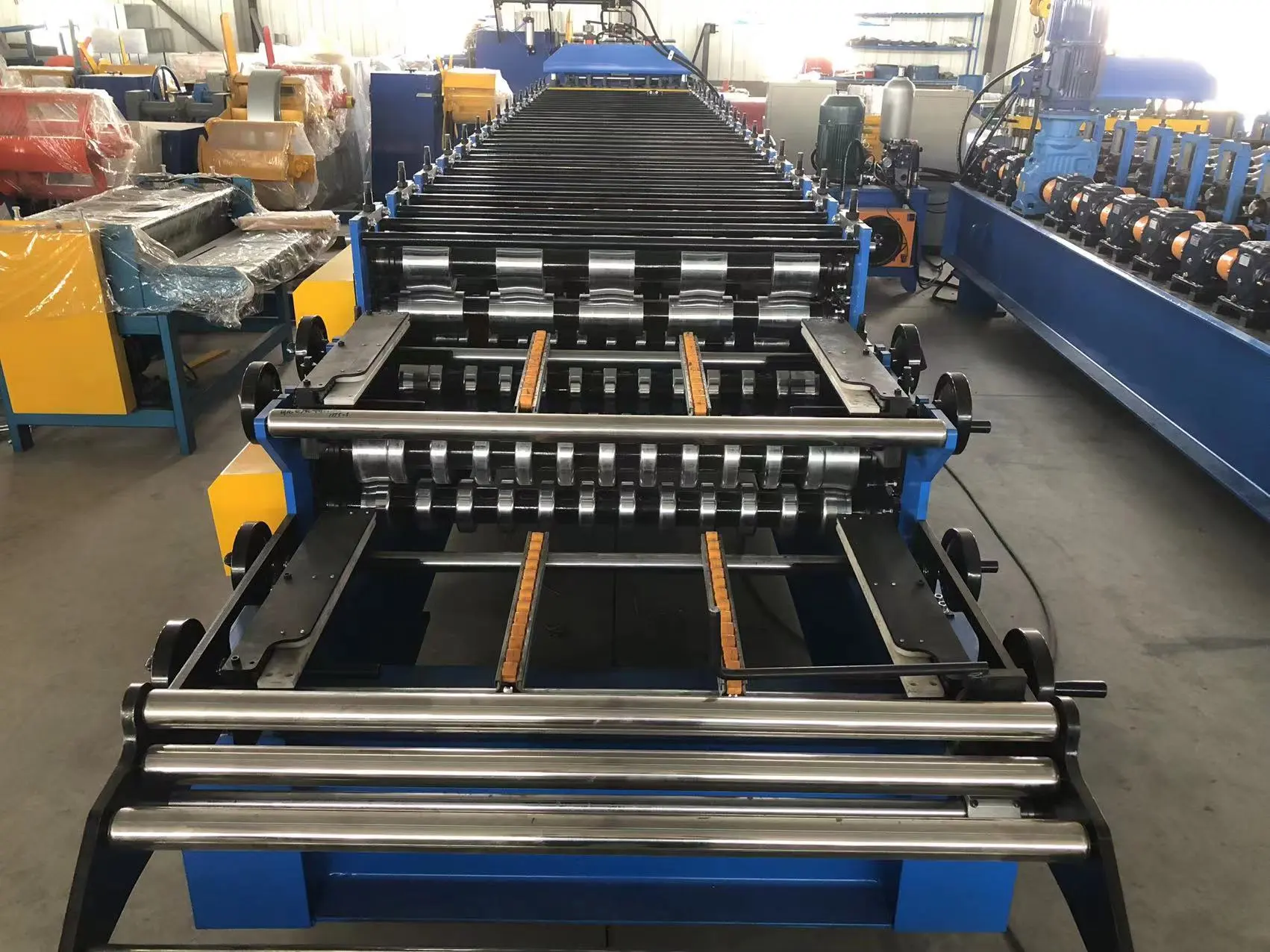

Roll Forming Device

1. Work speed: 8-12m/min; 15-20m/min(The speed depends on the shape of the tile and the thickness of the material.)

2. Roller station: 18 rows(As your requirement)

3. Material of rollers: 45# steel, hard chrome plated on the surface

4. Machine body frame: 350 H steel

5. Drive: Double Chain transmission

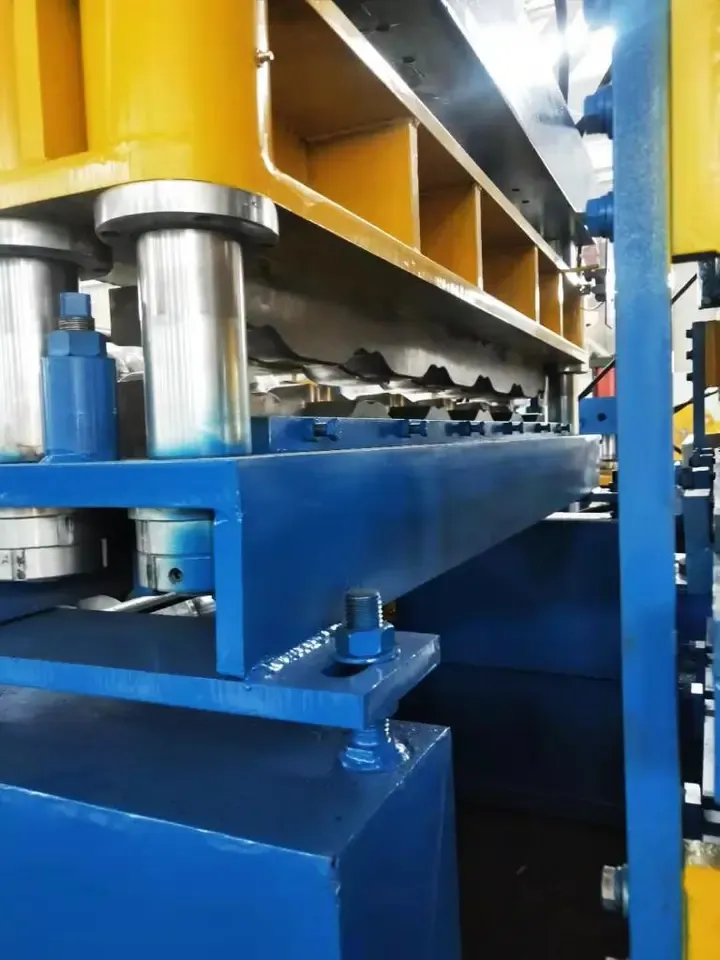

Hydraulic cutting system

1. Driving method: By pillar type Cylinder
2. Power: 5.5 kw
3. Cutter material: GB-Cr12
4. Oil tube and wires connection: All the tubes and wires will be marked by the numbers or letters,So that it will be very easy to connect for the new.

PLC control system

1. Connection: Aviation plugs easy installation
2. Encode: Omron brand
3. PLC brand: Delta (original)
4. Low pressure electric part: Schneider brand
5. Frequency brand: Delta (original)

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
