40 60 70 mm Octagonal Shutter Door Pipe Roll Forming Machine 60 mm

General Industry Tech Hebei Developing Co.,Ltd

40 60 70 mm Octagonal Shutter Door Pipe Roll Forming Machine 60 mm

Name: 40 60 70 mm Octagonal Shutter Door Pipe Roll Forming Machine 60 mm
Brand: ZTRFM
SKU: ZT122423886
Availability: InStock

$21,000.00/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT122423886

Pipe ShapeOctagonal shutter-door pipe

Pipe MaterialSteel; galvanized steel in product title

Production Capacity10-15 m/min

Power7.5 kW

Warranty2 Years

Control SystemSiemens; Delta PLC

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Pipe Diameter:

40 mm60 mm70 mm

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Pipe Shape
Octagonal shutter-door pipe
Pipe Material
Steel; galvanized steel in product title
Production Capacity
10-15 m/min
Power
7.5 kW
Warranty
2 Years
Control System
Siemens; Delta PLC
Pipe Diameter
40 mm, 60 mm and 70 mm; customized
Production Capacity
10-15 m/min
Power
7.5 kW
Machine Weight
7500 kg
Certification
ISO9001/CE/TUV
Moq
1
Ladder Prices
16500 at minimum quantity 1; 15500 at minimum quantity 3
Application
shutter door pipe

Octagonal Shutter Door Pipe Forming Machine

The ZTRFM Octagonal Pipe Roll Forming Machine is designed for manufacturing galvanized steel shutter-door pipe profiles in customized 40 mm, 60 mm and 70 mm diameters. The line combines coil decoiling, feeding and leveling, multi-station roll forming, flying-saw cutting and PLC-based operation for a continuous pipe-making workflow.

Customized diameter range: 40 mm, 60 mm and 70 mm shutter-door pipe diameters with customized profiles.
Continuous forming line: The described line includes a double-head decoiler, feeding and leveling, roll forming, transmission, flying-saw cutting and a manual stacker.
Heavy-duty configuration: The source attributes list 7.5 kW power and a 7500 kg machine weight.
Verified support: Machinery test report and video outgoing-inspection are listed as provided, with a 2-year warranty in the attribute record.

Technical Specifications

Item	Specification
Product Type	Pipe Production Line for Shutter Door Pipe
Pipe Diameter	40 mm, 60 mm and 70 mm; customized
Production Capacity	10–15 m/min
Power	7.5 kW
Machine Weight	7500 kg
Pipe Material	Steel; product title specifies galvanized steel
Roller Material	45# high-grade steel in attributes; detail text specifies Cr12 roll forming rollers with heat treatment
Shaft Material	45# high-grade steel in attributes; detail text specifies 40 Cr shaft processing
Cutting Blade	Cr 12 high-grade steel in attributes; detail text specifies H13K flying-saw blade
Control System	Siemens Control System in attributes; detail component text references Delta PLC, Omron encoder and Schneider electrical components
Voltage Options	220 / 380 / 415 / 420 / 440 V in attributes; 380 V, 110 V and 220 V also listed in category attributes
Warranty	2 Years
Certification	ISO9001 / CE / TUV

Machine Structure & Working Flow

The described process starts with a double-head manual decoiler, followed by feeding and leveling. The strip then passes through the roll forming and transmission device before flying-saw cutting and manual stacking. The detail record states that the octagonal tube uses an interlock seam locked profile and that inline punching and a raft cassette system can be adopted for hole punching and size changes.

Roll forming and transmission device

PLC control system detail

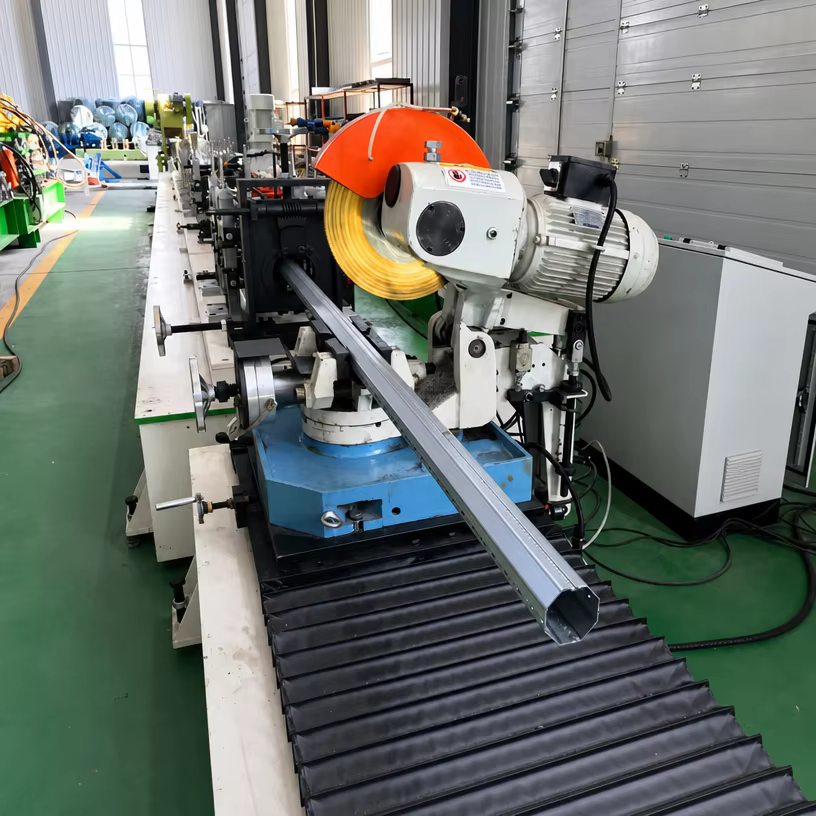

Flying saw cutting unit

Product Applications

This pipe production line is intended for shutter-door pipe manufacturing and can be configured around the required octagonal profile and diameter. round, oval, hexagon, rectangular and square pipe shapes as category options; the product title and application field specifically identify the shutter-door octagonal pipe use case.

Shutter door pipe and octagonal interlock-seam profiles.
Customized 40 mm, 60 mm and 70 mm diameter configurations.
Optional inline punching and cassette-based size change described in the source detail.

FAQ

Which pipe diameters are listed?
40 mm, 60 mm and 70 mm, with customized profiles available.

Can the line change product size?
a raft cassette system for changing the manufacturing size without changing all roll tooling.

What cutting method is described?
flying-saw cutting with automatic encoder length measurement and hydraulic cutting pressure.
