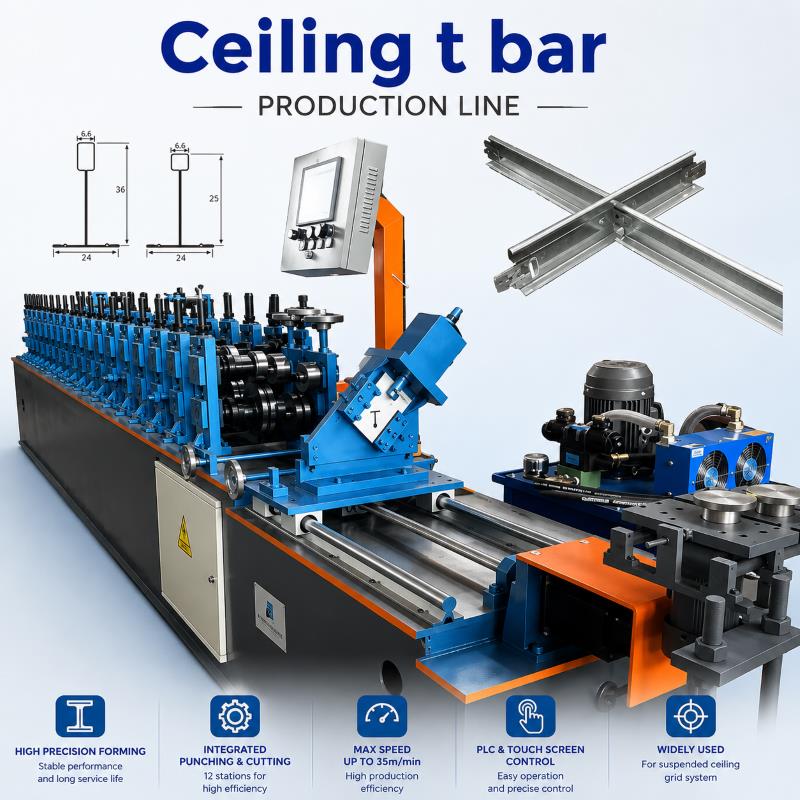

Ceiling Main T Bar Roll Forming Machine for Pakistan Market



The Ceiling Main T Bar Roll Forming Machine is designed for continuous production of high-quality metal Main T grid profiles used in suspended ceiling systems. This machine is configured for PPGI and GI materials and is suitable for lightweight ceiling grid production.

According to the supplied technical specification, the machine adopts a 21-station forming system, 50 mm shafts, Cr12 roller material with high-frequency quenching and hard chrome plating, chain transmission, and integrated punching & cutting. The forming speed can reach 0–35 m/min, providing an efficient solution for continuous ceiling T bar manufacturing.

Designed for Suspended Ceiling Systems

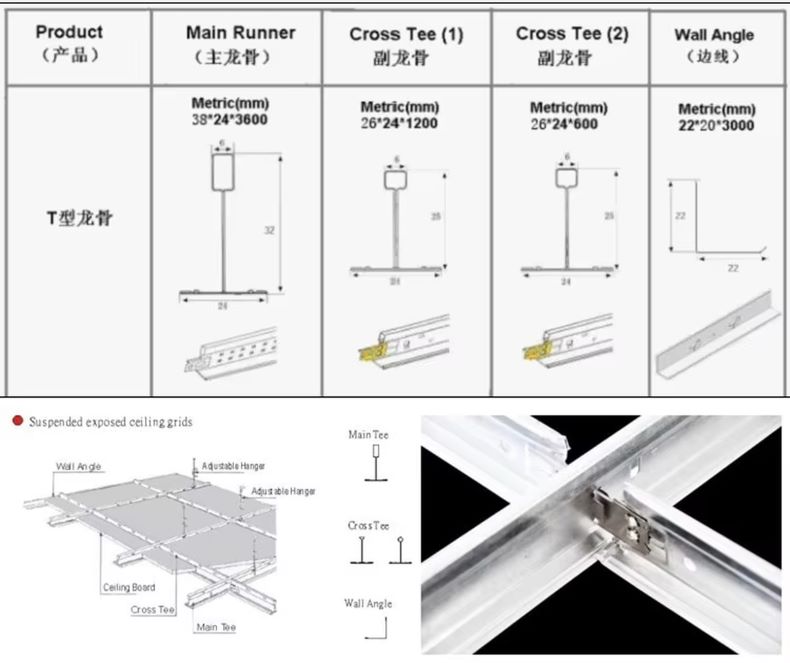

The finished Main T bars  are designed for use in suspended ceiling grid systems as the main supporting profile.

 Technical Specification:

Machine Name	Ceiling Main T Bar Roll Forming Machine
Application	Main T Bar / Suspended Ceiling Grid
Raw Material	PPGI / GI
PPGI Thickness	0.1–0.2 mm
Common PPGI Thickness	0.14 mm
GI Thickness	0.14–0.3 mm
Common GI Thickness	0.18 mm
Machine Frame	Memorial Arch Frame
Rolling Stations	21
Shaft Diameter	50 mm
Shaft Material	45# Steel
Roller Material	Cr12
Roller Treatment	High-Frequency Quenching + Hard Chrome Plating
Transmission	Chain
Speed	0–35 m/min
Punching & Cutting	Integrated, 12 Stations

Why Choose This Main T Bar Roll Forming Machine?

1.Raw Material Compatibility

PPGI: 0.1–0.2 mm, commonly 0.14 mm
GI: 0.14–0.3 mm, commonly 0.18 mm

2. Stable Forming

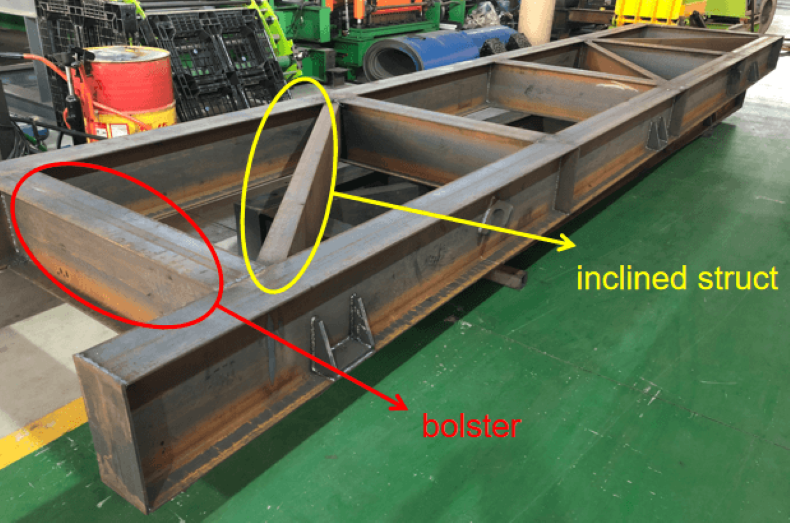

350# H-shaped steel, helps reduce vibration and deformation during continuous operation, supporting consistent forming accuracy.
Heavy-duty memorial arch frame and 21 forming stations provide a stable forming structure.

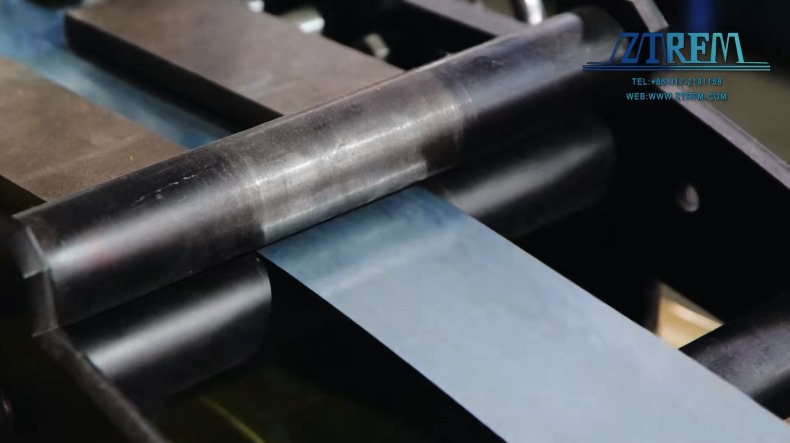

50 mm 45# steel shafts provide solid support for continuous profile forming.

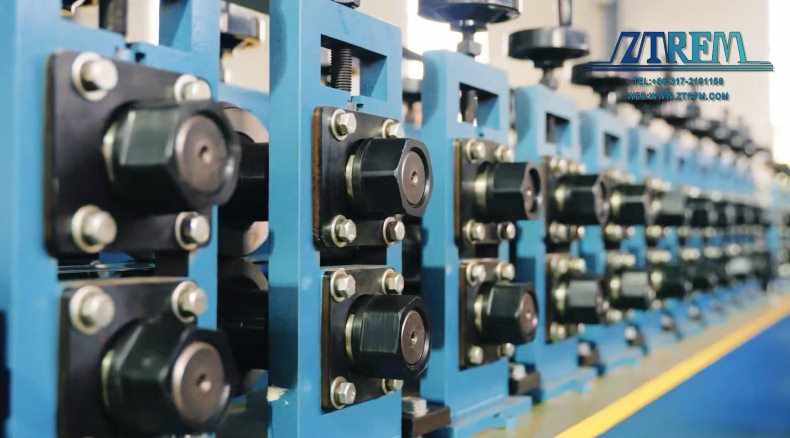

Cr12 rollers with high-frequency quenching and hard chrome plating offer improved wear resistance.





3. Integrated Punching & Cutting System

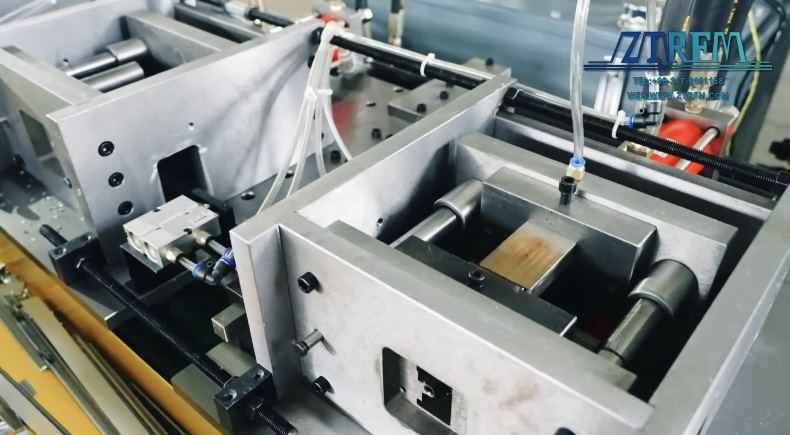

The machine integrates punching and cutting into one system with 12 stations, allowing the Main T bar to be processed continuously without requiring separate punching and cutting equipment.
A 15 kW hydraulic system with air cooling and an accumulator provides power for the punching and cutting process.

4. Efficient Operation
The forming system adopts chain transmission for reliable power transfer between the drive system and forming stations.
Up to 35 m/min forming speed supports continuous ceiling grid production.

 5. Easy Control：
Delta PLC + Touch Screen Control
The control panel supports English or Chinese, according to customer requirements, making operation convenient for different markets.
Omron counter is also integrated for production counting and monitoring.
