High Speed Light Steel Keel Machine: 45m/min Efficient Stud and Track Production

The global construction industry is rapidly shifting towards light-gauge steel framing due to its strength, fire resistance, and speed of installation. To keep up with this demand, manufacturers require advanced equipment like the High Speed Light Steel Keel Machine. This high-performance production line is specifically designed for manufacturing precision C and U channels used in drywall partitions, ceiling systems, and structural framing.

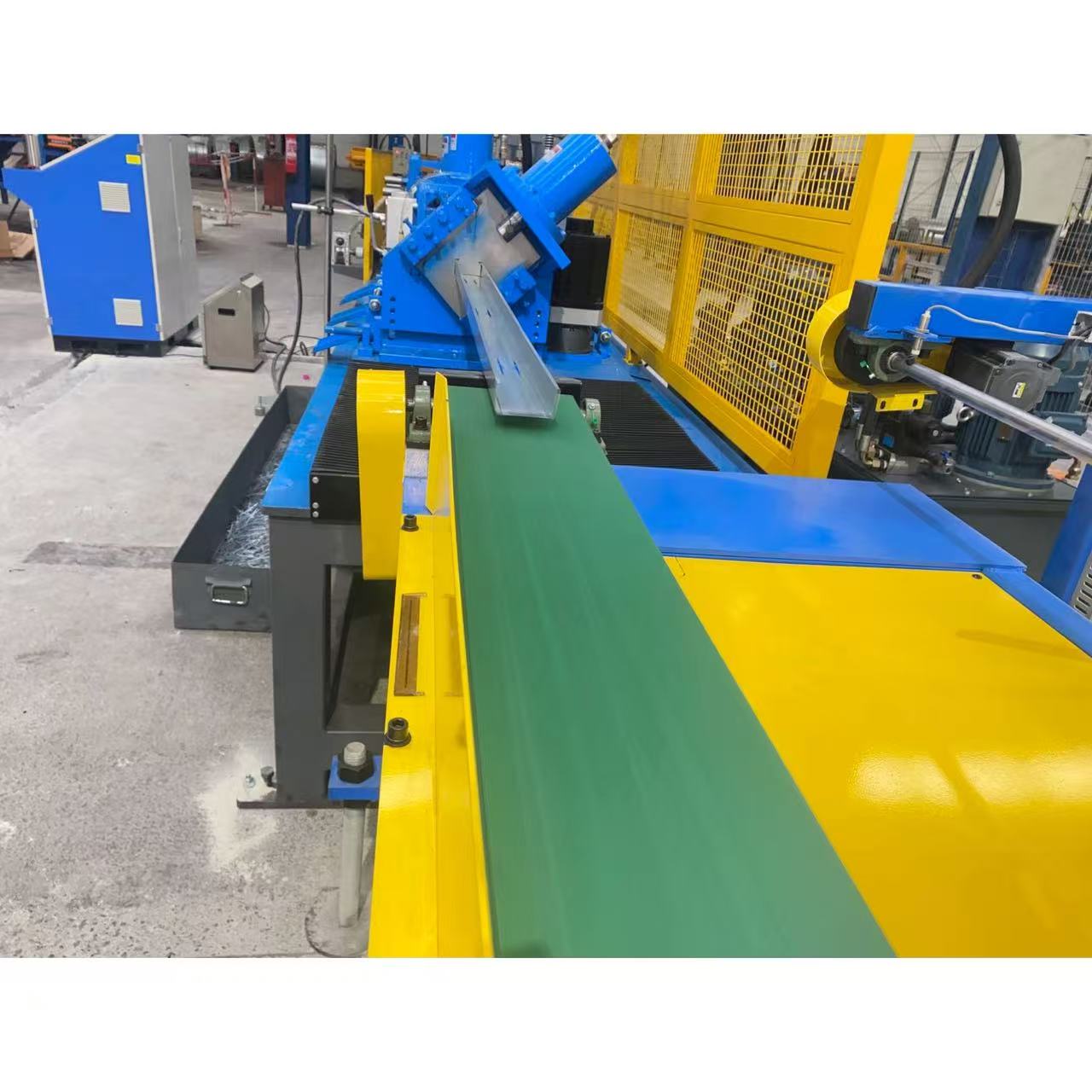

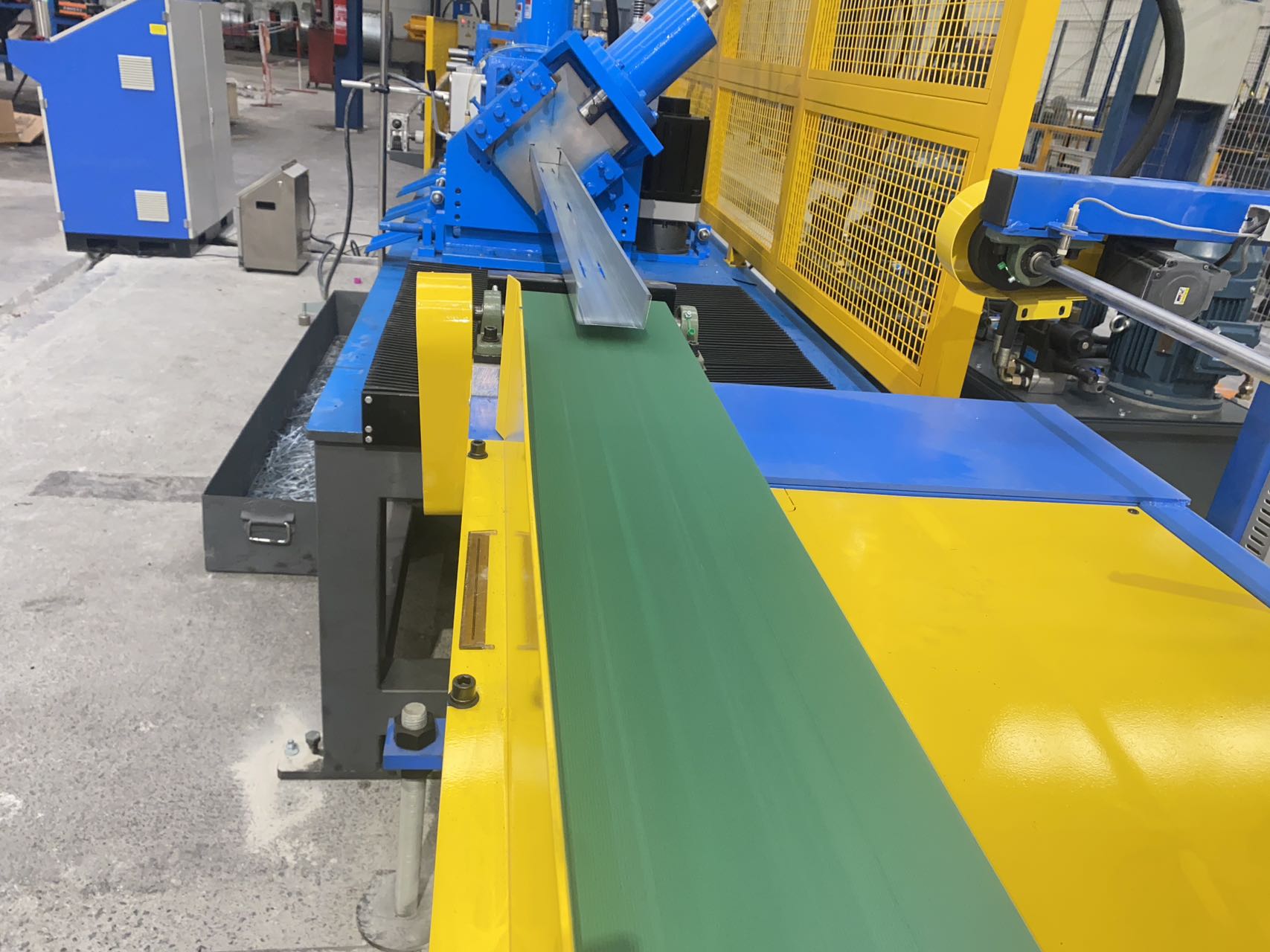

Equipped with an intelligent PLC control system, this machine offers fully automated operation, allowing for seamless size changes from 40mm to 150mm. With a standard production speed of 40-45m/min (and customizable speeds up to 100m/min), it provides a significant competitive advantage by maximizing factory output and reducing project lead times. The integration of flying cutting and flying punching technology ensures continuous production without stopping, resulting in perfectly clean edges and precise hole patterns.

As a professional light steel keel roll forming machine manufacturer, Zhongtuo (ZTRFM) focuses on durability and high accuracy. Our ZTRFM-CU series machines utilize high-grade galvanized steel coils and precision-engineered rollers, ensuring that every stud and track meets strict building standards for residential and commercial projects.

Precision Engineering for Automated Stud and Track Production

The manufacturing of metal studs and tracks requires high dimensional stability to ensure easy on-site assembly. The ZTRFM Light Steel Keel Machine utilizes a multi-station roll forming process that gradually shapes the galvanized steel coil into the final profile. The rollers are meticulously crafted to prevent material scratching and maintain the structural integrity of the keel even at high speeds.

The core of our "High Productivity" selling point is the automated size-changing system. Instead of manual roller adjustments, operators can simply input the desired dimensions into the touch screen interface. The machine's motors will automatically reposition the forming stations, allowing you to produce a wide range of C and U profiles on a single machine, greatly saving workshop space and equipment investment.

Furthermore, the machine's robust frame, weighing approximately 5,500 kg, provides a vibration-free platform, which is essential for maintaining the high precision (±1mm tolerance) required for modern construction framing.

Key Selling Points of ZTRFM High-Speed Keel Machine:

• High Forming Speed: 40-45m/min standard, customizable up to 100m/min
• Fully Automatic Size Change: Adjustable from 40mm to 150mm via PLC
• Flying Shear & Punching: Continuous production for maximum efficiency
• Durable Construction: 5.5-ton reinforced frame for high-speed stability
• Energy Efficient: Advanced 22.5kW power system optimized for output
• User-Friendly Interface: Easy operation with multilingual PLC support

Technical Specifications: ZTRFM High Speed CU Machine

Selecting the right Light Steel Stud and Track Machine requires a balance between speed and precision. The ZTRFM model is engineered for high-volume industrial use.

Global Applications in Modern Steel Construction

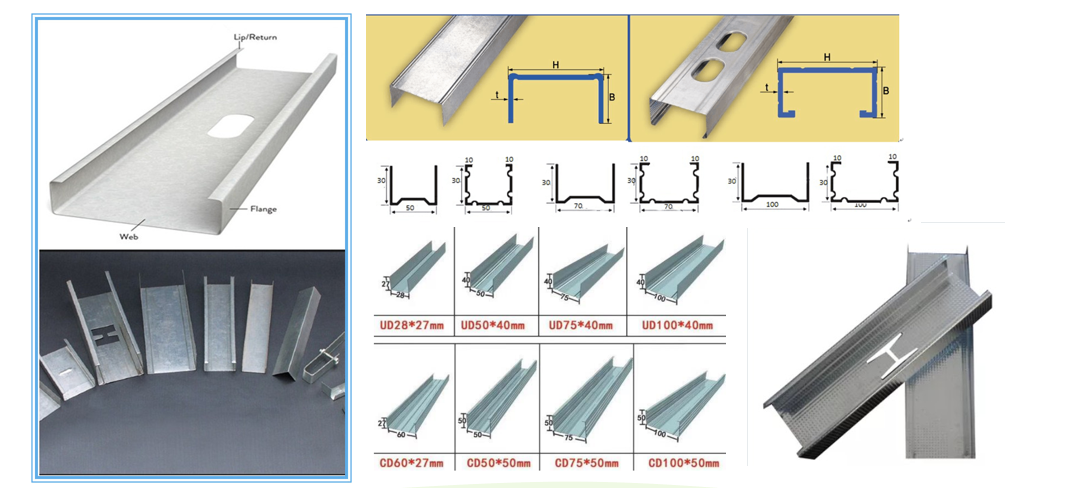

The Light Steel Keel (C and U Channel) is the backbone of modern interior and structural building systems. With a ZTRFM High Speed Machine, you can efficiently supply the growing demand for prefabricated building components.

Typical applications include:

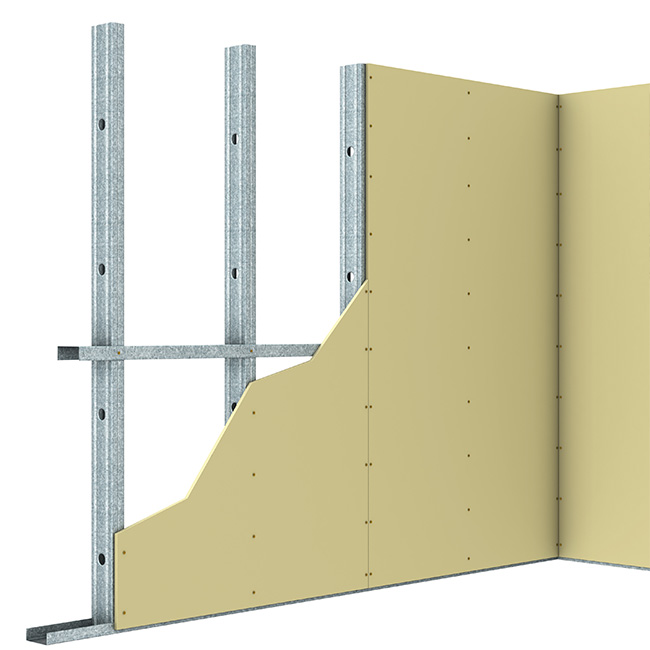

• Drywall partition wall studs and tracks
• Suspended ceiling framing systems
• Light gauge steel (LGS) villa framing
• Industrial warehouse interior cladding
• Commercial office space fit-outs
• Modular building frame production

By producing high-quality keels with consistent accuracy, you ensure that contractors can assemble building frames faster, reducing labor costs and enhancing the overall structural quality for property owners.

Choose Zhongtuo for High-Performance Roll Forming

Investing in a ZTRFM Light Steel Keel Making Machine means partnering with the #1 leading manufacturer in Building Material Machinery. With 13 years of export experience and CE certification, we provide equipment that complies with international safety and performance standards.

We offer a comprehensive service package, including custom machine design in 3 days, pre-shipment machinery test reports, and life-time technology service. Our global support network ensures that your high-speed production line stays operational and profitable.

Contact Zhongtuo today for a detailed quote and discover how our high-speed solutions can accelerate your manufacturing business.
