Ceiling Panel Roll Forming Machine for Metal Ceiling Tile Production

Our ceiling panel roll forming machine is a fully automatic cold roll forming line designed for continuous production of metal ceiling panels, linear strip ceilings, perforated ceiling tiles and square lay-in ceiling boards from PPGI, galvanized steel, Aluzinc or aluminum coils. It is built for ceiling manufacturers, interior fit-out suppliers and steel profile factories that need stable dimensional accuracy, low scrap rate and fast changeover between popular ceiling profiles.

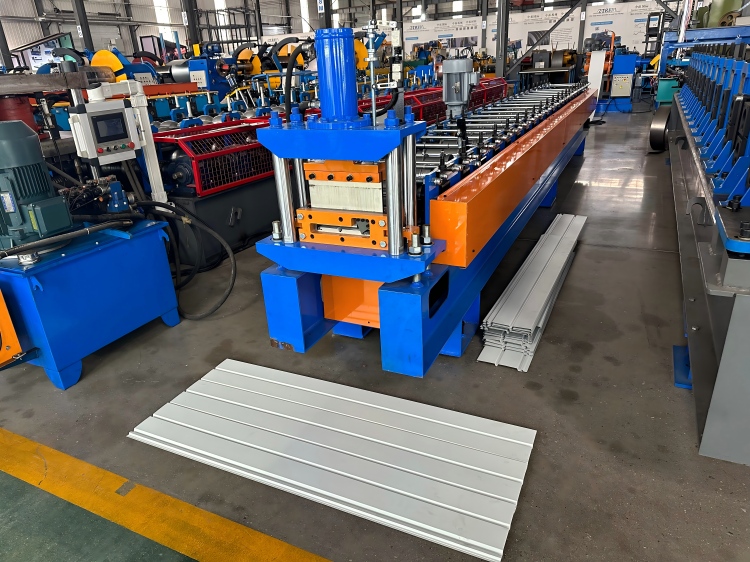

The line integrates decoiler, leveling feeder, main roll former, hydraulic/servo punching, flying cut-off and run-out table into one PLC-controlled workflow—turning a flat coil into finished ceiling panels at 20–30 m/min without manual trimming.

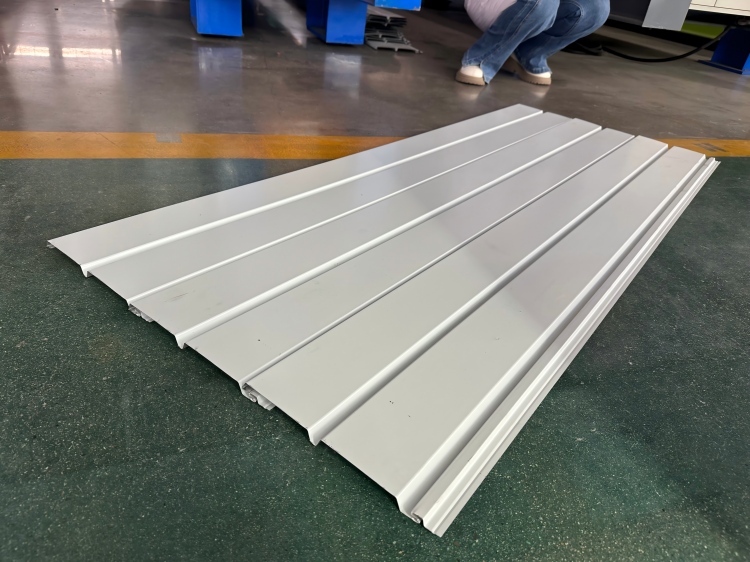

What the Machine Produces

Square lay-in ceiling panels (300×300, 600×600 mm)



Linear strip ceiling profiles (C-type, clip-in, open cell)



Perforated acoustic ceiling tiles (punch pattern customizable)



Curved or edge-folded decorative ceiling boards



Matching ceiling T-grid / furring channel (optional combined line)



Working Flow

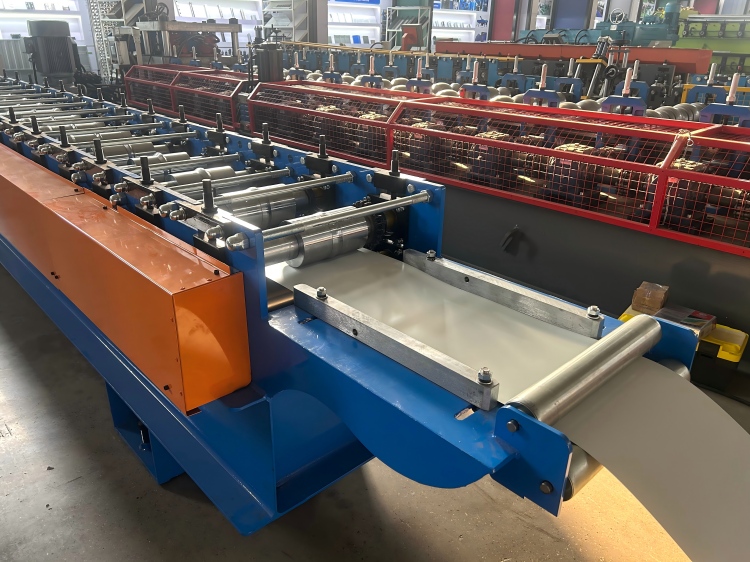

Uncoiler → Pinch roll & leveling → Servo feeding → Main roll forming stations → Hydraulic/servo punching unit → Flying shear cutting → Auto stacker / run-out table

Whole process is synchronized by PLC + touch screen HMI; length tolerance stays within ±0.5 mm.

Technical Specifications

Item	Standard Range	Remarks
Applicable material	PPGI, GI, GL, Aluminum	Coil ID 508 mm
Material thickness	0.4–0.8 mm	Up to 1.0 mm on request
Coil width	1000–1250 mm	Depends on profile
Effective panel width	300 / 600 / 1200 mm	Custom drawings accepted
Forming stations	12–18 stands	45# steel, chrome plated
Shaft diameter	Φ50–Φ70 mm	Solid, heat treated
Main motor	7.5–15 kW	Reducer / gear drive
Line speed	20–30 m/min	Punching included
Cutting type	Hydraulic / Servo flying shear	Blade Cr12MoV, quenched
Control system	PLC + HMI (Delta/Siemens optional)	Length, batch, auto count
Power supply	380V 3Ph 50Hz	Other voltage customizable
Machine size	~8.5×1.5×1.6 m	Weight 4.5–5.5 t

Parameters are adjustable per target market ceiling standard (EN, ASTM, GCC, etc.).

Why Buyers Choose This Ceiling Panel Forming Line

Profile flexibility​ – one base frame supports multiple ceiling cassettes via quick-change roller cassettes



Clean surface​ – cold forming keeps coating intact, no scratch, no oil stain



Low labor​ – 1 operator manages uncoiler to stacker



Export ready​ – CE marking, ISO 9001 workshop, English/HMI manual, container-load packing



OEM support​ – send your ceiling profile drawing, we match rollers, punch die and cut length



Application Scenarios

Metal ceiling panels from this machine are widely used in:



Commercial buildings: malls, offices, hotels, exhibition halls



Public infrastructure: airports, metro stations, hospitals, schools



Industrial interiors: clean rooms, pharma workshops, food plants



Residential upgrade: villa lobbies, balcony ceilings, modular housing



Customization & Export Service

We do not sell only a fixed model. Tell us your local ceiling style, coil thickness, panel width and monthly output, and our engineering team returns a matched line layout, roller design and FOBCNF price. Each machine is tested with your material before shipment; HD video and inspection report are provided.

After-sales: 12-month warranty on main frame, lifetime technical support, spare parts kit, remote commissioning and on-site service for bulk orders.
