Metal Wall Cladding Panel Roll Forming Machine
The Metal Wall Cladding Panel Machine is designed for efficient and stable production of pre-painted steel wall cladding profiles. Through multiple forming stations, the machine gradually shapes the steel coil into the required panel profile while maintaining consistent dimensions and surface quality.
The machine can process pre-painted steel with a thickness of 0.4–0.6 mm and material strength of approximately G350 MPa.
The forming machine uses a 22-step forming process to gradually shape the metal strip into the required wall cladding profile.
Forming rollers are manufactured from 40Cr steel with fine polishing, heat treatment and hard chrome coating.
The hydraulic cutting system uses Cr12 cutting tools with heat treatment hardness of HRC58–62.
The PLC system controls production quantity and cutting length, making daily operation simple and efficient.

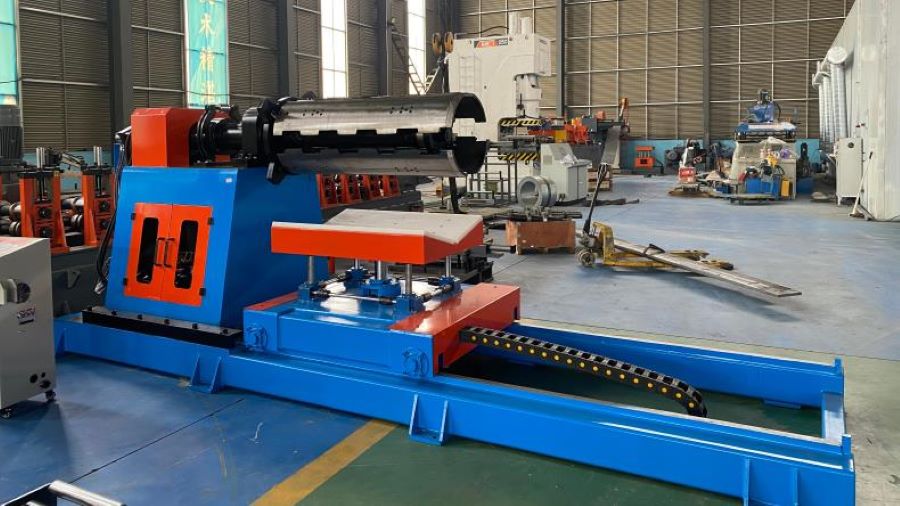

Un-powered simple uncoiler designed for stable material feeding. Maximum coil capacity is approximately 3 tons, with a maximum coil width of 500 mm.
Coil ID: 508 ± 30 mm
Maximum Coil OD: 1200 mm

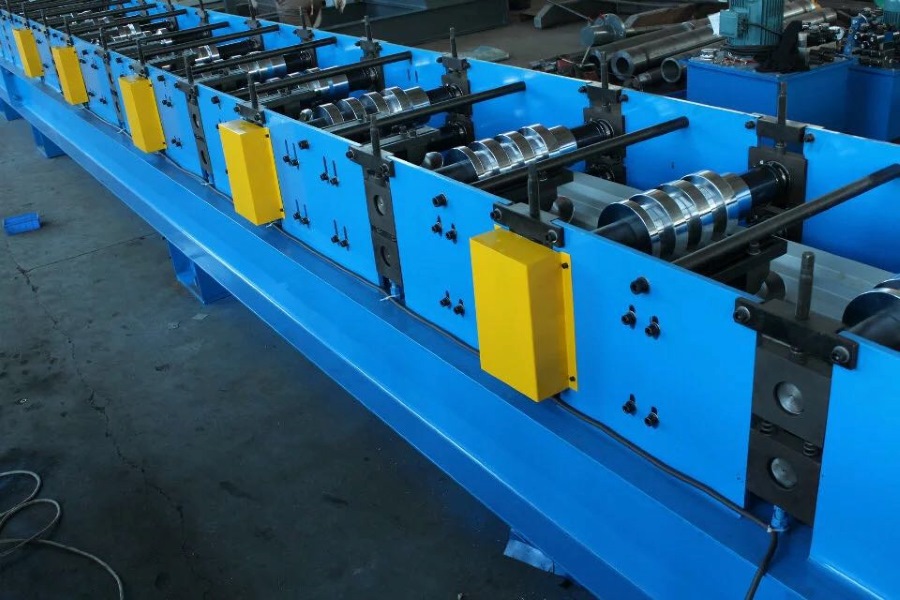

The main forming machine adopts gear/sprocket transmission and approximately 22 forming steps.
Roller Material: 40Cr
Roller Treatment: Fine Polishing + Heat Treatment + Hard Chrome Coating
Shaft Material: 45# Steel
Shaft Diameter: 60 mm

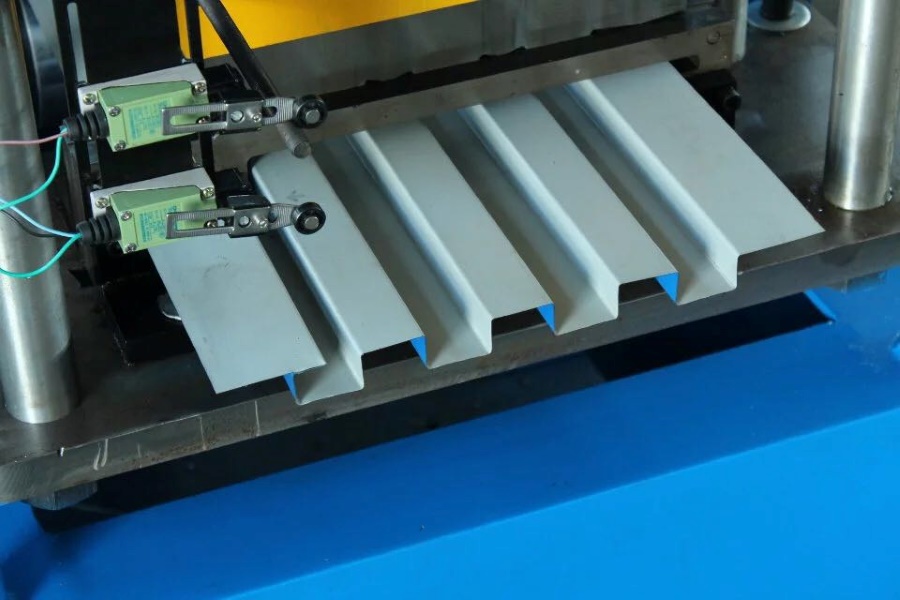

The hydraulic cutting device is designed for cutting the formed wall cladding panels to the required length.
Hydraulic Pump Motor: 2.2 kW
Maximum Cutting Pressure: 6 MPa
Cutting Tool: Cr12
Heat Treatment Hardness: HRC58–62

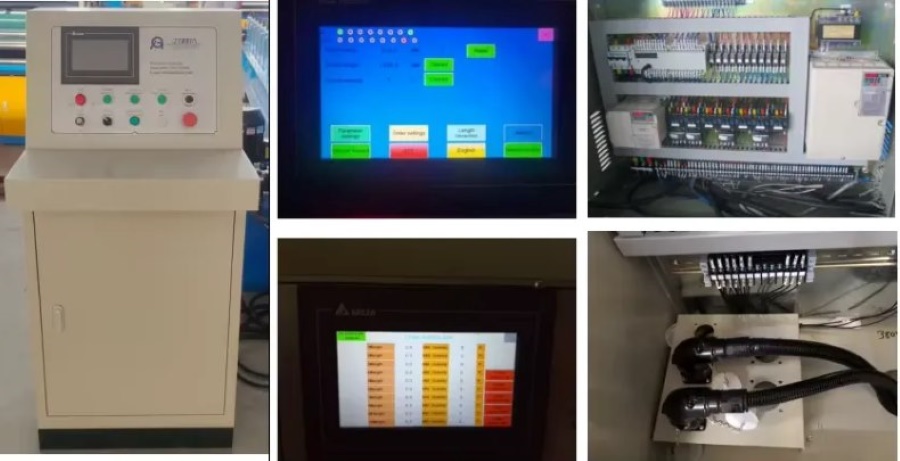

The PLC control cabinet automatically manages production quantity and cutting length, helping simplify machine operation.
PLC: Delta
Touch Screen: WEINVIEW
Frequency Inverter: Shihlin
Encoder: Omron
Control Voltage: 24V
| Item | Specification |
|---|---|
| Machine Type | Metal Wall Cladding Panel Machine |
| Formed Material | Pre-Painted Steel |
| Material Thickness | 0.4–0.6 mm |
| Material Strength | G350 MPa |
| Effective Width | 180 mm |
| Uncoiler | Simple Un-powered Uncoiler |
| Maximum Coil Capacity | 3 Tons |
| Maximum Coil Width | 500 mm |
| Forming Stations | 22 Steps |
| Roller Material | 40Cr Steel |
| Roller Treatment | Fine Polished, Heat Treated & Hard Chrome Coated |
| Shaft Material | 45# Steel |
| Shaft Diameter | 60 mm |
| Transmission | Gear / Sprocket Driving |
| Main Motor | 5.5 kW |
| Forming Speed | Approx. 12 m/min |
| Cutting Type | Hydraulic Cutting |
| Hydraulic Pump Motor | 2.2 kW |
| Maximum Cutting Pressure | 6 MPa |
| Cutting Tool | Cr12 |
| Cutting Tool Hardness | HRC58–62 |
| Control System | PLC Automatic Control |
| PLC | Delta |
| Touch Screen | WEINVIEW |
| Frequency Inverter | Shihlin |
| Encoder | Omron |
| Cutting Length Tolerance | ≤ 2 mm |
| Control Voltage | 24V |
| Electrical Standard | 380V / 50Hz / 3 Phase |

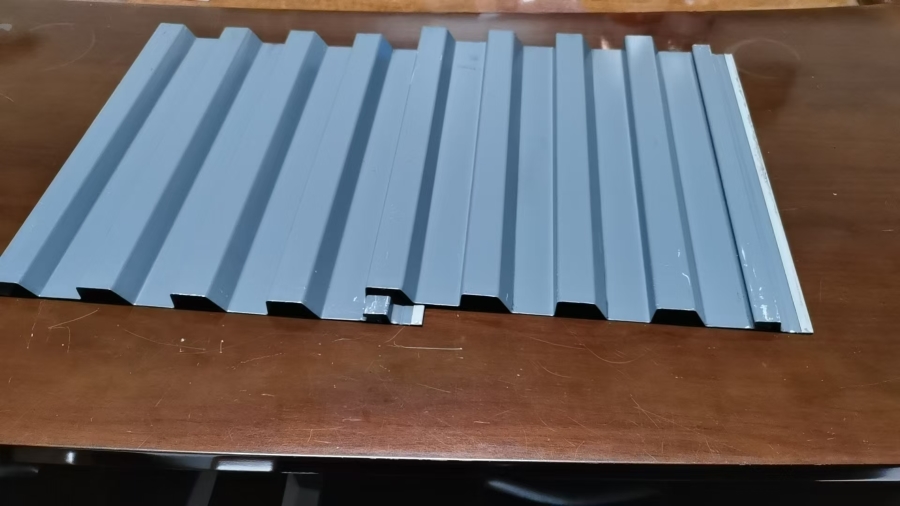

Metal wall cladding panels produced by this roll forming system can be applied to a variety of building envelope and wall cladding projects.
We provide technical support for machine installation, commissioning, operation and maintenance to help customers achieve stable production.
Different construction projects may require different panel profiles, dimensions and material specifications. The roll forming system can be configured according to the required profile and production requirements.
Send us your panel drawing or profile requirements for a customized solution.
