Automatic Soffit Wall Panel Roll Forming Machine for USA Market

Zhongtuo Automatic Soffit Wall Panel Roll Forming Machine is specially designed for the USA market, providing an efficient and reliable solution for manufacturing high-quality metal soffit panels.

The production line is suitable for processing color-coated galvanized steel and aluminum sheets, featuring stable roll forming performance, precise punching, and automatic cutting. It is widely used in residential and commercial building exterior systems, roof ventilation, and architectural decoration applications.



1. Technical Specification:

Product Type	Soffit Wall Panel Roll Forming Machin
Raw Material	Color-coated galvanized steel / Aluminum
Material Thickness	0.35-0.5 mm
Production Speed	5 m/min
Main Motor Power	7.5 kW
Frame	Steel plate welded frame
Forming rollers	22 stations
Shafts	75 mm
Transmission System	Chain Drive
Shaft materials	45# steel, hardened treatment
Cutting Accuracy	±1mm / 3m

2. Designed for USA Customer Requirements

This soffit panel production line is customized according to USA electrical and production standards.
Key customization features:
USA voltage: 480V 3-phase
English/Chinese operation interface
Machine color: Dark gray with yellow decoration
Customized customer logo: Cue-Tech Machines
Production direction: Chain box on the left side

3. Machine Technical Advantages

a. High-Speed & Stable Roll Forming Performance

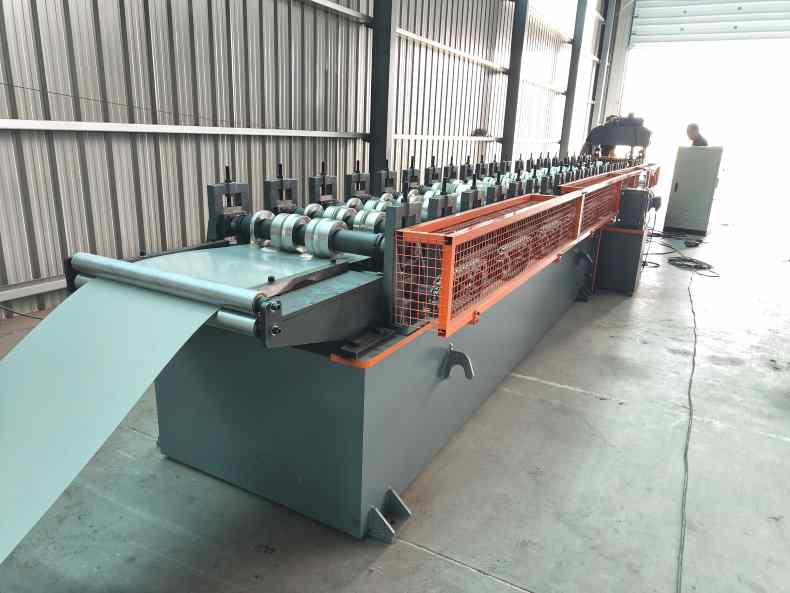

The main roll forming machine adopts a strong welded steel structure with 22 forming stations, ensuring excellent stability during continuous production.
Equipped with 75mm diameter hardened 45# steel shafts and high-quality bearings, the machine provides smooth operation and long service life.
Forming speed: Up to 25 m/min
Shaft material: 45# steel, hardened treatment
Shaft diameter: 75mm
Structure: Steel plate welded frame
Forming stations: 22 rows

b. High Quality Rollers

The machine is equipped with specially designed forming rollers to ensure accurate panel profiles and consistent product quality.
The ventilation hole forming rollers adopt a flexible design:
One roller row presses the middle area
One roller row presses both sides
Manual adjustment allows operators to choose whether to activate the pressing function
This design improves production flexibility and meets different customer requirements.

c. Automatic Electric Cutting System

The machine uses an electric cutting system with stop-cut operation, ensuring clean cutting edges and high accuracy.
The cutting blade is made of high-quality Cr12MoV material with heat treatment, providing excellent wear resistance and long service life.
Cutting System Features:
Cutting type: Electric stop cutting
Blade material: Cr12MoV
Blade hardness: HRC58-62℃
Cutting tolerance: ±1mm / 3m
Cutting power: 5.5kW
The automatic cutting process avoids product deformation and reduces material waste.

 4. Advanced Automation Control System

The production line adopts reliable electrical components and an intelligent control system for easy operation.
Control System Configuration:
PLC: Delta
Touch screen operation
Encoder: Omron
Low-voltage electrical components: Schneider
Voltage: 480V, 3 Phase, 50Hz/60Hz
The system supports cutting length control and production speed adjustment, improving production efficiency.

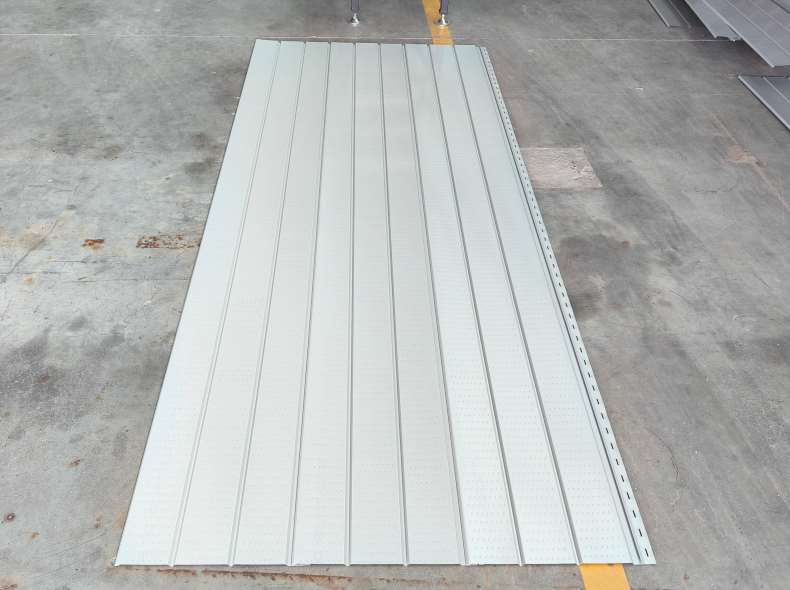

5.Finished Product

Every finished roofing panel is carefully tested to guarantee high precision and perfect installation performance.

6.Complete Service & Delivery

Before shipment, Zhongtuo conducts complete machine testing with actual materials to ensure stable operation and reliable performance.
Each machine is supplied with necessary accessories, including:
Tool kit
Travel switches
Fuses
Relays
Spare blades
The machine also includes operation manuals and electrical wiring diagrams for easier installation and maintenance.

Why Choose Zhongtuo Metal Glazed Roof Tile Machine?

✔ 20+ Years Experience in Roll Forming Industry
✔ Customized Roofing Solutions
✔ High Precision Manufacturing
✔ Stable Long-Term Operation
✔ Remote Technical Support Available
✔ Exported Worldwide
