Automatic High Speed Solar Bracket Roll Forming Machine 5.5kw

Automatic High Speed Solar Bracket Roll Forming Machine

Product Highlights:

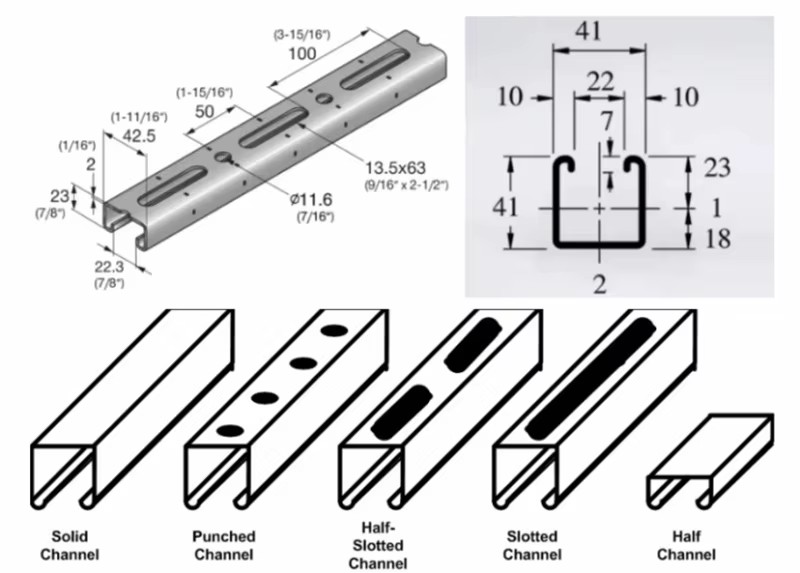

• Solar mounting systems require high-strength and precision-formed brackets to ensure long-term stability and reliable performance. Our fully automaticPhotovoltaic Bracket Solar Mounting Bracket Making Machine is specially designed to produce solar mounting brackets, slotted strut channels, and PV support rails with high efficiency, precise punching, and continuous production.
• Inline Punching System:Punching and roll forming are completed in one continuous process, improving production efficiency, reducing labor costs, and ensuring precise hole positioning.
• Servo Flying Cold Saw :The flying cold saw provides continuous, high-speed cutting with smooth edges, high accuracy, and no deformation of the finished products.
• Delta PLC Control System :Equipped with Delta PLC, inverter, and touchscreen, combined with Omron encoder and Schneider electrical components, ensuring stable operation, precise control, and easy operation.
• High Productivity: Achieves high output efficiency.
• 220 V, 380 V, 440 V Voltage Options: Flexible power supply choices.
• CE, ISO Certifications: Ensures safety and compliance standards.
• Customized Design: Tailored solutions for various solar bracket needs.
• 450H Steel Frame: Robust and durable construction.

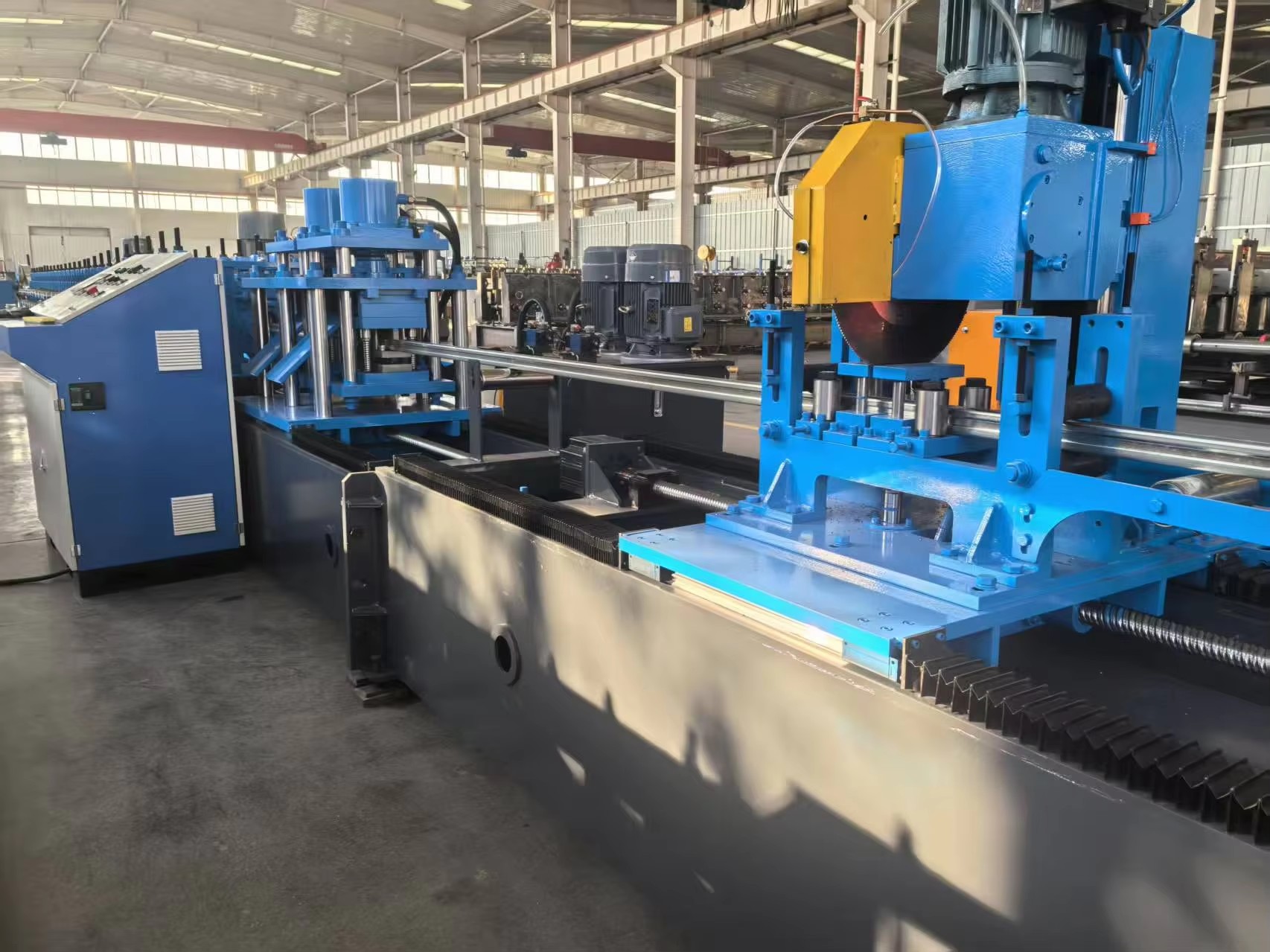

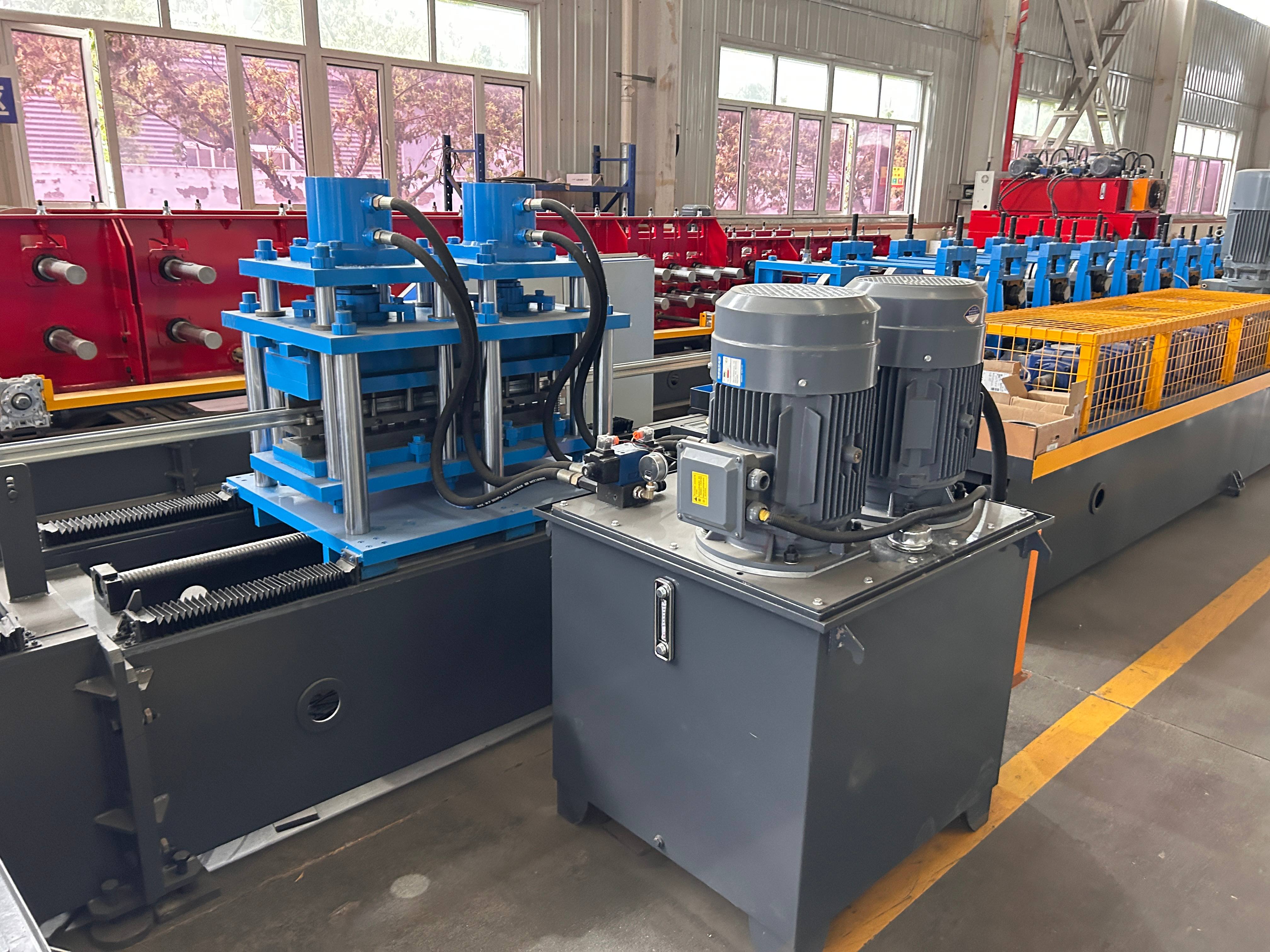

Stereo View for reference:

PARAMETERS：

Automatic High Speed Solar Bracket Roll Forming Machine

Formed Material	GI,PPGI
Thickness	0.3-0.8mm

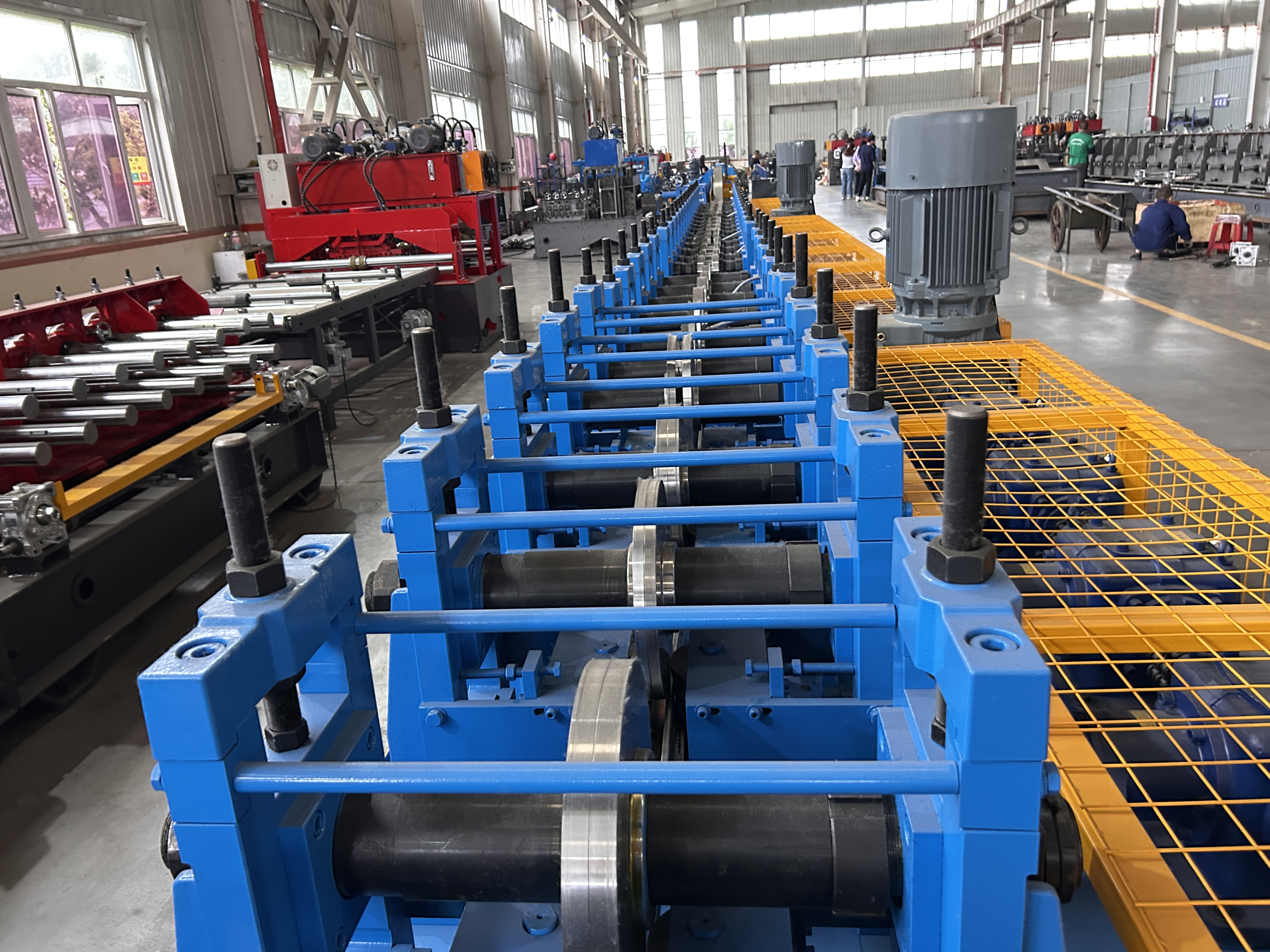

Roller station	20 rows(As your requirement of profile)
Roller material	45# steel with quenched treatment
Shaft diameter	80mm solid shaft
Shaft material	45# steel with tempered
Transmission	By 1 inch chain (double chains)
Motor power	15KW
Machine frame	350H steel welded
Cutting type	Hydraulic cutting
Hydraulic power	7.5kw
Cutting blade material	Gcr12 quenched treatment
Control system	PLC

PRODUCT DISPLAY:

solar panel mounting bracket machine Flying saw cutting :

1. It can offers faster cutting speeds, smoother cut surfaces, and significantly reduces cutting deformation.
2. FLYING SAW CUTTINGNon-stop Cutting
   High-Speed Production
   Servo Tracking Technology
   High Length Accuracy
   Smooth Cutting Surface
   No Product Deformation
   Continuous Automatic Production
   Ideal for Solar Mounting Brackets

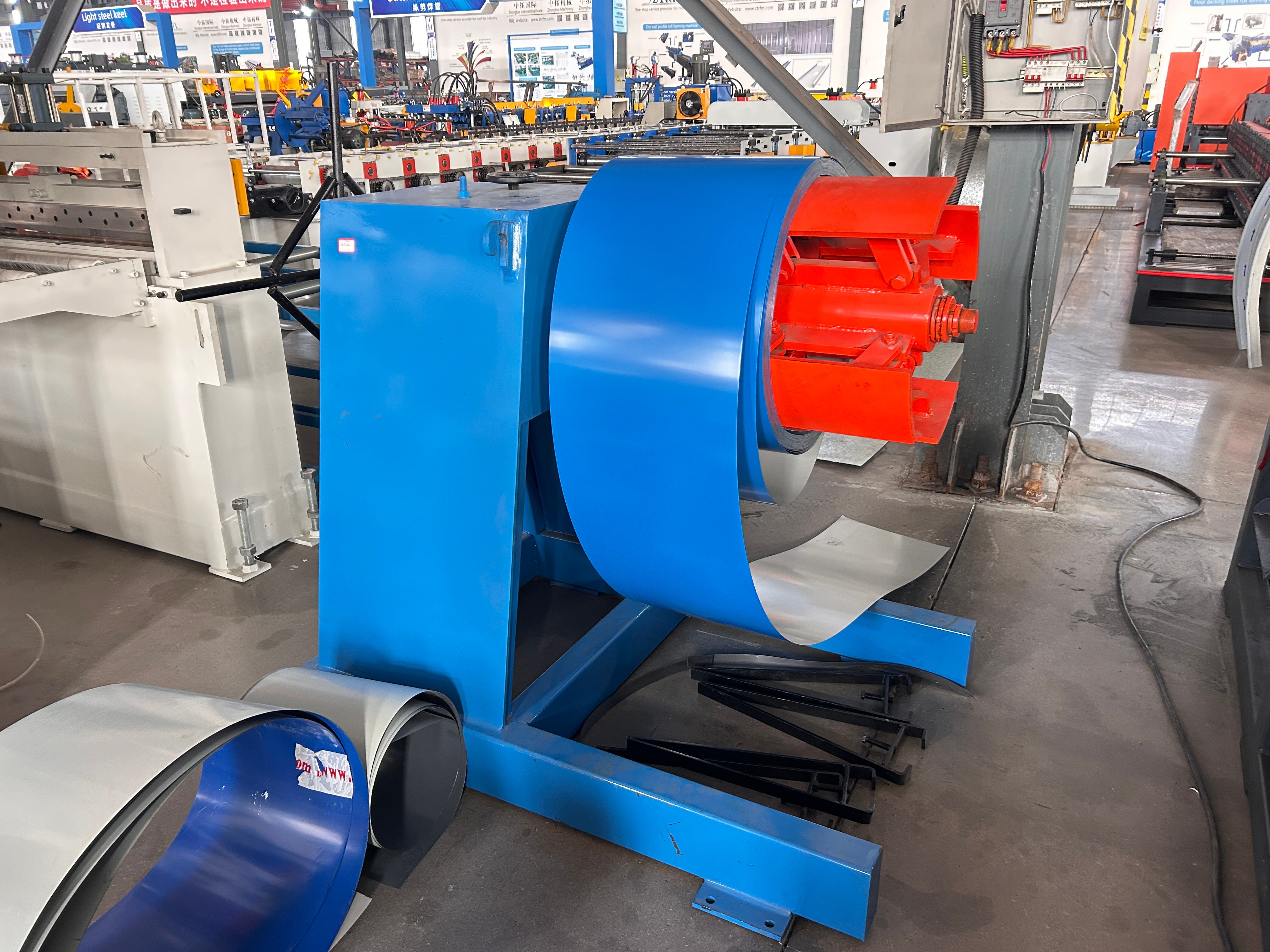

3TONS Hydraulic decoiler Working type:

Active opening coils

Loading capacity: 3 tons

Coil inner diameter: 450-550 mm

Through hydraulic station provide hydraulic power to tension coils

Speed: 15 m/min Main

power: 5.5 KW*2

Roller material: Cr 12 MOV with quenched treatment

Roller station:28roller stations

Roller diameter: 60 mm

Transmission: By Gearbox

Machine structure: Molding frame with 40 mm thickness

Solar Mounting Bracket Making Machine Punching system

1.Punching type: Tracking punching

2.Power: 5.5 KW

3.Punching mold: Cr12

4.Punching holes quantity: 10 holes one time

5.INLINE PUNCHING ADVANTAGES(Compare to Punching bed)

One-Line Automatic Production No Separate Press Required Higher Punching Accuracy Higher Production Efficiency Lower Labor Cost Save Factory Space Better Product Consistency Lower Overall Manufacturing Cost
