Automatic C Purlin Roll Forming Machine for Steel Production Line 0-20m/min

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd

Automatic C Purlin Roll Forming Machine for Steel Production Line 0-20m/min

Name: Automatic C Purlin Roll Forming Machine for Steel Production Line 0-20m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT118943521

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Forming Speed:

0-20m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Thickness
0.7-2mm
Roller Station
14 rows
Diameter Of Shaft
80mm solid shaft
Material Of Rollers
Gcr 15 with quenched teeatment
Drive
Chain transmission
Motor Power
11KW
Hydraulic System Power
5.5KW
Control System
PLC

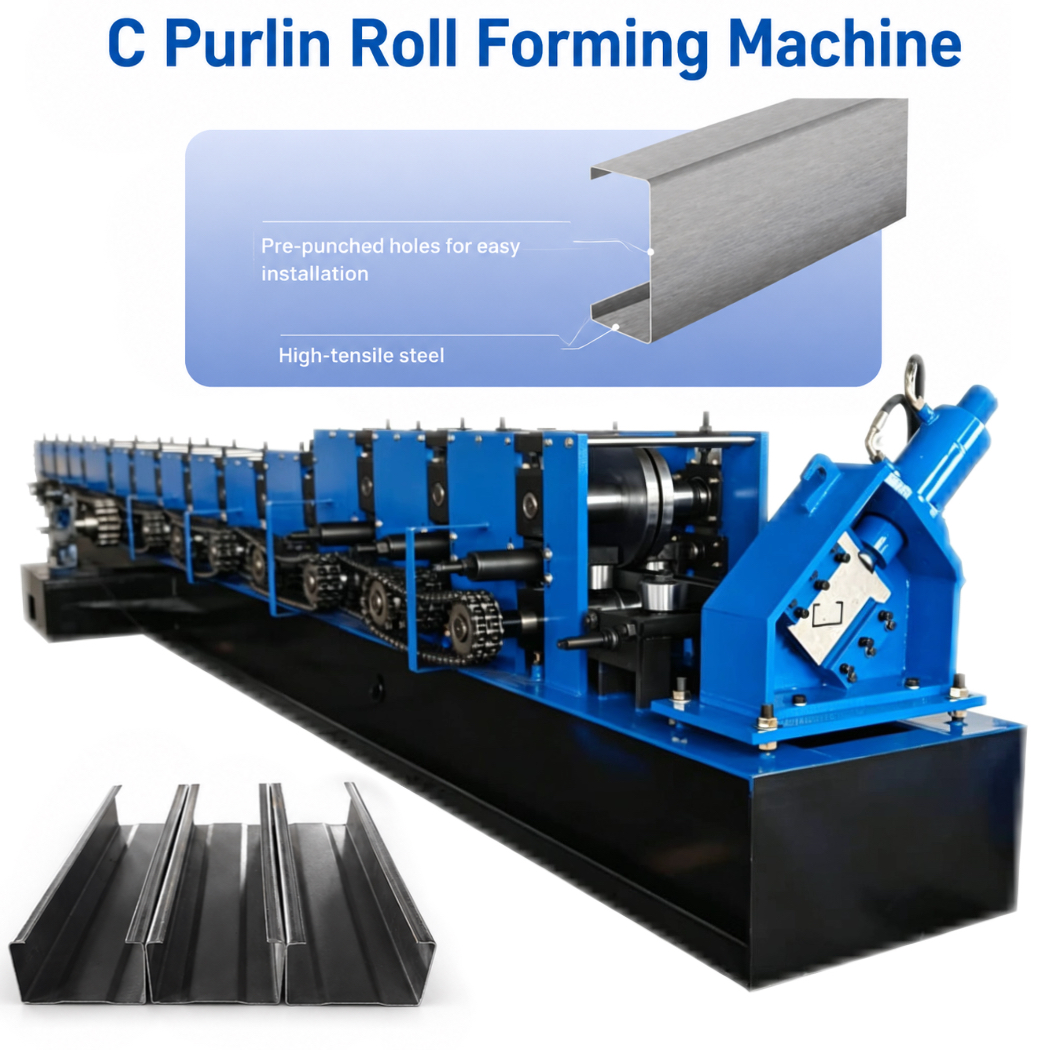

Automatic C Purlin Roll Forming Machine for Steel Production Line

Automatic C Purlin Roll Forming Machine for Steel Production Line is an automated equipment that uses cold bending technology to continuously roll steel strips into C-shaped section steel. It is widely used in fields such as construction,photovoltaics, and warehousing, and has the characteristics of high efficiency, precision, and high degree of automation.

Application Scenario：

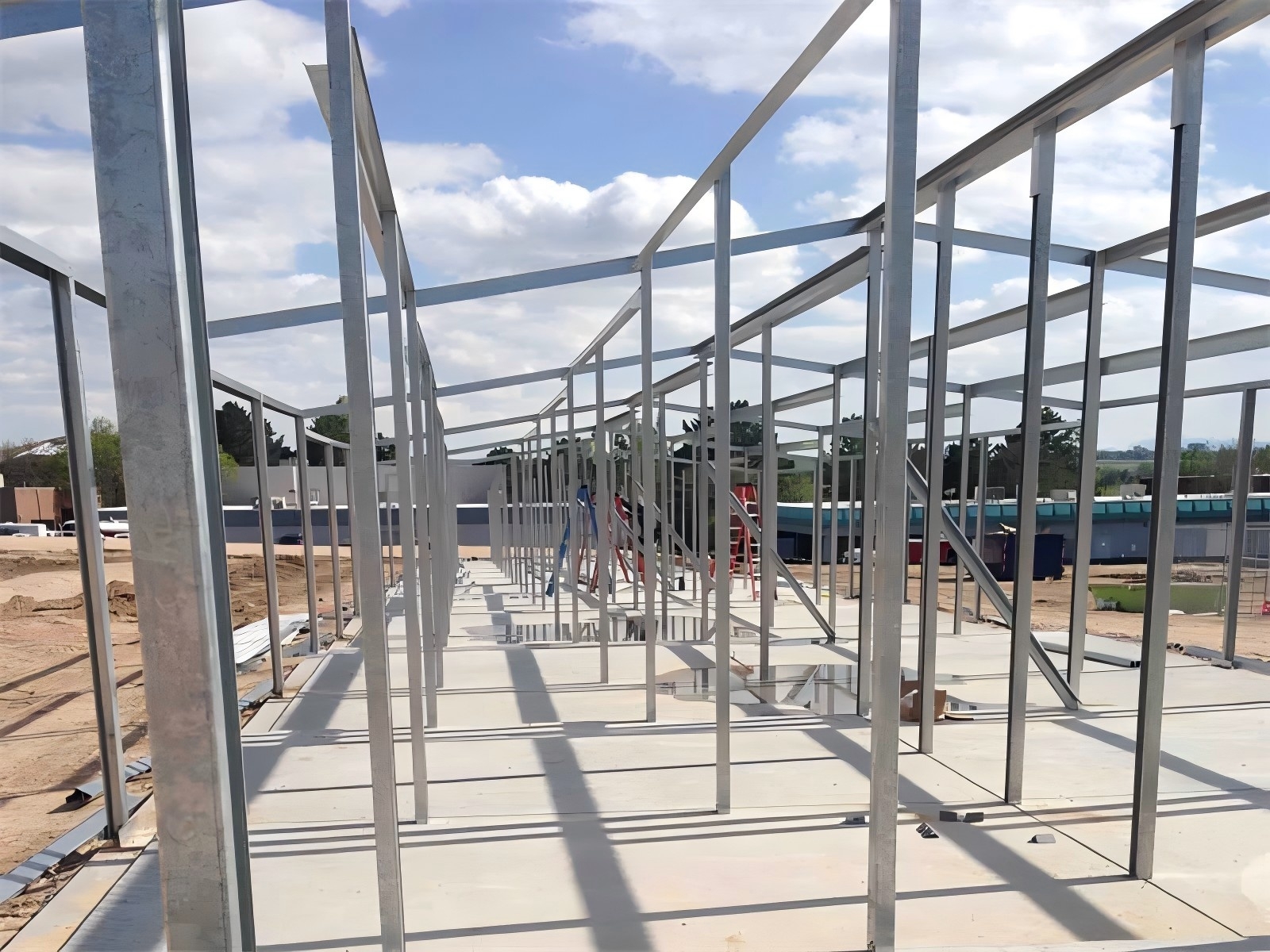

• Steel structure buildings:
used as roof purlins, wall beams, and can also be combined into lightweight roof trusses, brackets, and other components, suitable for large-span buildings such as factories, warehouses, and exhibition halls.

• In the field of new energy：
it is used to produce solar photovoltaic brackets and wind power tower components, meeting the requirements of high-strength and corrosion-resistant outdoor installation.

• Mechanical manufacturing:
applied to the mass production of structural components such as automotive beams, cable trays, and highway guardrail panels.

Product Advantages：

1.High automation production:
Integrating automatic feeding, leveling, forming, punching, fixed length cutting and palletizing functions, using PLC control system to achieve one click operation, greatly reducing manual intervention.

2.Multi specification quick changeover:
Flexible adjustment, some models can complete changeover within three minutes, meeting the production needs of small batches and multiple varieties.

3.High precision forming capability:
The rolling mill is made of high hardness materials such as GCr15 or GCr12Mov, combined with a precision transmission structure,and the dimensional error can be controlled within ± 0.5mm to ensure assembly accuracy.

4.Efficient and energy-saving design:
The main engine power is usually between 15-22kW, and the discharge speed can reach 0-20m/min. Some high-end models can produce over 2000 units per day, with a scrap rate of less than 0.3%.

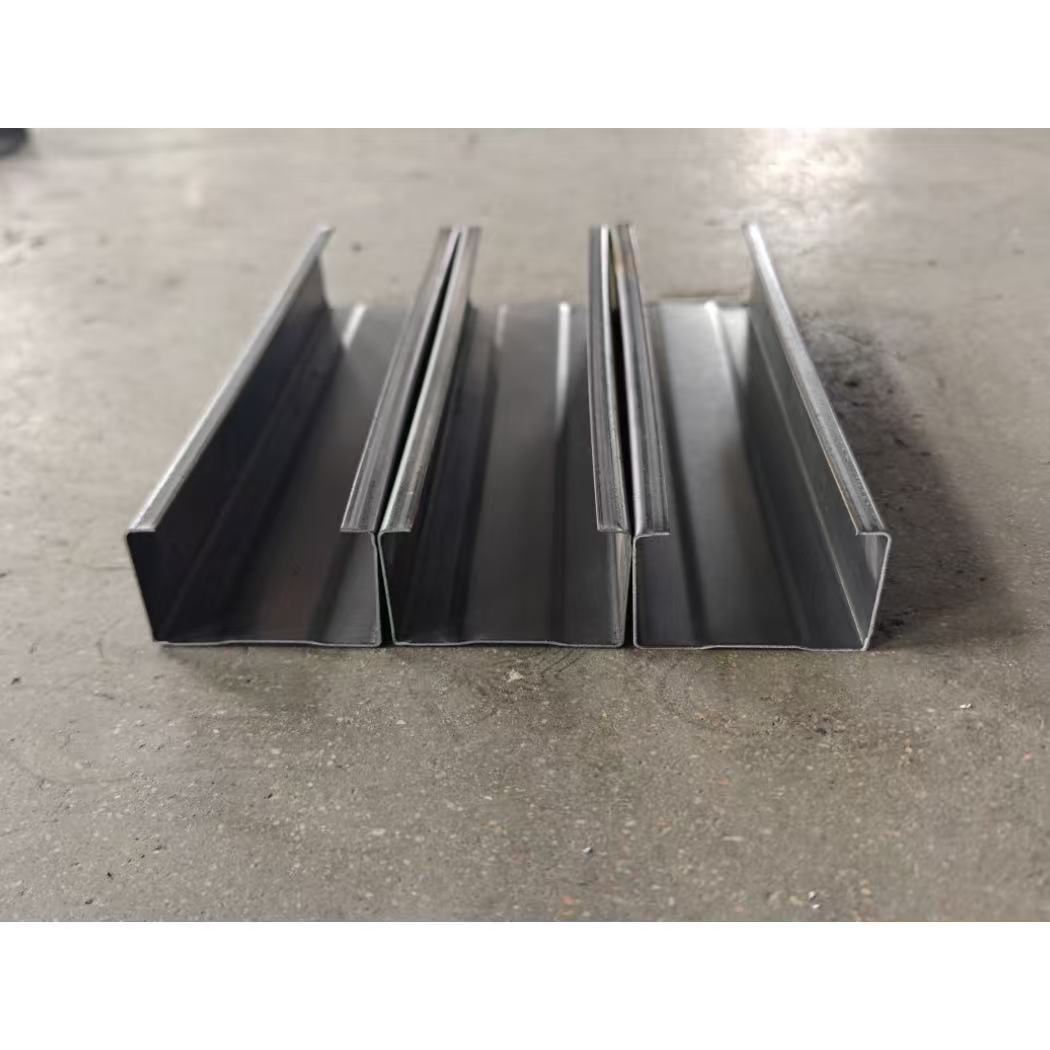

Pattern diagram：

Product Attributes :

1.Formed Material	PPGI,GI,AI	Thickness：0.7-2mm
2.Decoiler	Hydraulic automatic decoiler	Manual decoiler
3.Main body	Roller station	14 rows
	Diameter of shaft	80mm solid shaft
	Material of rollers	Gcr 15 with quenched teeatment
	Machine body frame	Metal steel welded
	Drive	Chain transmission
	Dimension(LWH)	95008001200
	Weight	About 7T
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	11KW
	Hydraulic system power	5.5KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	famous brand
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	0-20m/min	Speed is adjustable according to customer's request

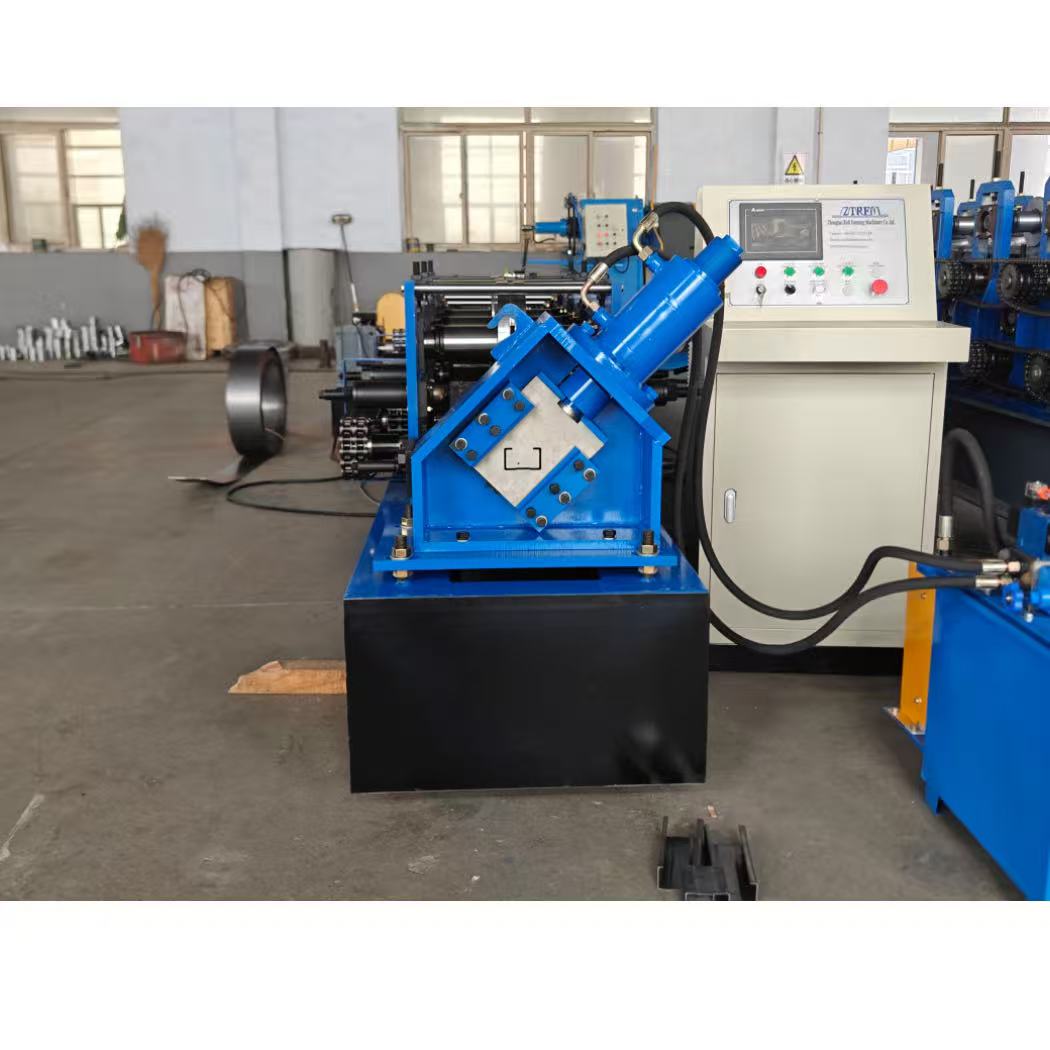

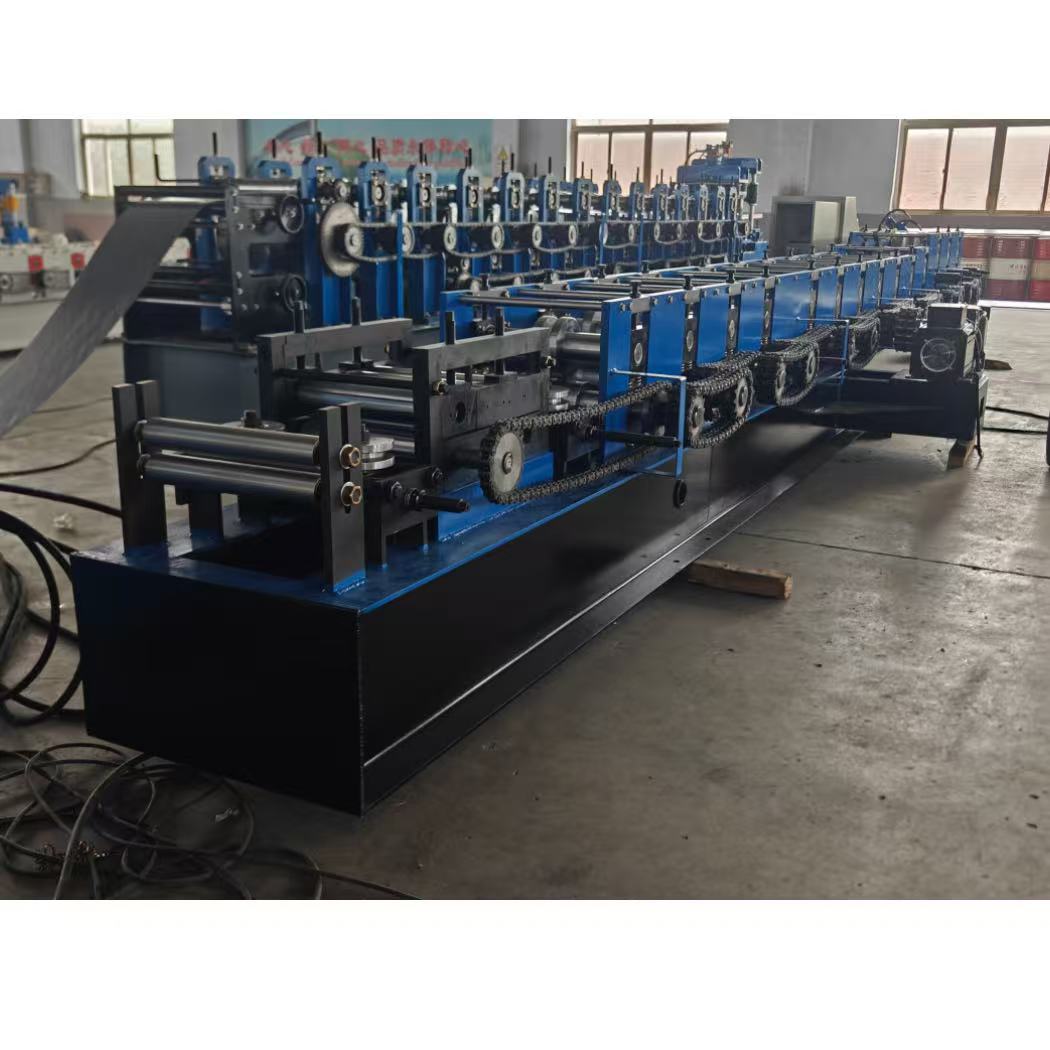

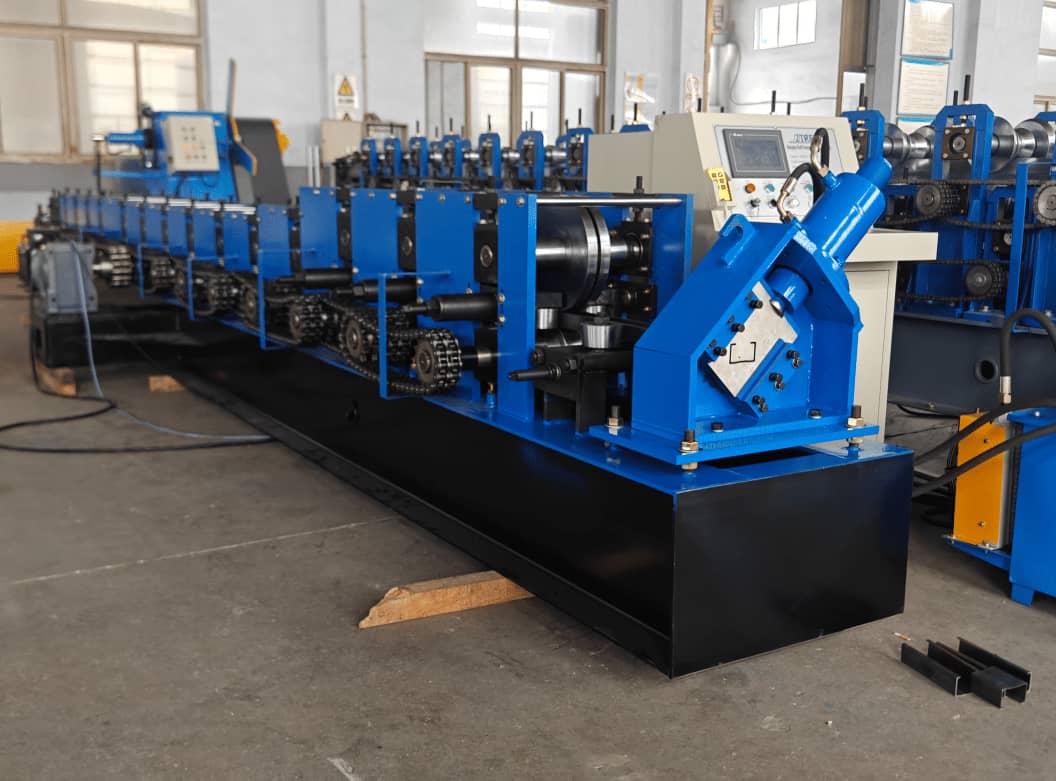

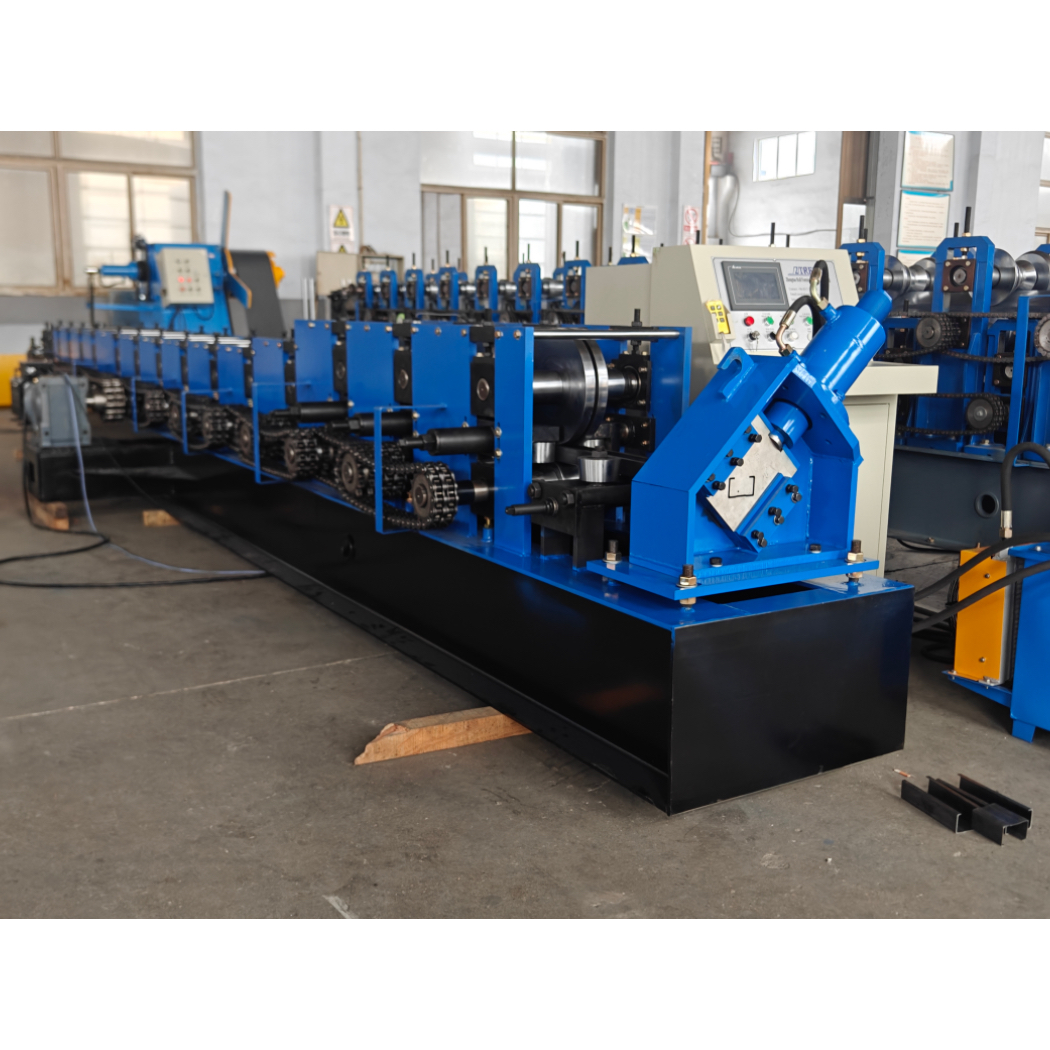

Machine photos:

The Zhongtuo C Purlin Roll Forming Machine is an automated production line that gradually cold bends strip steel into C-shaped section profiles through multiple precision rolling mills at room temperature. The core completes the entire process of leveling, forming, punching, and fixed length cutting. It is a core processing equipment in the fields of steel structures, photovoltaics, and warehousing.
