Color Coated Steel System > Production Equipment > Floor decking roll forming machine
You can log in to view more discounted prices.Login Now
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

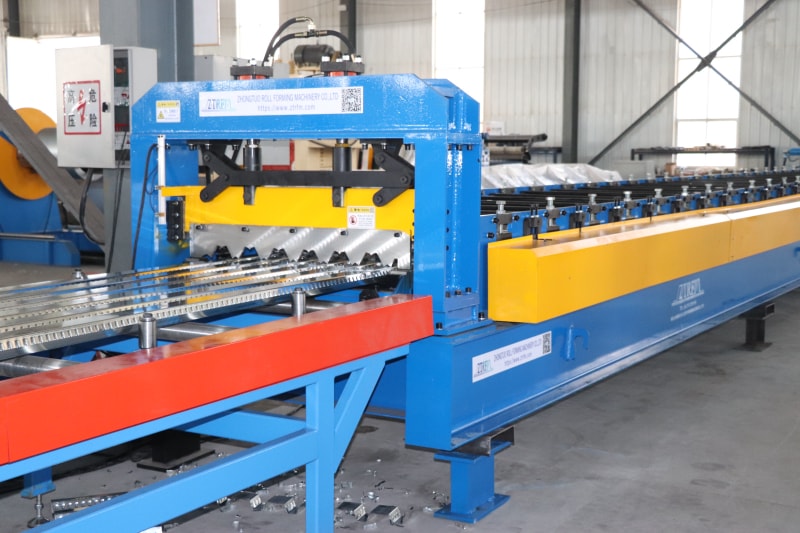

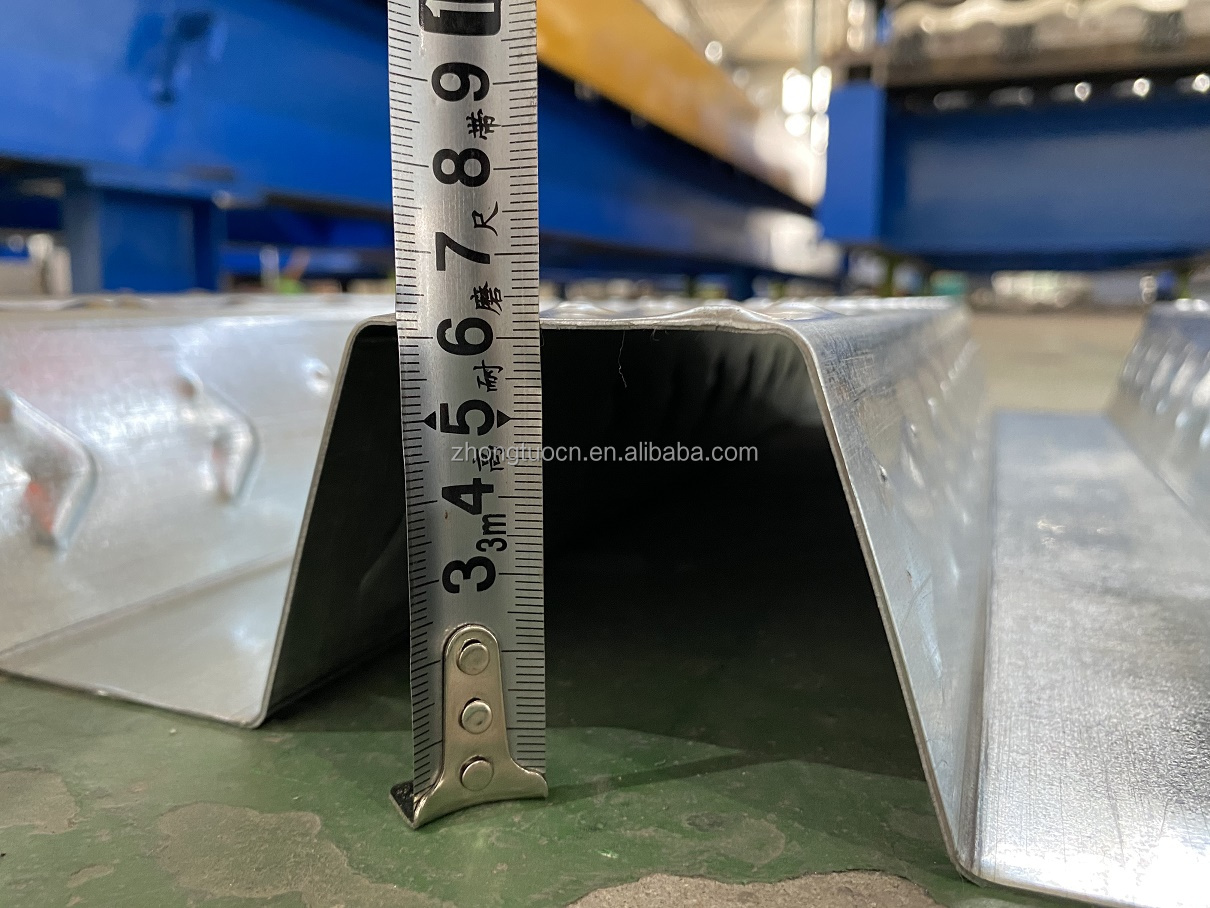

The ZTRFM 36-Inch Metal Decking Roll Forming Machine is specifically engineered to meet the rigorous demands of the North American construction market. Designed for the high-yield production of 1.5B, 2.0B, and 3.0B composite floor decking profiles, this heavy-duty system is the industry choice for multi-story steel buildings, large-scale industrial warehouses, and commercial infrastructures. Its robust engineering ensures reliable forming of high-tensile galvanized steel up to 550MPa yield strength, providing superior structural integrity for flooring systems.

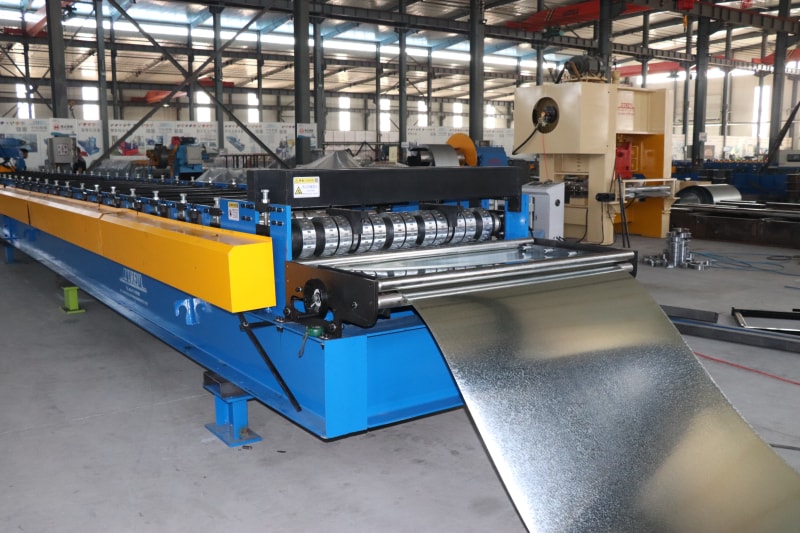

Built on a massive 400 H-steel welded framework, this machine provides unmatched stability for continuous industrial operation. The power system features dual 18.5kW high-performance motors, coupled with a precision 2-inch double-chain drive and integrated chain tensioners to eliminate slack and ensure smooth transmission. The forming section utilizes Φ95mm solid steel shafts and rollers precision-machined from Gcr15 bearing steel, quenched to HRC58-60 for maximum longevity and consistent profile accuracy.
| Technical Parameter | Industrial Specification (36" Series) |
|---|---|
| Forming Material | Galvanized Steel, PPGI (Yield Strength ≤550MPa) |
| Material Thickness | 0.8 - 1.5mm (16 - 22 Gauge) |
| Effective Width | 36 Inch / 914mm (Input Width: 1220mm) |
| Main Framework | 400 H-Steel Welded Frame |
| Shaft Diameter | Φ95mm Solid Precision Steel Shafts |
| Roller Material | Gcr15 Steel, Quenched HRC58-60, Chromed |
| Drive Engine | Dual 18.5kW Motors (Total 37kW Power) |
| Power Supply | 480V 60Hz 3-Phase (North American Spec) |
| Forming Speed | 0 - 15 Meters per Minute (Adjustable) |
Equipped with a customized high-end PLC control cabinet featuring aviation-grade connectors and a multi-language HMI, the entire line operates with minimal manual intervention. The hydraulic station is fitted with a dual-fan cooling system to ensure continuous 24/7 industrial production without overheating. Furthermore, our 8-ton heavy-duty hydraulic decoiler with car-loading capability significantly reduces setup time, making this the most efficient solution for large-scale North American steel decking manufacturing.

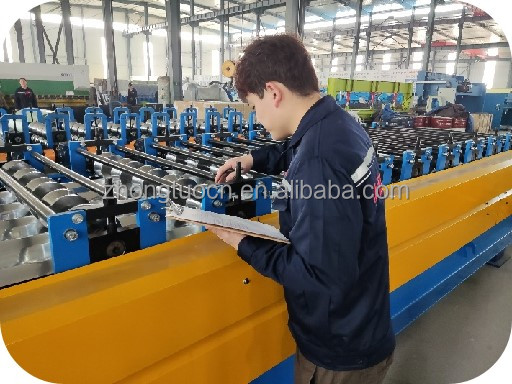

Cangzhou ZHONGTUO Cold Roll Forming Co., Ltd possesses extensive experience in exporting high-precision machinery to the USA and Canada. Our engineering team provides comprehensive training and lifetime technical support. Every 36-inch decking machine undergoes rigorous full-load testing before shipment to ensure immediate operational excellence upon arrival at your facility.
